Rotary SM14 14,000lb 4 Post Lift – ALI Certified

Rotary SM14 4 Post Lift

The Rotary SM14 is a premium four-post, closed-front drive-on lift engineered for fast, efficient service of cars, SUVs, trucks, and vans up to 14,000 lbs. Vehicles can be driven directly onto the runways, making positioning quick and effortless while ensuring consistent lifting accuracy. Designed for professional automotive environments, the SM14 delivers dependable performance for daily service and inspection work.

Built to Rotary’s exacting standards, the SM14 features single-piece, non-welded runways that maximize structural strength and long-term durability. Louvered ramps improve tire traction during drive-on and exit, while the powder-coated Hammer Tone finish enhances corrosion resistance and overall longevity. For shops focused on productivity, optional ShockWave™ technology dramatically reduces lift and lowering times, helping technicians complete more jobs per bay.

The SM14 is ideal for general repair shops, dealerships, fleet service centers, and inspection facilities that require a stable, drive-on lifting solution. With long wheelbase support, generous runway spacing, and multiple configuration options, this lift is built to handle a wide range of vehicles while maintaining safety, speed, and reliability.

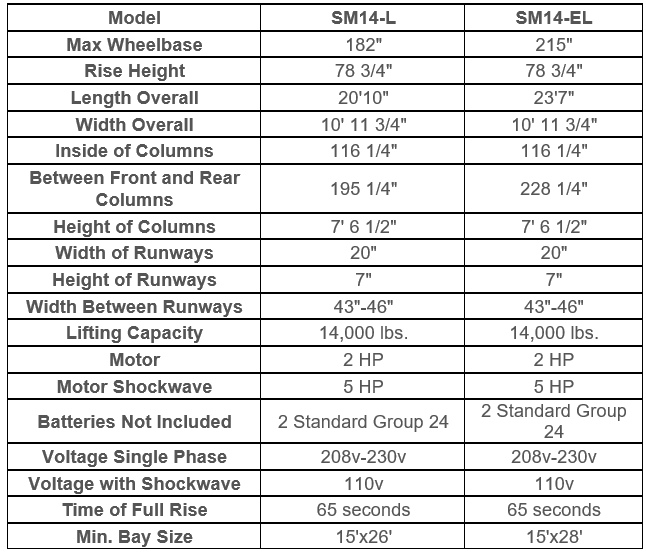

SM 14 Specifications

• Lifting Capacity: 14,000 lbs

• Lift Type: Four-Post, Closed-Front Drive-On

• Maximum Wheelbase:

  • SM14-L: 182″

  • SM14-EL: 215″

• Rise Height: 78 3/4″

• Overall Length:

  • SM14-L: 250″

  • SM14-EL: 283″

• Overall Width: 131 3/4″

• Inside Column Width: 116 1/4″

• Distance Between Front & Rear Columns:

  • SM14-L: 195 1/4″

  • SM14-EL: 228 1/4″

• Column Height: 90 1/2″

• Runway Width: 20″

• Min Height: 7″

• Width Between Runways: 43″ – 46″

• Motor (Standard): 2 HP

• Motor (ShockWave™): 5 HP (Optional Feature)

• Voltage (Single Phase): 208–230V

• Voltage with ShockWave™: 110V

• Time of Full Rise: 65 seconds

• ShockWave™ Full Rise / Descent: 35 seconds / 18 seconds

• Minimum Bay Size:

  • SM14-L: 180″ x 312″

  • SM14-EL: 180″ x 336″

• ShockWave™ Batteries: Two Group 24 (not included)

SM14 14,000 Lbs. Four-Post Lift Special Features

• 14,000 lb capacity suitable for cars, SUVs, trucks, and vans

• Closed-front drive-on design for fast vehicle positioning

• Single-piece, non-welded runways for superior structural strength

• Louvered ramps for improved traction and safety

• Durable powder-coated Hammer Tone finish

• Optional ShockWave™ technology for dramatically faster lift cycles

• Long wheelbase support for extended vehicles

• Ideal for high-volume professional service environments

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
