Amgo AX-16A 16,000 Lb Alignment Scissor Lift
Introducing the robust and efficient AX-16A Alignment Lift, an essential tool for any professional automotive workshop. With a formidable lifting capacity of 16,000 lbs (7,300 kg), this lift is specifically designed to handle heavy-duty vehicles, making it perfect for alignment services in busy commercial settings.
The AX-16A offers a substantial maximum lifting height of 73 5/8 inches (1870 mm), providing ample space for a variety of undercarriage work. It reaches this height in just 110 seconds, thanks to its powerful 2.0HP motor operating at 220V/60Hz, ensuring quick and efficient lifting operations. Its minimum height stands at 13 inches (330 mm), allowing for easy placement and removal of vehicles.
Designed with precision in mind, the lift features an impressive runway length of 213 3/4 inches (5428 mm) and an overall width of 94 1/8 inches (2390 mm), accommodating a wide range of vehicle sizes. The width between the runways is 44 7/8 inches (1140 mm), making it versatile for different vehicle types.
The AX-16A is also equipped for detailed alignment tasks with specifications that support both two-wheel and four-wheel alignments. The minimum four-wheel alignment length is 98 inches (2490 mm), and it can extend up to 184 1/2 inches (4680 mm) for maximum four-wheel alignment, with a generous 190 1/2 inches (4840 mm) for two-wheel alignment.

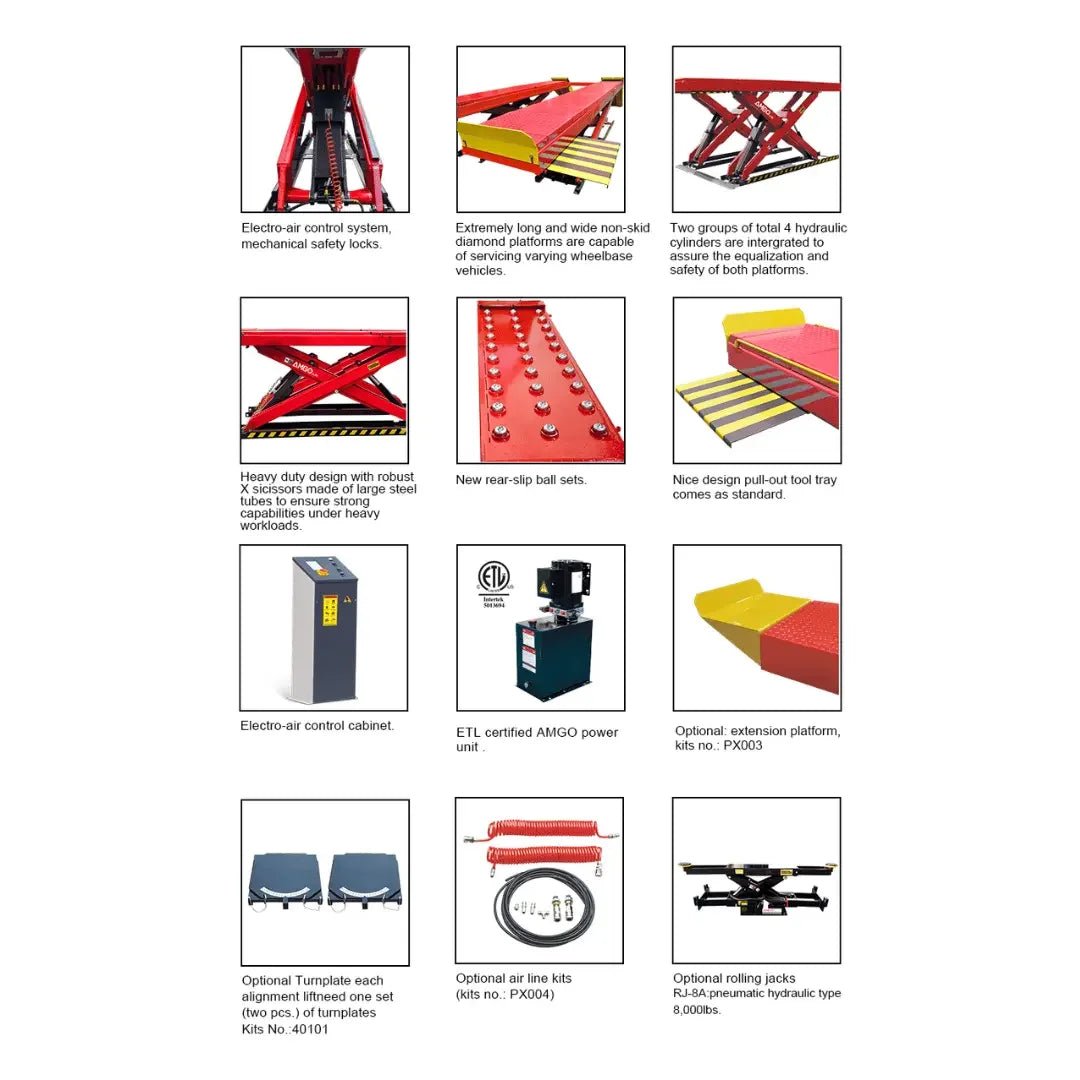

Product Features
- 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
- Electro-air control system, which operates the self-lock safety mechanism
- Heavy-duty design, the X serial scissors lift uses a 5 7/8″ x 3″ tube to make it stronger and assures the runways remain level during operation
- Skid proof diamond platform

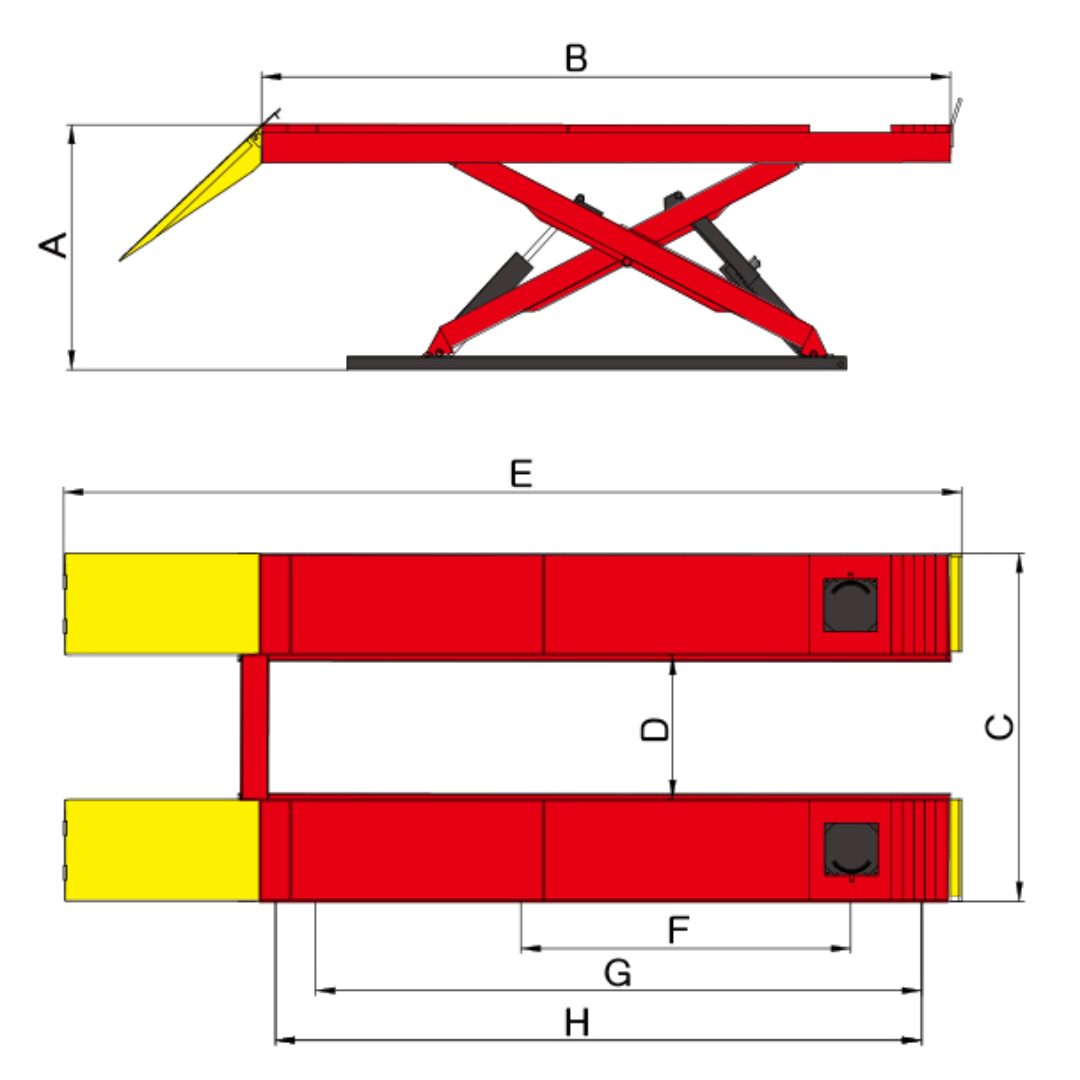

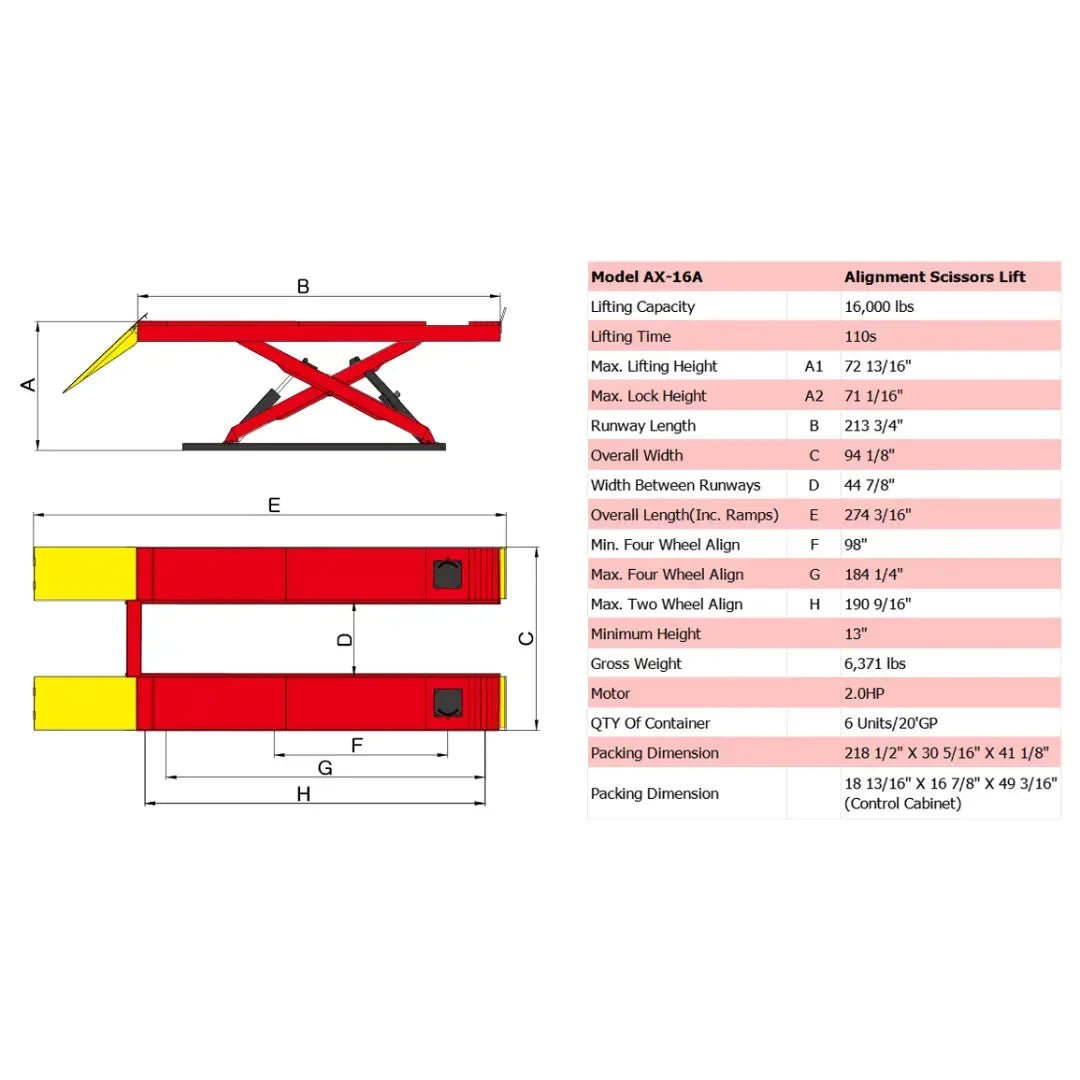

Product Specifications
| Model | AX-16A |
| Lifting Capacity | 16,000 lbs |
| Lifting Time | 110 seconds |
| A1: Max. Lifting Height | 72 13/16″ |
| A2: Max. Lock Height | 71 1/16″ |
| B: Runway Length | 213 3/4″ |
| C: Overall Width | 94 1/8″ |
| D: Width Between Runways | 44 7/8″ |
| E: Overall Length (Inc.Ramps) | 274 3/16″ |
| F: Min. Four Wheel Align | 98″ |
| G: Max. Four Wheel Align | 184 1/4″ |
| H: Max. Two Wheel Align | 190 9/16″ |
| Minimum Height | 13″ |
| Motor | 2.0HP |
| Gross Weight | 6,371 lbs |
| QTY of Container | 6 Units/20’GP |

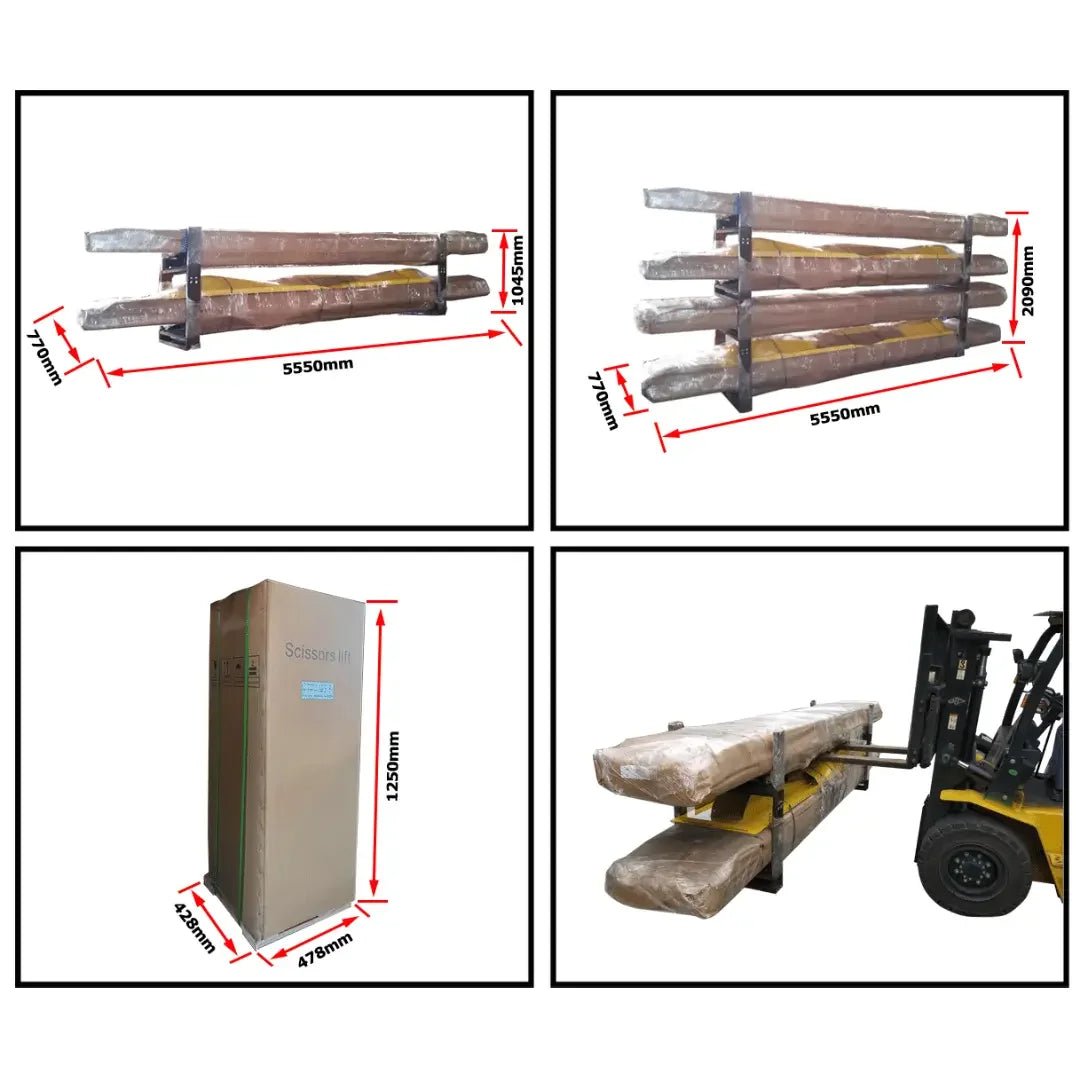

| Packing Dimension | 218 1/2″ X 30 5/16″ X 41 1/8″ |
| Packing Dimension | 18 13/16″ X 16 7/8″ X 49 3/16″ (Control Cabinet) |
