Amgo PRO-12ASX 12,000 lb 4 Post Alignment Lift
Upgrade your auto shop with the AMGO PRO-12ASX 4-Post Alignment Lift, designed to handle up to 12,000 lbs. This lift is perfect for a variety of vehicles and features air-released safety locks and mechanical self-locking for secure use. The adjustable turnplate pockets and skid-proof diamond platform add versatility and safety to your operations.
Built with high-quality hydraulic cylinders and aircraft-grade cables, this lift ensures reliable performance and durability. Its advanced safety features, like cable-breaking protection, provide peace of mind and precision in every task.
Mechanic Superstore offers this top-tier lift with a comprehensive warranty, demonstrating our commitment to quality and customer satisfaction. Enhance your alignment services with this durable, high-capacity lift and experience improved efficiency and reliability.

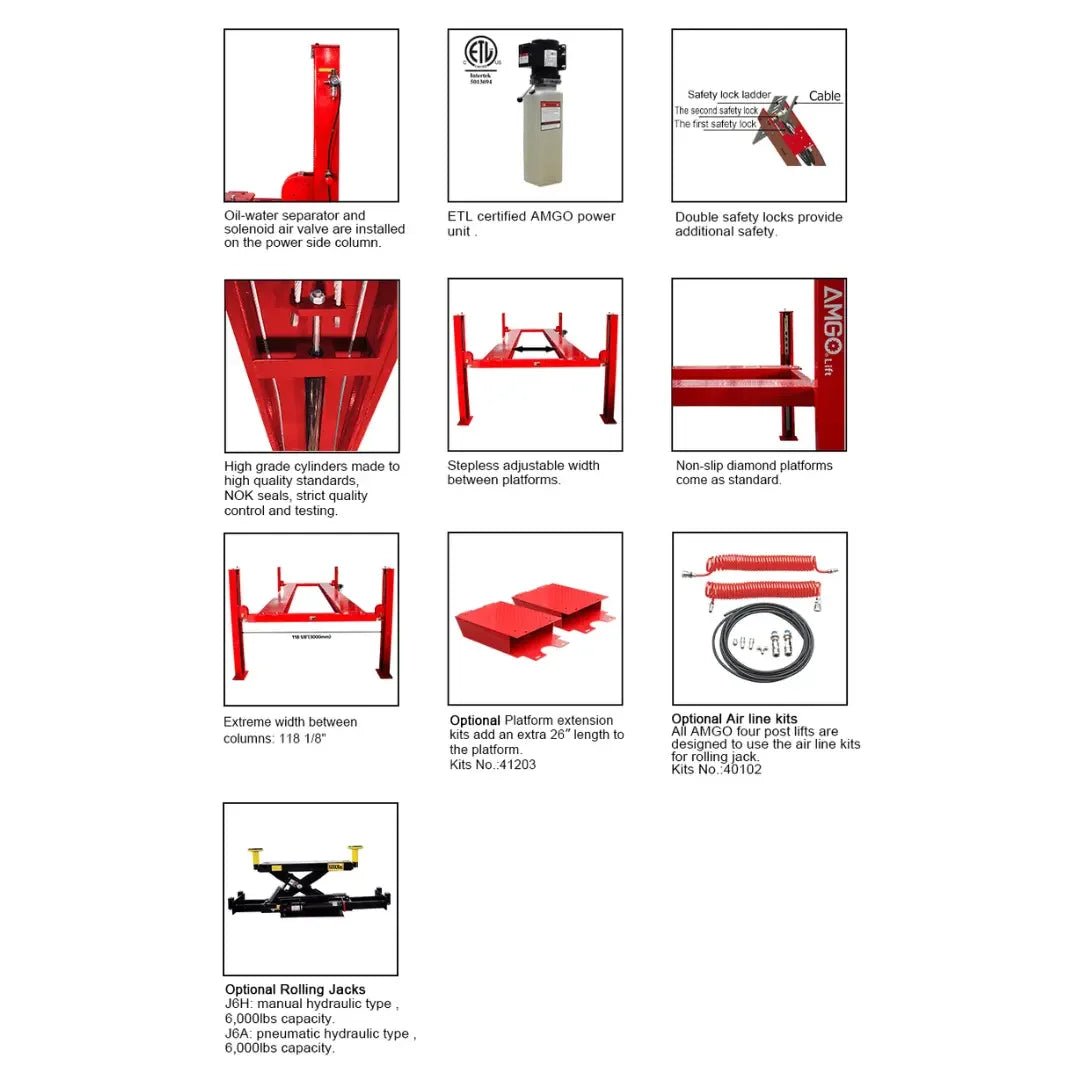

Product Features
- 12,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
- Integrated slip plates and adjustable turnplate pockets.

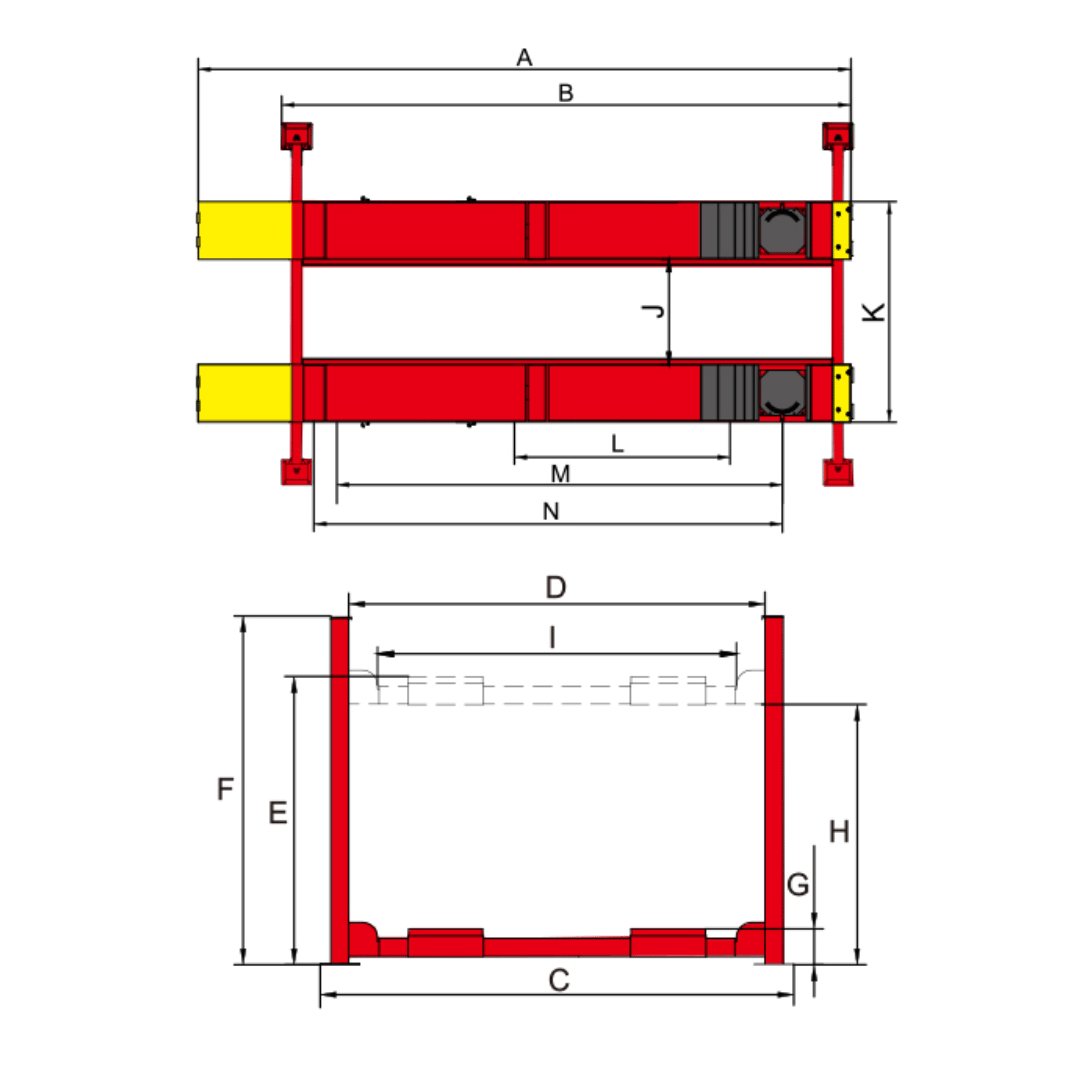

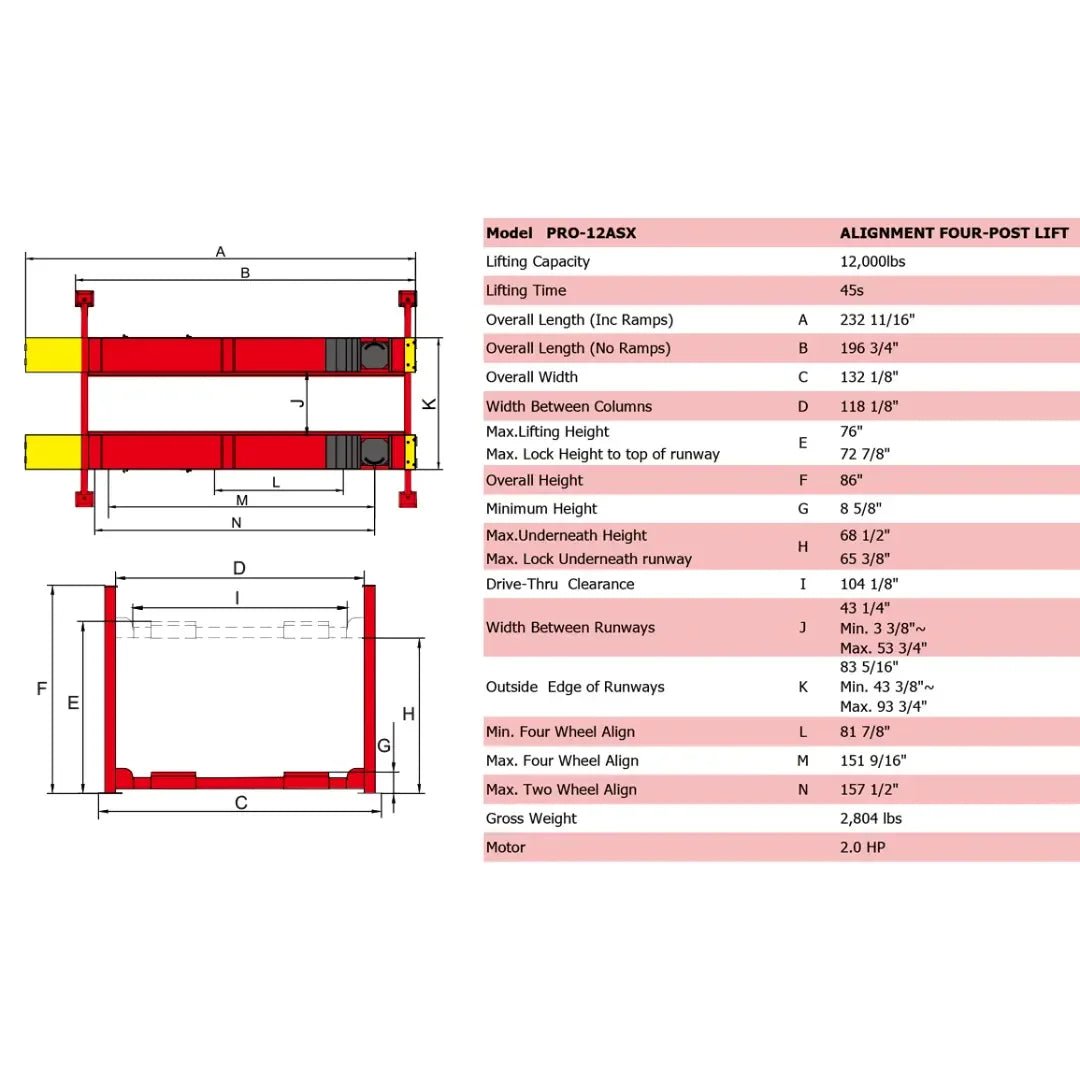

Product Specifications
| Model | PRO-12ASX |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 1/16″ |
| B: Overall Length (No.Ramps) | 196 3/4″ |
| C: Overall Width | 132 1/8″ |
| D: Width Between Columns | 118 1/8″ |
| E: Max. Lifting Height | 76″ |
| E: Max. Lock Height to Top of Runway | 72 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 8 5/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 104 1/8″ |
| J: Width Between Runways | 43 1/4″, Min. 39 3/8″, Max. 53 3/4″ |
| K: Outside Edge of Runways | 83 5/16″, Min. 43 3/8″, Max. 93 3/4″ |
| L: Min. Four Wheel Align | 81 7/8″ |
| M: Max. Four Wheel Align | 151 9/16″ |
| N: Max. Two Wheel Align | 157 1/2″ |
| Gross Weight | 2,804 lbs |
| Motor | 2.0HP |
