Amgo PRO-18A 18,000 lb 4 Post Alignment Lift
The AMGO PRO-18A 18,000 lb 4 post car lift is a heavy-duty alignment lift built for efficiency, power, and precision in commercial automotive shops. This 4 post vehicle lift features aircraft-grade cable drive, mechanical self-locking safety with an air-released lock, and multiple safety locks plus cable-slack protection for top-level operator confidence.
Designed with extra-long, non-skid diamond-plate runways, integrated slip plates, and adjustable turnplate pockets, the PRO-18A makes alignment work smooth and accurate across a wide range of wheelbases. Adjustable runway spacing and wide drive-through clearance simplify vehicle positioning, while a quality hydraulic cylinder with flow control ensures smooth, consistent lifting.
This 4 post auto lift delivers fast lift times, robust construction, and alignment-ready features—making it a smart investment for shops handling SUVs, trucks, and vans with alignment demands.

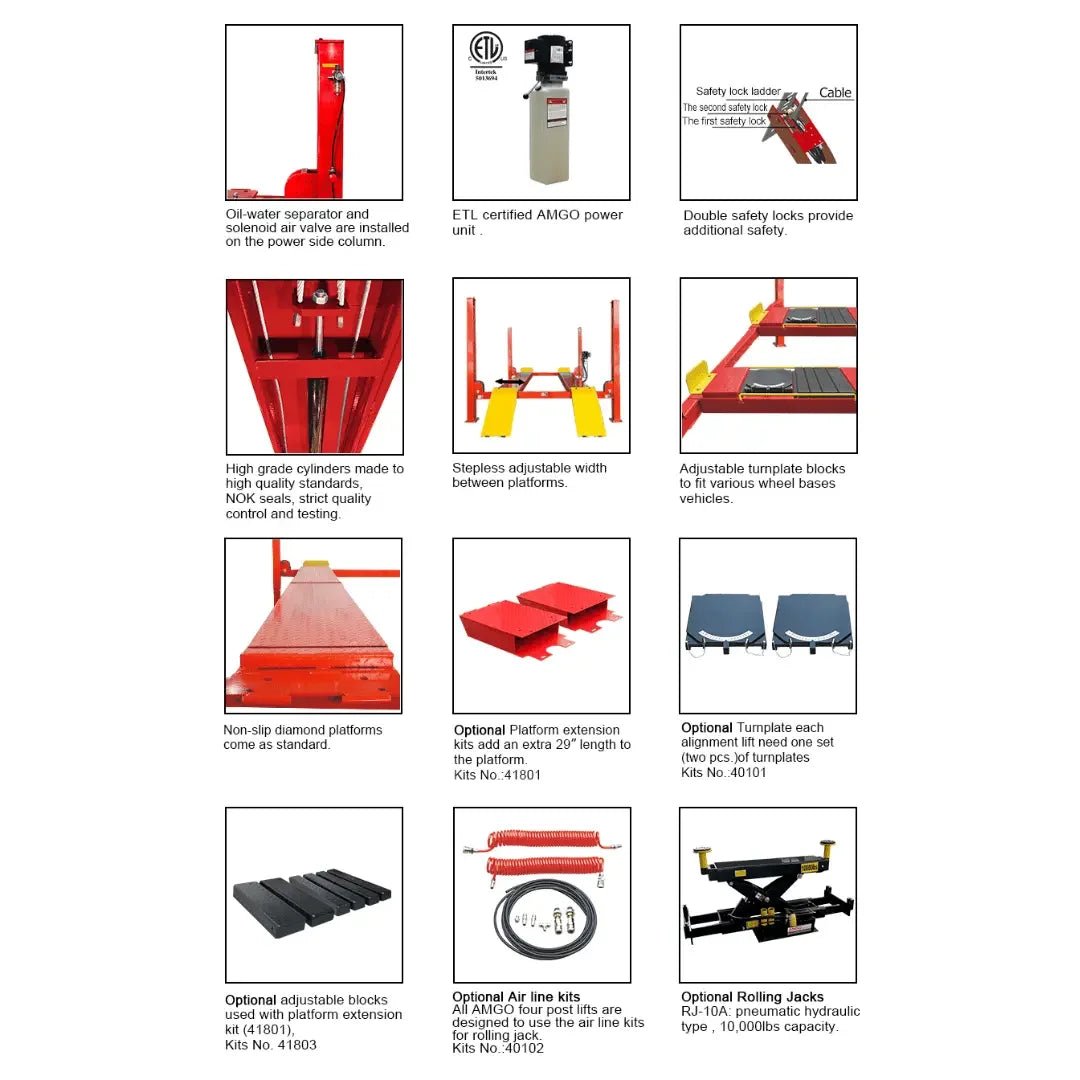

Product Features
- 18,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
- Integrated slip plates and adjustable turnplate pockets.

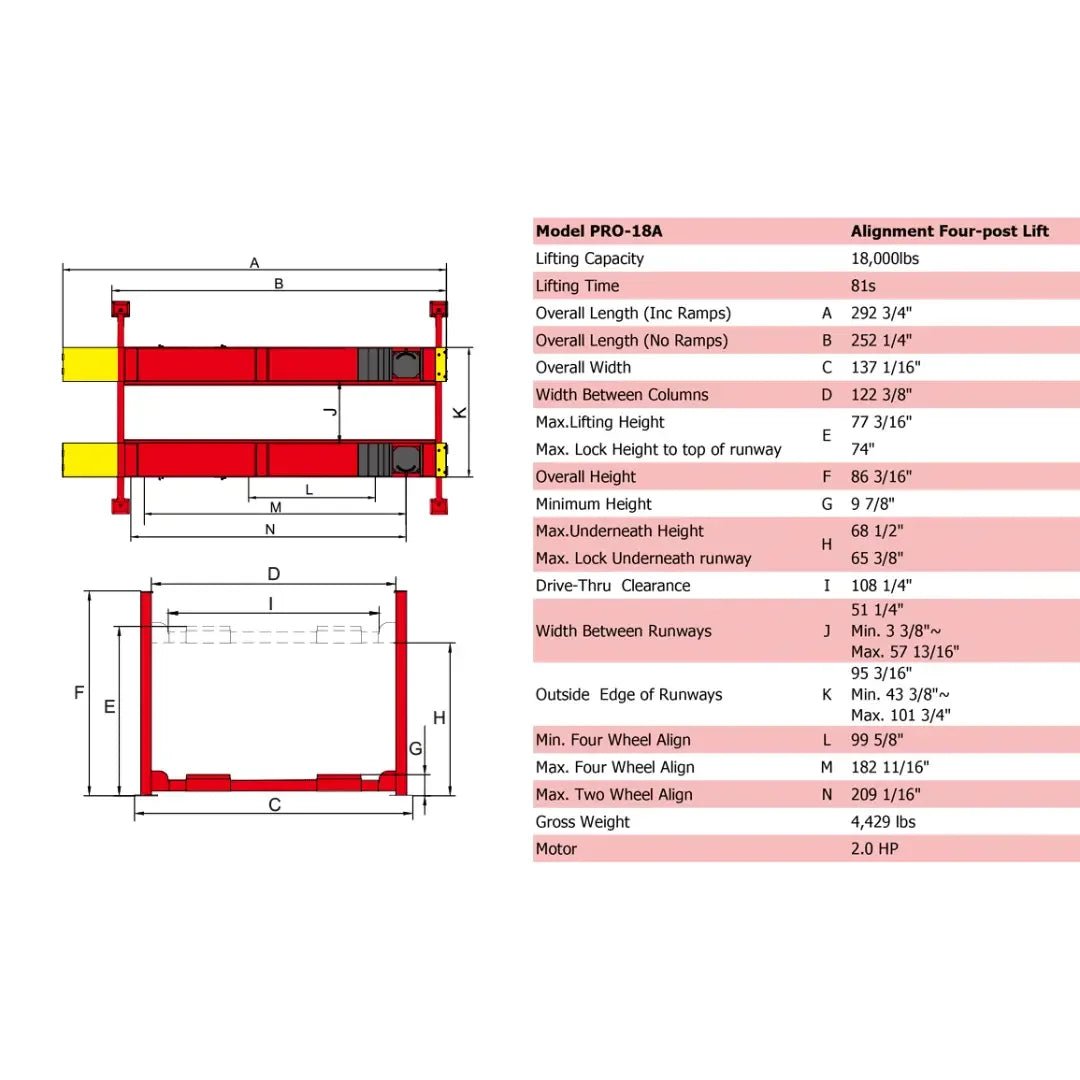

Product Specifications
| Model | PRO-18A |
|---|---|
| Lifting Capacity | 18,000 lbs |
| Lifting Time | 81S |

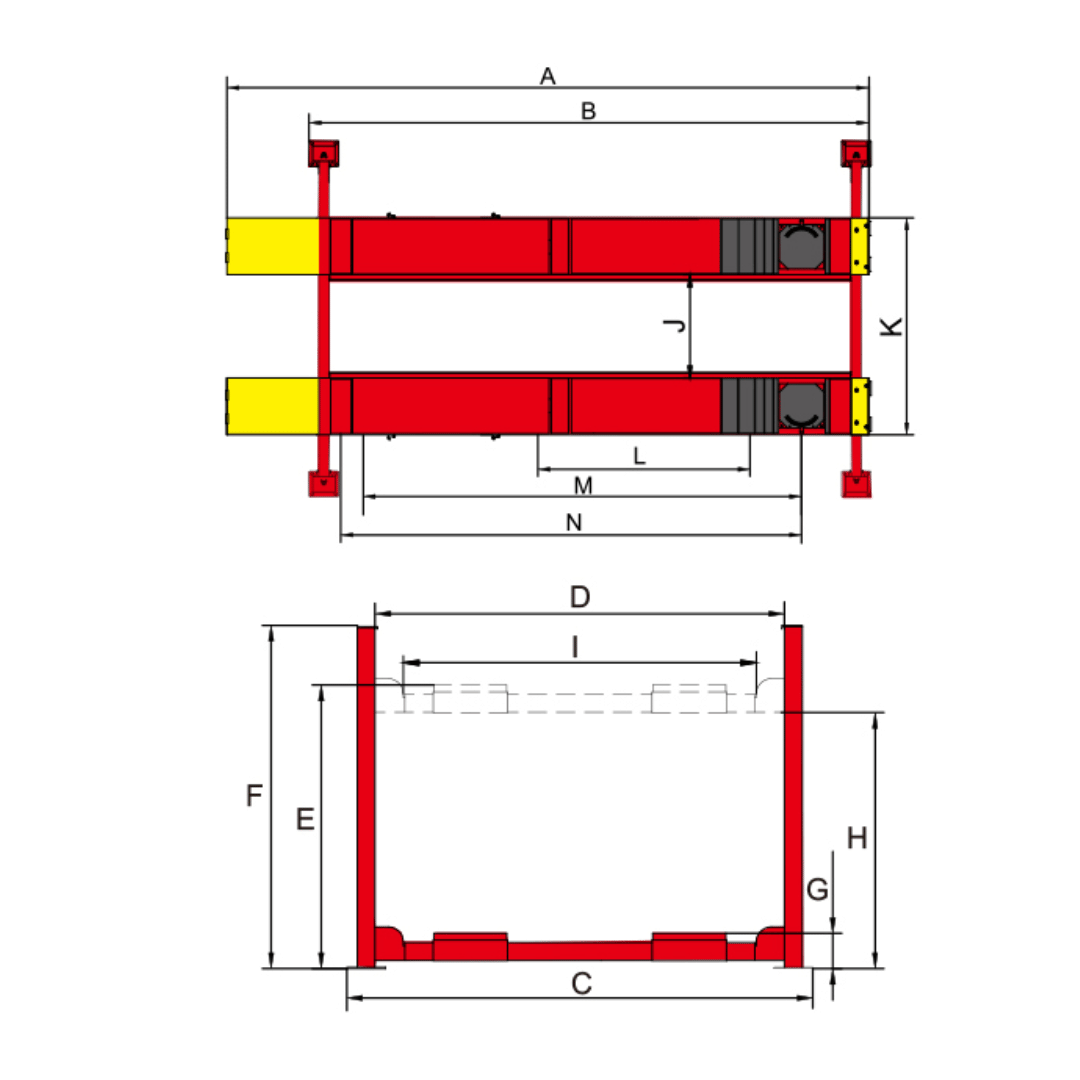

| A: Overall Length (Inc.Ramps) | 292 3/4″ |
| B: Overall Length (No.Ramps) | 252 1/4″ |
| C: Overall Width | 137 1/16″ |
| D: Width Between Columns | 122 3/8″ |
| E: Max. Lifting Height | 77 3/16″ |
| E: Max. Lock Height to Top of Runway | 74″ |
| F: Overall Height | 86 3/16″ |
| G: Minimum Height | 9 7/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 108 1/4″ |
| J: Width Between Runways | 51 1/4″, Min. 3 3/8″, Max. 57 13/16″ |
| K: Outside Edge of Runways | 95 3/16″, Min. 43 3/8″, Max. 101 3/4″ |
| L: Min. Four Wheel Align | 99 5/8″ |
| M: Max. Four Wheel Align | 182 11/16″ |
| N: Max. Two Wheel Align | 209 1/16″ |
| Gross Weight | 4,429 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
