APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty – HW-10KOH-A
$2,629.00
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
25
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
All 2-Post Car Lifts
-
Industry leading 3 YEAR WARRANTY (a $499 value!)
-

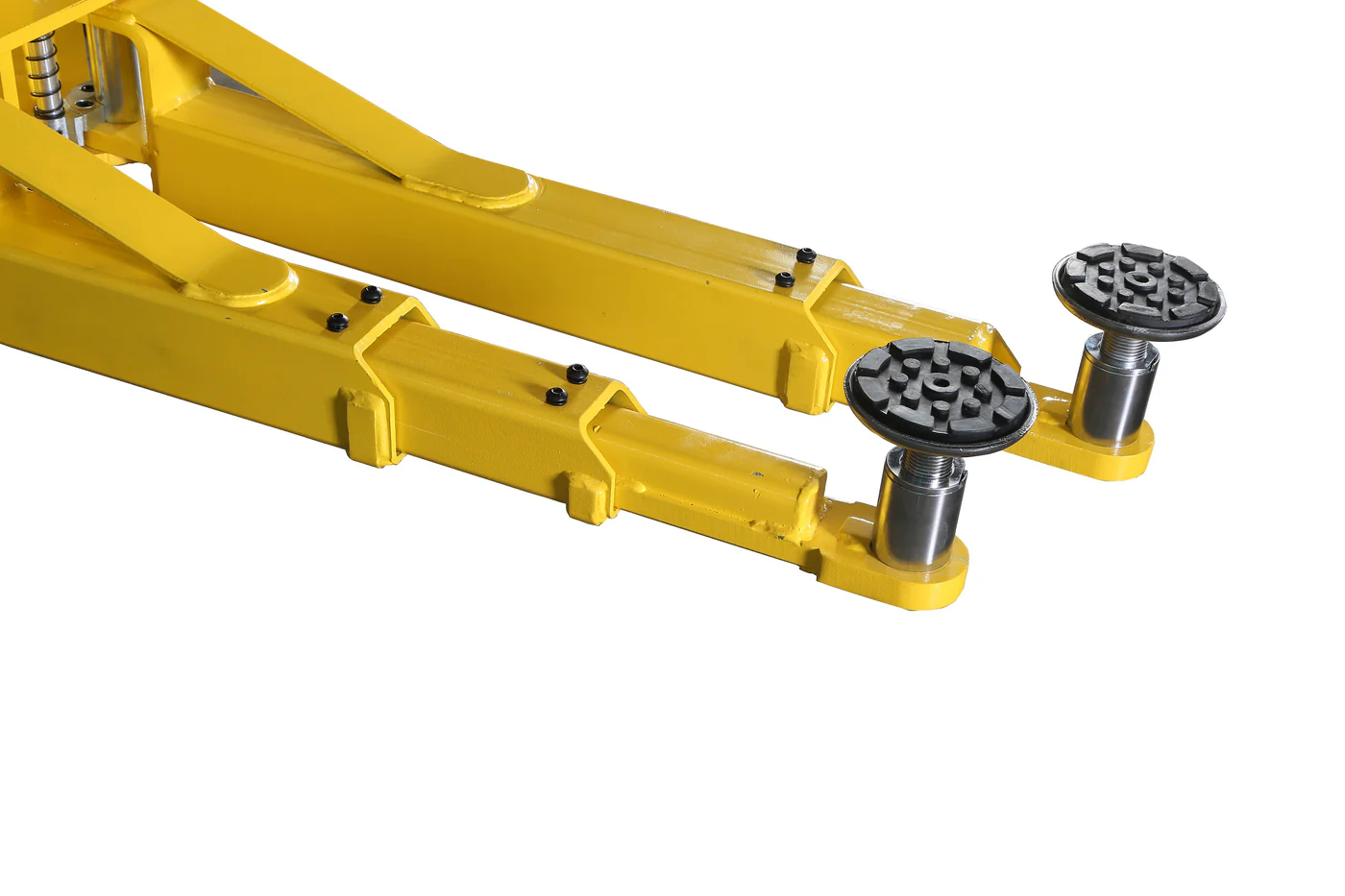

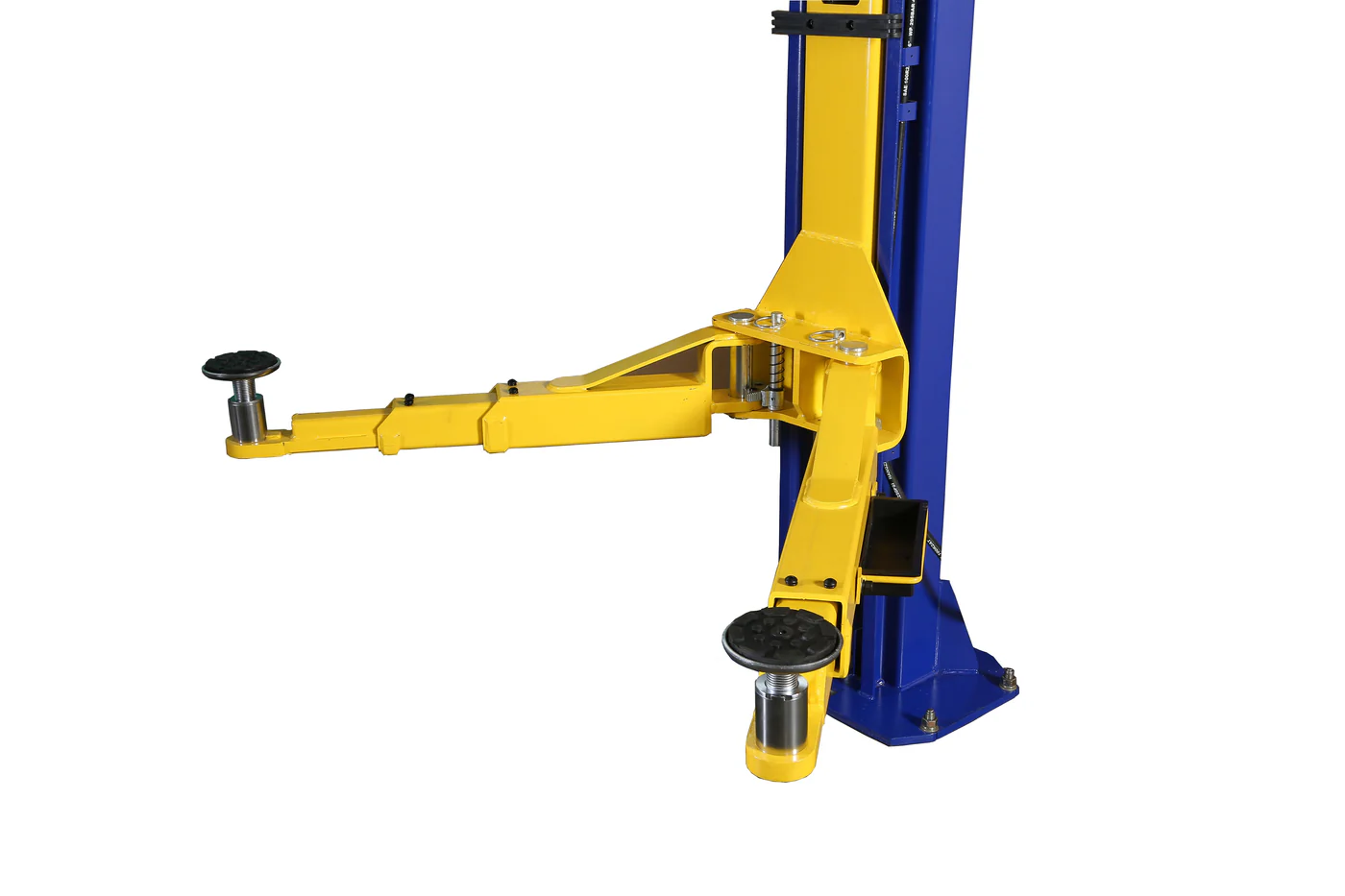

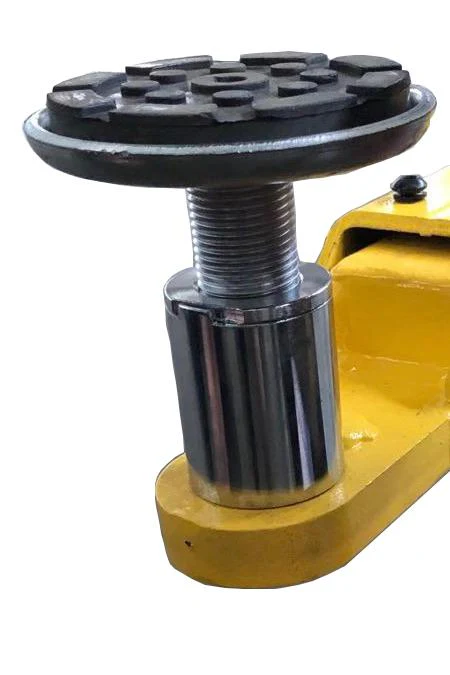

Combo (Symmetrical and Asymmetrical) Arm Assembly with Adjustable Screw Pads!
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish

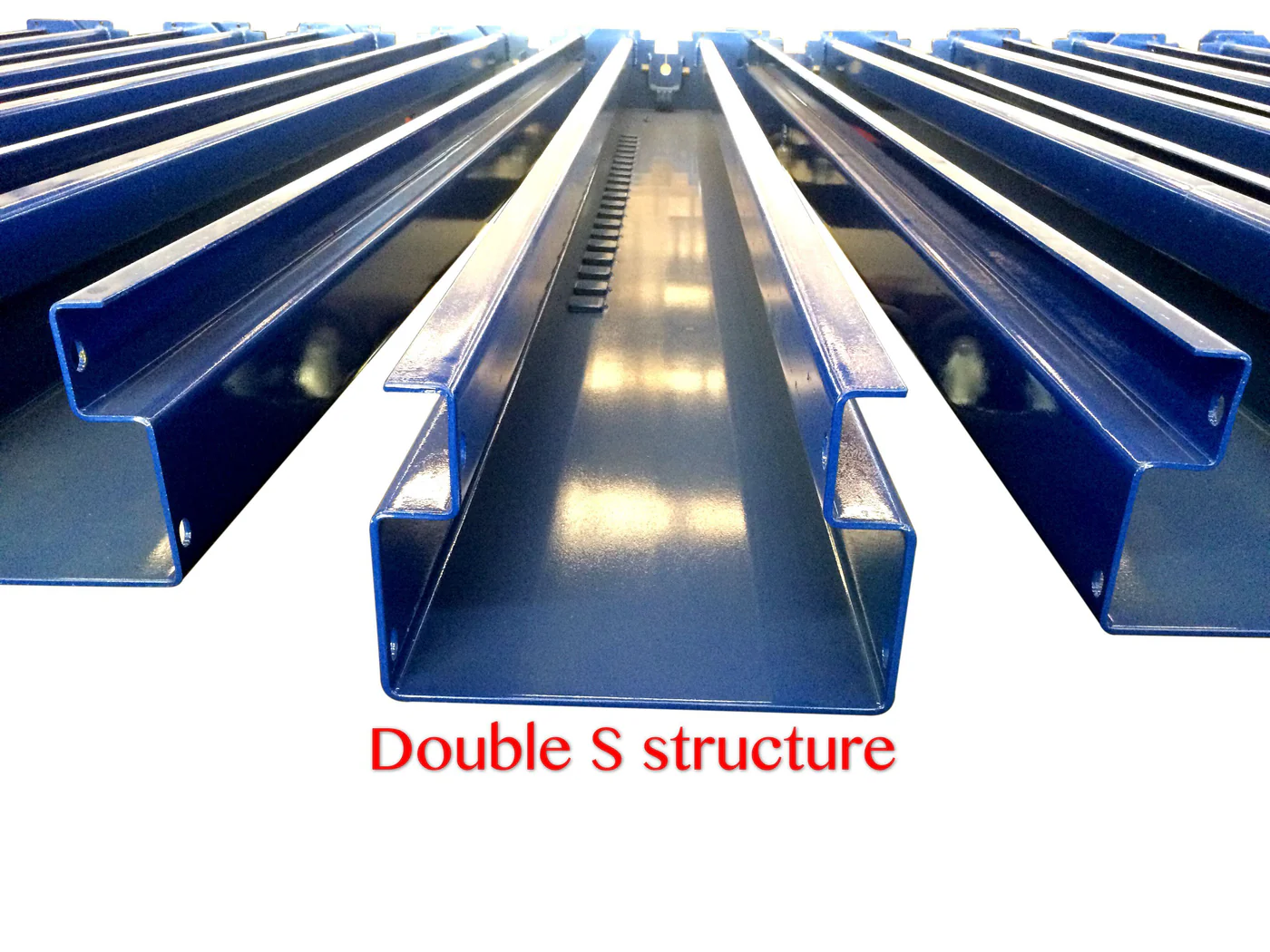

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity. We also have AP-10SR 10000LB overhead car lift with single point release.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts. We welcome suggestions to improve our products and service!
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $200 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Los Angeles (CA), Mobile (AL), Ontario (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications |
|||||||||
| Model | HW-10KOH-A (This Model) |
AP-10SR (for Comparison) |
|||||||
| Manual | HW-10KOH-A Manual | AP-10SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Double Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||
| Overall Height | 143 3/16″ | 143 3/16″ | |||||||
| Overall Width | 134 5/16″ | 134 5/16″ | |||||||
| Maximum Lift height with Truck Adapters | 81″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 75″ | 75″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 100″ | 100″ | |||||||
| Column to Column Width | 109″ | 109″ | |||||||
| Column Cross Section | 11″L x 7″W | 11″L x 7″W | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) | 220V Single Phase 3HP 10A (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Shipping Weight | 1470 LB | 1400 LB and 120 LB | |||||||

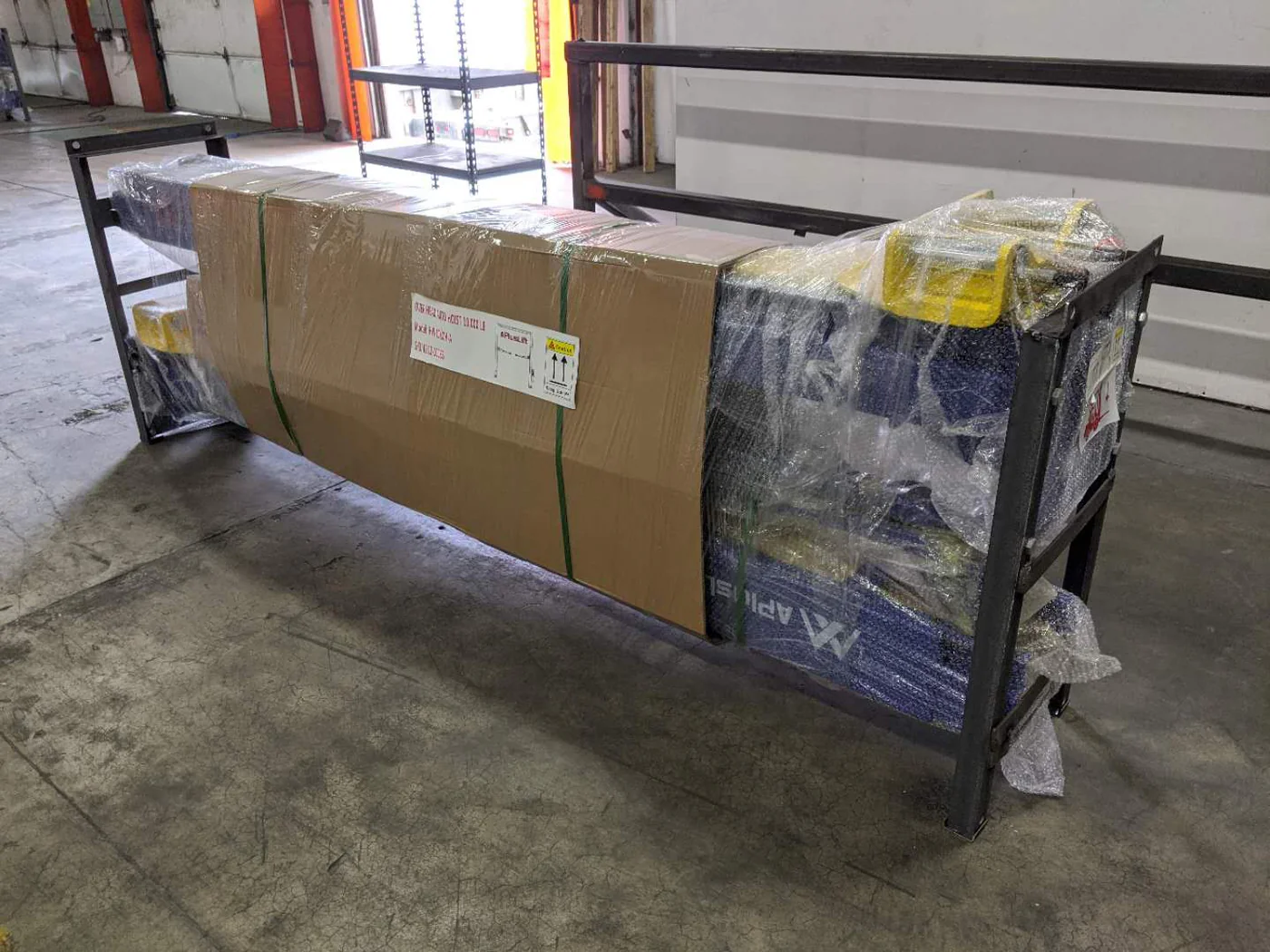

| Shipping package size | 113″L x 22″W x 40″H |
|
|||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
| Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Arm Assembly | Combo (Symmetrical and Asymmetrical) Arm Assembly | ||||||||

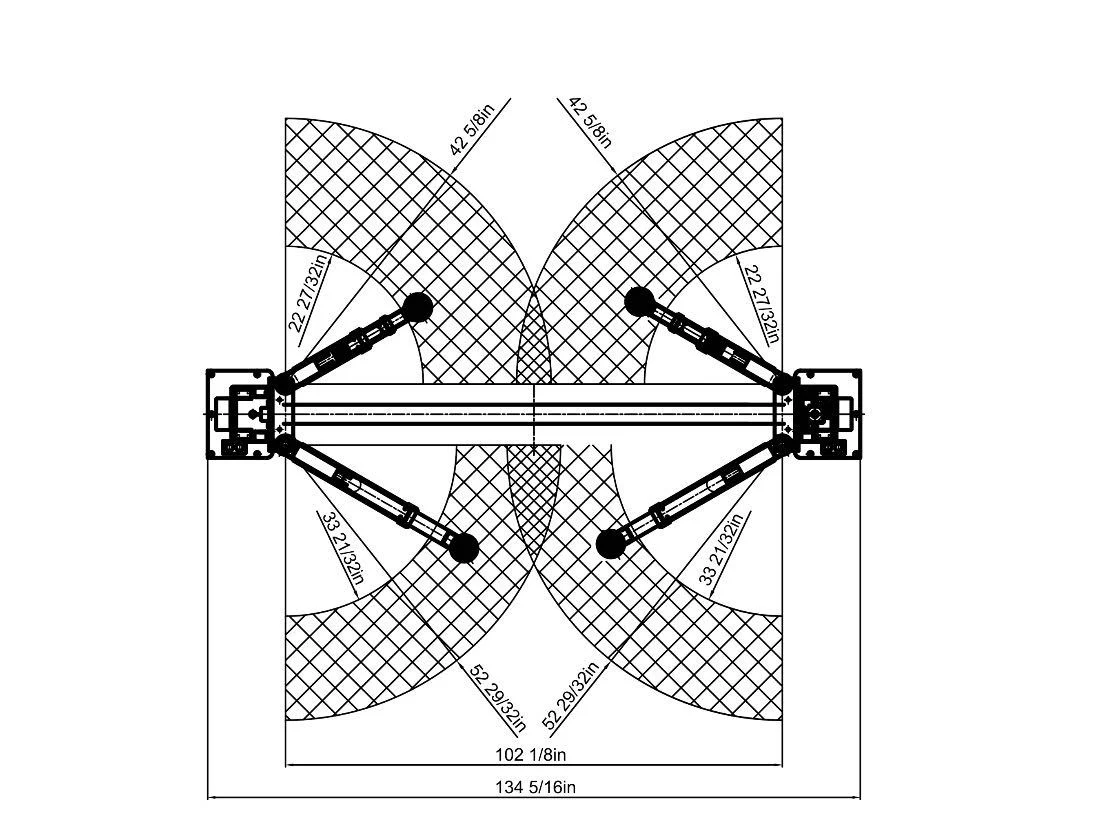

| Front Arms | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | ||||||||
| Back Arms | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | ||||||||
| Column Steel Thickness | 13/64″ | ||||||||
| Carriage Steel Thickness | 15/64″ | ||||||||
| Carriage Yoke Thickness | 9/16″ | ||||||||
| Arm Steel Thickness | 15/64″ | ||||||||
| Base Plate Steel Thickness | 5/8″ | ||||||||
Features
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading

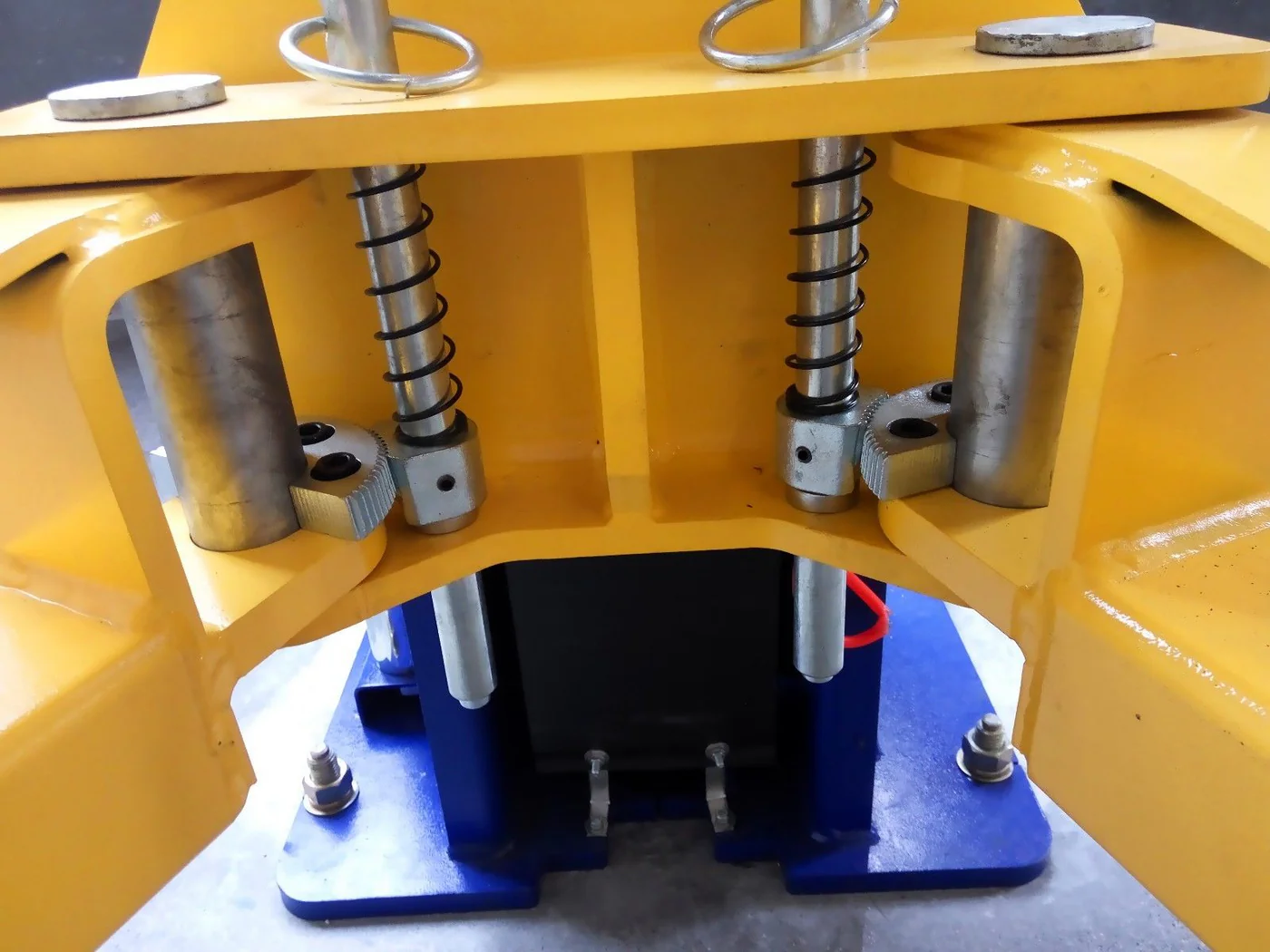

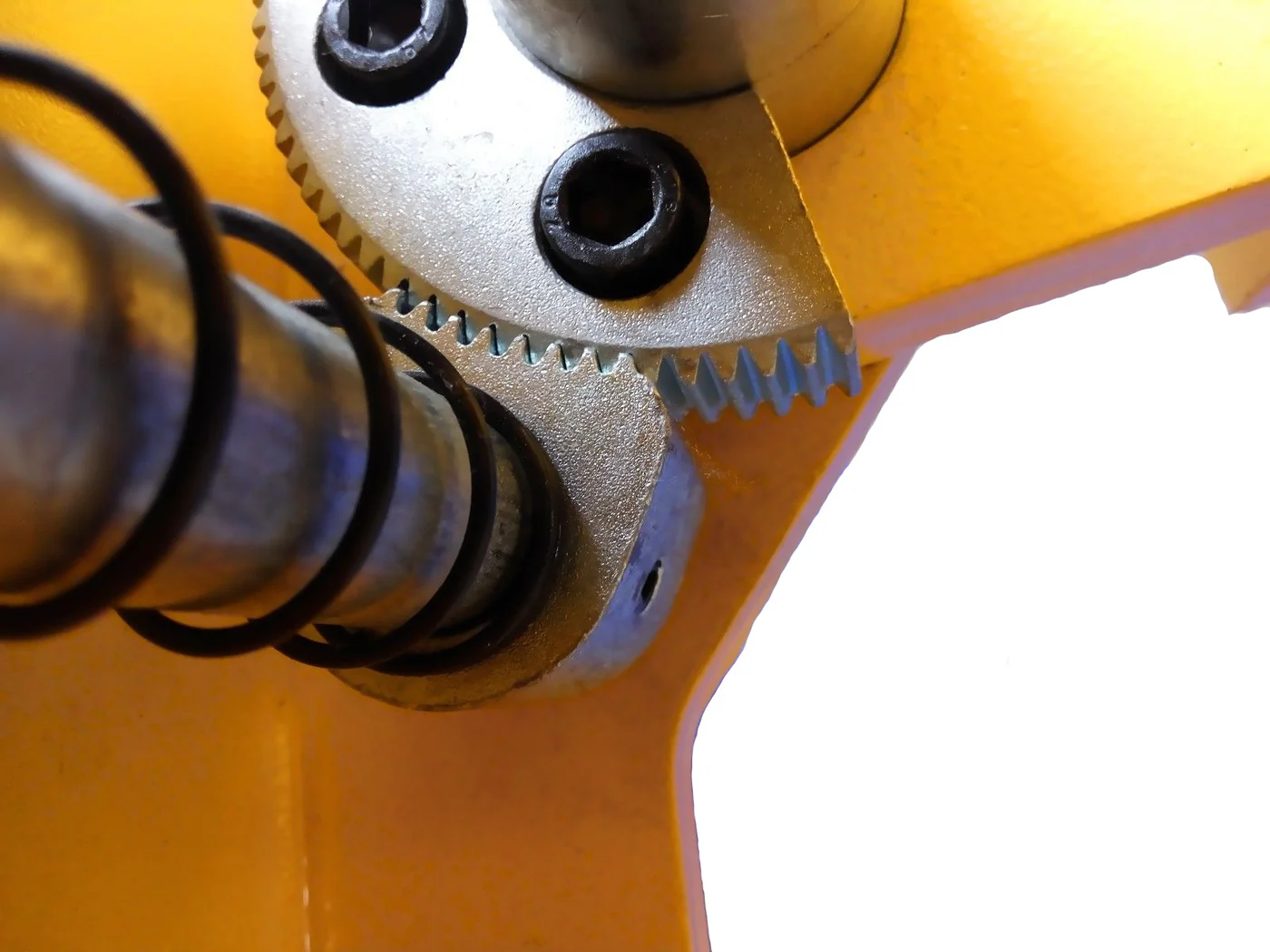

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
