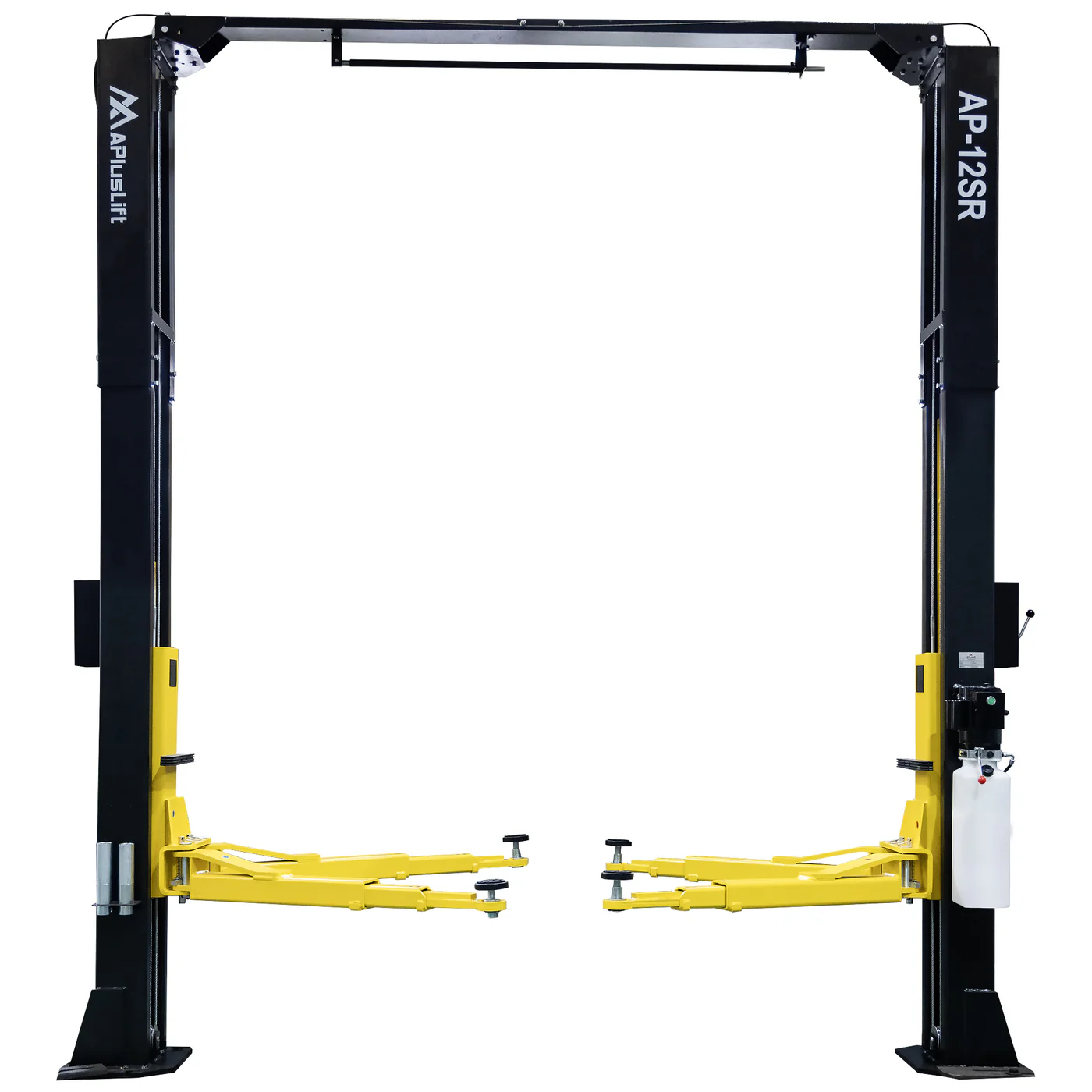

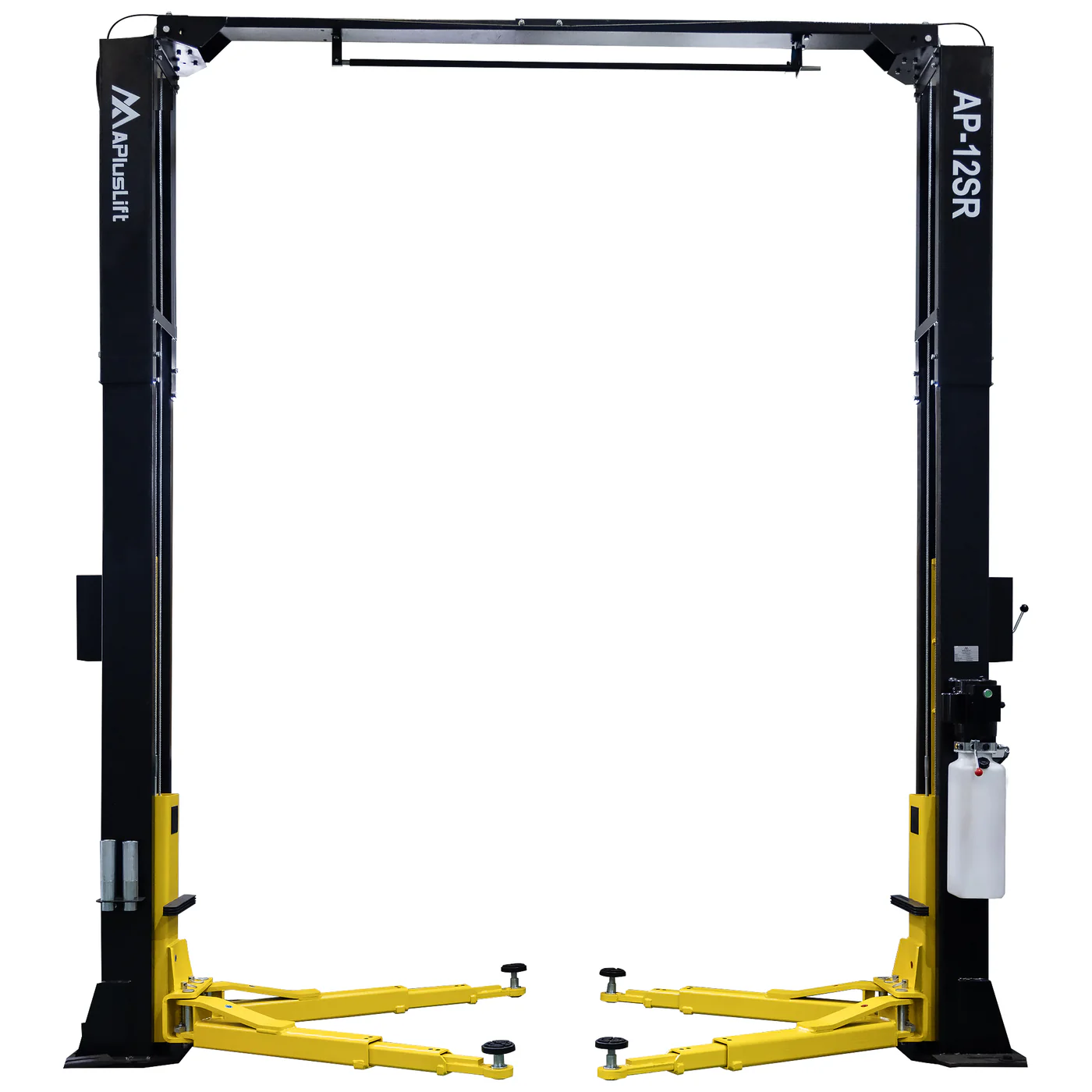

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty – AP-12SR
Original price was: $4,495.00.$1,899.97Current price is: $1,899.97.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
39
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
Industry-leading 3 YEAR WARRANTY
-

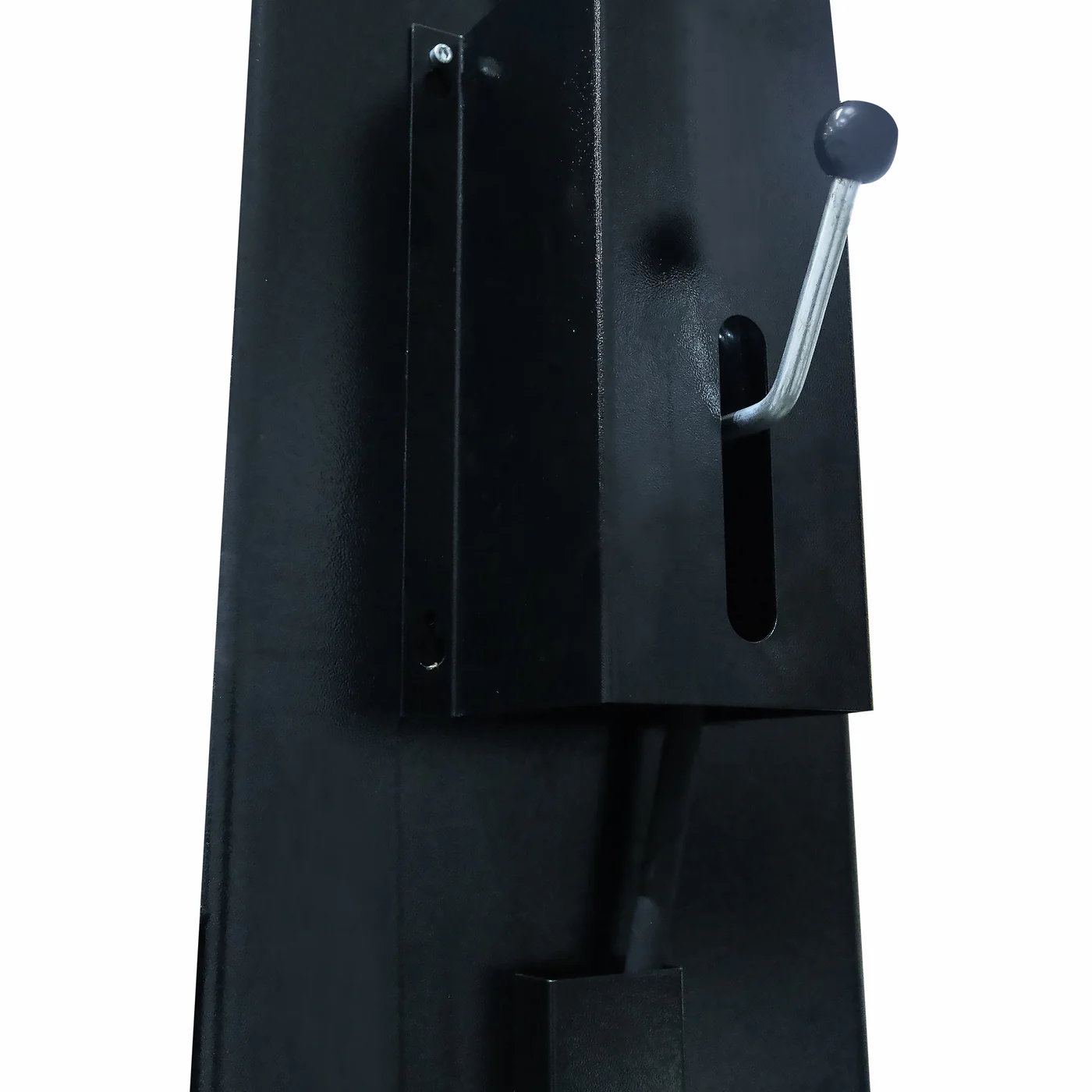

Single Point Safety Lock Release System
-

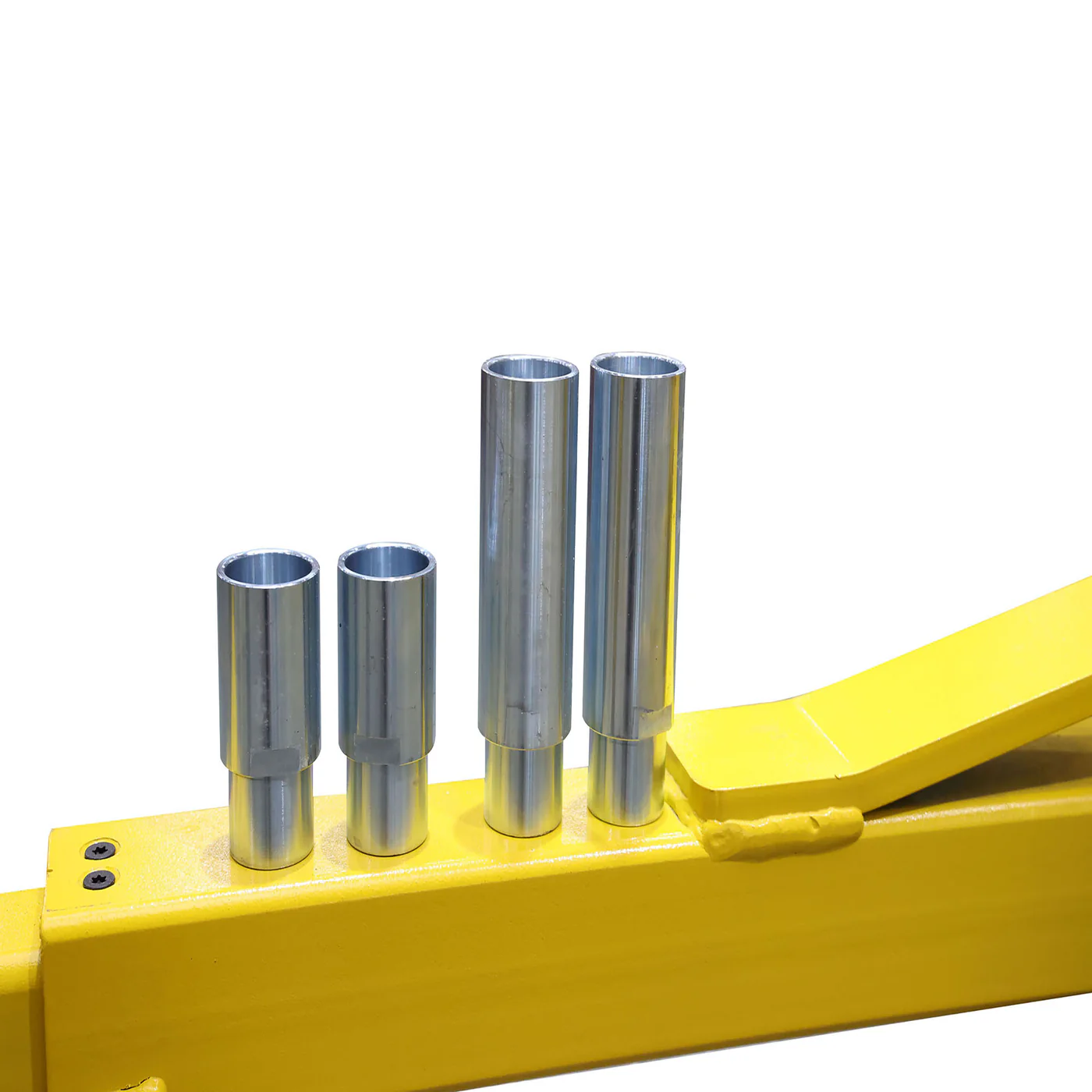

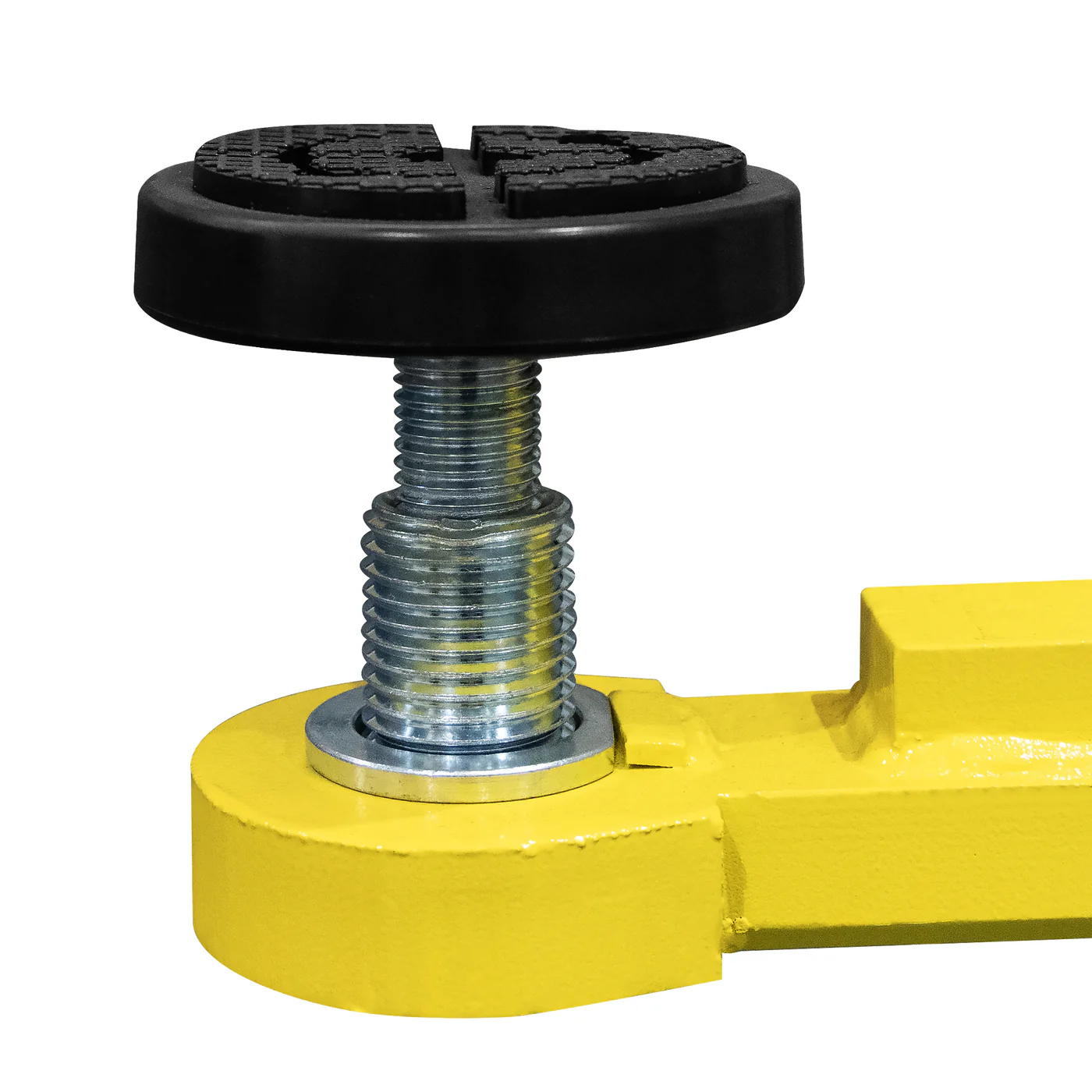

Two Sets of 3″ and 6″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish

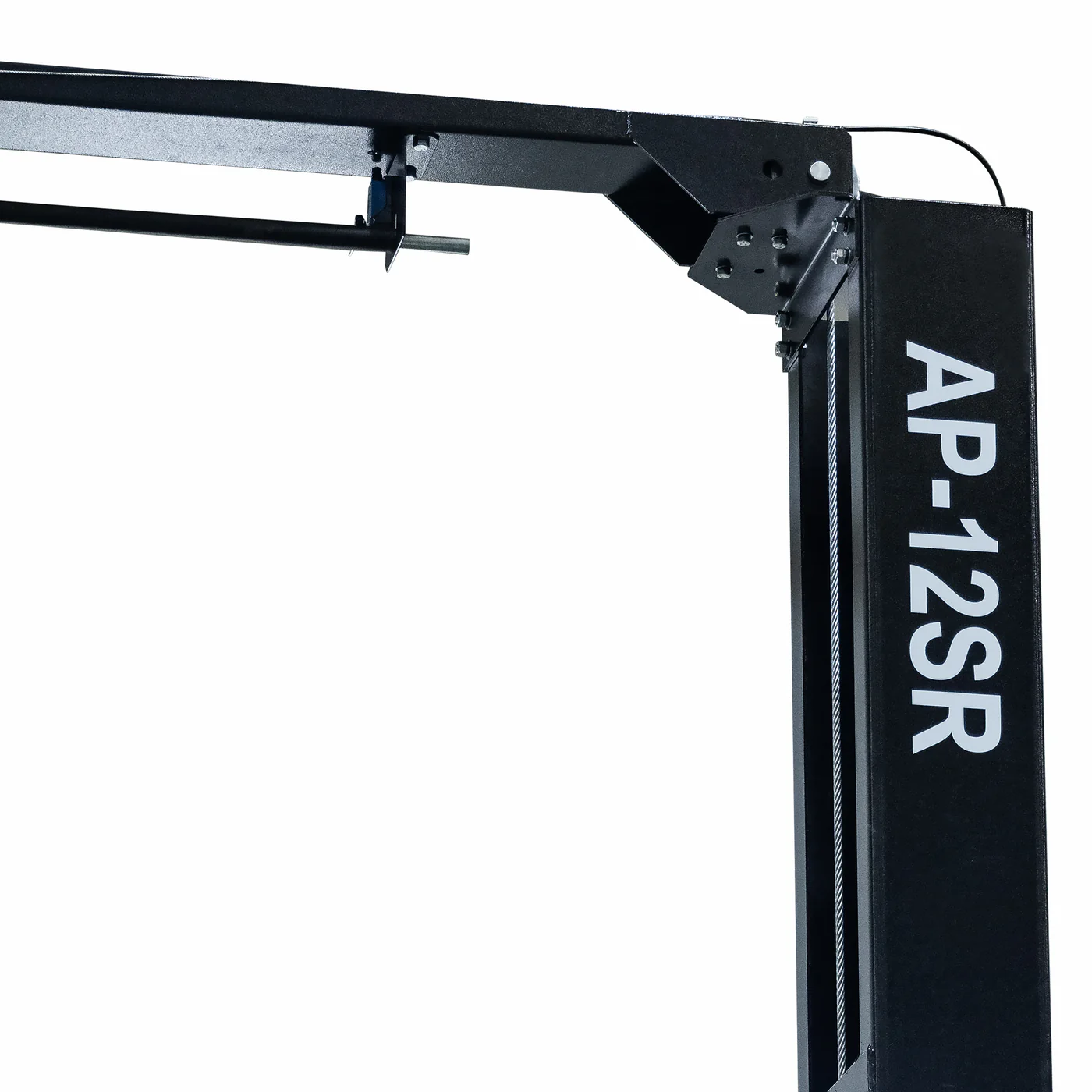

APlusLift AP-12SR is a 12000-lb single-point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We proudly offer an industry-leading 3-year warranty! All replacement and optional parts are available for our lifts.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications |
|||||||||
| Model | AP-12SR (This Model) |
AP-10SR (for Comparison) |
|||||||
| Manual | AP-12SR Manual | AP-10SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 12,000 LB | 10,000 LB | |||||||

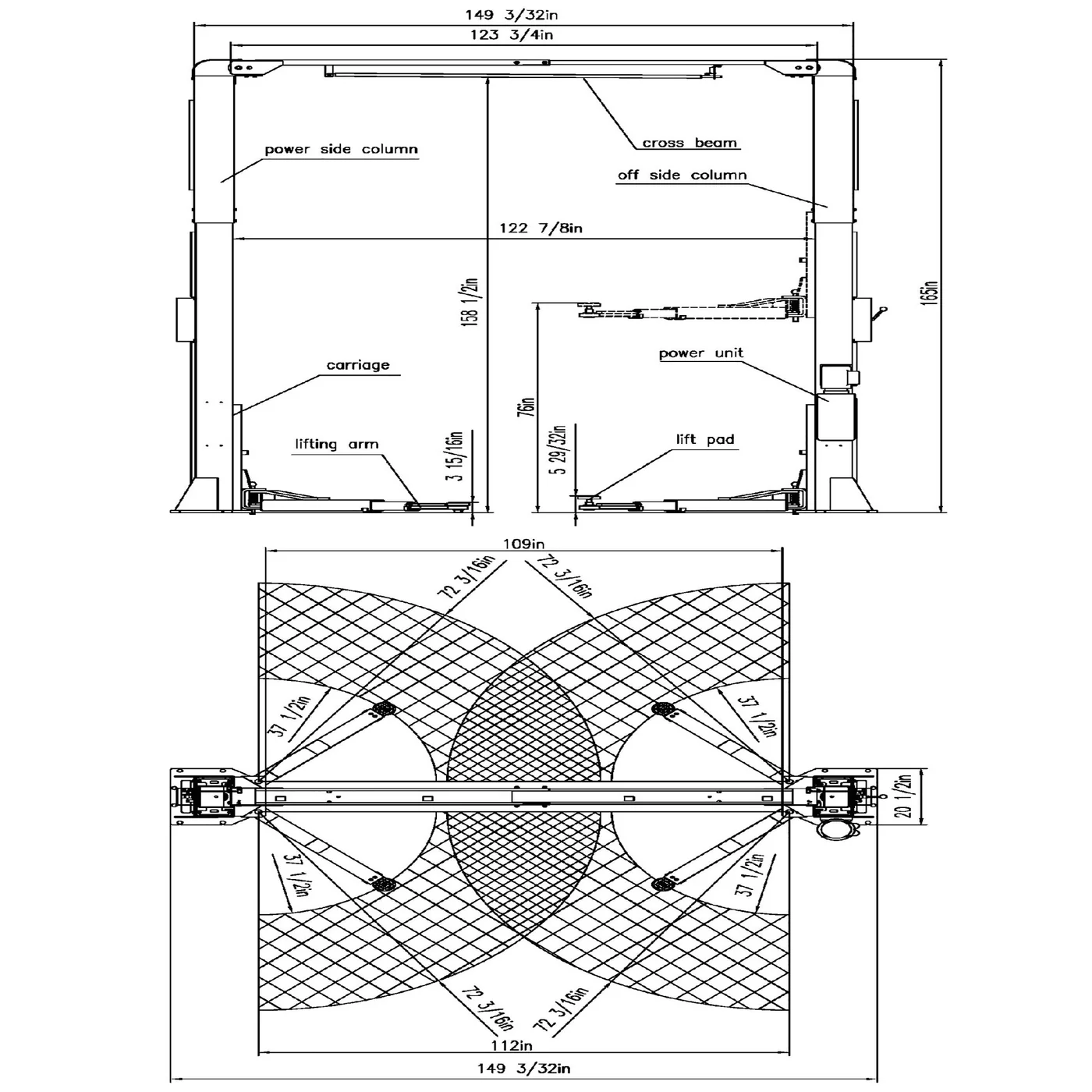

| Overall Height | 165″ | 143 3/16″ | |||||||
| Overall Width | 149″ | 134 5/16″ | |||||||
| Maximum Lift height with Truck Adapters | 79″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 70″ | 75″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 109″ | 100″ | |||||||
| Column to Column Width | 123″ | 109″ | |||||||
| Column Cross Section | 14 3/8″L x 7 13/16″W | 11″L x 7″W | |||||||

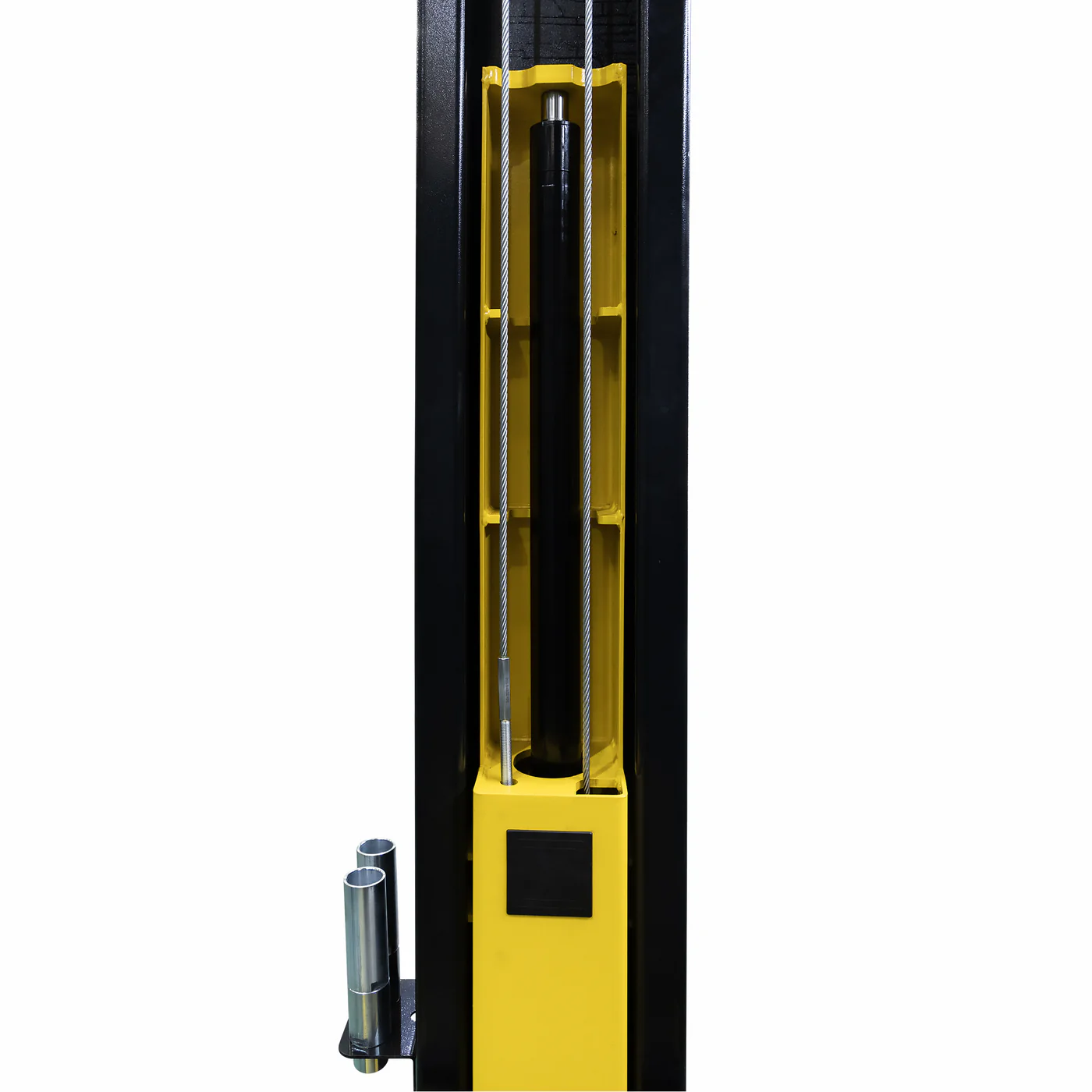

| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, chain drive | |||||||

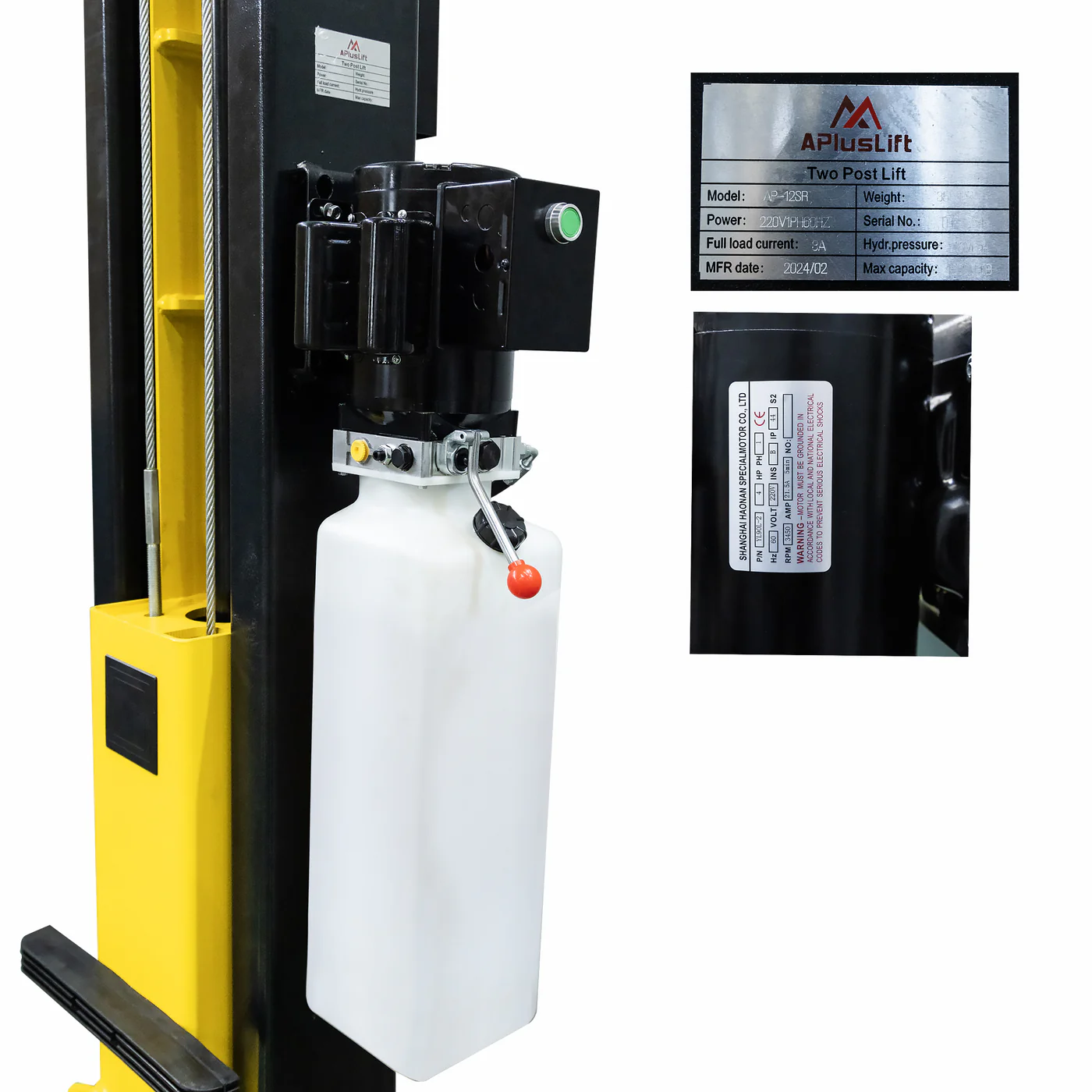

| Motor | 220V Single Phase 3HP Inverter Motor (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 50 seconds | |||||||
| Shipping Weight | 2500 LB | 1400 LB and 120 LB | |||||||
| Shipping package size | 117″L x 22″W x 50″H |
|
|||||||
| Arm Assembly | Symmetrical Arm Assembly | Combo (Symmetrical and Asymmetrical) Arm Assembly | |||||||

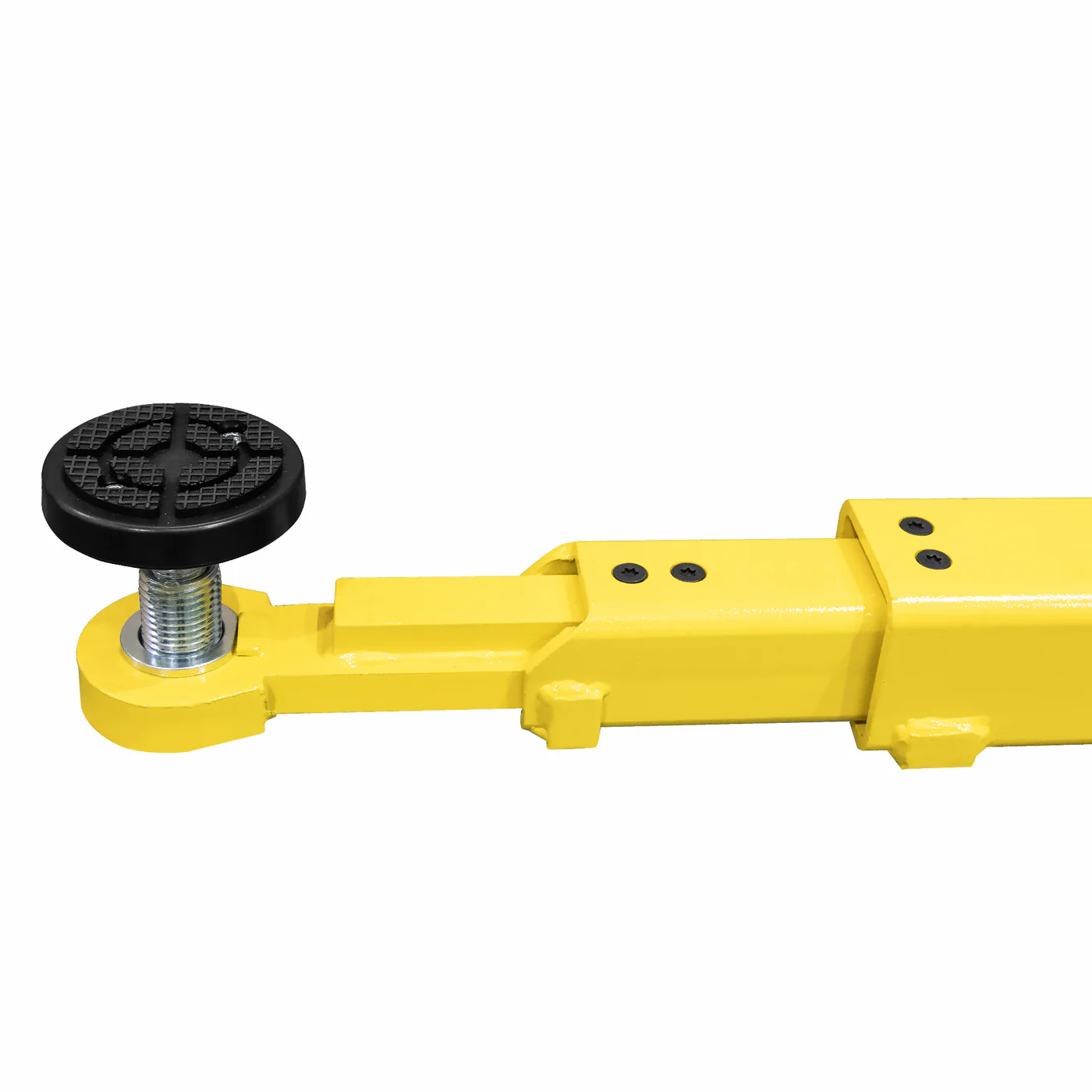

| Front Arms | Straight Front 3 Stage reach from 37 1/2″ to 72 3/16″ | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | |||||||
| Back Arms | Straight Rear 3 Stage reach from 37 1/2″ to 72 3/16″ | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | |||||||
| Column Steel Thickness | 1/4″ | 13/64″ | |||||||
| Carriage Steel Thickness | 1/4″ | 15/64″ | |||||||
| Carriage Yoke Thickness | 3/4″ | 9/16″ | |||||||
| Arm Steel Thickness | 5/16″ | 15/64″ | |||||||

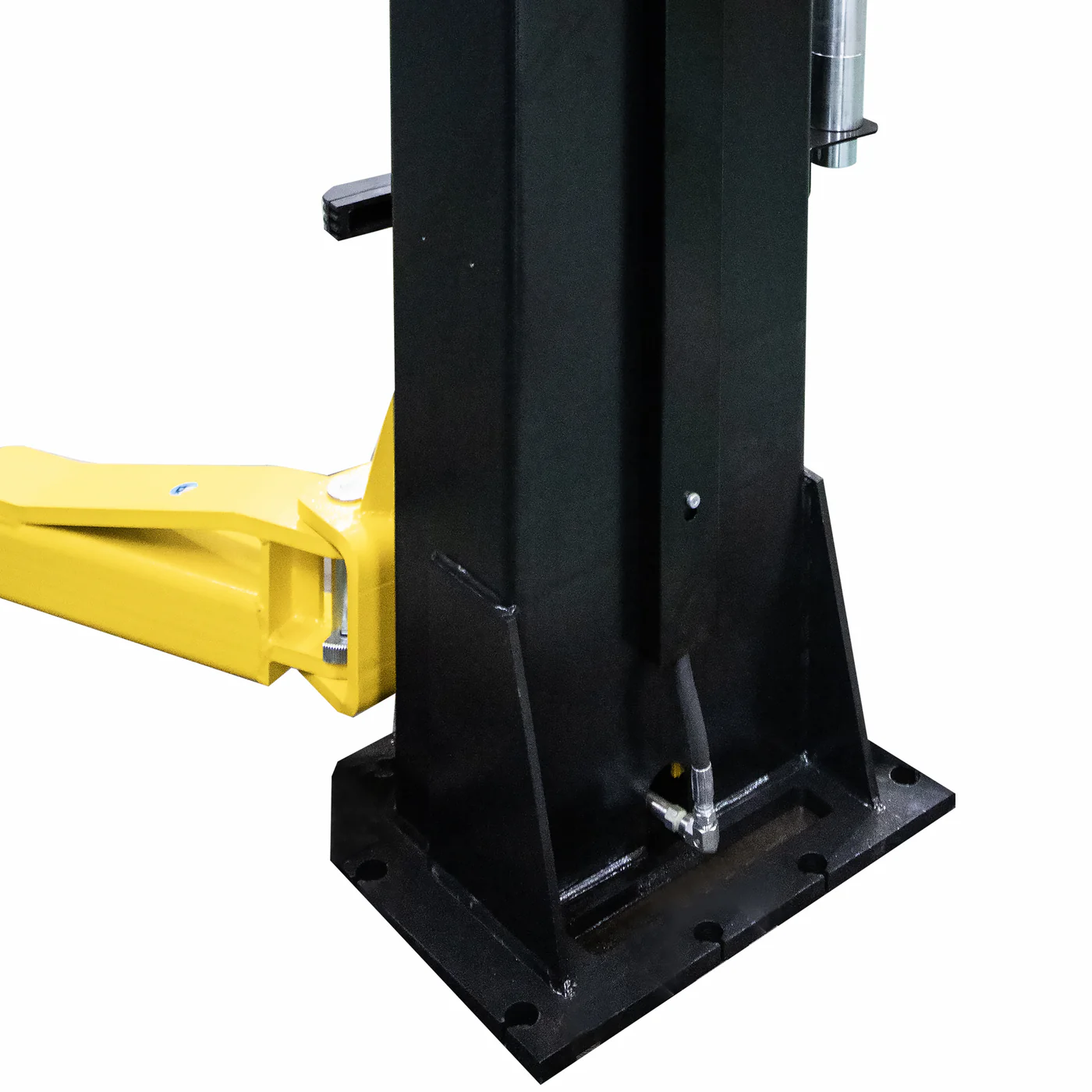

| Base Plate Steel Thickness | 13/16″ | 5/8″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 3″ Tall and 6″ Tall | One Set: 4″ Tall | |||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single-point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing the “UP” button on the motor
- Manual lowering operation by pressing the lever
- Relief valve built-in power pump to prevent overloading

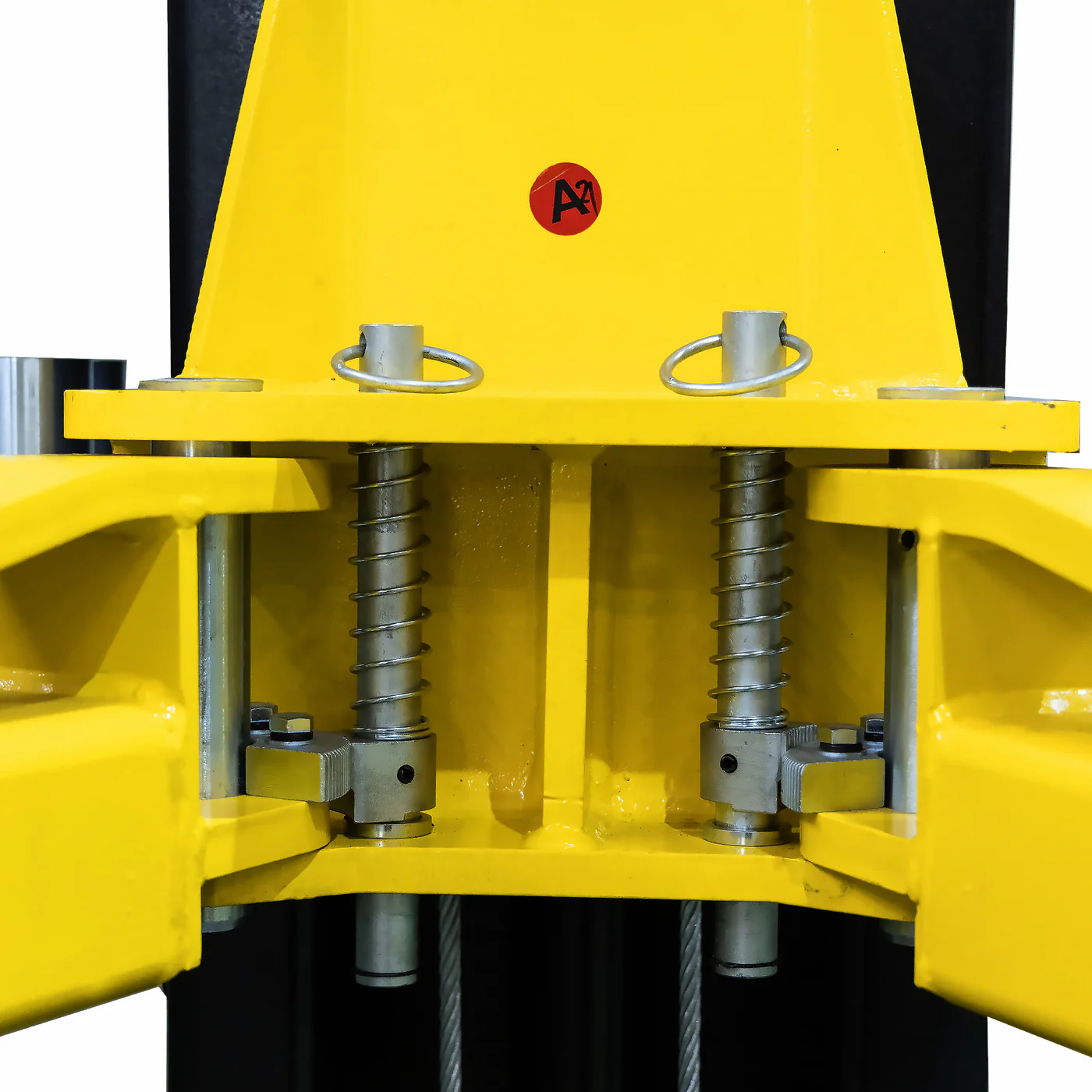

- Automatic arm lock restraints
- Relief valve built-in power pump to prevent overloading

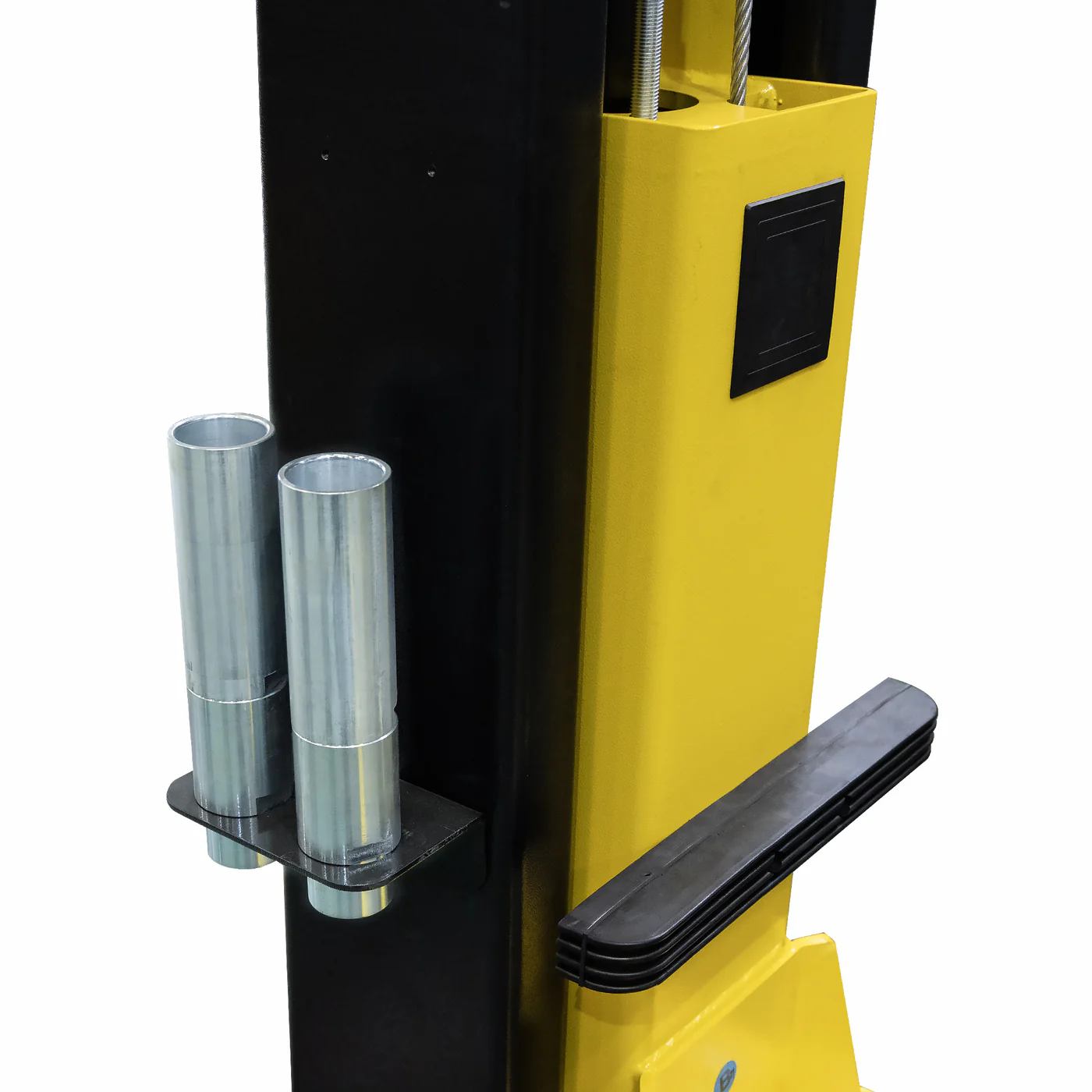

- Door guard protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope

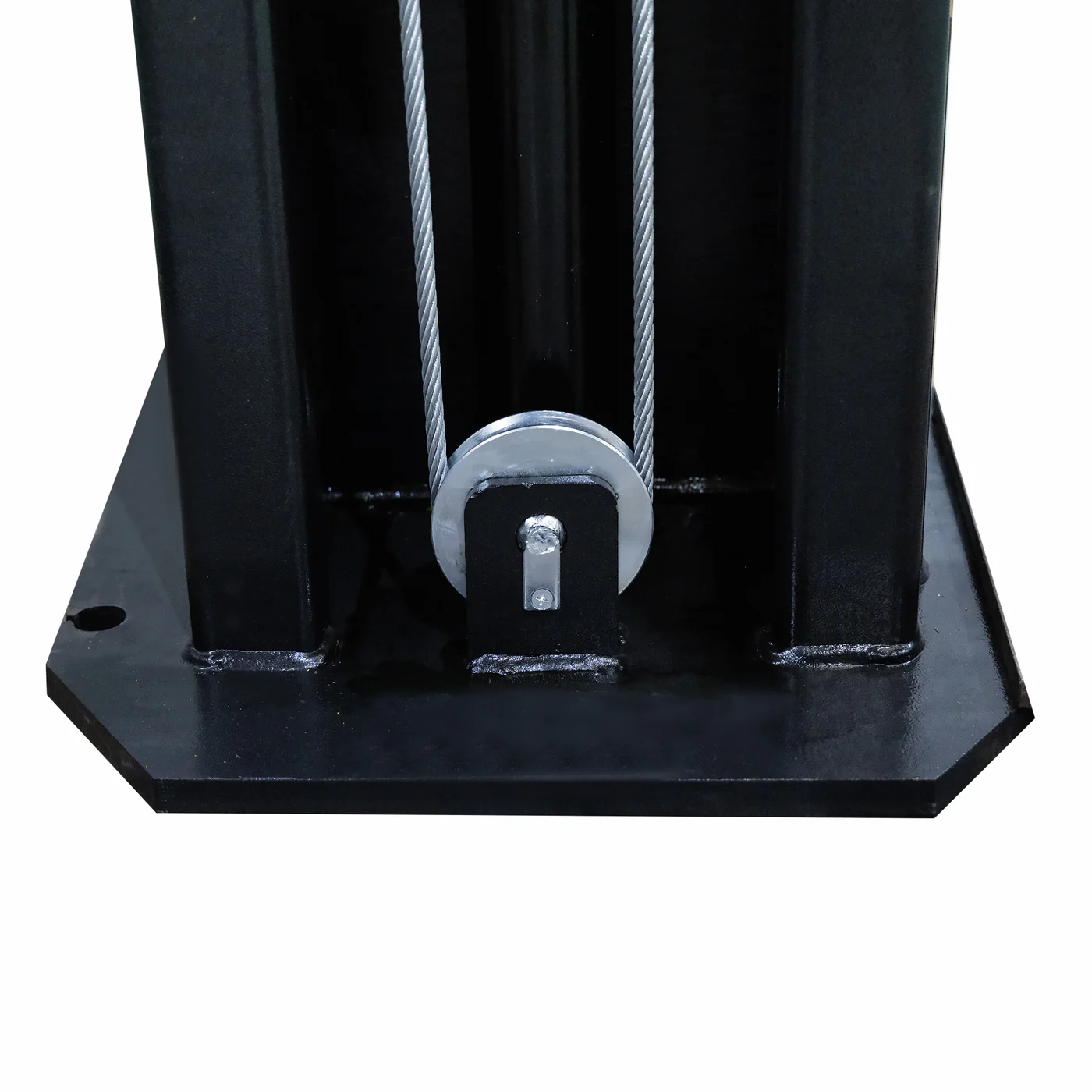

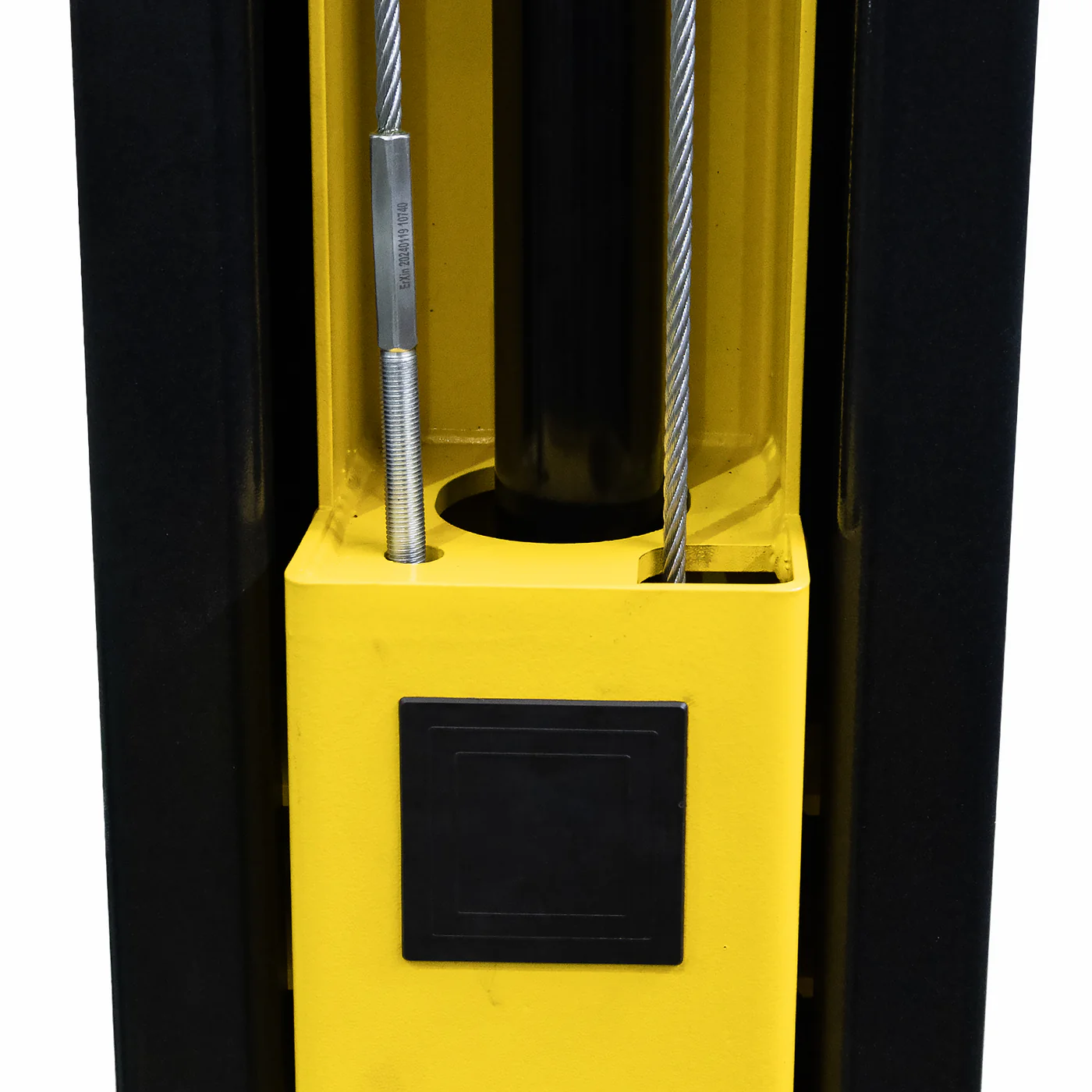

- Heavy duty 3/8″ diameter cable and 4 5/16″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
