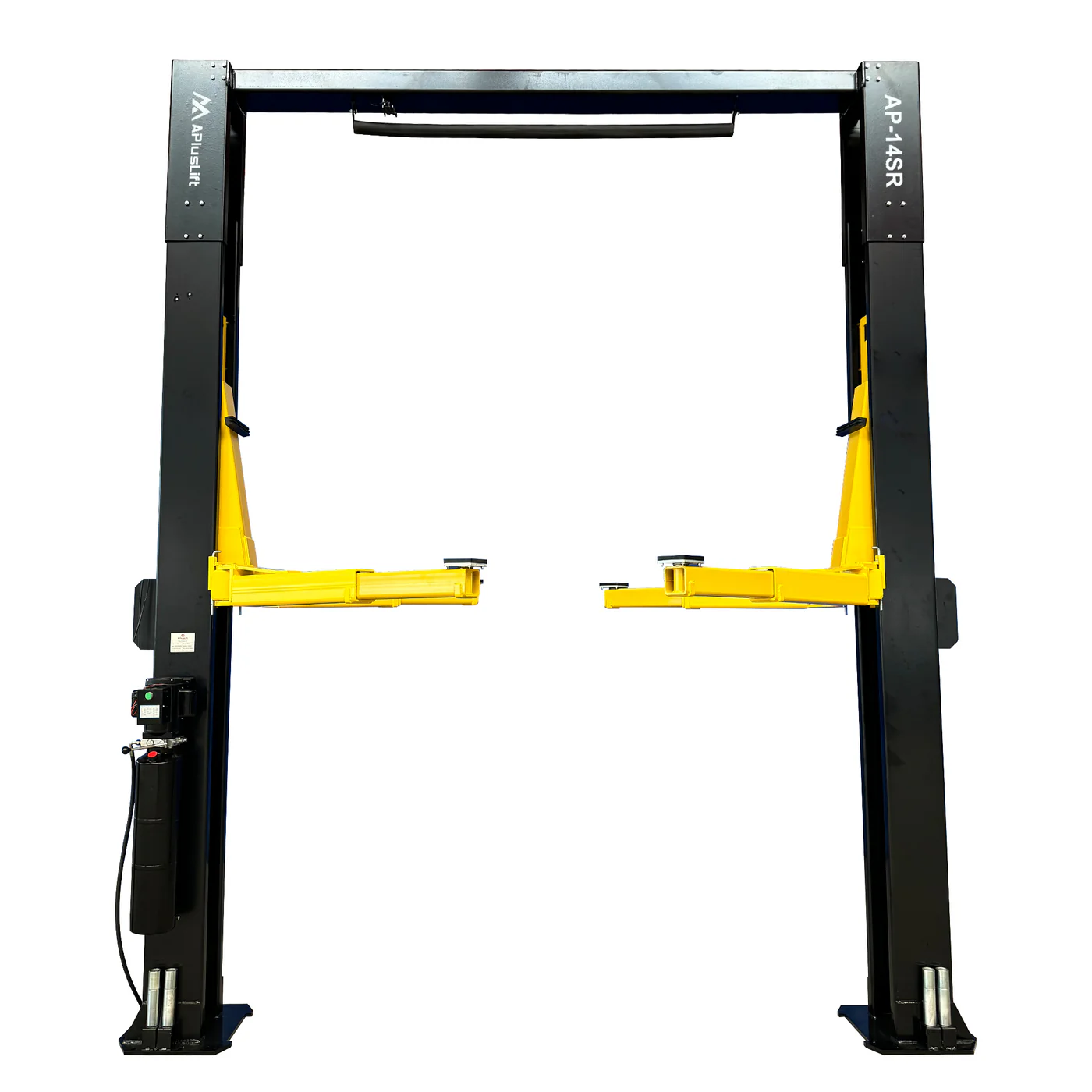

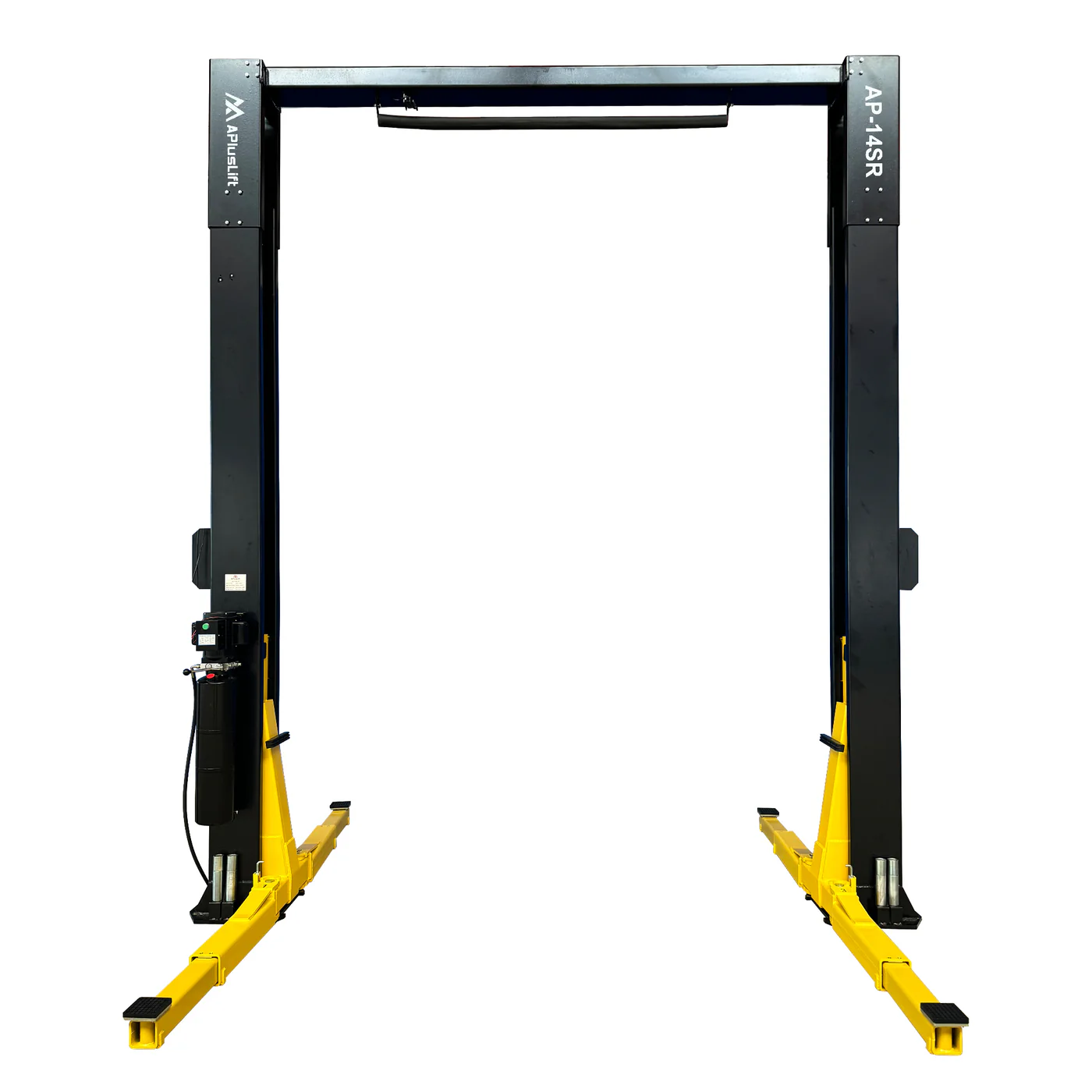

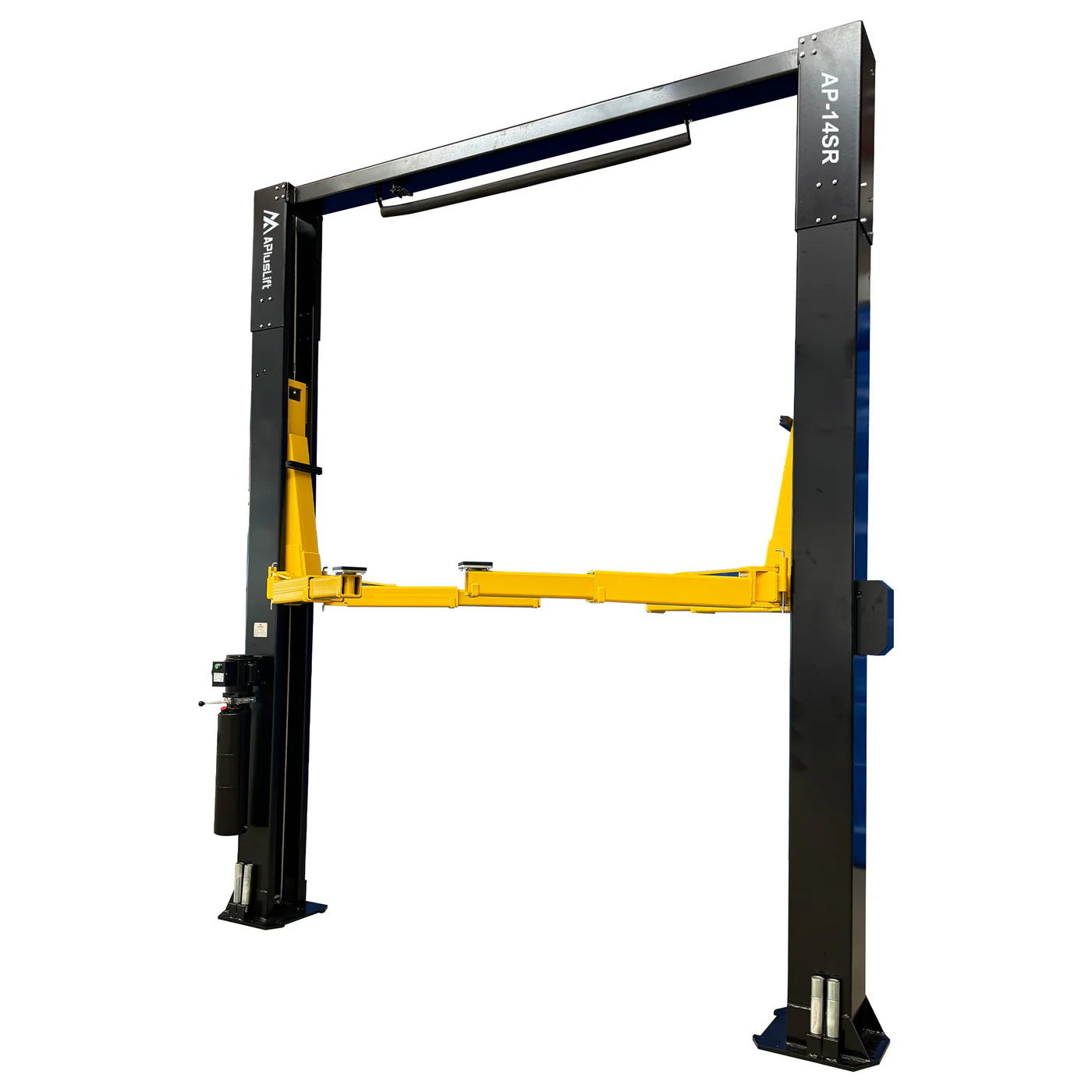

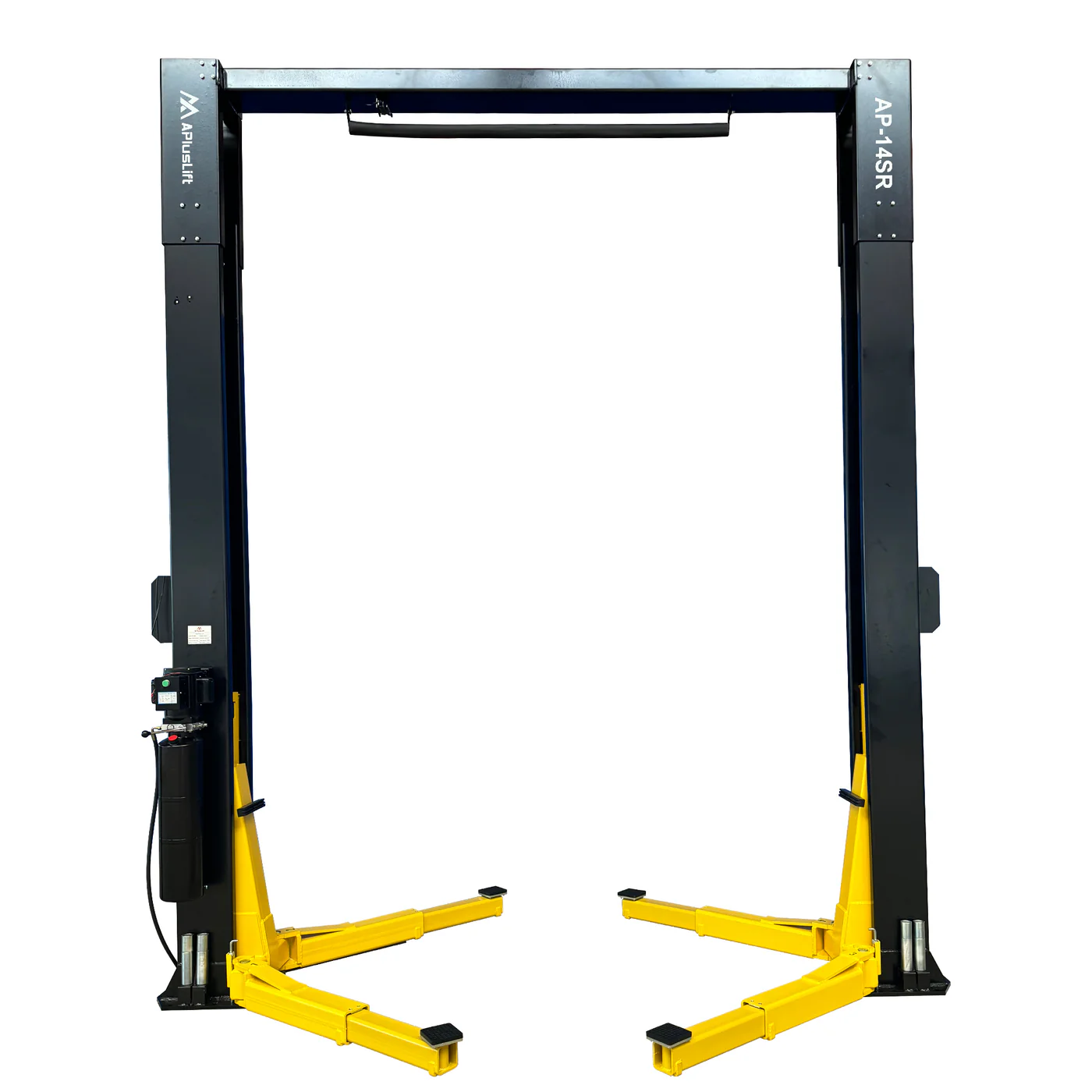

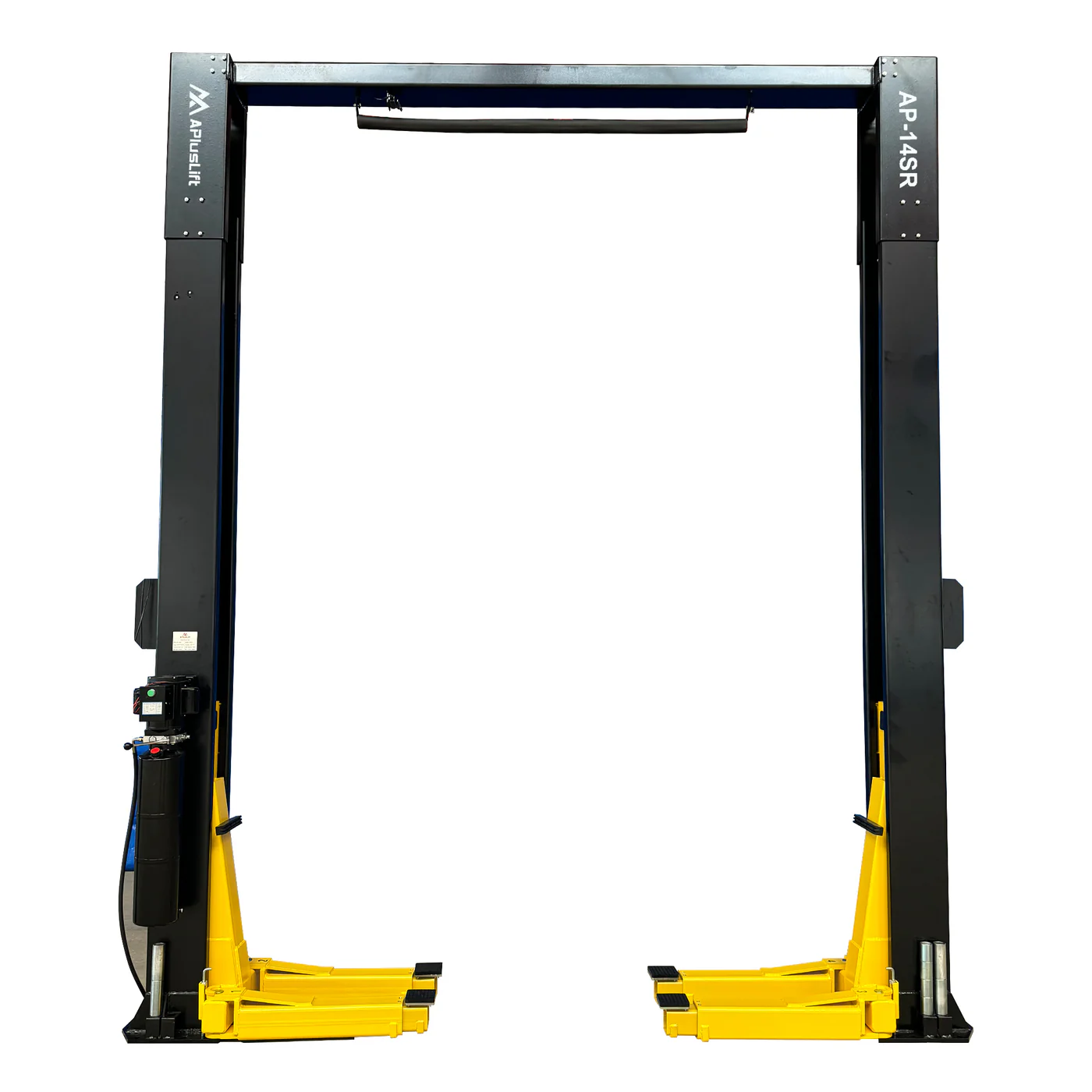

APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty – AP-14SR
Original price was: $4,995.00.$1,997.00Current price is: $1,997.00.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
32
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
Industry leading 3 YEAR WARRANTY
-
Single Point Safety Lock Release System
-
Two Set of 2 3/4″ Tall and 5 1/2″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish

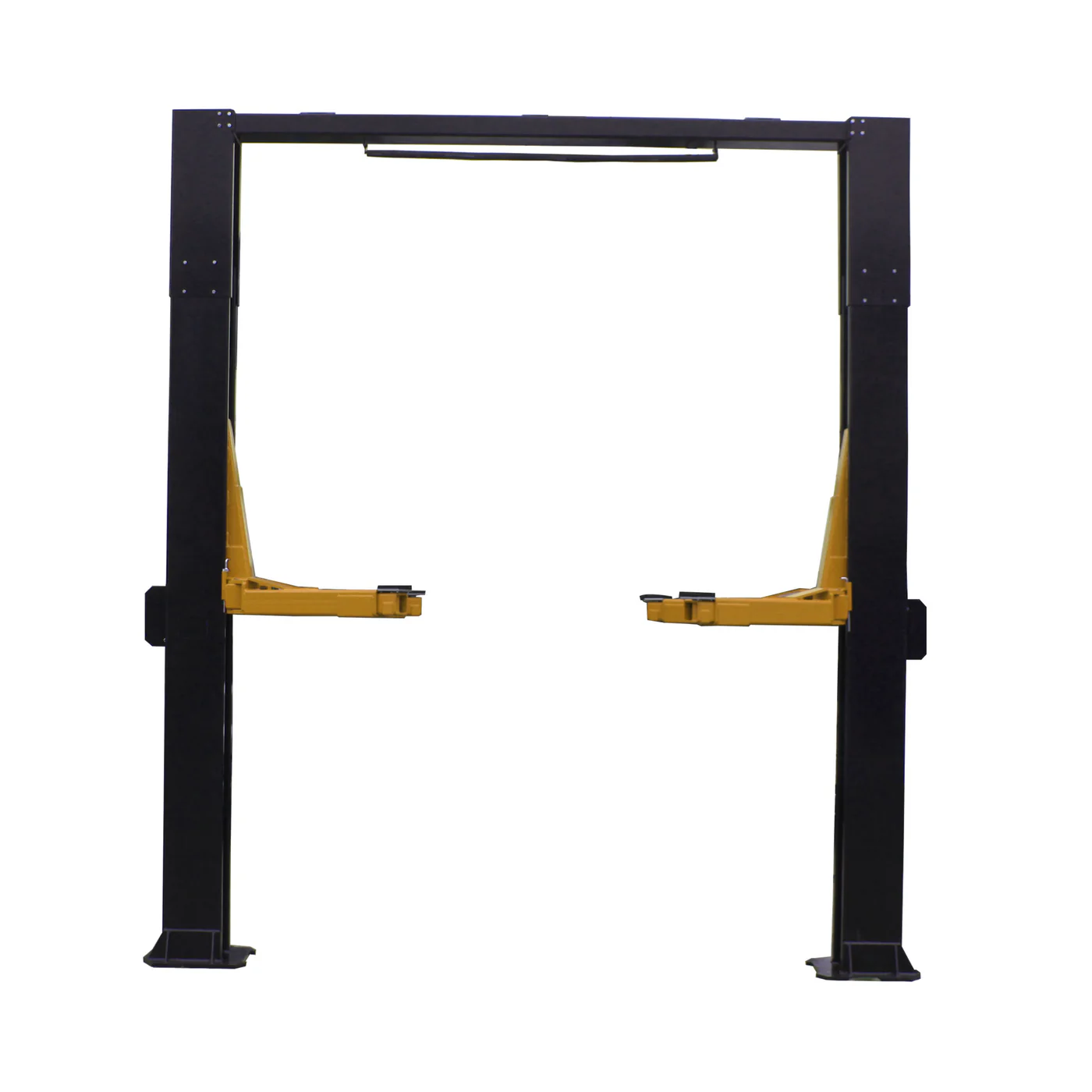

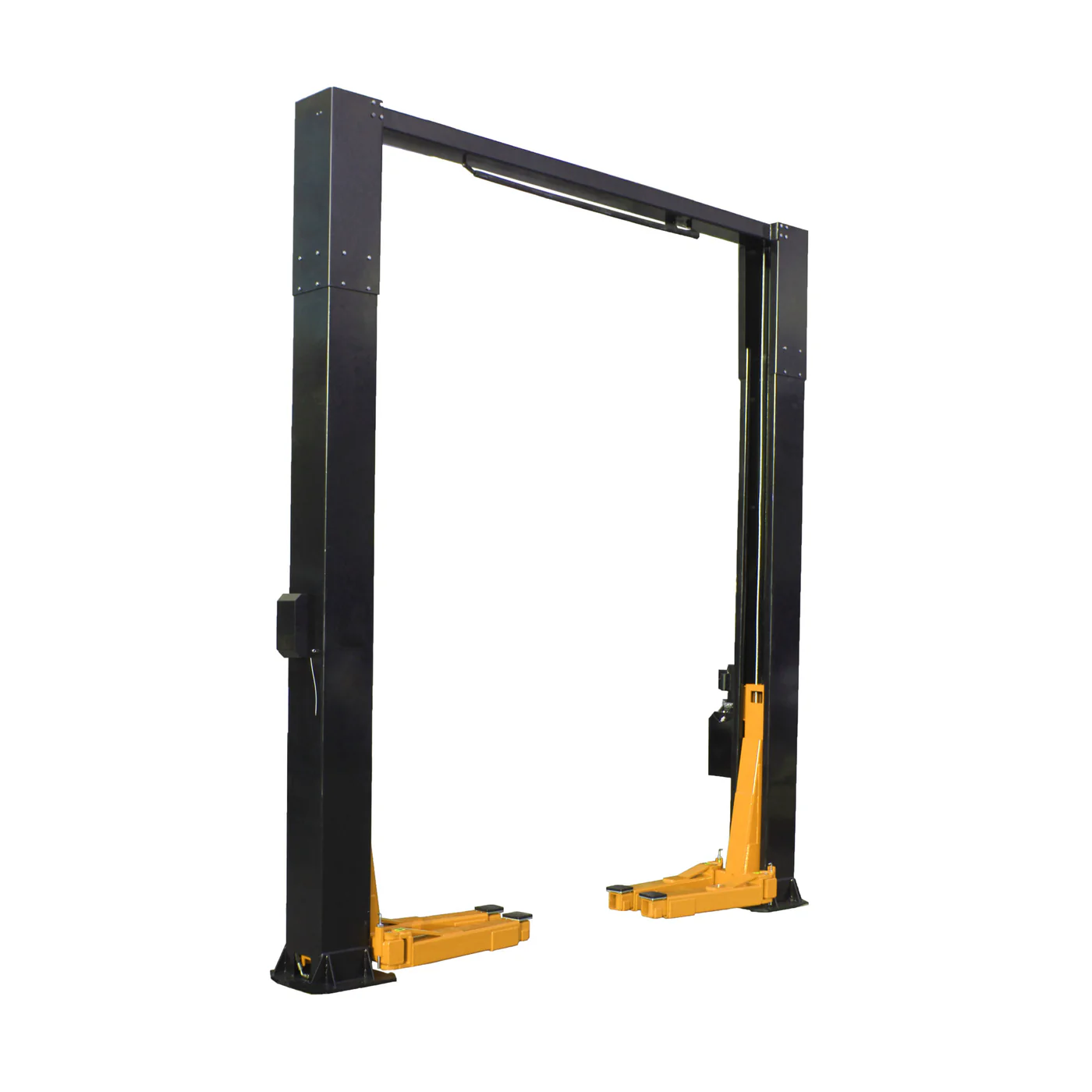

APlusLift AP-14SR is a 14000-lb single-point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We proudly offer an industry-leading 3-year warranty for all parts! We have all replacement and optional parts available for our lifts.

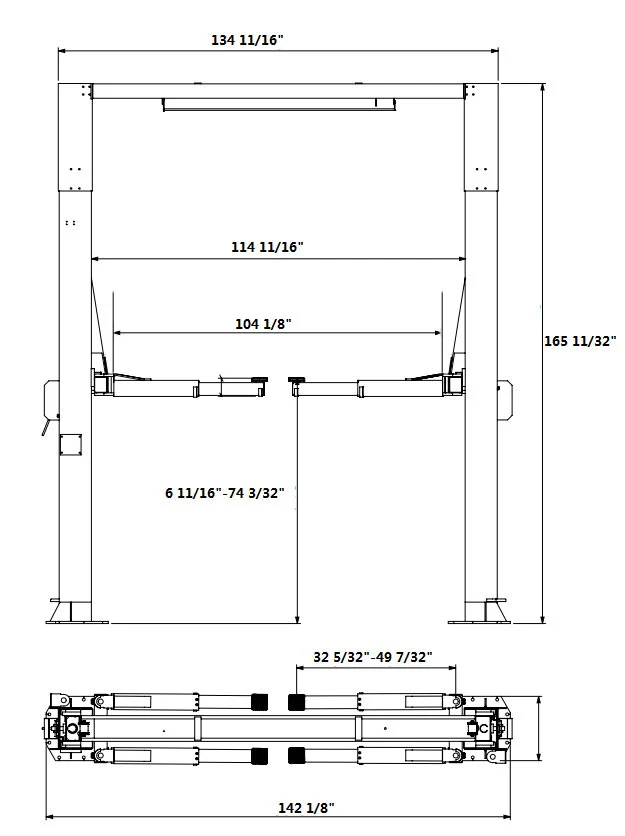

Specifications |
|||||||||
| Model | AP-14SR (This Model) |
HW-12HD (for Comparison) |
|||||||
| Manual | AP-14SR Manual | HW-12HD Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 14,000 LB | 12,000 LB | |||||||
| Overall Height | 165 11/32″ | 160″ | |||||||
| Overall Width | 142 1/8″ | 137 13/32″ | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32″ | 77 15/16″ | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32″ | 72 7/16″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 11/16″ | 5 1/8″ | |||||||
| Drive Through Width (Carriage to Carriage) | 104 1/8″ | 99 23/32″ | |||||||
| Column to Column Width | 114 11/16″ | 110 1/32″ | |||||||
| Column Cross Section | 12 7/32″L x 9 27/32″W | 12 7/32″L x 9 27/32″W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, direct drive | |||||||

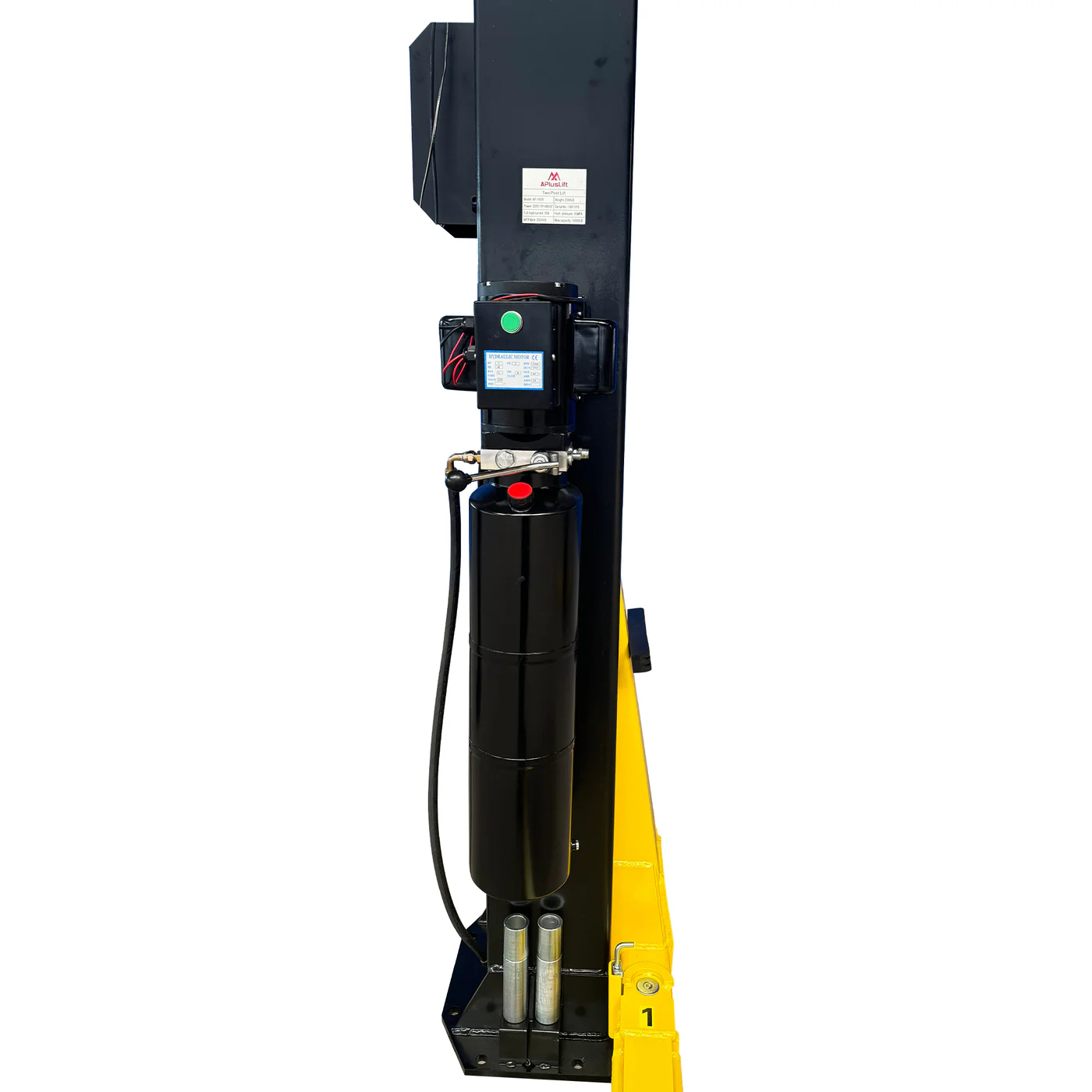

| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 3.2-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 75 seconds | |||||||
| Shipping Weight | 2300 LB | 2100LB | |||||||
| Shipping package size | 150″L x 33″W x 21″H | 146″L x 33″W x 21″H | |||||||

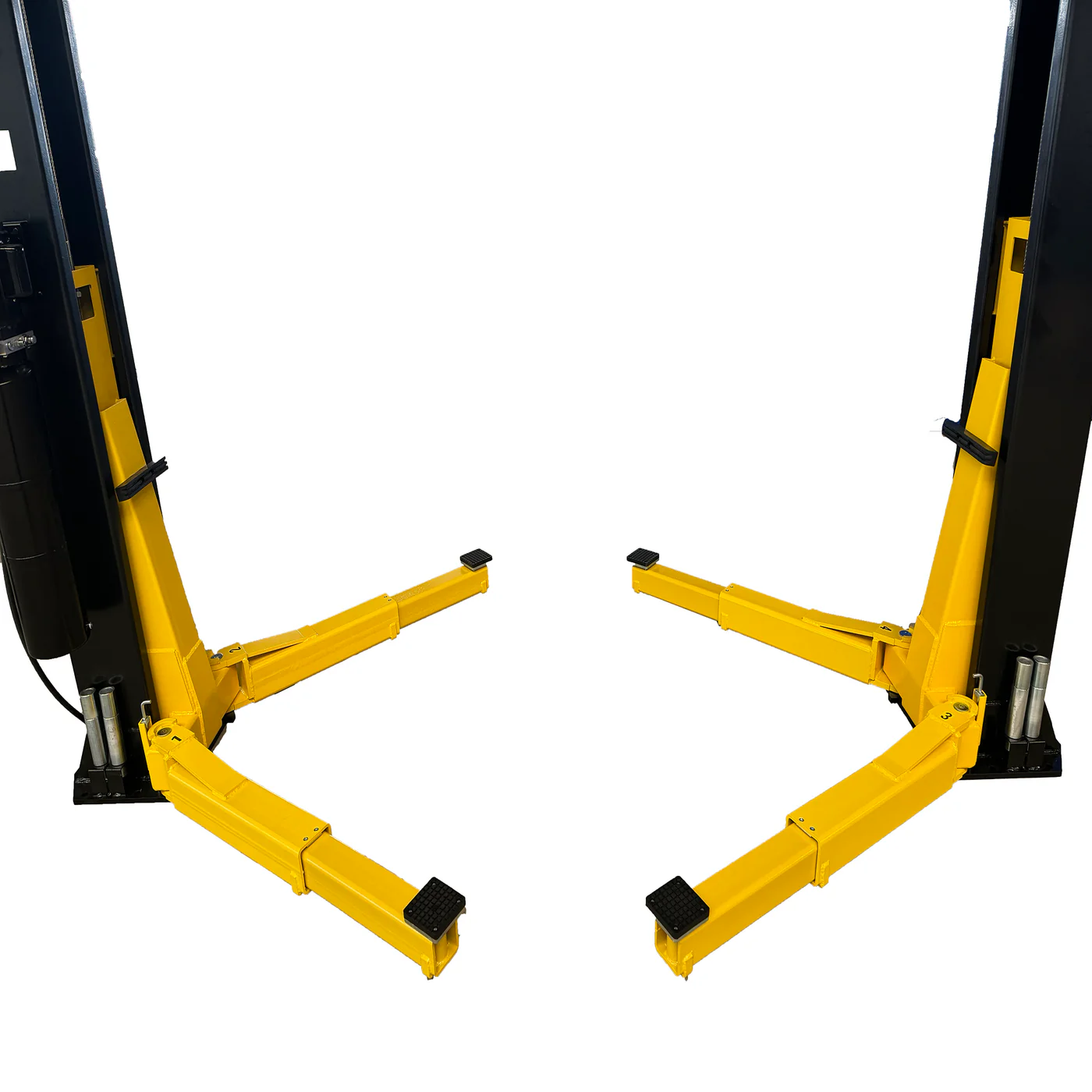

| Arm Assembly | Symmetrical Arm Assembly | Symmetrical Arm Assembly | |||||||
| Front Arms | Straight Front 2 stages reach from 32 5/32″ to 49 7/32″ | 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Back Arms | Straight Rear 2 stages reach from 32 5/32″ to 49 7/32″ | 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Column Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Yoke Thickness | 13/32″ | 13/32″ | |||||||
| Arm Steel Thickness | 5/16″ | 5/16″ | |||||||
| Base Plate Steel Thickness | 5/8″ | 5/8″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
|||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single-point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Coloumn Material Q235B Steel

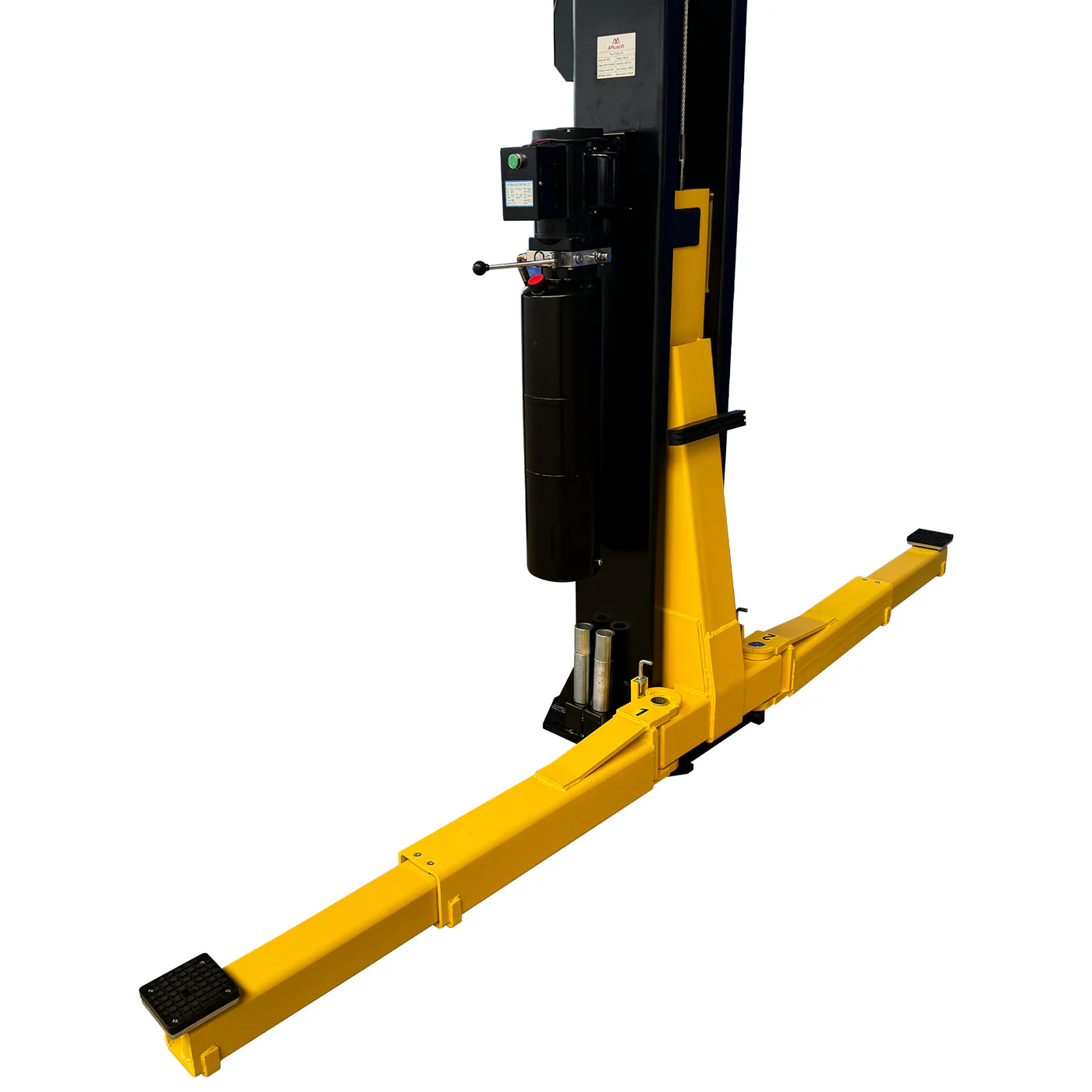

- Lifting operation by pressing the “UP” button on the motor
- Manual lowering operation by pressing the lever
- Relief valve built-in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built-in power pump to prevent overloading
- Door guard protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 3″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
