APlusLift MT1500XLT 72″ Wide 1500LB Air Operated Lift Table for Motorcycles/Trikes/ATV/UTV

All Motorcycles/Trikes/ATV/UTV Lift Tables.

• 2 Year (24 Month) Warranty; 1500LB Heavy Duty

• New Butterfly Foot Pedal with Auto Neutral Position (Patent Pending)

• Free Service Jack ($100 Value); Anti Slip Traction Tape Included

• Exceptionally Durable E-Coated Black Paint Finish; Durable Powder-Coated Orange Paint Finish

• 8.8 Construction Grade Hardware

• Stable Scissor Frame with Precise Pivot Shafts and Thicker Gauge Steel

APlusLift 1500LB heavy duty air operated lift table includes a main lift table, side extensions (for 48″ and 72″ wide tables), a front wheel clamping vise, a drop out tail, a 3 stage adjustable front extension, a 20″ long drive-on approach ramp, and a FREE service jack. It is built with quality materials and good workmanship from a dedicated factory.

APlusLift MT1500XLT air operated lift table is a 72″ wide table for motorcycles/trikes/ATV/UTV. Our other lift tables include:

• APlusLift MT1500 24″ wide 1500LB lift tables for motorcycles and similar vehicles.
• APlusLift MT1500X 48″ wide 1500LB lift tables for motorcycles/trikes/ATV.
• Falcon 2200LB electric/hydraulic lift tables for motorcycles and similar vehicles

Optional Parts: Roller Plate, Extended Long Ramp Set (38″L x 48″W), Extended Long Ramp (38″L x 24″W), and Wheel Dolly

Free shipping to commercial address (in a business zone) with forklift (or similar) on-site, or free pickup at nearby terminal. Residential addresses with liftgate (curbside only; no placement inside a building or backyard): $110. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $150 Discount): Tacoma (WA), Charlotte (NC), and Kansas City (MO).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications

• Installation Manual
• Weight Capacity: 1,500 LB
• Table Length without Front Extension: 84″
• Table Length with Front Extension (Stage 1): 97″
• Table Length with Front Extension (Stage 2): 110″
• Front Extension Width: 24″
• Table Width without Side Extensions: 24″
• Table Width with 4 Pieces of Side Extensions: 72″
• Side Extension Size (4 Pieces): 84″L x 12″W
• Removable Approach Ramp Size: 20″L x 24″W
• Drop Out Plate Size: 21″L x 14″W
• Table Steel Thickness: 1/8″
• Safety Locking Positions (to Table Top): 19.5″, 21.75″, 23.5″, 25″, 27″, 28.5″, 30″
• Maximum Lifting Height (Table Top to Ground): 33″
• Minimum Height (Table Top to Ground): 7″

• Service Jack Max Lifting Height: 15″
• Service Jack Lowered Height: 3.5″
• Service Jack Weight Capacity: 1,000 LB

• Air Requirements: 90-120 PSI
• Shipping Weight: 750 LB
• Shipping Dimension: 88″L x 26″W x 22″H

Features

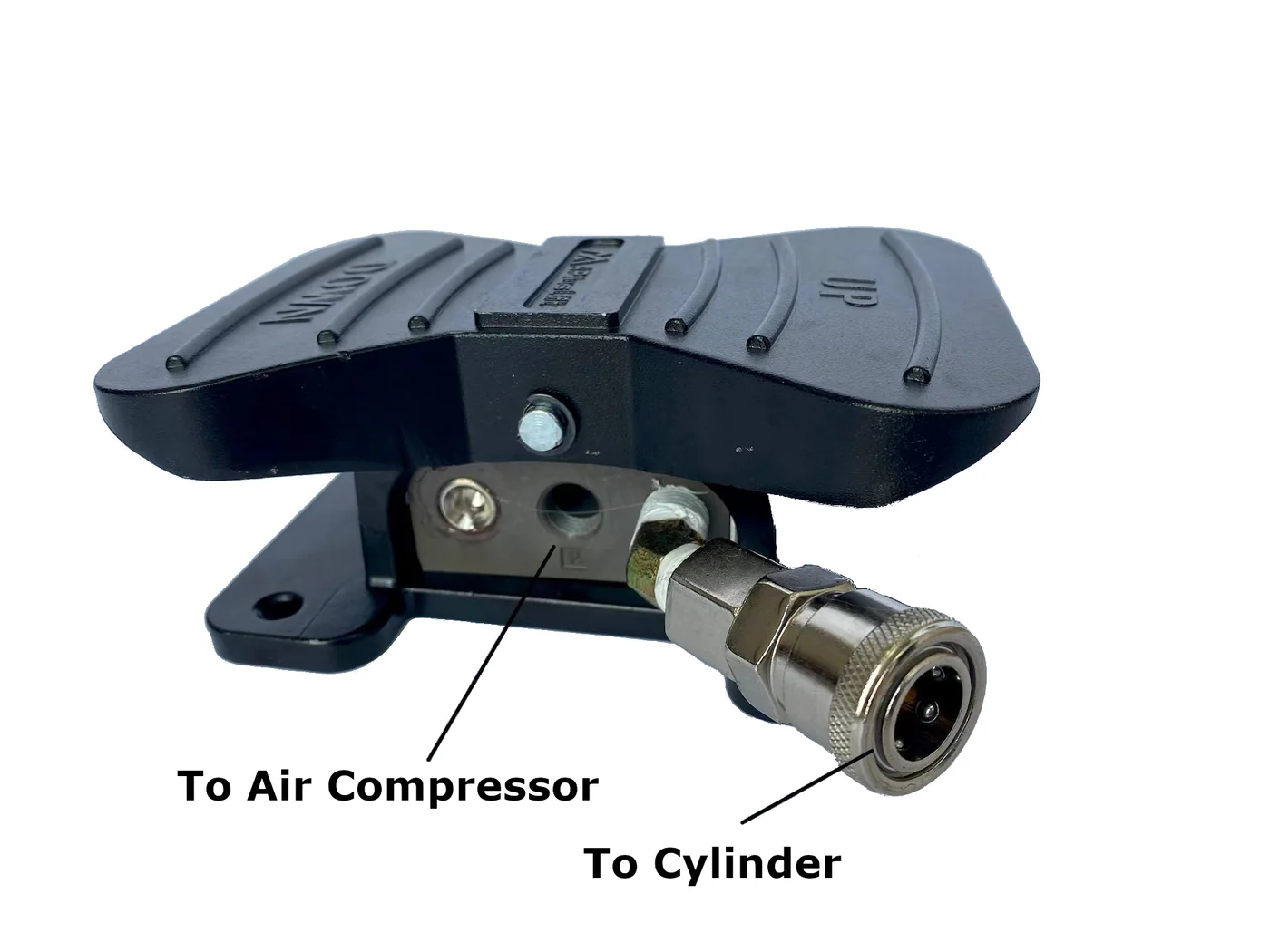

• New Butterfly Foot Pedal with Auto Neutral Position (Patent Pending)

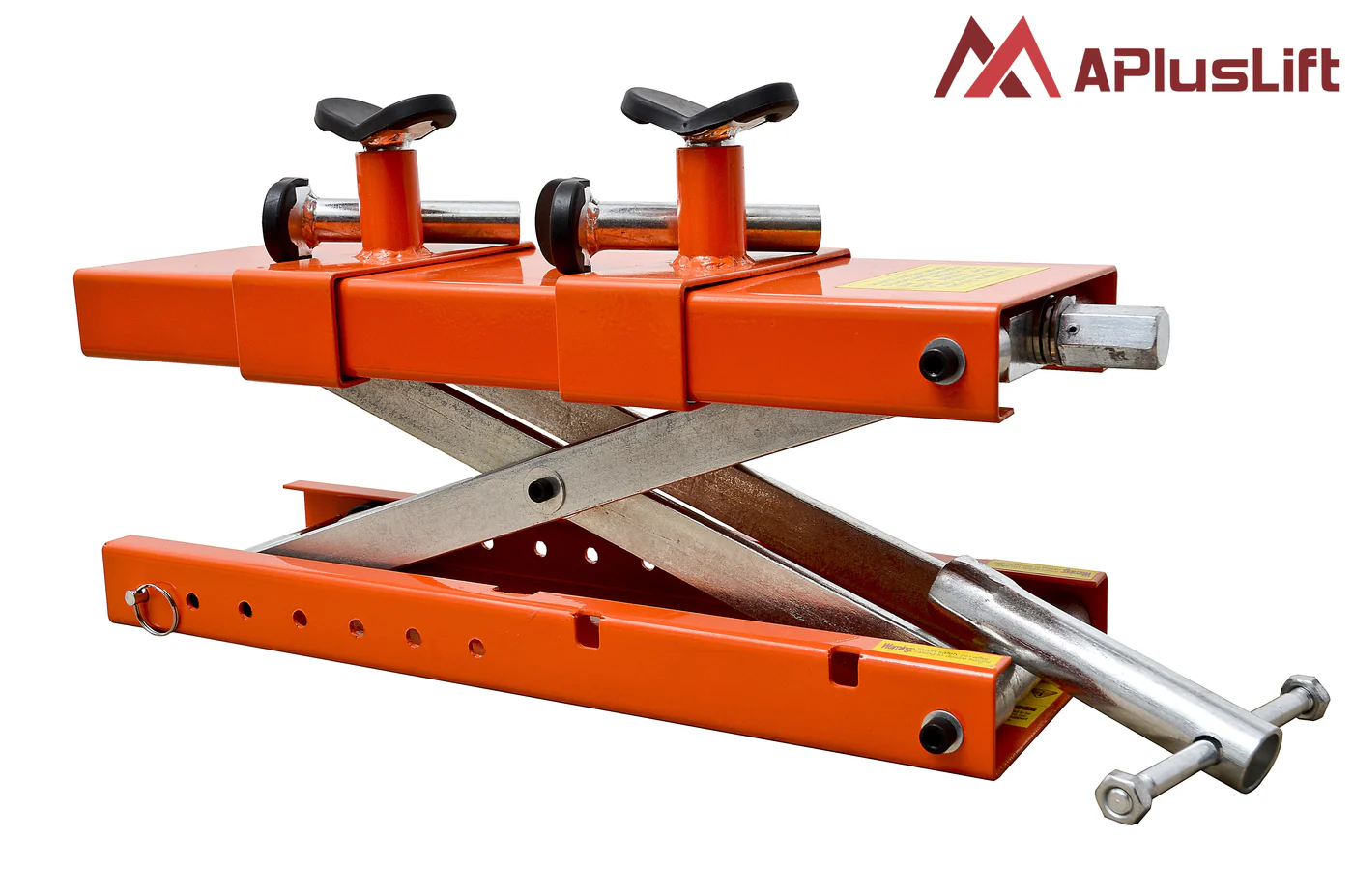

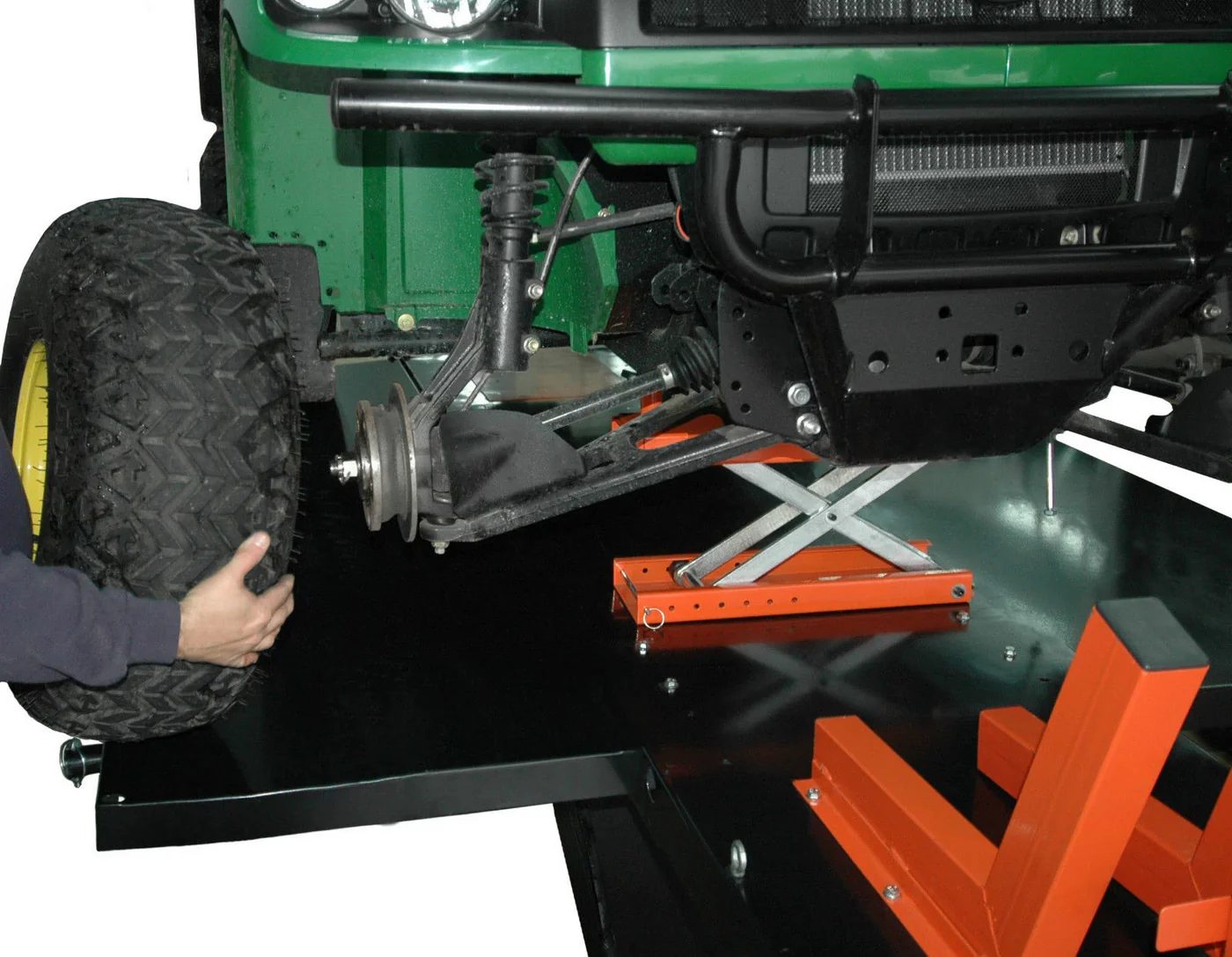

• 1 service jack included. The service jack is designed for lifting motorcycles for wheel service, and with included adapters, will also lift ATV and other small vehicles.
• 3 stage adjustable front extension. Front chopper extension allows long bikes to fit onto the lift.
• 7 position safety locking system. Secures lift in place while operating.
• An adjustable front extension and front stop which help longer motorcycle.
• Compact portable design. Makes the AP-MT1500X easy to move and store.
• Detachable drive on ramp. Low angle ramp protects bikes as they are rolled onto and off of the lift.

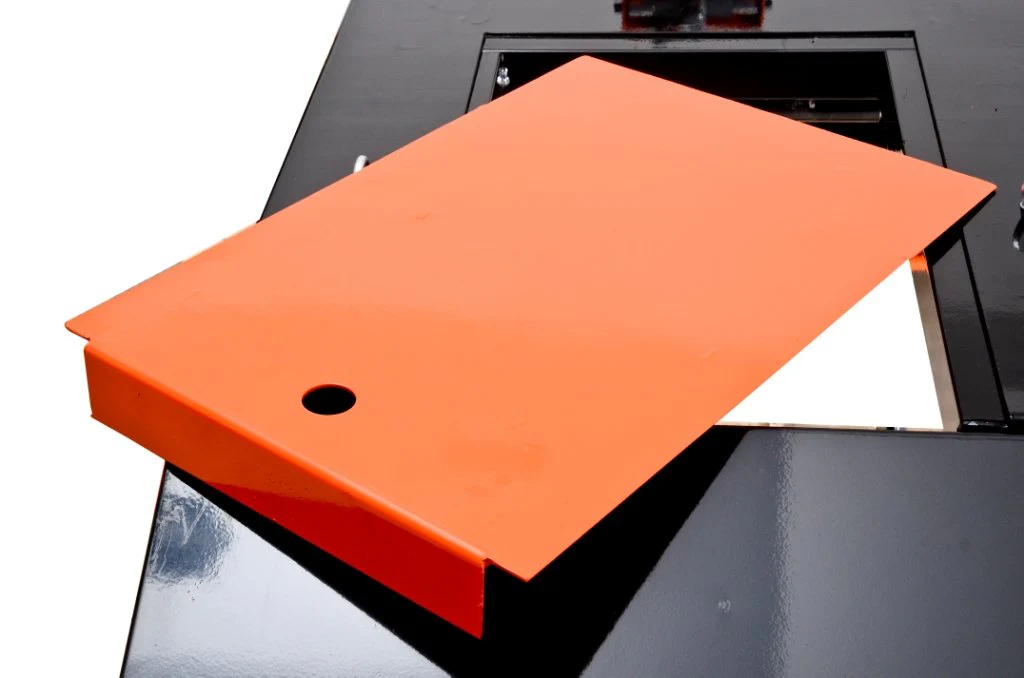

• Drop out tail. Allows access to rear of vehicles and makes wheel service easier.

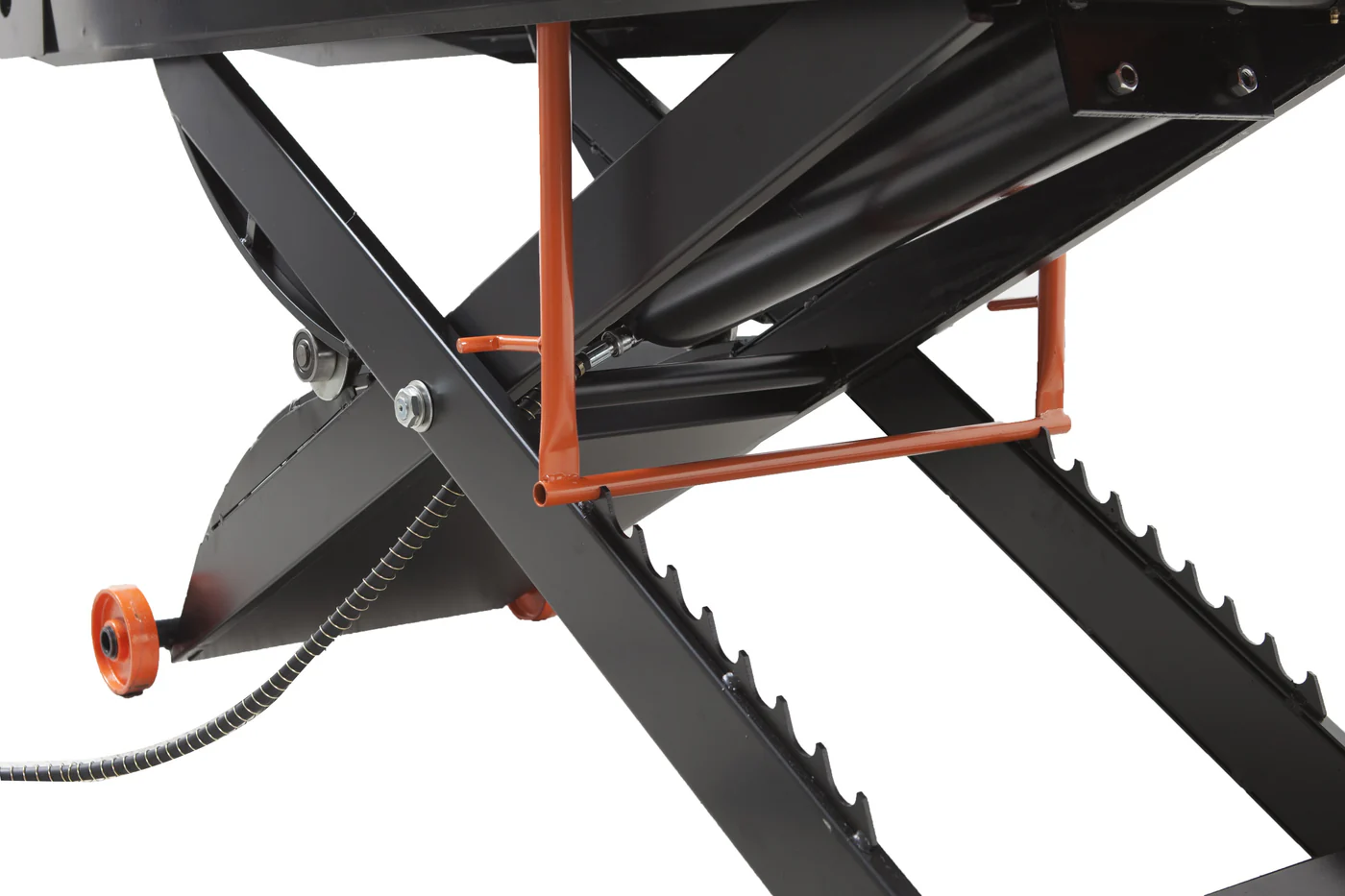

• Enhanced rack under main table. 7 position safety locking system: secures lift in place while working.

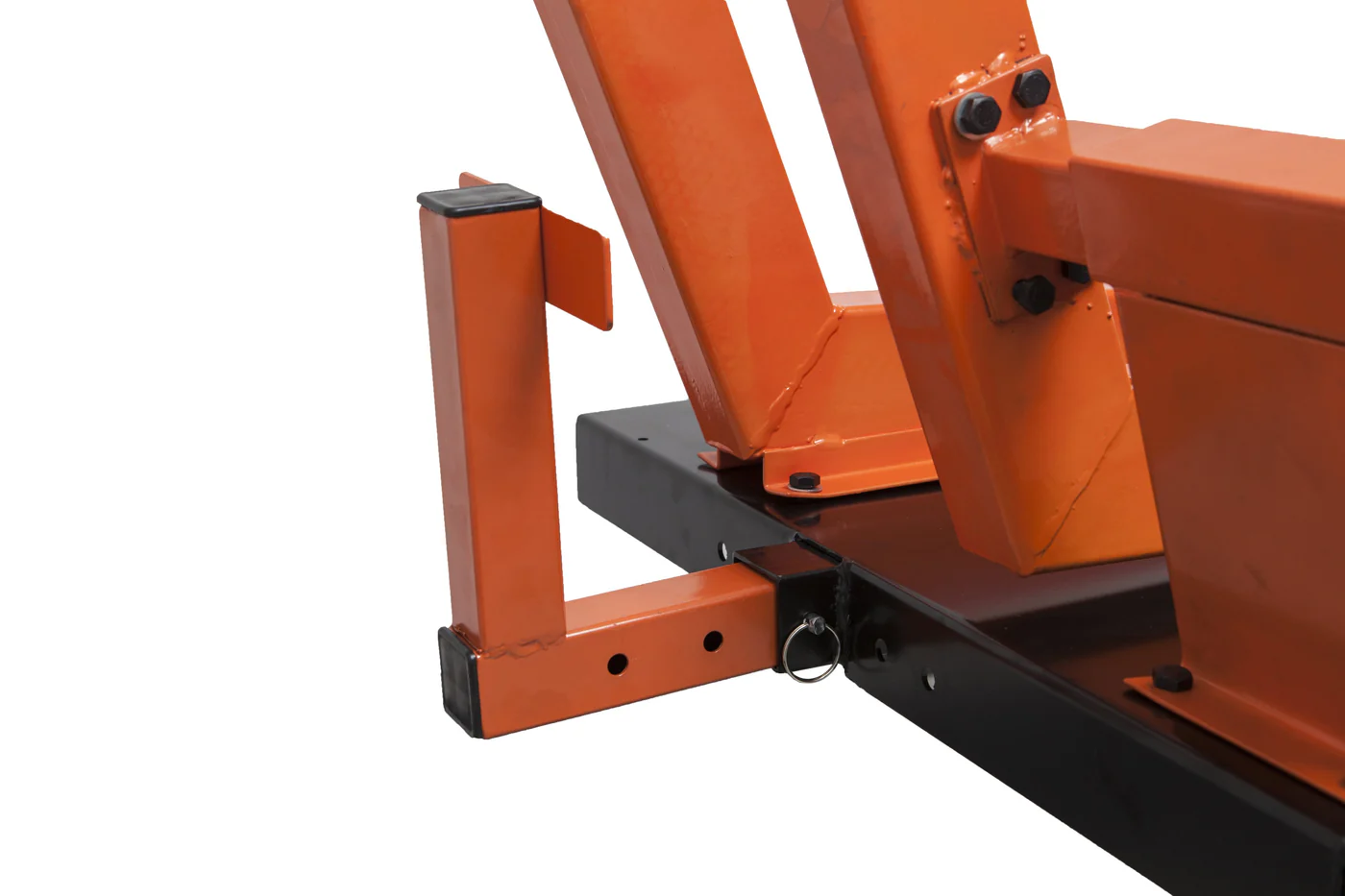

• Front wheel vise. Secures vehicles and includes adjustable front stop.
• Greasable shaft. Grease zerks on axle maintains smooth rolling action.
• Pneumatic operation. Air powered with foot pedal controls.
• Single heavy duty pneumatic cylinder. Heavy-duty construction w/ sealed roller bearings for smooth operation.
• Tailor-made cylinder with strong steel. Strengthening cylinder wall to support genuine 1,500 lb capacity.
