All Tire Machines
-
Three Year Parts Warranty!
-
CE Certificate
-
Rim Clamping 10″-21″ (Outside), 12″-24″ (Inside)
-
Maximum Tire Diameter 39″
-

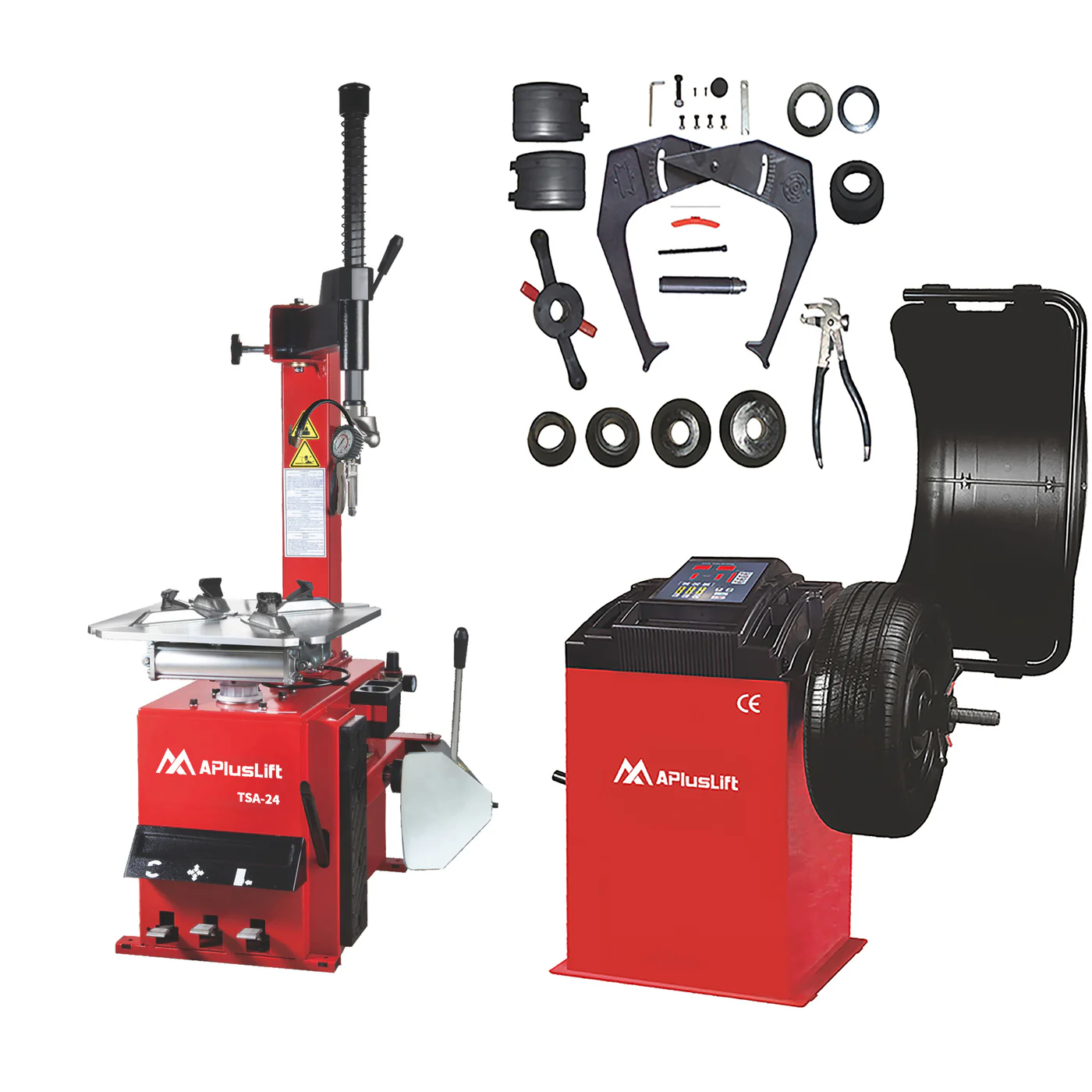

Wheel Balancer Includes Wheel Hood Protector
-
Optional Motorcycle/ATV Adapters for Tire Changer and Wheel Balancer (+$350): Rim Clamping 7″-24″ (Inside) with Adapters
Free shipping to commercial address (in a business zone) with forklift (or similar) on-site, or free pickup at nearby terminal. Residential addresses with liftgate (curbside only; no placement inside a building or backyard): $110. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $300 Discount): Kansas City (MO), Tacoma (WA).
Please Email or Text Us for Any Technical Questions. Our Technician Will Get Back to You on the Same Day.
Specifications and Features
- TSA-24
- CE Certificate
- Rim Clamping Outside 10″-21″
- Rim Clamping Inside 12″-24″ (7″-24″ with Motorcycle/ATV Adapters)
- Maximum Tire Diameter 39″
- Maximum Tire Width 14″ (355mm)
- Central Turntable with 24” Clamping Size
- Rugged And Durable One-Piece Casting Jaws
- Adjustable Pressing Shovel
- Bead Break Force 5600LB Pneumatic Piston
- Operating Pressure 120psi (8 Bar)
- Voltage 110V Single Phase
- Plug Included
- Noise Level Less Than 60dB
- Red Color Powder Coat Finish
- Machine Body Size: 15 19/32″ x 30 5/32″ x 20 3/16″
- Shipping Weight: 500LB
- Shipping Package size: 38″ x 30″ x 35″
- *Rim Dimensions Measured on Iron Wheel Rims*

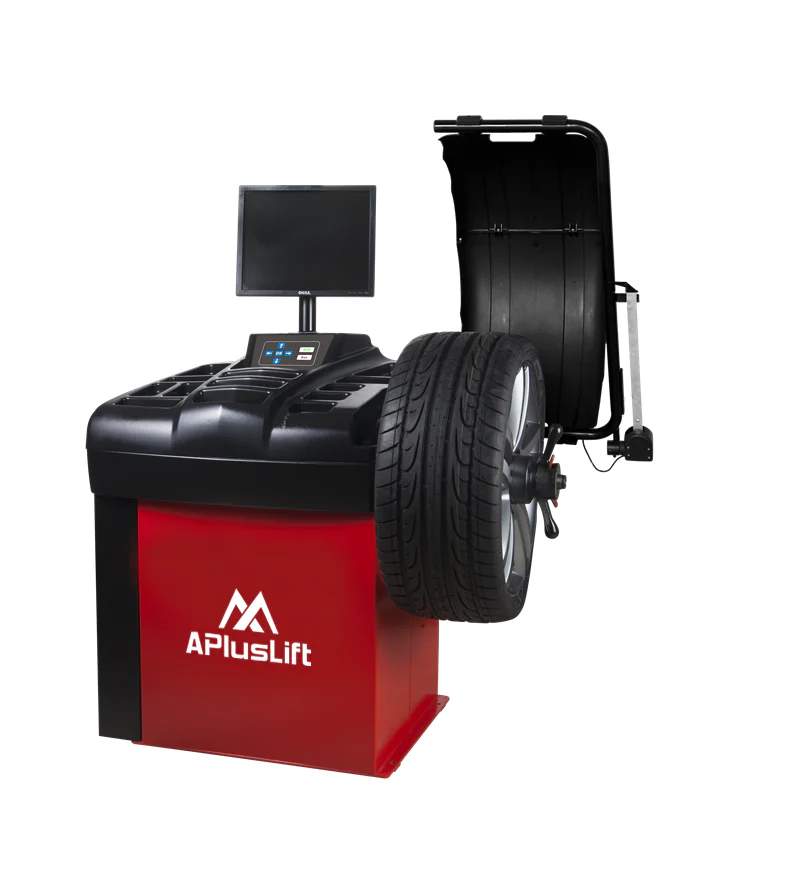

- WBS-500
- CE Certificate
- Rim Diameter 10″-24″
- Rim Width 1.5″-20″
- Maximum Tire Diameter 39″
- Maximum Tire Width 19.5″
- Maximum Wheel Weight 143LB
- Cycle Time 8 Seconds
- Voltage 110V Single Phase
- Plug Included
- Balancing Accuracy: -1g to +1g
- Normal Mode, Static Mode, ALU 1-3 Mode, ALU-S Mode
- Intelligent Self-Calibration
- Fault Self-Diagnosis And Detection Function
- 6 LED Display
- Noise Level Less Than 70dB
- Red Color Powder Coat Finish
- Machine Body Size(with protector): 43 3/16″ x 29 1/32″ x 59 1/16″
- Shipping Weight: 250LB
- Shipping Package Size: 36″ x 30″ x 48″
All Tire Machines
This product is in stock!
