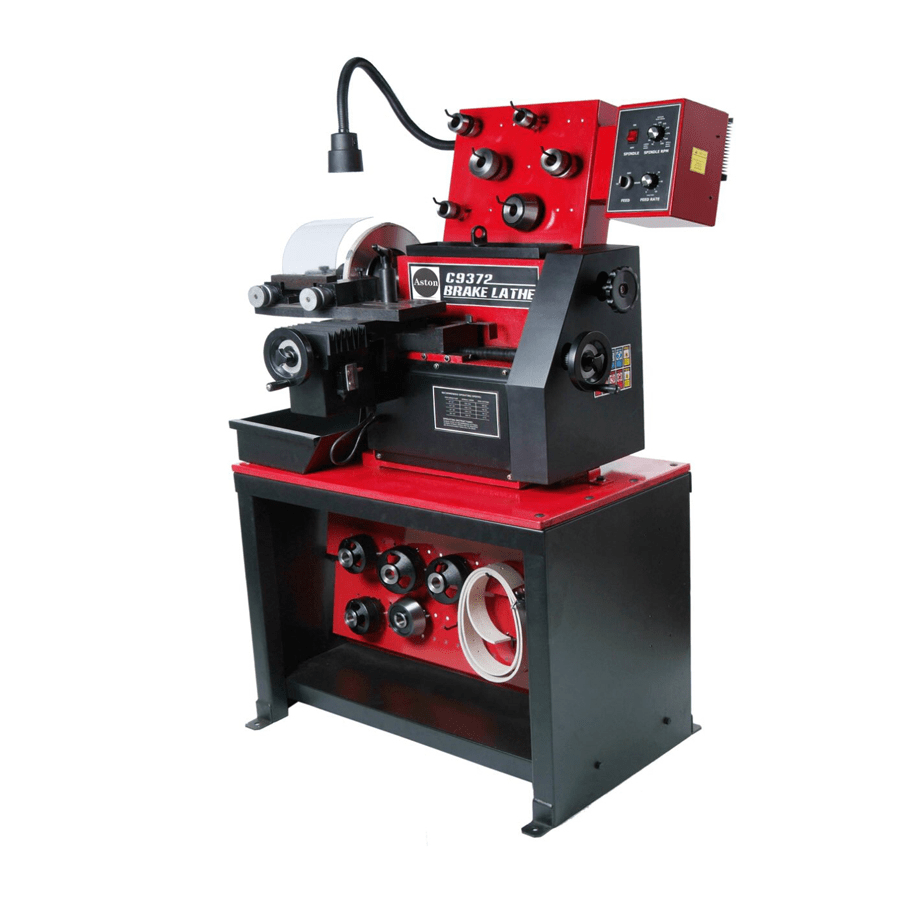

Aston Brake Lathe w/Full Accessories Package
Original price was: $7,995.00.$2,338.50Current price is: $2,338.50.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
41
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
Aston
Rotor Diameter: 4″~20″ (102mm~508mm)
- Maximum Rotor Thickness: 2.85 “(73mm)
- Drum Diameter: 6″~19.5″(152mm~500mm)
- Drum Depth: 6.5″(165mm)
- Flywheel Diameter: 6″~24″ (152mm~610mm)
- Spindle Weight Capacity (Standard 1″ Arbor): 150 lbs. (68kg)
- Spindle Speed: 70-320RPM
- Feed Rates – Rotor and Drum: 0″~0.026″ (0mm~0.66mm)
- Feed Rate Per Minute: 2.54″ (64.5mm)
- Motor: 110V/220V 50/60Hz
- Shipping Weight: 661 lbs. (300kg)
- Dimension: 1130mm X 720mm X 750mm
Specifications
| Feed rates-Rotor and Drum | 0”-0.026”
0mm-0.66mm |
| Spindle Speed | 70-320RPM |
| Feed Rates Per Minute | 2.54”
64.5mm |
| Spindle Weight Capacity | 150lbs
68Kg |
| Flywheel Diameter | 6”-24”
152-610mm |
| Rotor Diameter | 4”-20”
102-508mm |
| Maximum Rotor Thickness | 2.85”
73mm |
| Drum Diameter | 6”-19.5”
152-500mm |
| Drum Depth | 6.5”
165mm |
| Motor | 110V/220V 50/60HZ |
| Gross Weight | 300KG
661lb |
| Dimension | 1100×730×720mm
43×29×28 |
Standard Adapter
| No | Description | Part No | Qty |
| 1 | Taper Cone (45x70mm) | C4-00-44-03 (For 1” Arbor) | 1 |
| 2 | Taper Cone (59x75mm) | C4-00-44-04 (For 1” Arbor) | 1 |
| 3 | Taper Cone (66x82mm) | C4-00-44-05 (For 1” Arbor) | 1 |
| 4 | Taper Cone (74x90mm) | C4-00-44-06 (For 1” Arbor) | 1 |
| 5 | Clamp (94mm) | C4-00-46-01 (For 1” Arbor) | 2 |
| 6 | Clamp (116mm) | C4-00-46-02 (For 1” Arbor) | 2 |
| 7 | Clamp (146mm) | C4-00-46-03 (For 1” Arbor) | 2 |
| 8 | Spring | C4-00-45 (For 1” Arbor) | 1 |
| 9 | Open End Wrench (27-30mm) | 1 | |
| 10 | Silencing Belt for rotor and drum | 2 | |
| 11 | Spacer | For 1” Arbor | 6 |
| 12 | Hub Localize (Arbor 2”/50.8 mm) | C8F-01-01 | 1 |
| 13 | Localizer Big Taper Cone (79x108mm) | C8F-01-02 (For 2” Arbor) | 1 |
| 14 | Localizer Small Taper Cone (54×82.5mm) | C8F-01-03 (For 2” Arbor) | 1 |
| 15 | Nut | C8F-01-04 (For 2” Arbor) | 1 |
| 16 | Big Spacer (171.5mm) | C8F-02(For 2” Arbor) | 1 |
| 17 | Small Spacer (133mm) | C8F-03(For 2” Arbor) | 1 |
| 18 | Big Adapter (171.5mm) | C8F-04-00 (For 2” Arbor) | 1 |
| 19 | Small Adapter (133mm) | C8F-05-00 (For 2” Arbor) | 1 |
| 20 | Step Adapter (25.4×50.8mm) | C8F-06 (For 2” Arbor) | 1 |
| 21 | Bend Wrench 78-85mm | 1 |
