Atlas 9KBPX Two-Post Lift: Baseplate 9,000lb. Capacity

Introduction to the Atlas 9KBPX Two-Post Lift

The Atlas 9KBPX Two-Post Lift stands out as a versatile and economically designed solution tailored for both professional and home garages with low ceilings. Engineered with a total column height of 111 ½ inches (9 feet 3 ½ inches), this baseplate two-post lift can be seamlessly installed in spaces with ceilings as low as 9 feet 6 inches. This thoughtful design ensures that even garages with height constraints can benefit from a robust and efficient vehicle lifting system.

One of the primary advantages of the Atlas 9KBPX Two-Post Lift is its ability to service a wide range of vehicles, encompassing cars, SUVs, and light-duty trucks. This versatility makes it an invaluable addition for ‘Mr. Homeowner’ seeking to maintain personal vehicles, as well as for small commercial shops aiming to maximize their service capabilities without the need for extensive structural modifications to their premises.

Beyond its height-friendly design, the Atlas 9KBPX boasts several key features that enhance its functionality and reliability. The lift’s baseplate configuration provides strong structural support, while the symmetrical arms ensure balanced lifting across different vehicle types. Furthermore, the lift is engineered for user convenience with its straightforward installation process, minimal maintenance requirements, and durability to withstand regular usage.

The incorporation of advanced safety features is another highlight of the Atlas 9KBPX Two-Post Lift. These features include mechanical locks and automatic arm restraints, designed to secure the lifted vehicle and provide peace of mind during maintenance activities. Professionals and enthusiasts alike can appreciate the blend of safety, reliability, and ease of use that this lift offers.

Overall, the Atlas 9KBPX Two-Post Lift exemplifies a perfect harmony of design efficiency, versatility, and durability, making it a fitting choice for garages with low ceilings. Its capacity to handle a variety of vehicles, combined with its robust construction, positions it as a valuable asset for any automotive service environment.

The Atlas 9KBPX two-post lift stands out with an impressive capacity of 9,000 lbs, making it highly suitable for a wide range of vehicles. The lift utilizes a symmetric arm design that ensures stability and balanced lifting, a critical feature for professional and home garages alike. Notably, the overall floor width of the Atlas 9KBPX measures 134 1/2″, which allows for ample space to accommodate vehicles of various sizes.

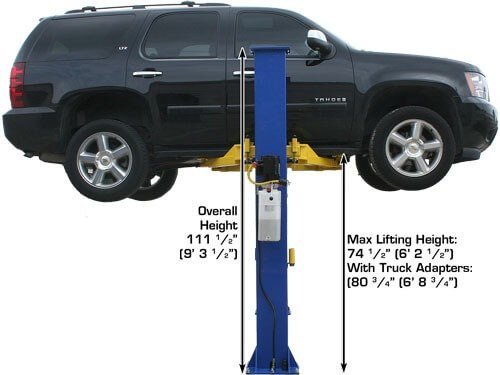

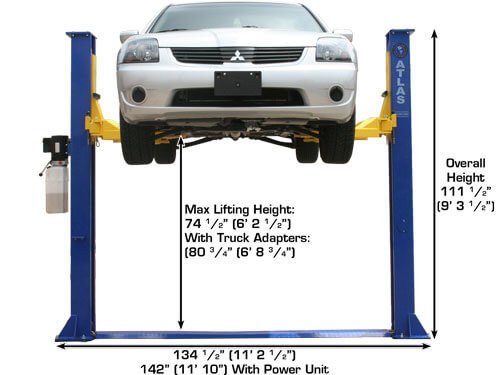

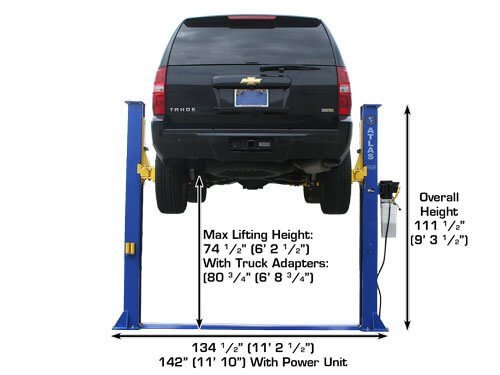

The maximum lift height of the Atlas 9KBPX is an essential aspect of its functionality. With adapters, the maximum lift height reaches 81″, while without adapters, it stands at 74 1/2″. These measurements allow mechanics to work comfortably under the vehicle, regardless of the ceiling constraints. Furthermore, the minimum arm height of just 4” enhances versatility, enabling the lift to handle low-profile cars easily.

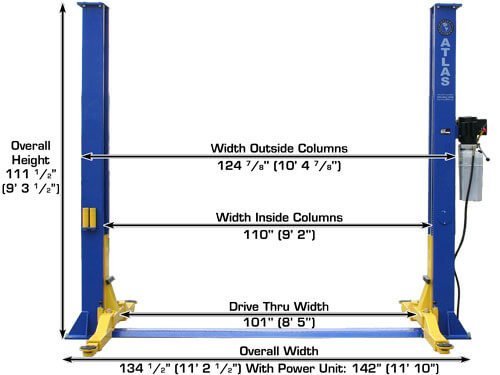

Dimensionally, the inside column width of 110” and the drive-thru width of 101” provide sufficient clearance for diverse vehicle specifications. The column steel thickness of 5mm ensures durability and safety, making the lift robust enough to handle frequent use in a busy workshop environment.

Efficient operation of the Atlas 9KBPX relies on specific motor and electrical requirements. The lift necessitates a 220-volt single-phase power supply with a 30-amp breaker, ensuring the motor operates smoothly. Additionally, the system requires between 3 to 5 gallons of AW32 or AW46 oil for optimal hydraulic function.

Structural integrity is another critical aspect of the Atlas 9KBPX. To ensure safety and performance, the lift must be installed on a 4” concrete floor with a rating of 3000 psi. This concrete specification is essential to prevent potential cracking or instability during the lifting process, thereby securing both the vehicle and the user.

Overall, the technical specifications and capacity of the Atlas 9KBPX two-post lift make it a formidable choice for environments with low ceilings, combining advanced features and robust construction for reliable performance.

Safety Features and Mechanism

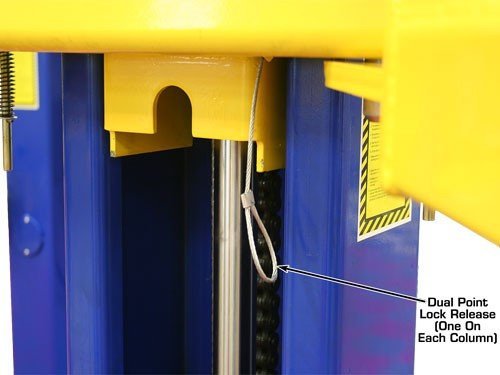

Safety is of utmost importance when dealing with heavy lifting equipment, and the Atlas 9KBPX Two-Post Lift stands out with its comprehensive suite of safety mechanisms. Central to its reliable operation is the ‘chain over roller’ mechanism, a design that ensures a smooth lifting process and reduces wear on the moving parts. This mechanism is coupled with a spring-loaded secondary lock system (SLS), which acts as an automatic fail-safe. In the event of a slack or broken chain, the SLS engages immediately, preventing any sudden drops and safeguarding both the vehicle and operator.

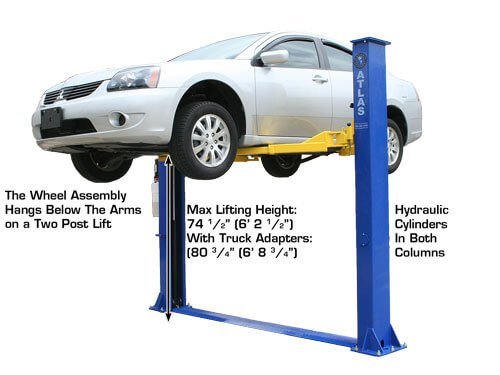

Additionally, the Atlas 9KBPX is equipped with dual chain-drive hydraulic cylinders. These cylinders provide powerful and stable lifting capabilities, ensuring that the lift operates efficiently even under heavy loads. This dual system not only enhances the lift’s performance but also adds a layer of redundancy, further improving safety.

The symmetric arms of the Atlas 9KBPX contribute to its versatility and stability. By distributing the vehicle’s weight evenly, these arms help maintain balance during lifting operations, reducing the risk of tipping or uneven lifting. The automatic arm restraints, another critical safety feature, lock the arms in place once a vehicle is lifted. This prevents unintended movement or slippage, allowing operators to work with confidence.

Each of these components plays a crucial role in ensuring that the Atlas 9KBPX Two-Post Lift is not only safe to use but also highly efficient. Whether you’re lifting compact cars or heavier vehicles, this lift’s robust design and integrated safety features make it a dependable choice for any garage. By prioritizing both safety and performance, the Atlas 9KBPX provides users with peace of mind and operational reliability.

Accessories, Warranty, and Installation Guidelines

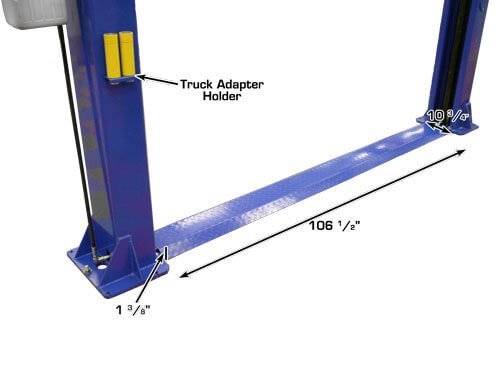

The Atlas 9KBPX Two-Post Lift is lauded not only for its compatibility with low ceiling garages but also for the range of accessories that enhance its versatility. Included with the lift is a free 8-piece truck adapter set, designed to facilitate the lifting of various vehicle types, thereby extending the utility of this two-post lift. For specialized needs, a variety of optional accessories are available, including additional adapters and weight plates, ensuring that this lift can accommodate a wide array of lifting requirements.

When it comes to installing the Atlas 9KBPX lift, the process is relatively straightforward thanks to the thorough inclusion of all necessary mounting hardware. This ensures that you have everything needed for a successful installation right out of the box. Detailed installation guidelines are provided, which recommend a minimum of 4 inches of concrete thickness and 3,000 PSI minimum concrete strength to ensure optimal performance and safety. Attention to these installation details is crucial to maximize the lift’s reliability and longevity.

The Atlas 9KBPX lift is backed by a comprehensive warranty that speaks to its quality and the manufacturer’s commitment to customer satisfaction. Structural components are covered for two years, allowing buyers to rest assured that the foundational elements of their lift are protected. Additionally, hydraulic parts are supported by a one-year warranty (parts only), providing further peace of mind. This combination of coverage underscores the product’s reliability and the company’s dedication to service.

It’s important to note the lift’s shipping weight and preparations necessary for installation. The shipping weight of the Atlas 9KBPX is approximately 1,300 pounds, necessitating careful planning for its delivery and setup. Provisions should be made to handle this weight safely to prevent any damage or injury during installation. By adhering to the specified guidelines and performing any necessary preparations, you can ensure a smooth and efficient setup process for this two-post lift in your garage.
