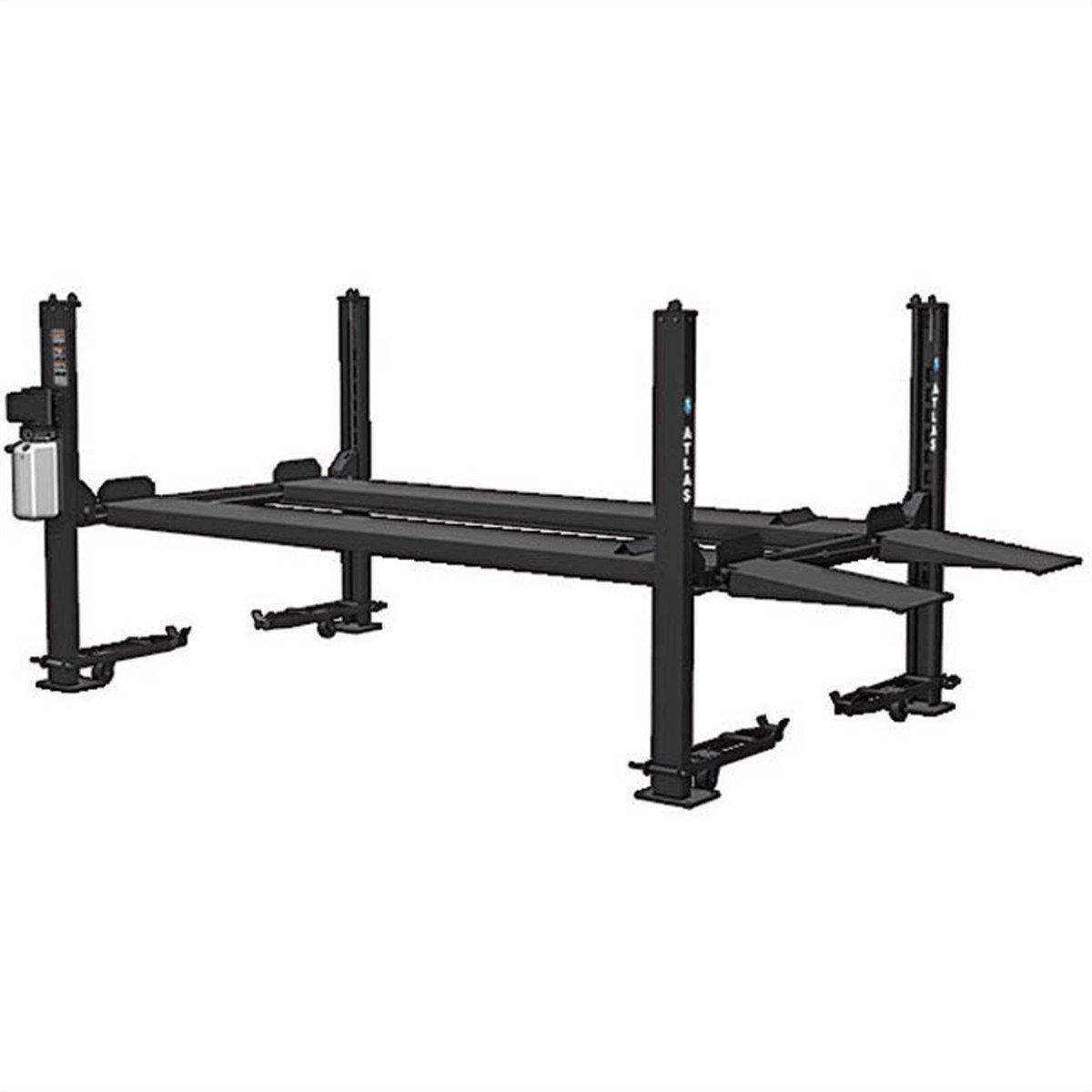

Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift

Atlas® APEX8: The Space-Saving, ALI Certified 4-Post Lift for Home Garages and Restoration Shops

The Atlas® APEX8 is a powerful and versatile 4-post lift, designed to be the perfect solution for those with limited garage space. This lift combines robust construction with space-saving features, making it ideal for home garages and restoration shops that need a reliable lifting solution without sacrificing valuable floor area.

Why Choose the Atlas® APEX8?

The Atlas® APEX8 is designed for those who:

• Need a Powerful and Reliable Lift: This lift has an 8,000 lb. capacity, allowing you to safely and efficiently lift a wide range of vehicles, from compact cars to SUVs and light trucks.

• Value Versatility: This lift is perfect for a variety of tasks, including vehicle storage, maintenance, and even restoring classic cars.

• Prioritize Space Optimization: The APEX8’s compact design makes it an excellent choice for smaller garages where space is limited.

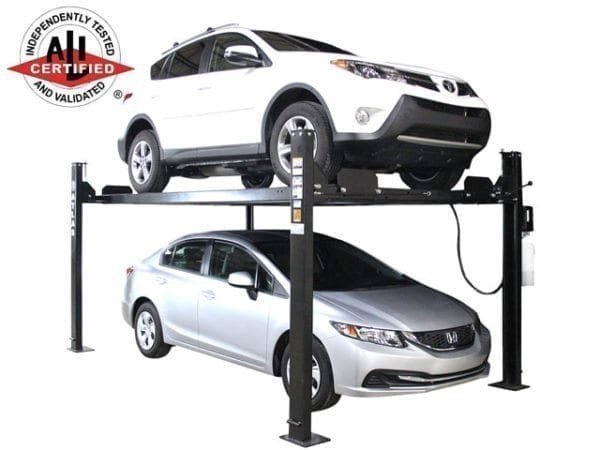

• Want Peace of Mind with ALI Certification: The APEX8 has earned ALI (Automotive Lift Institute) certification, ensuring that it meets the highest industry standards for safety and performance.

Key Features:

• 8,000 lb. Capacity: This powerful lift can handle a wide range of vehicles with ease.

• Free-Standing and Portable Design: The APEX8 is designed for flexibility, with an included caster kit that allows you to easily move it between bays or even outdoors.

• Heavy-Duty Construction: The APEX8 is built to last, featuring a durable steel frame, heavy-duty lifting cables, and a powder-coated finish that resists corrosion and wear.

• Space-Saving Design: This lift is designed to maximize your valuable garage space, allowing you to park vehicles above ground level, freeing up floor area for other uses.

• Safety Features: The APEX8 is built with safety in mind, including a secure locking system, sturdy construction, and a comprehensive set of safety features.

• Easy Operation: The APEX8 features convenient push-button controls for smooth and efficient lifting and lowering.

Beyond the Lift:

The APEX8 comes standard with a complete package of essential accessories:

• Caster Kit: For easy mobility and space-saving storage. This option allows you to move the lift between bays or even outdoors, maximizing your garage space.

• Steel Approach Ramps: The APEX8 comes with durable steel approach ramps for safe and convenient vehicle loading.

• Steel Jack Tray: This sturdy tray provides a stable platform for your jack, eliminating the need to maneuver it around the lift.

• Plastic Drip Trays: These trays help to keep your garage floor clean by catching drips and spills.

• Wheel Stops: These stops secure your vehicles in place, ensuring safety while the lift is in use.

• Rubber Wheel Chocks: These chocks provide additional security for your vehicles.

The APEX8: A Smart Choice for Your Garage:

This versatile lift offers a powerful combination of strength, convenience, and space-saving design. Here’s why the APEX8 is a smart choice for your garage:

• Increased Versatility: This lift allows you to store vehicles above ground level, freeing up valuable floor space. It also serves as a versatile tool for servicing your vehicles, maximizing your garage’s functionality.

• Safety First: The APEX8 is designed with safety in mind, with robust construction and comprehensive safety features, ensuring a secure lifting experience.

• Convenience and Efficiency: The APEX8’s easy operation and included accessories streamline your workflow, making it easy to use and maximize your garage space.

• Exceptional Value: The APEX8 comes with a complete set of essential accessories, offering exceptional value for your investment.

Specifications:

• Capacity: 8,000 lb.

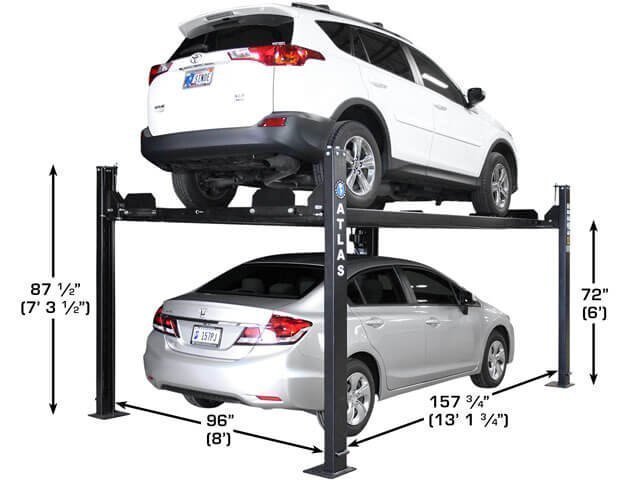

• Lifting Height To Top Of Runway: 72″ (6′)

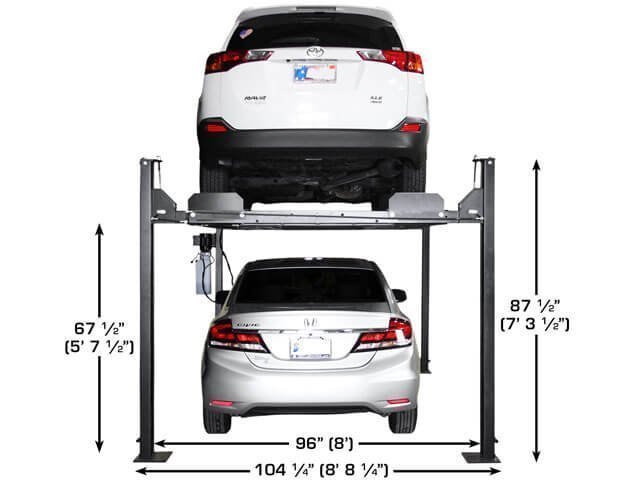

• Clearance Under Runways: 67″ (5′ 7″)

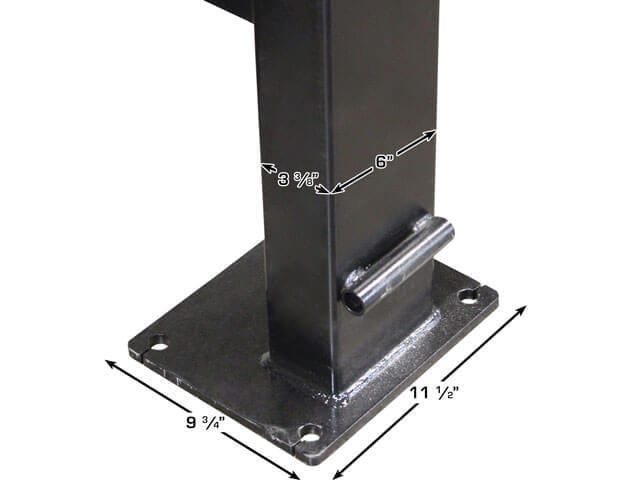

• Height Of Columns (Including Nuts): 86 5/8″ (7′ 2 5/8″)

• Overall Width (Without Motor or Casters): 104″ (8′ 8″)

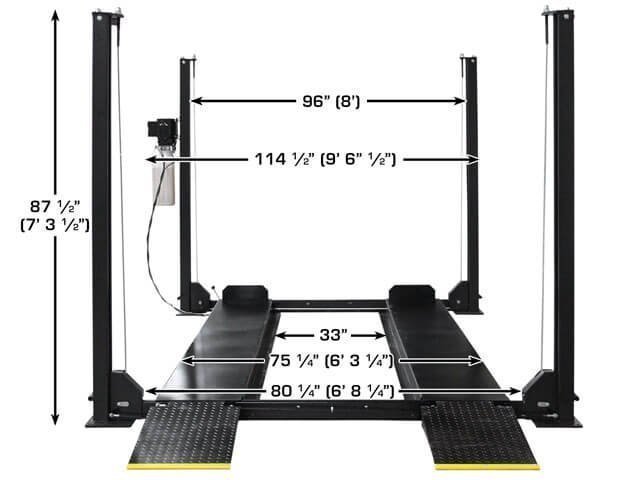

• Overall Width (With Motor): 114″ (9′ 6″)

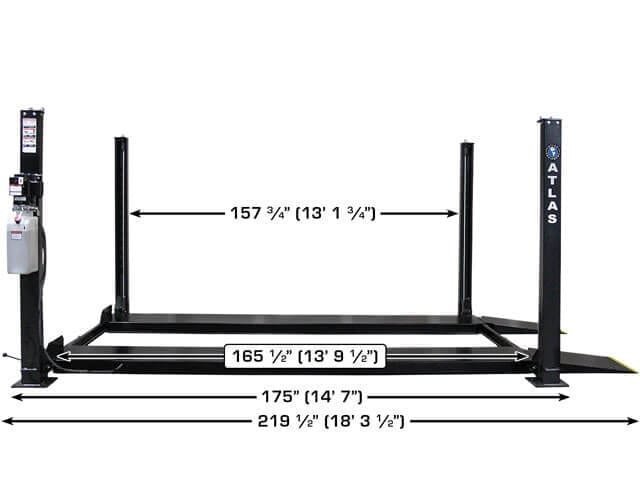

• Overall Length without Approach Ramps (Including Lock Release Bar): 186 1/2″ (15′ 6 1/2″)

• Overall Length with Approach Ramps: 207 5/6″ (17′ 3 5/6″)

• Approach Ramps: 37 1/2″ (3′ 1 1/2″)

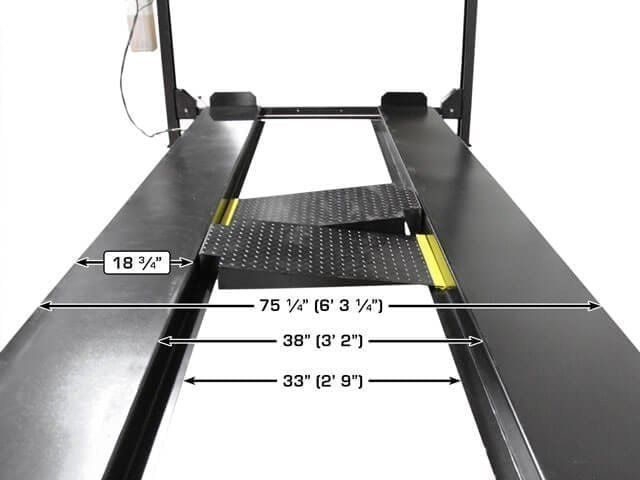

• Runway Width: 18 2/3″

• Runway Rail Width: 2 1/2″

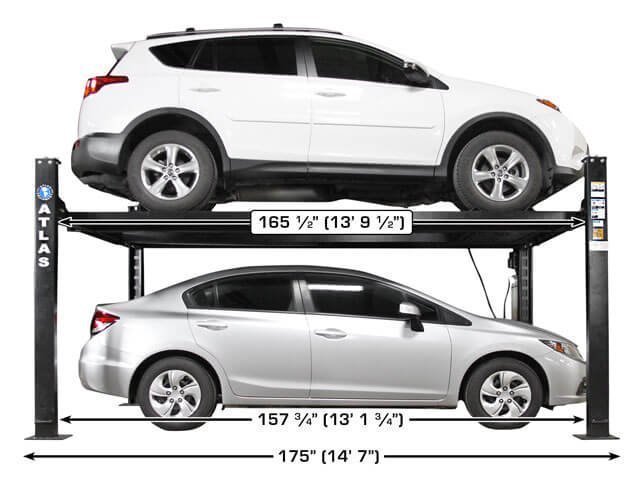

• Runway Length: 169 1/2″ (14′ 1 1/2″)

• Runway Thickness: 4 1/3″

• Width Between Runways: 38″ (3′ 2″)

• Width Between Runway Rails: 33 (2′ 9″)

• Outside Runway To Outside Runway: 75 1/4 (6′ 3 1/4″)

• Clearance Between Columns: 94″ (7′ 10″)

• Length Between Columns: 157 1/3″ (13′ 1 1/3″)

• Maximum Wheel Base: 154 (12′ 9″)

• Drive Thru (Outside Of Tire To Outside Of Tire): 80 1/4″ (6′ 8 1/4″)

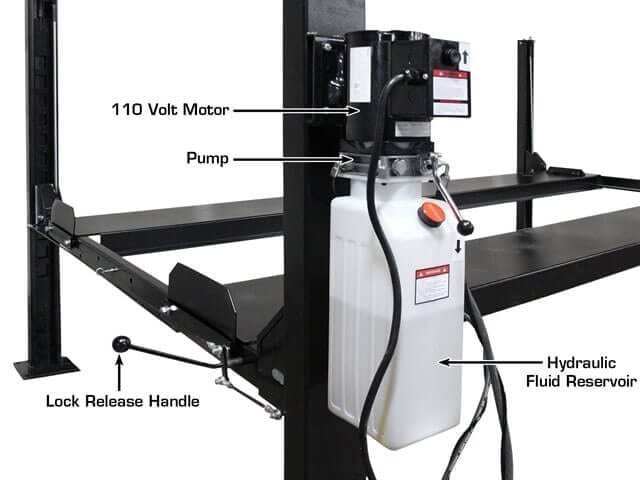

• Motor/Electrical Requirement: 110 Volt, 30 AMP BREAKER REQUIRED

• Shipping Weight: 2,000 lb.

• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

The Atlas® APEX8 is a powerful, versatile, and convenient lift that makes a great addition to any home garage or restoration shop. Invest in the APEX8 and enjoy the space-saving benefits and reliable performance it offers.
