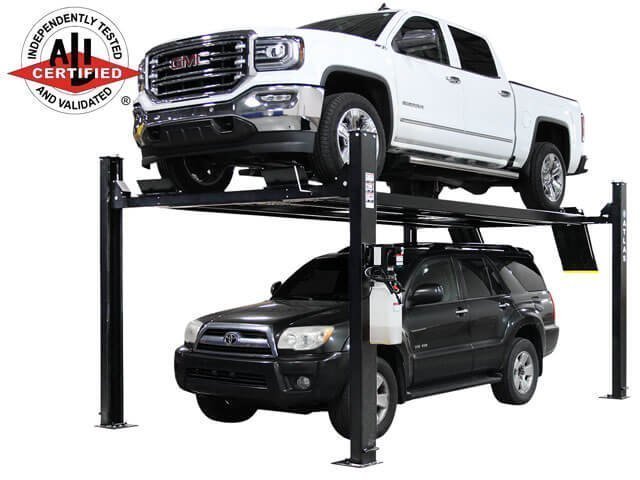

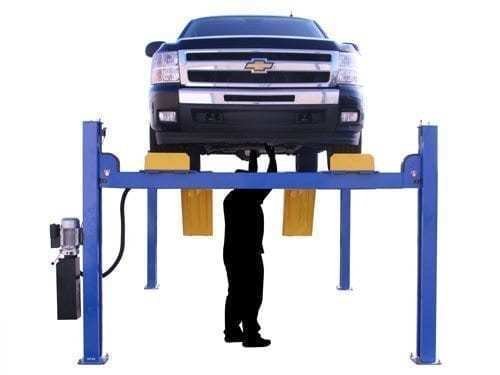

Atlas® APEX9: The Powerful, Versatile 4-Post Lift for Home Garages and Shops

The Atlas® APEX9 is a heavy-duty 4-post lift designed to handle demanding tasks while offering flexibility and convenience. This lift is perfect for those who need a powerful and versatile lifting solution without sacrificing valuable garage space.

Why Choose the Atlas® APEX9?

The Atlas® APEX9 is an excellent choice for those who:

• Need a Powerful and Reliable Lift: This lift boasts a 9,000 lb. capacity, making it capable of safely and efficiently lifting a wide range of vehicles, including trucks, SUVs, and even some commercial vehicles.

• Prioritize Space Optimization: The APEX9’s design maximizes your valuable garage space, offering the ability to store vehicles above ground level, freeing up floor area for other uses.

• Want Versatility: The APEX9 is designed for a variety of tasks, including vehicle storage, maintenance, and even working on larger vehicles like dually trucks.

• Demand Peace of Mind with ALI Certification: The APEX9 has earned ALI (Automotive Lift Institute) certification, ensuring that it meets the highest industry standards for safety and performance.

Key Features:

• 9,000 lb. Capacity: This powerful lift can handle a wide range of vehicles with ease.

• Free-Standing and Portable Design: The APEX9 is designed for flexibility, with an included caster kit that allows you to easily move it between bays or even outdoors.

• Extra Tall, Extra Wide & Extra Long: This spacious design provides ample clearance to easily work on a wide range of vehicles, from smart cars to those tall SUVs and trucks, making it a versatile lift.

• Heavy-Duty Construction: The APEX9 is built to last, featuring a durable steel frame, heavy-duty lifting cables, and a powder-coated finish that resists corrosion and wear.

• Safety Features: The APEX9 is built with safety in mind, including a secure locking system, sturdy construction, and a comprehensive set of safety features.

• Easy Operation: The APEX9 features convenient push-button controls for smooth and efficient lifting and lowering.

Beyond the Lift:

The APEX9 comes standard with a complete package of essential accessories:

• Caster Kit: For easy mobility and space-saving storage. This option allows you to move the lift between bays or even outdoors, maximizing your garage space.

• Steel Approach Ramps: The APEX9 comes with durable steel approach ramps for safe and convenient vehicle loading.

• Steel Jack Tray: This sturdy tray provides a stable platform for your jack, eliminating the need to maneuver it around the lift.

• Plastic Drip Trays: These trays help to keep your garage floor clean by catching drips and spills.

• Wheel Stops: These stops secure your vehicles in place, ensuring safety while the lift is in use.

• Rubber Wheel Chocks: These chocks provide additional security for your vehicles.

The APEX9: A Smart Choice for Your Garage:

This versatile lift offers a powerful combination of strength, convenience, and space-saving design. Here’s why the APEX9 is a smart choice for your garage:

• Increased Versatility: This lift allows you to store vehicles above ground level, freeing up valuable floor space. It also serves as a versatile tool for servicing your vehicles, maximizing your garage’s functionality.

• Safety First: The APEX9 is designed with safety in mind, with robust construction and comprehensive safety features, ensuring a secure lifting experience.

• Convenience and Efficiency: The APEX9’s easy operation and included accessories streamline your workflow, making it easy to use and maximize your garage space.

• Exceptional Value: The APEX9 comes with a complete set of essential accessories, offering exceptional value for your investment.

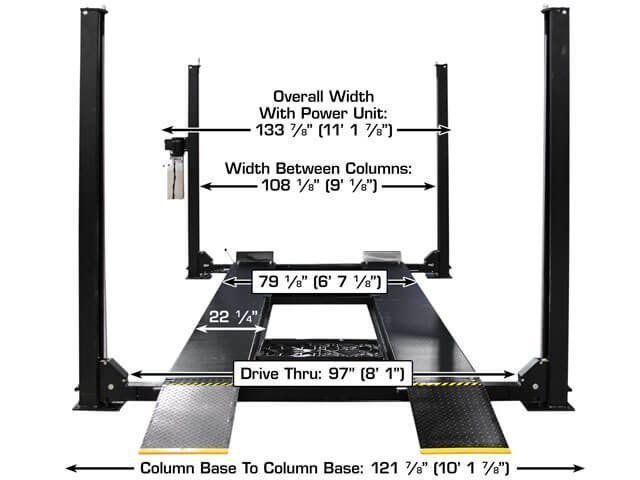

Specifications:

• Capacity: 9,000 lb.

• Lifting Height To Top Of Runway: 86″ (7′ 2″)

• Clearance Under Runways: 81 1/4″ (6′ 9 1/4″)

• Height Of Columns: 99″ (8′ 3″)

• Overall Width (Without Motor or Casters): 121 7/8″ (10′ 1 7/8″)

• Overall Width (With Motor): 133 7/8″ (11′ 1 7/8″)

• Overall Length without Approach Ramps (Including Lock Release Bar): 204″ (17″)

• Overall Length with Approach Ramps: 227 1/2″ (18′ 11 1/2″)

• Approach Ramps: 31 1/2″

• Runway Width: 20 1/8″

• Runway Rail Width: 2″

• Runway Length: 196 1/2″ (16′ 4 1/2″)

• Runway Thickness: 4 3/4″

• Width Between Runways: 38 7/8″ (3′ 2 7/8″)

• Width Between Runway Rails: 34 3/4″ (2′ 10 3/4″)

• Outside Runway To Outside Runway: 79″ (6′ 7″)

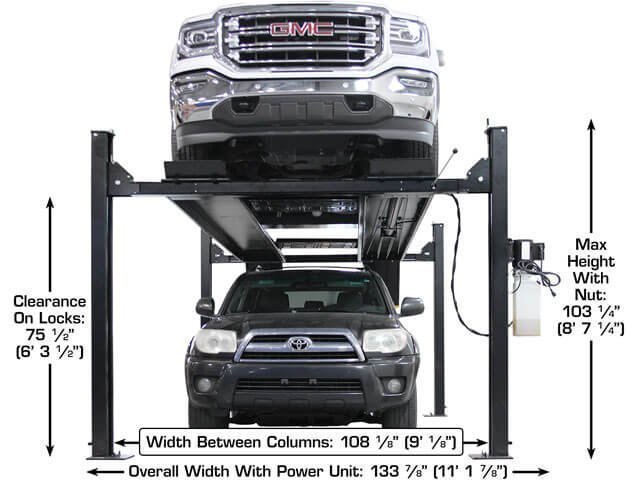

• Clearance Between Columns: 108 1/8″ (9′ 1/8″)

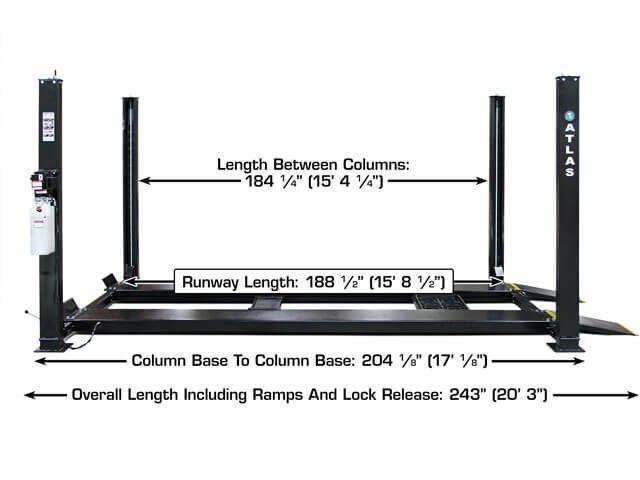

• Length Between Columns: 184 1/4″ (15′ 4 1/4″)

• Maximum Wheel Base: 184″ (15′ 4″)

• Drive Thru (Outside Of Tire To Outside Of Tire): 98 5/8″ (8′ 2 5/8″)

• Motor/Electrical Requirement: 110 Volt, 30 AMP BREAKER REQUIRED

• Shipping Weight: 2,975 lb.

• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

The Atlas® APEX9 is a powerful, versatile, and convenient lift that makes a great addition to any home garage or shop. Invest in the APEX9 and enjoy the space-saving benefits and reliable performance it offers.
