Atlas Two-Post Lift PV10PX: A Heavy-Duty Commercial Solution

Overview and Key Features

The Atlas Two-Post Lift PV10PX is a robust and versatile commercial grade lifting solution, designed to meet the demanding needs of automotive service providers. With a substantial weight capacity of 10,000 lbs, this lift is engineered to handle a wide array of vehicles, ensuring both efficiency and reliability in various operational contexts.

A key feature of the Atlas PV10PX is its adjustable height, accommodating ceiling heights with options of 11′ 11 1/8″ or 12’3″. This flexibility allows for customized installations tailored to the unique spatial constraints of different service bays. Additionally, the lift is capable of both asymmetric and symmetric arm configurations, which cater to diverse vehicle types, optimizing the balance and safety during lifting operations.

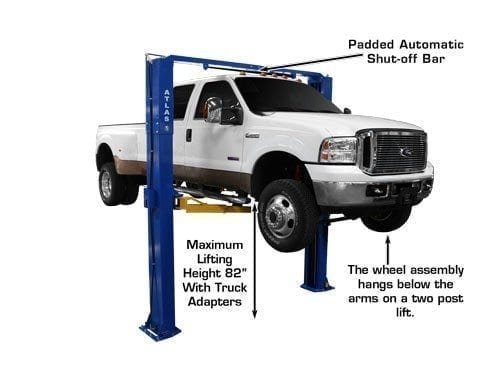

Safety and durability are at the forefront of the Atlas PV10PX’s design. The inclusion of automatic arm restraints and a padded shut-off bar enhances operational safety, minimizing risks during use. The lift’s padded carriages provide further protection to vehicles while being hoisted, reducing the chances of accidental damage.

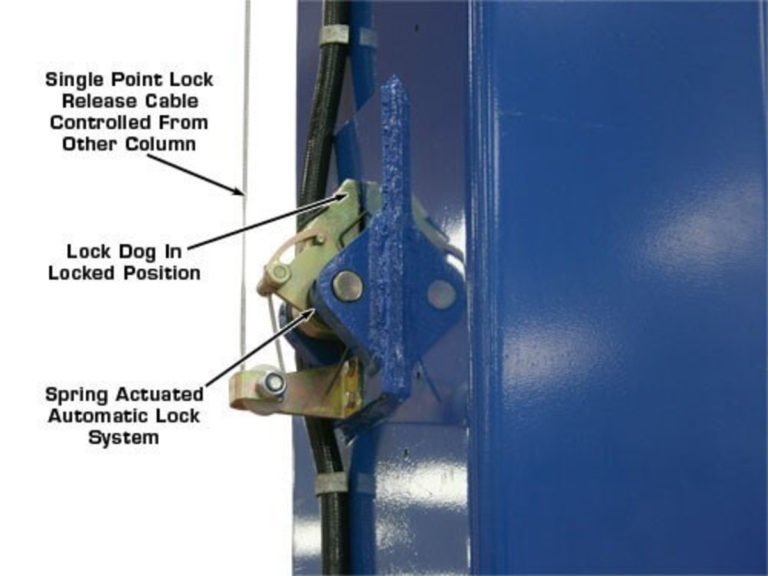

The Atlas PV10PX is equipped with a single point lock release mechanism, simplifying the operation for users by allowing locks on both columns to be simultaneously disengaged from a singular point. This feature significantly enhances user convenience while maintaining a focus on safety. Furthermore, the lift’s direct-drive hydraulic cylinders ensure a smooth and efficient lifting process, adding to the overall reliability and long-term performance of this equipment.

Durability is also addressed with the lift’s powder coat finish, which not only offers a professional appearance but also provides excellent resistance to corrosion and wear, extending the lifespan of the equipment. The Atlas PV10PX comes with a complimentary 12-piece truck adapter set, further broadening its utility and making it a comprehensive solution for heavy-duty lifting needs.

The Atlas Two-Post Lift PV10PX is engineered to meet the high demands of commercial and heavy-duty automotive operations. Its comprehensive technical specifications and dimensions make it a robust and reliable solution for a variety of lifting needs.

Overall Dimensions

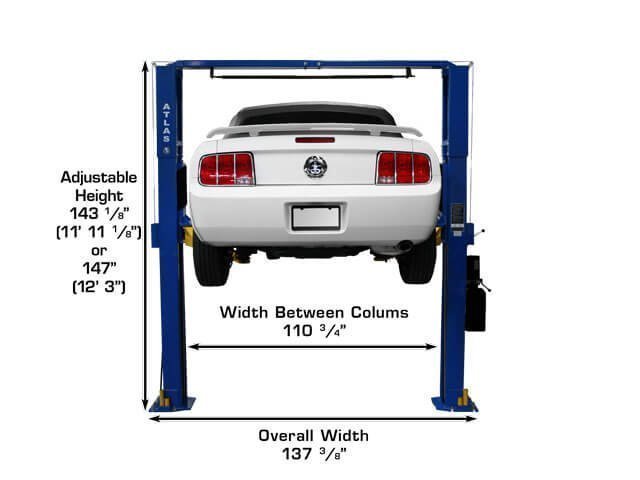

The Atlas PV10PX stands at an impressive overall height, with adjustable options of either 143 1/8 inches or 146 7/8 inches. This flexibility allows the lift to accommodate different ceiling heights and spatial configurations. The overall floor width is 137 1/2 inches, ensuring a stable and secure foundation for heavy lifting tasks.

Column and Arm Measurements

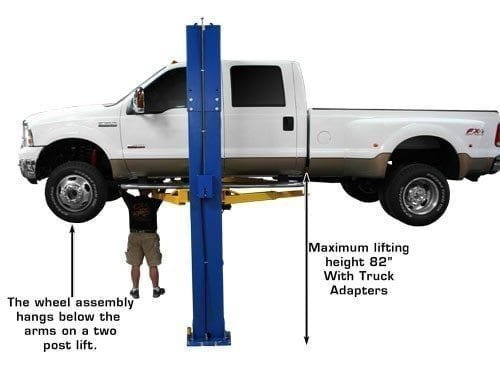

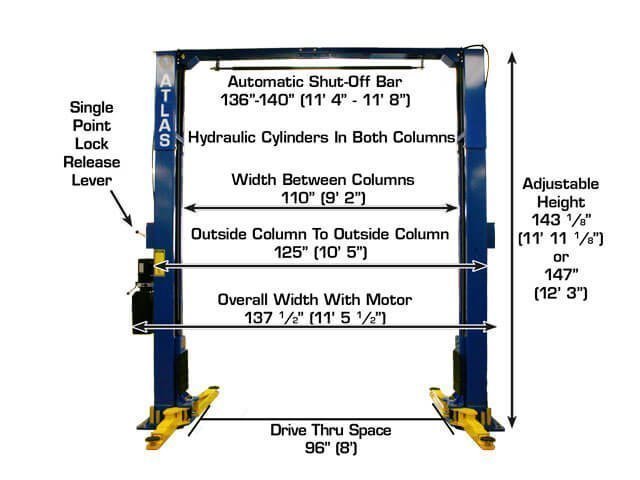

From the outer edge of one column to the outer edge of the opposite column, the lift spans 125 inches. The inside column dimensions measure 110 3/8 inches, providing ample space to lift a wide range of vehicle sizes. The minimum arm height starts at a mere 4 3/8 inches, allowing for low-profile vehicular access. For maximum lift, the height reaches 71 7/8 inches without adapters, and can extend to 82 7/8 inches with adapters, offering considerable vertical lift capacity.

Drive-Through and Base Dimensions

The drive-through clearance of 96 inches facilitates easy movement of vehicles onto the lift. Additionally, the sturdy columns are crafted from steel with a thickness of 6mm, ensuring durability and longevity under heavy use. The base dimensions of 17 1/2 inches by 20 1/2 inches contribute to the lift’s overall stability.

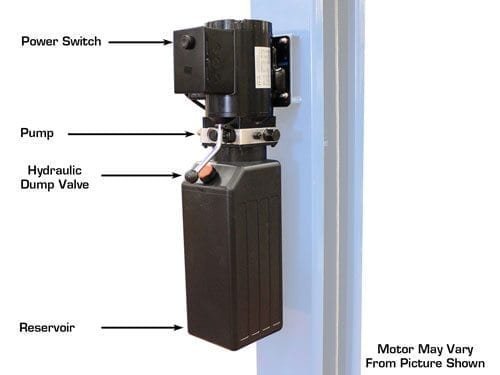

Motor and Electrical Requirements

The motor operates on 220 volts, single-phase electrical power, necessitating a 30 amp breaker to ensure optimal performance and safety. This electrical specification underscores the lift’s capability to handle demanding lifting tasks efficiently.

Oil Requirements

To ensure smooth hydraulic operations, the lift requires between 3 to 5 gallons of AW32 or AW46 hydraulic oil, though it is important to note that this is not included with the lift. Proper maintenance and correct oil levels are crucial for the lift’s ongoing performance and reliability.

Installation and Maintenance Considerations

The Atlas PV10PX lift is designed for seamless installation and requires meticulous attention to specific guidelines for optimal functionality. To ensure a secure setup, the lift package includes all necessary mounting hardware. One crucial aspect to consider is the foundation: the floor must consist of a minimum of 4 inches of concrete, with a 3000 psi rating, to support the substantial weight and operational demands. The lift itself has a shipping weight of 1,905 lbs., necessitating proper handling and positioning during installation. Utilizing appropriate lifting equipment and following safety protocols is essential when positioning the lift.

The Atlas PV10PX comes with different adapter heights of 2 inches, 3 inches, and 6 inches, to accommodate varying vehicle sizes and lifting requirements. Ensure that the appropriate adapter is selected based on the vehicle being serviced to maintain stability and safety during lifting operations.

Routine maintenance is vital to the long-term reliability and safety of the Atlas PV10PX lift. Regular maintenance procedures include thorough inspections of all moving parts, verifying the integrity of mounting hardware, and conducting frequent fluid checks. Hydraulic fluid levels should be routinely monitored, and any leaks should be addressed immediately to prevent damage and ensure consistent performance. Moreover, the lift’s components should be lubricated as per the manufacturer’s recommendations to minimize wear and enhance durability.

By adhering to these installation and maintenance guidelines, users can maximize the operational lifespan and safety of the Atlas PV10PX lift. Proper installation not only ensures immediate stability but also lays the groundwork for ongoing reliability. Regular maintenance, when performed diligently, reduces the risk of premature wear and costly repairs, ensuring this heavy-duty commercial lift remains a cornerstone in any automotive environment.

Warranty and Customer Support

The Atlas PV10PX two-post lift comes with a robust warranty package designed to give users peace of mind, protecting their investment. This lift is backed by a 5-year structural warranty, which ensures that the primary framework remains free from defects and faults for half a decade. Additionally, a 2-year warranty on hydraulic components is provided, covering critical elements such as cylinders and pumps. It’s important to note that these warranties cover parts only and do not extend to labor or shipping costs.

To file a warranty claim, users must follow a straightforward process. Begin by documenting the issue in detail, including photographs or videos if possible. Next, gather the original purchase receipt and any relevant information regarding the lift’s installation and usage. Contacting Atlas customer support to initiate the claim involves either calling their hotline or sending an email to their support team. Ensure that all collected documentation is ready to be shared promptly with support staff, who will guide you through the next steps in the claim process.

Atlas offers a variety of additional resources to assist users with both warranty claims and general inquiries. Their user manuals, which come with each purchase, provide detailed instructions on installation, operation, and maintenance. Furthermore, instructional videos available on the Atlas website and affiliated platforms offer visual guidance for various procedures, enhancing user confidence in handling the equipment.

Customer testimonials frequently highlight the responsiveness and professionalism of the Atlas customer support team. Many customers have praised the team for their timely and effective solutions, emphasizing that support representatives are knowledgeable and courteous. Such positive feedback underscores Atlas’s commitment to customer satisfaction, assuring potential buyers that they can rely on solid support should any issues arise with their PV10PX lift.

Features:

• 10,000 lb. capacity
• Commercial Grade
• Adjustable Height – 11′ 11 1/8″ or 12’3″
• Asymmetric/Symmetric Arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Padded Carriages
• Single Point Lock Release
• Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,905 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
