BendPak 10AP Two Post Car Lift – 10,000-Lb Capacity / Adaptable Clear floor / Adjustable Width / Screw Pads

Original price was: $6,095.00.Current price is: $2,437.99.

Free shipping to the USA

Fast, reliable delivery with tracking.

Easy returns

Hassle-free return policy for peace of mind.

Secure payment

Encrypted checkout with trusted payment methods.

19 People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
SKU: '5175304 Categories: , , Tags: , ,

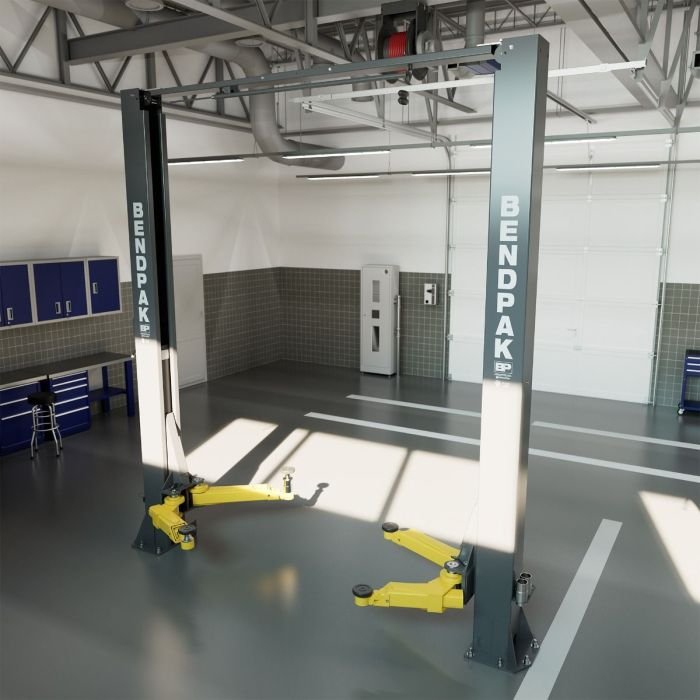

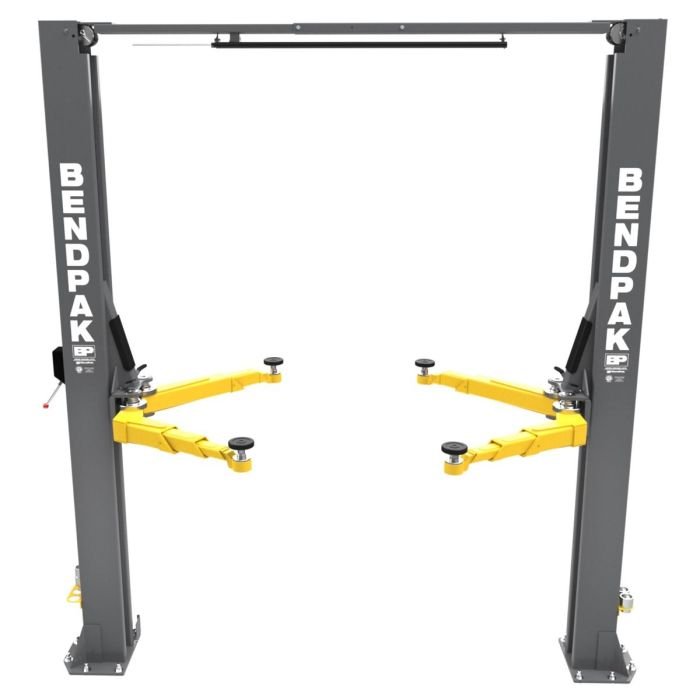

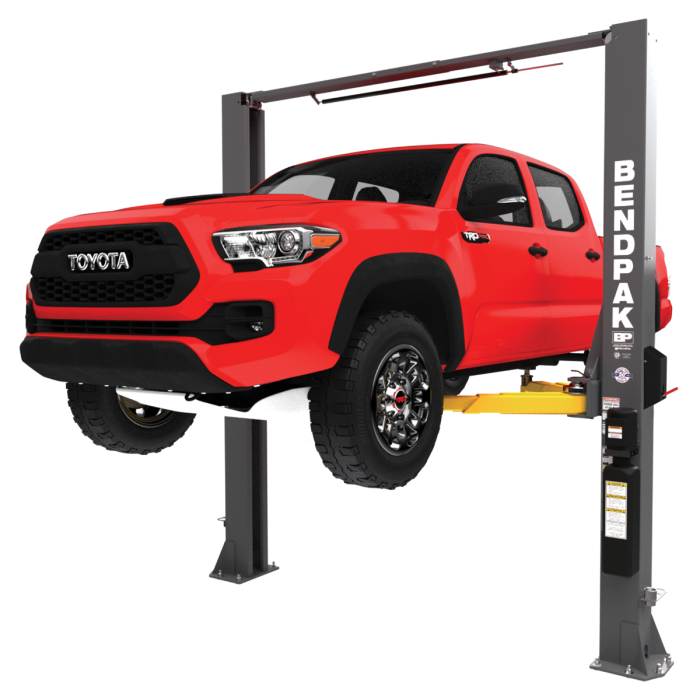

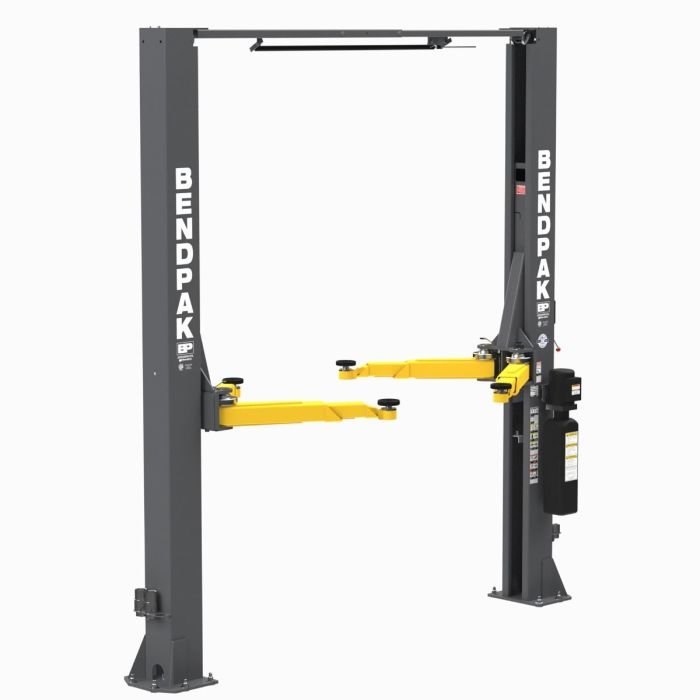

Two Post Car Lift / 10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width

The 10AP two-post lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that’s ahead of its time and a 10,000-lb. lifting capacity.

This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.

Features & Specs

  • Durable powder coat finish
  • Expandable top beam accommodates wide or narrow drive-thru configurations

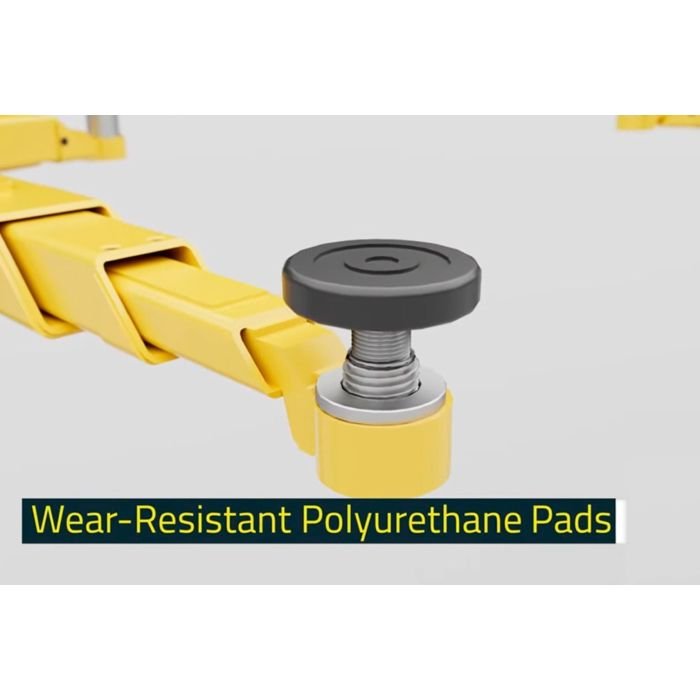

  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

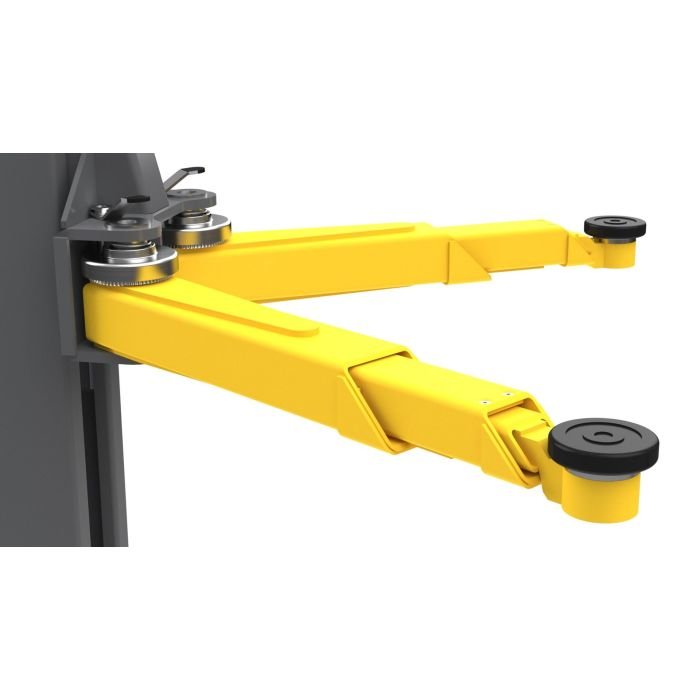

  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad heigh
  • Dual hydraulic direct-drive cylinders
  • Oversized 53″ & 59″ tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3″

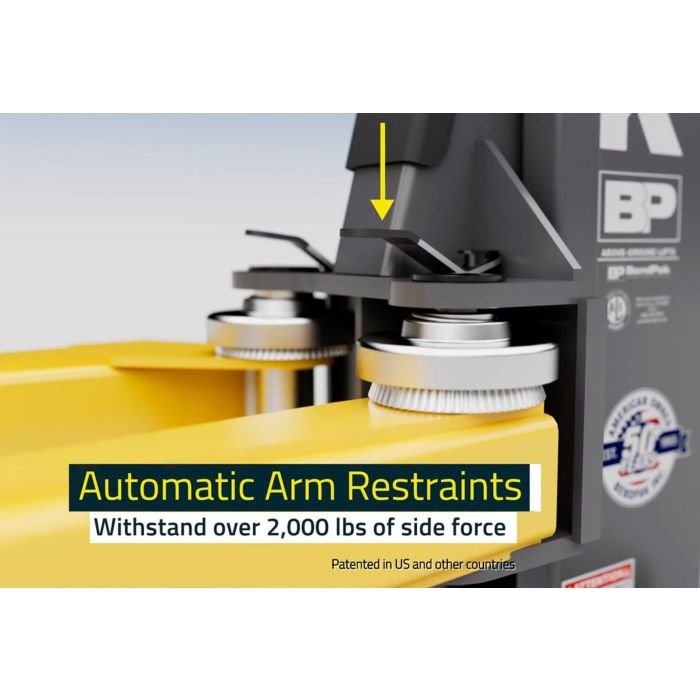

  • Automatic arm restraints withstand over 2000-pounds of side force
  • Heavy-duty 1/2″ aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue

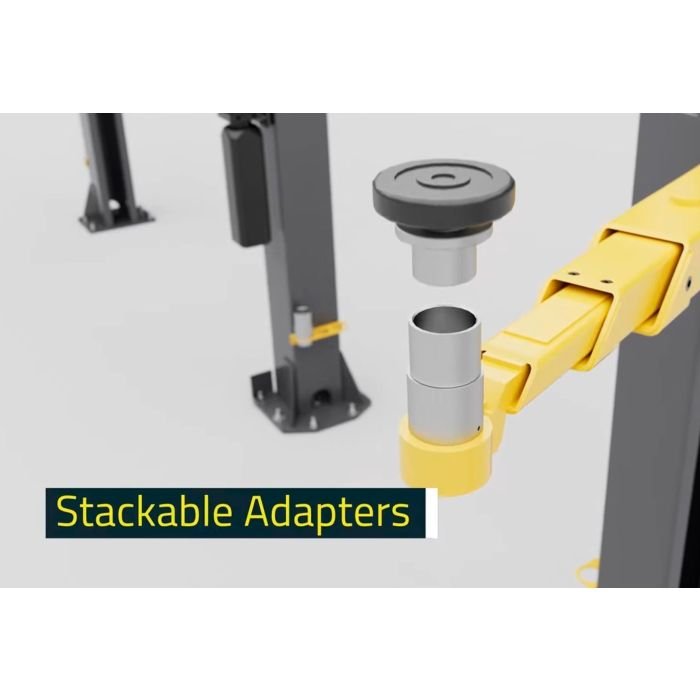

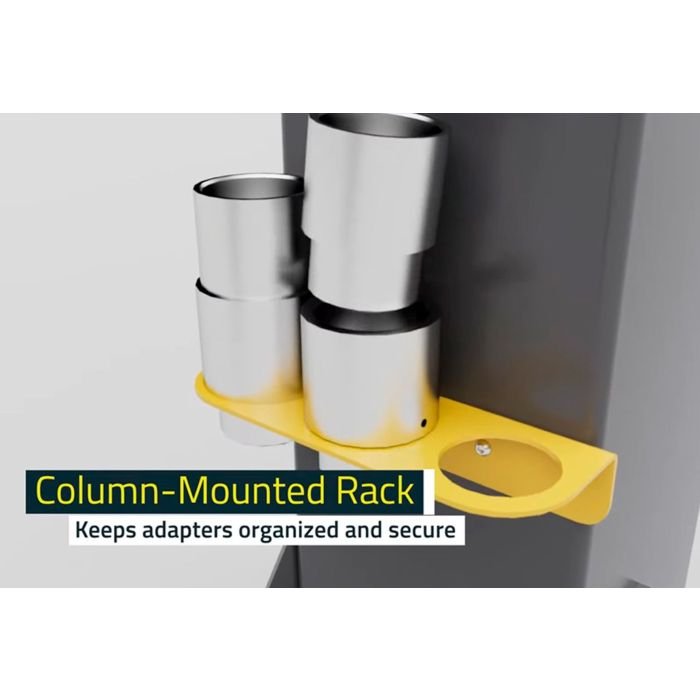

  • 14-piece standard adapter set

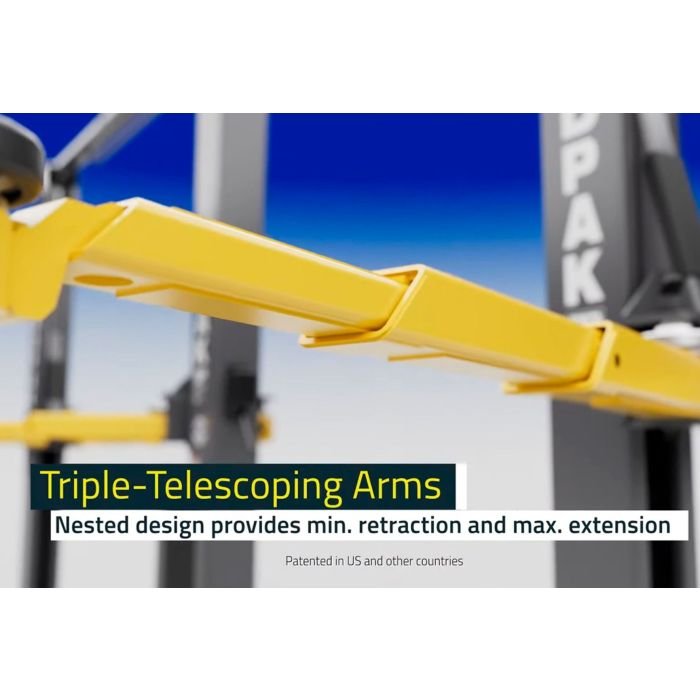

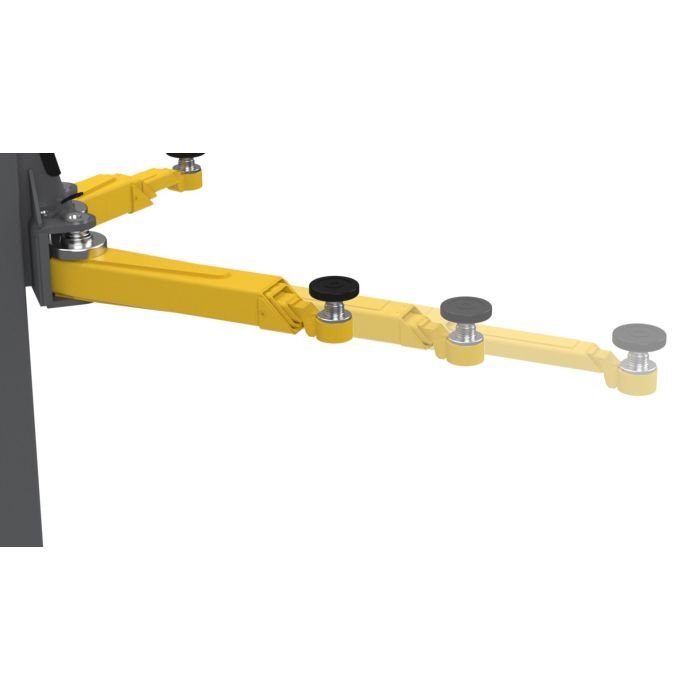

  • Four triple-telescoping arms

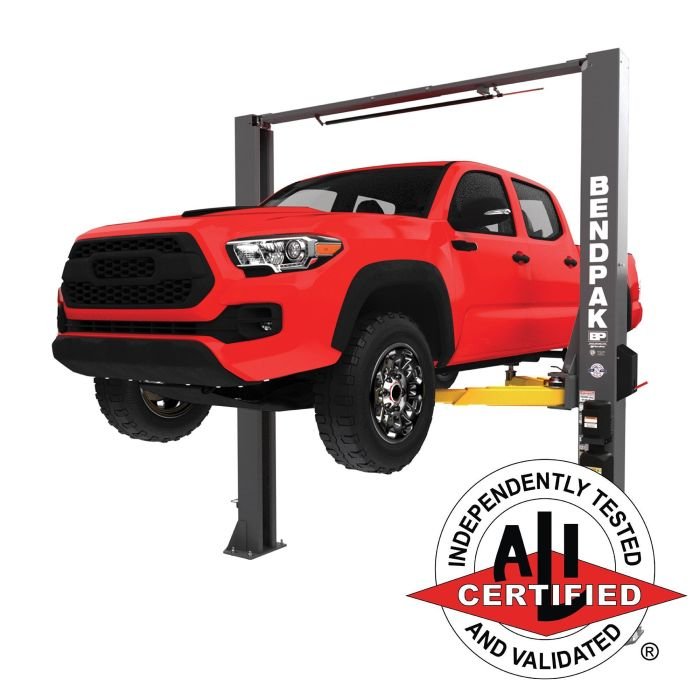

  • ALI certified

Capacity

Lifting Capacity*
10 000 lbs. (4 536 kg)
*Max Capacity / Front Axle
5 000 lbs. (2 268 kg)
*Max Capacity / Rear Axle
5 000 lbs. (2 268 kg)

Rise

A – Rise: 69″ (1 753 mm)
B – Rise + Pad Only: 73″ (1 854 mm)
C – Rise + Pad + 63 mm Adapter: 82,5″ (2 096 mm)
D – Min. Height + Pad: 4″ (102 mm)
Time to Full Rise: ≈45 seconds

Outside Dimensions

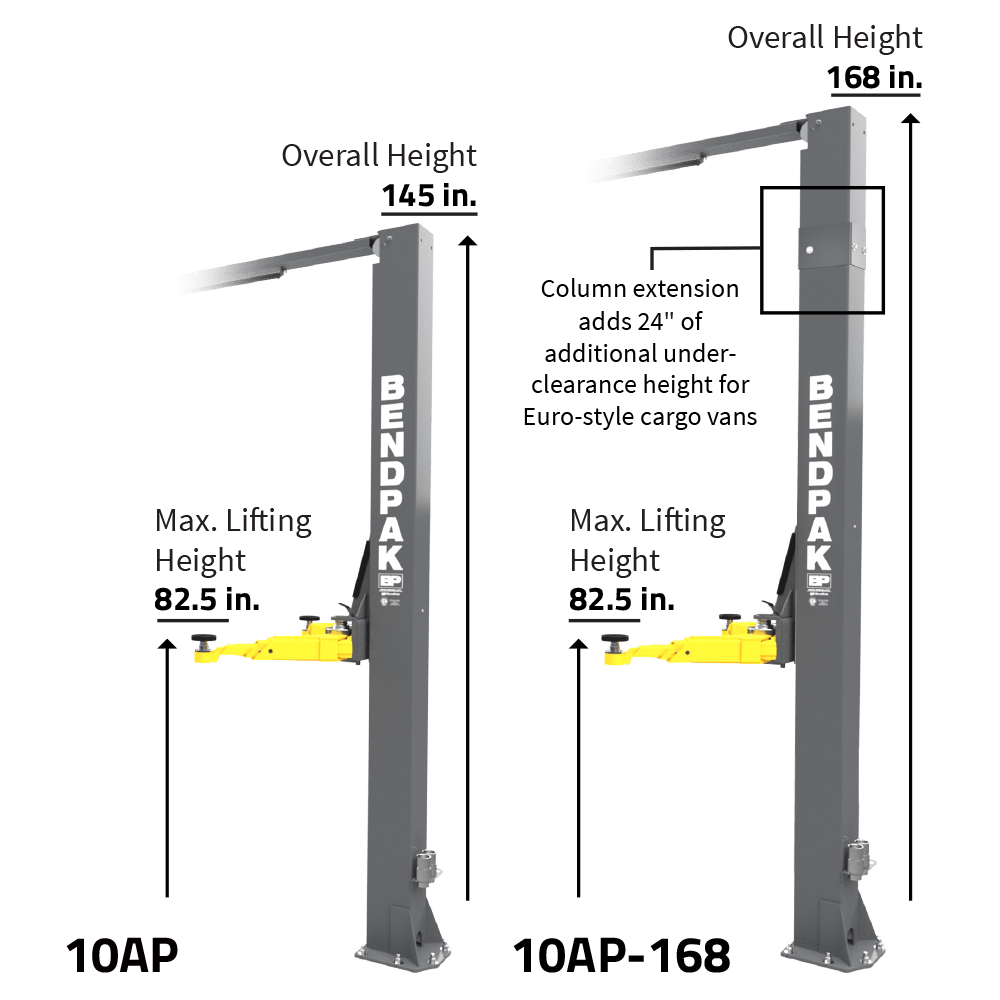

E – Height Overall: 145″ (3 683 mm)
F – Width Overall: 135″ (3 429 mm) or 145″ (3 683 mm)
G – Outside Columns: 127,5″ (3 239 mm) or 137,5″ (3 493 mm)

Inside Dimensions

H – Inside Columns: 108,5″ (2 756 mm) or 118,5″ (3 010 mm)
I – Drive-Thru Clearance: 97,5″ (2 477 mm) or 107,5″ (2 731 mm)

Arms & Pads

K – Front Arm Reach: (MIN)
24,5″ (622 mm)
K – Front Arm Reach: (MAX)
50″ (1 270 mm)
L – Rear Arm Reach: (MIN)
32″ (813 mm)
L – Rear Arm Reach: (MAX)
59,25″ (1 505 mm)
Screw Pad Adjustment:
2″ (51 mm)
Max Load Per Arm
2 500 lbs. (1 134 kg)

Power Unit

Motor: 220 VAC, 60 Hz, 1 Phase
Noise: <70 dB


Brand

BendPak
