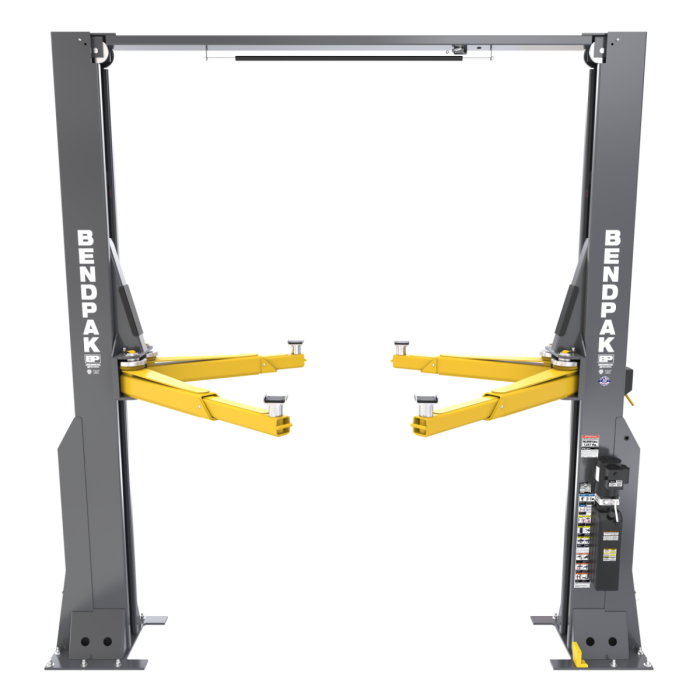

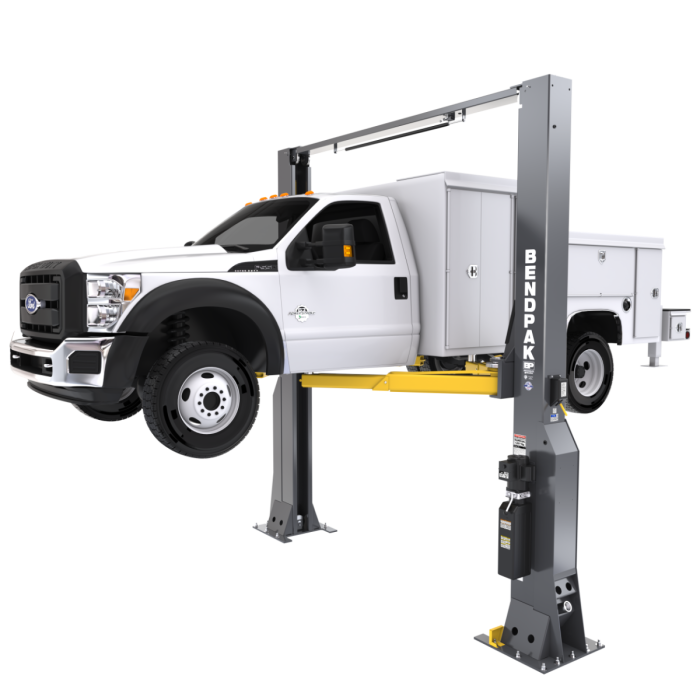

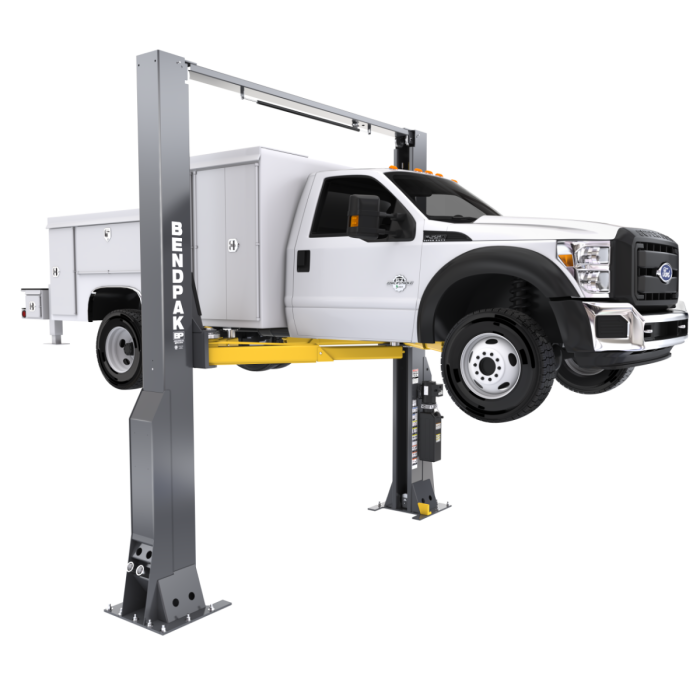

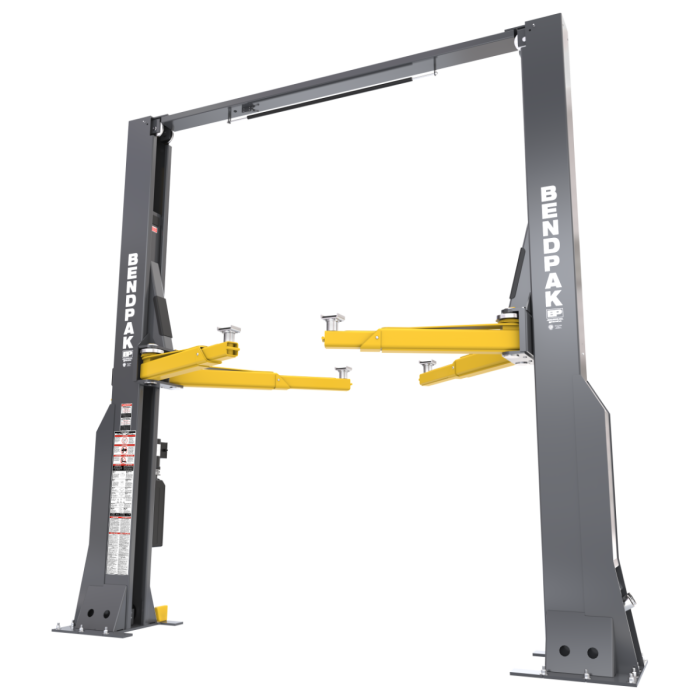

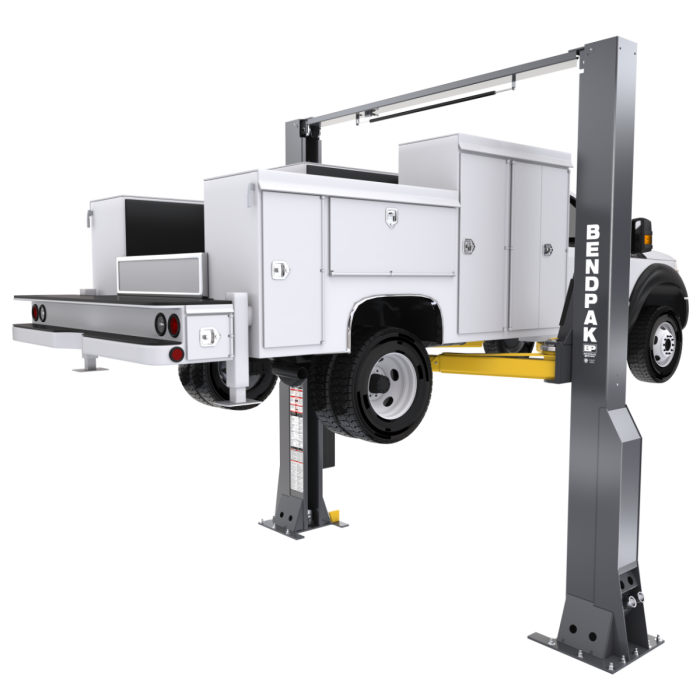

BendPak 16AP Super-Duty Two Post Car Lift – 16,000-Lb Capacity
Original price was: $22,695.00.$9,077.90Current price is: $9,077.90.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
32
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
Two Post Car Lift 16,000-lbs. Capacity / Adaptable Clearfloor / High-Rise / 168″ O.A. Height
The 16AP two-post lift delivers exceptional direct-drive lifting performance. Equipped with cutting-edge technology, top-of-the-line materials, and a design that’s ahead of its time, the 16AP is what you’ll want when you’re working on vehicles weighing up to 16,000 lbs.
Experience the next generation of two-post lifting with the revolutionary 16AP – the latest in the AP Series.
Designed to meet the demands of modern automotive shops, the 16AP combines cutting-edge engineering with unparalleled safety and efficiency, ensuring optimal performance for heavy vehicle service.
Redefining Safety and Stability Through ASARS (Automatic Swing Arm Restraint System)
Thanks to BendPak’s patented Automatic Swing Arm Restraint System, you can finally say goodbye to unplanned movement. Engineered to withstand extreme forces, this system delivers over 2000 pounds of load holding force, ensuring secure arm positioning during vehicle service. With a full 360-degree grip and a quick-release lever for effortless operation, ASARS provides unmatched stability and control.
Next-Level Safety Lock System
Experience peace of mind with BendPak’s automatic safety lock system. Designed for seamless operation, this innovative system engages automatically during lift rising operations, with a single-point release for effortless descent. Streamline your workflow and prioritize your safety (and the safety of your vehicle) with BendPak’s industry-leading safety features.
Rugged Enough to Stand up to Anything
Every Super-Duty AP Series lift delivers the no-compromise construction, durability, and other advantages that only the industry’s number one lift manufacturer can provide. Including the highest consumer confidence and safety rating, longest warranty, lowest cost of ownership and superior ergonomics that make your operators more productive and your operation more profitable. Bottom line, BendPak lifts are designed better, built better, and supported better than any other vehicle service lift in the world – which explains why BendPak makes and sells more lifts than anyone.
Specifications
BendPak 16AP Super-Duty Two Post Car Lift – 16,000-Lb Capacity
- Durable powder coat finish
- Padded overhead safety shutoff bar
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Automatic arm restraints withstand over 2000-pounds of side force
- Oversized cable sheave diameter reduces cable fatigue

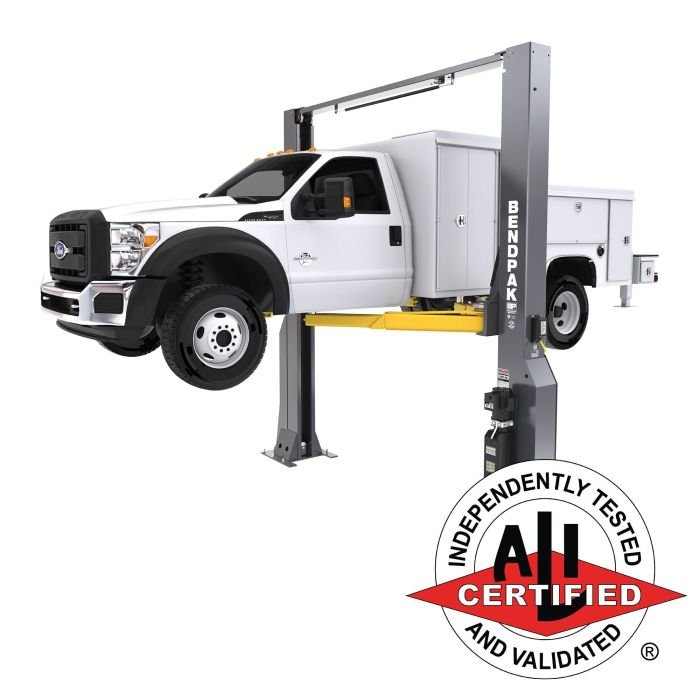

- ALI Certified
Max. Lifting capacity
16,000 lbs. / 7,257 kg
A – Max. Rise
75.75 in. / 1,922 mm
B – Lifting Height w/Pad down1
78.50 in. / 1,992.3 mm
C – Max. Lifting Height w/ Pad up1
82.5 in. / 2,095 mm
D – Min. Height w/ Pad
7.75 in. / 196.85 mm
E – Overall Height
169 in. (4,294 mm)
F – Overall Width
156 in. / 3,959 mm
G – Width, Outside Posts
143 in. / 3,238 mm
H – Width, Inside Posts
120 in. / 3,047 mm
I – Width, Drive-Thru
103 in. / 2,616 mm
J – Floor to Top Switch
163 in. (4,128 mm)
K – Front Arm Reach
36.5 in. to 65 in. (927 mm to 1,651 mm)
L – Rear Arm Reach
36.5 in. to 65 in. (927 mm to 1,651 mm)
Max. load per Lift Arm
4,000 lbs. / 1,814 kg
Pad Adapters Total Height
7.50 in. / 188 mm
Time to Full Rise
≈ 45 seconds
Motor2
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
Brand
BendPak
