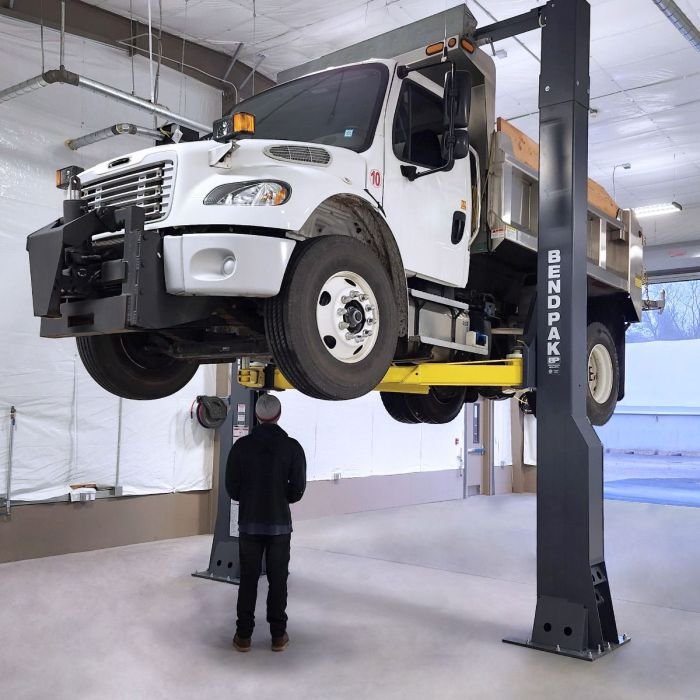

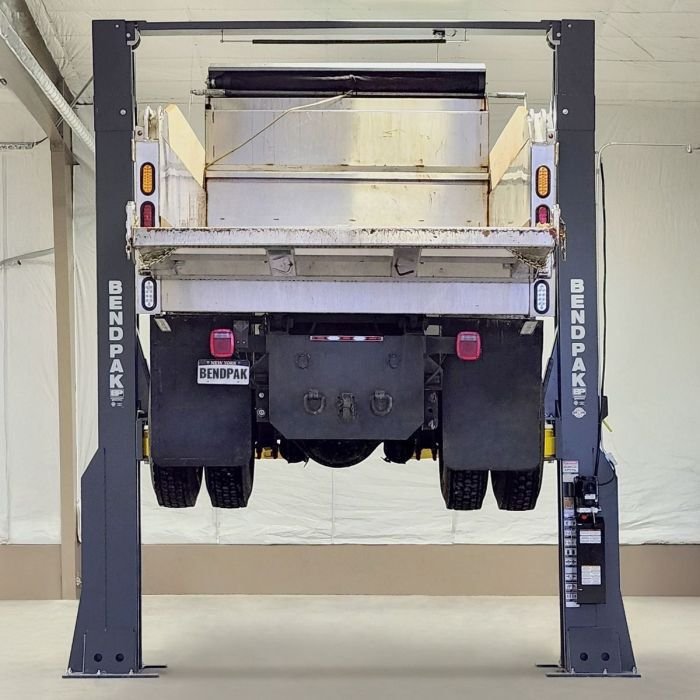

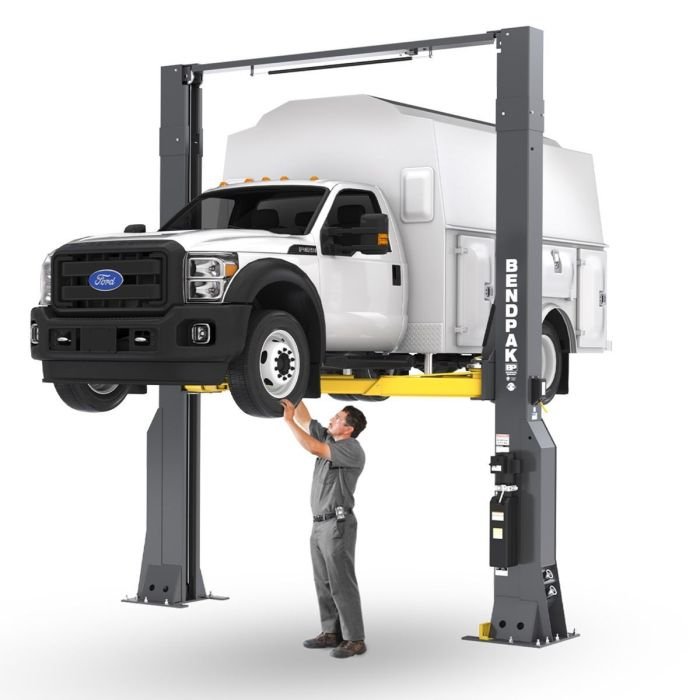

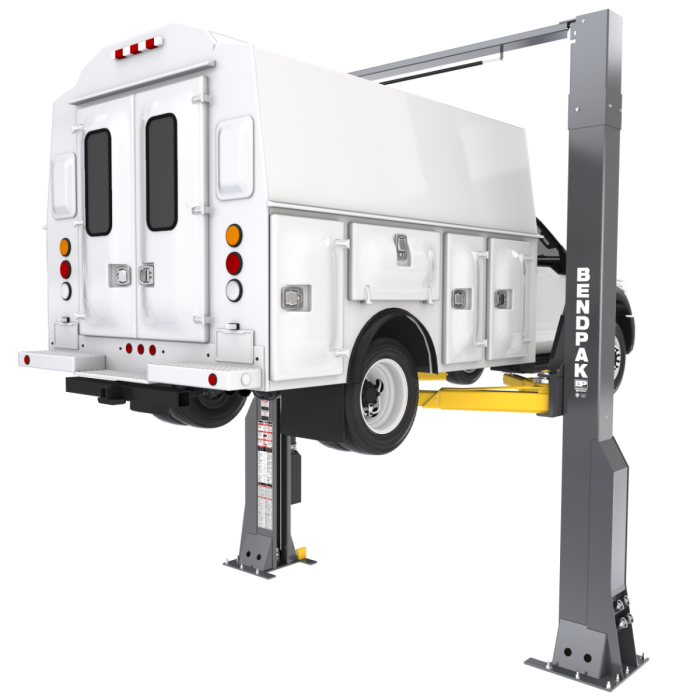

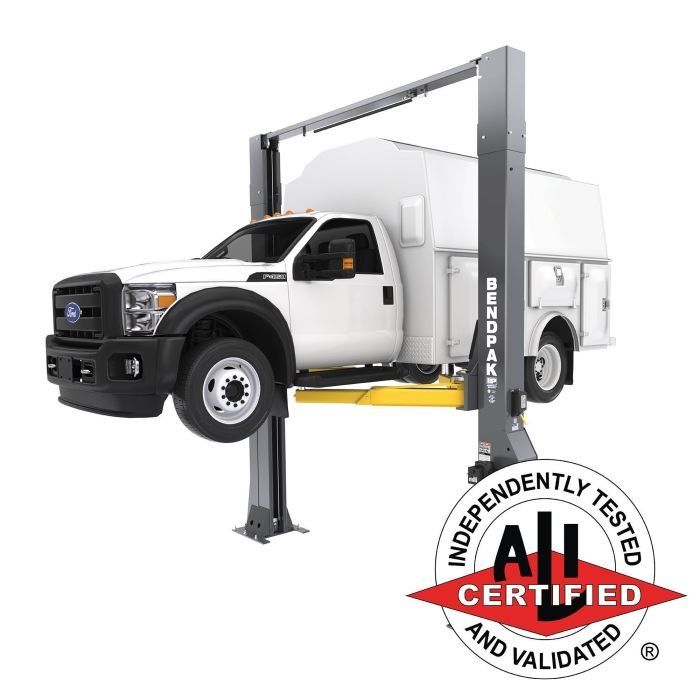

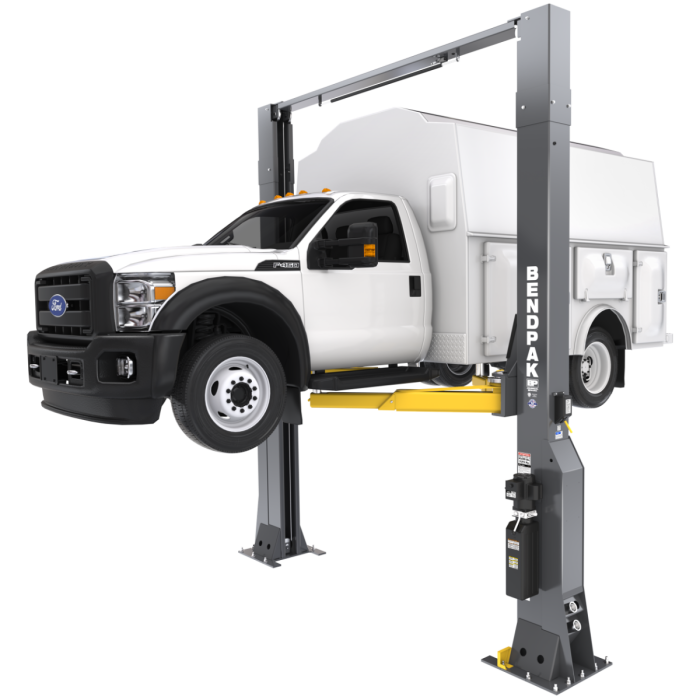

BendPak 20AP-192 Super-Duty Two Post Car Lift – 20,000-Lb Capacity – 192″ Extended Height
Original price was: $25,595.00.$10,238.00Current price is: $10,238.00.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
25
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

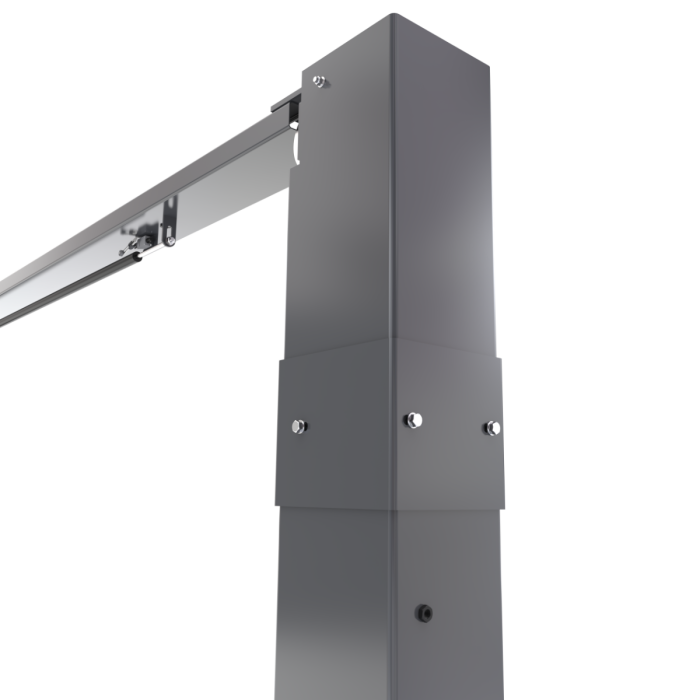

Two Post Car Lift / 20,000-lbs. Capacity / Clearfloor / High-Rise / 192″ O.A. Height / Post Extension
The top-of-the-line 20AP-192 delivers advanced technology, premium-grade materials, an innovative design, as well as a whopping 20,000 lb. lifting capacity. Unlike the regular 20AP, this lift offers an enhanced overall height of 193”, giving taller techs out there the room they need to get the job done as comfortably as possible.

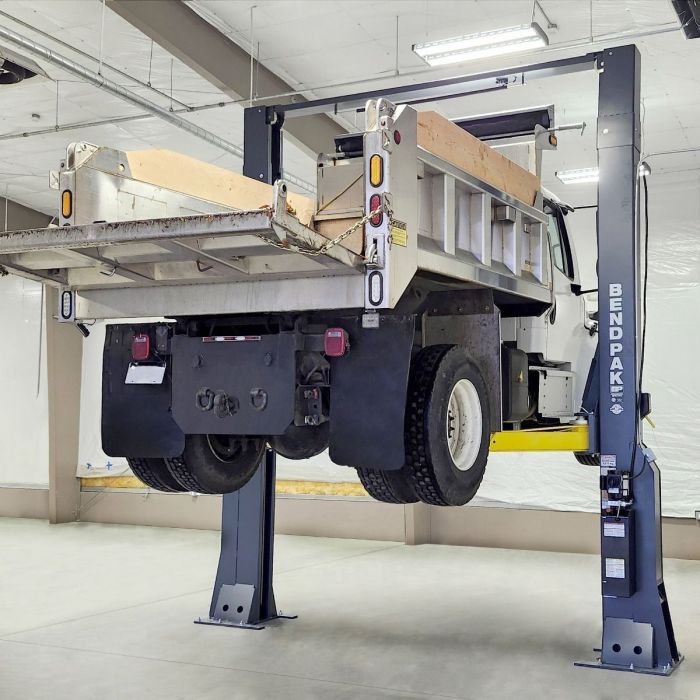

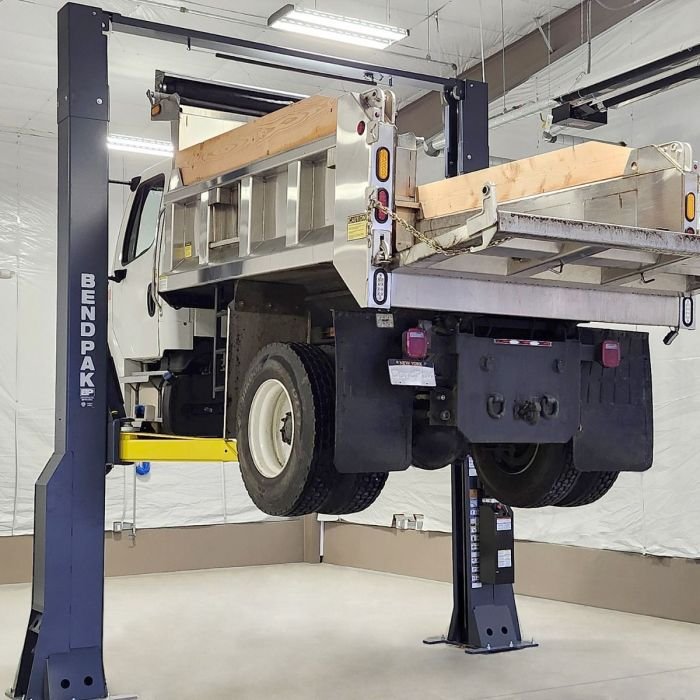

From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak’s 20AP Series tackles them all. With an astounding 20,000-pound lifting capacity combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations. Over 50 years of lift-building heritage perfectly delivered.
With oversize dimensions and capabilities that go well beyond those typically found on traditional two-post lifts, they lift more, lift higher, reach farther, and realize more vehicle-supporting stability than ever before. And with fewer moving parts, they’re less susceptible to wear and tear, easier to maintain and less expensive to operate. And that all adds up to a cost-savings advantage you’ll appreciate regardless of your environment. More uptime means more free time. From accommodating large commercial trucks safer than ever before and lifting and supporting long awkward vehicles effortlessly, our Super-Duty AP Series handles heavy fleet tasks very comfortably. The key? Graciously spaced columns make for easier entry and exit and ruggedly built far reaching arms increase lifting point coverage delivering greater stability. Ergonomic operator controls allow for simple and safe operation, a benefit that boosts productivity resulting in higher output and greater profitability.
Every day the automotive industry evolves with new and advanced technologies, meaning that it’s crucial for auto repair shops to keep pace by outfitting themselves with the best of the best. That’s where the 20AP-192 comes in. As part of the revolutionary AP Series, this lift marks a new era in car lift engineering. It has been meticulously crafted to integrate the best features from existing two-post lift types into an entirely new concept, catering to extreme use, heavy loads, and operator safety and efficiency. The 20AP-192 delivers everything professionals love about the AP Series in a taller package. With an increased 193” overall height, techs will have more room to work comfortably.
BendPak’s AP Series introduces a game-changing solution for auto repair shops seeing flexibility in installation. This resilient, secure, and dependable car lift seamlessly combines wide and narrow installation options in a single customizable package. The intelligent lift design strikes a balance between simplicity and sophistication, resulting in minimal service and maintenance costs, leading to reduced operating expenses and heightened productivity.

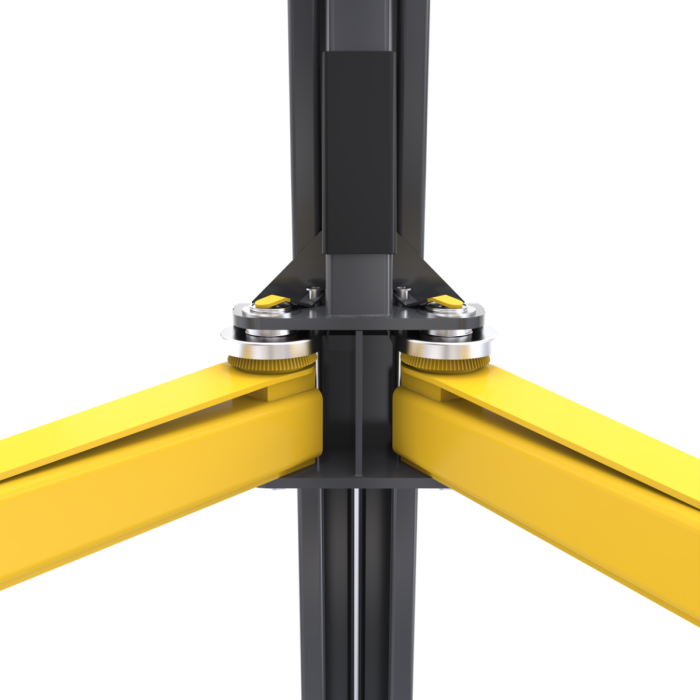

Experience unparalleled stability and safety with BendPak’s revolutionary Automatic Swing Arm Restraint System (ASARS). Crafted with a patented and exclusive heavily forged-steel design, this system boasts a full 360-degrees of load holding grip, ensuring the lift arms remain securely in place with over 2000-pounds of load-holding force.
Designed for maximum convenience and efficiency, our ASARS requires minimal operator involvement, thanks to its adaptive nature. Say goodbye to unplanned swing arm movement during lift use and vehicle service operations.
With its distinctive power-hold design, our ASARS allows for precise non-shifting action, providing peace of mind during even the most demanding service tasks. Plus, with the handy quick-release operator lever, you can instantly release the clamping pressure, further enhancing operational ease and speed.
Specifications
BendPak 20AP-192 Super-Duty Two Post Car Lift – 20,000-Lb Capacity – 192″ Extended Height
Durable powder coat finish
Padded overhead safety shutoff bar
Single-point safety release
Drop-end arms provide a lower pad height
Dual hydraulic direct-drive cylinders
Electric / hydraulic HVLP power system
Self-lubricating dura-glide UHMW polyethylene bearing system

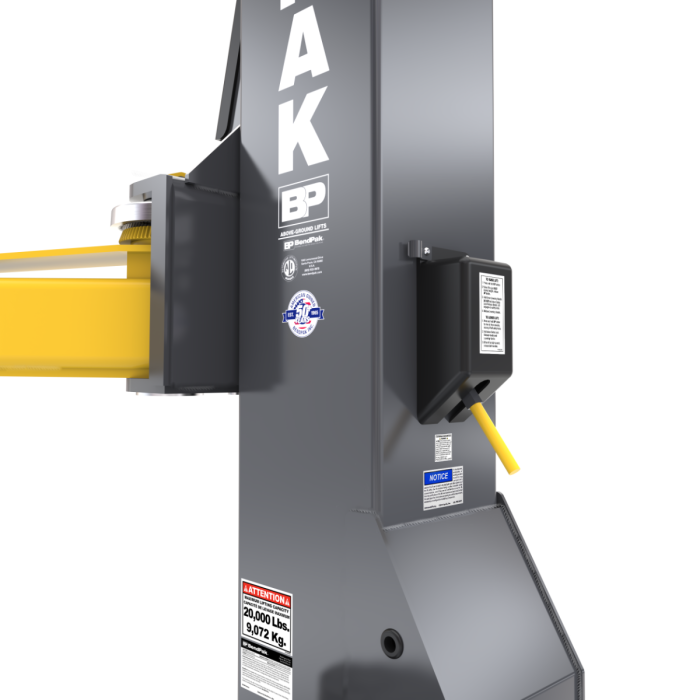

Safety locks in each column spaced every 3”
Automatic arm restraints withstand over 2000-pounds of side force
Heavy-duty ½” aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
Lifting Capacity
20,000 lbs. / 9,072 kg
Max. Capacity — Front Axle
10,000 lbs. / 4,536 kg
Max. Capacity — Rear Axle
10,000 lbs. / 4,536 kg

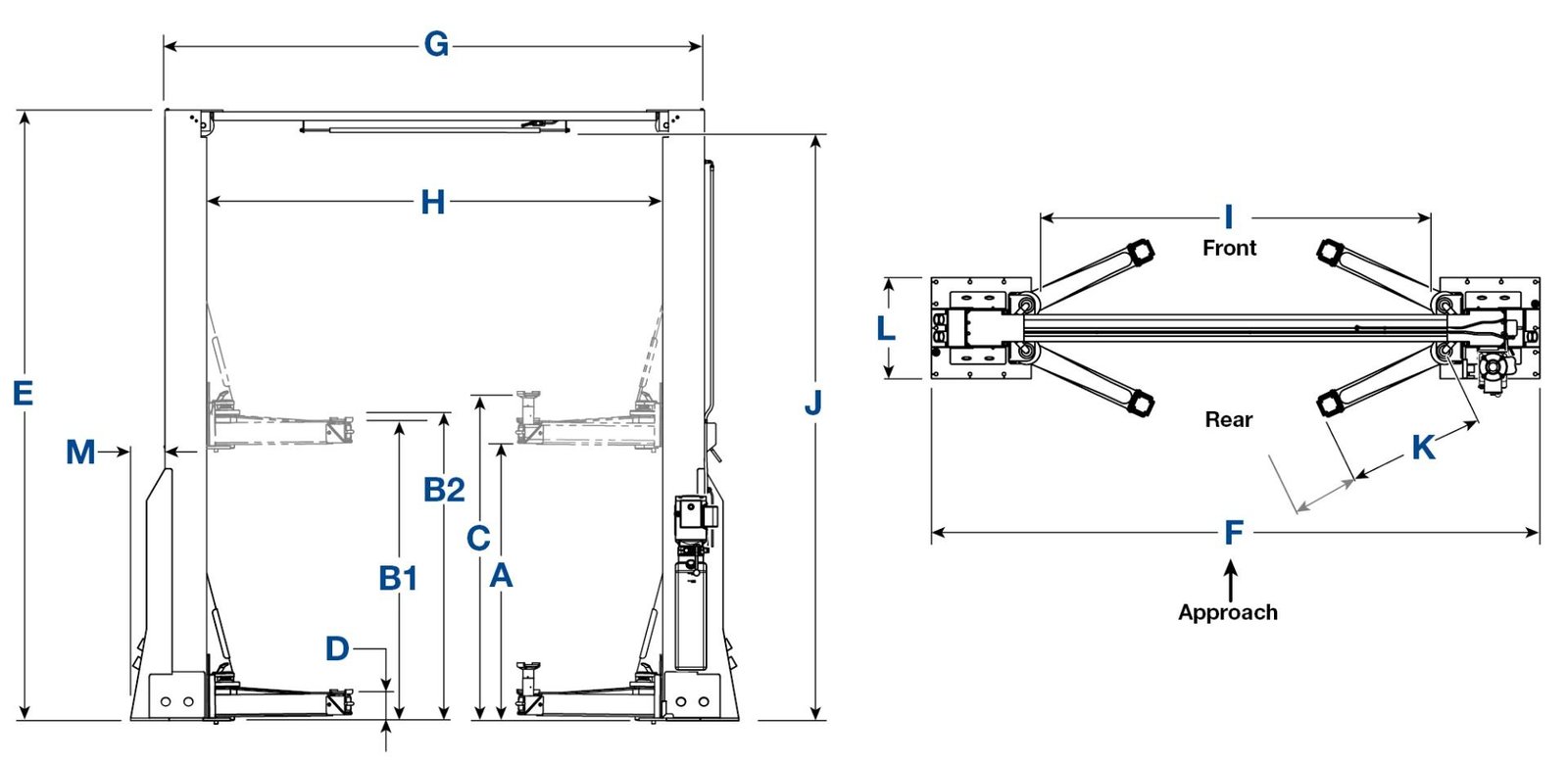

A – Max. Rise
76.25 in. / 1,934 mm
B – Lifting Height w/ Pad1
83 in. / 2,111 mm
C – Max. Lifting Height1
91.5 in. / 2,327 mm
D – Min. Height w/ Pad
8 in. / 206 mm
E – Height Overall
193 in. /
4,904 mm
F – Width Overall
168 in. / 4,267 mm
G – Outside Posts
149 in. / 3,785 mm
H – Inside Posts
126 in. / 3,199 mm
I – Drive-Thru Width
107.75 in. / 2,739 mm
J – Floor to Top Switch
186.5 in. / 4,738 mm
K – Front Arm Reach
35 in. to 62 in. (893 mm to 1,678 mm)
K – Read Arm Reach
35 in. to 62 in. (893 mm to 1,678 mm)
L – Base Plate Width
28 in. / 710 mm
M – Post to Base Plate
9.5 in. / 241 mm
Max. load per Lift Arm
5,000 lbs. / 2,268 kg
Motor2
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
Brand
BendPak
