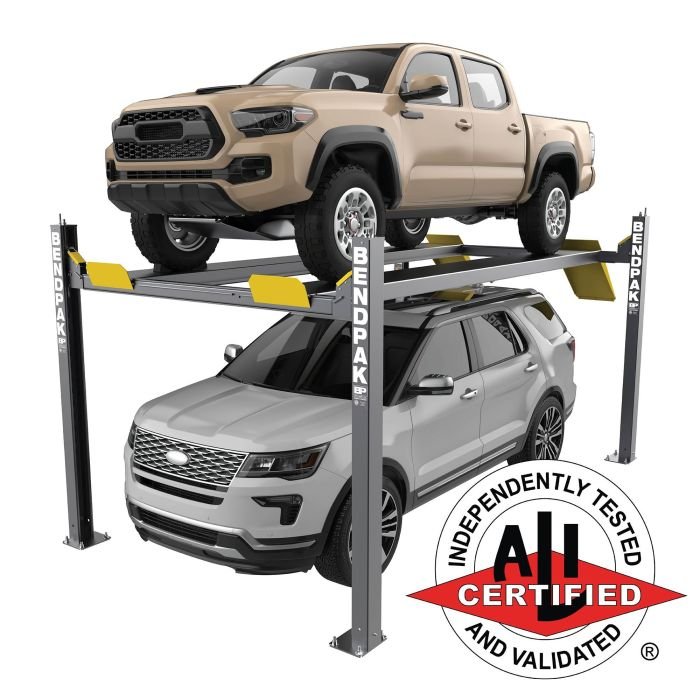

BendPak HD-9EWT 9,000-lb. Capacity / Four-Post Lift / Extra-Wide / High Lift
Original price was: $6,795.00.$2,717.90Current price is: $2,717.90.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
23
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
9,000-lb. Capacity / Four-Post Lift / Extra-Wide / High Lift

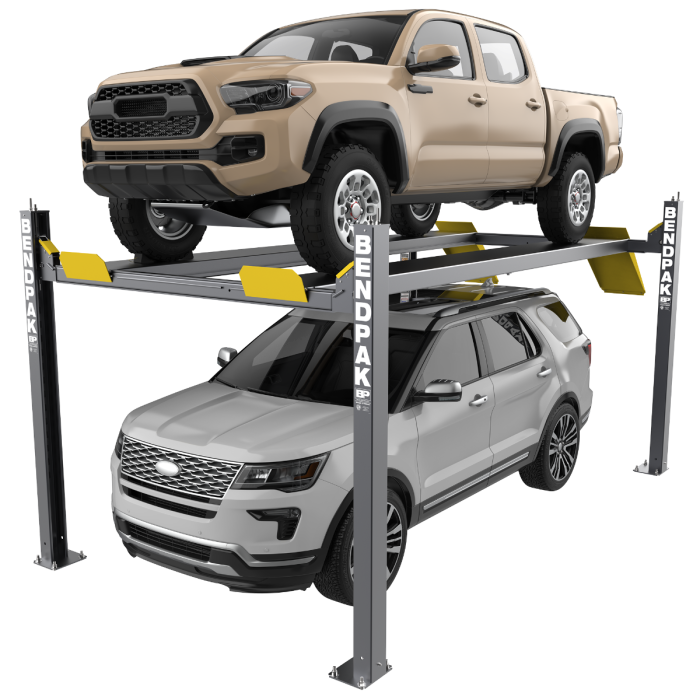

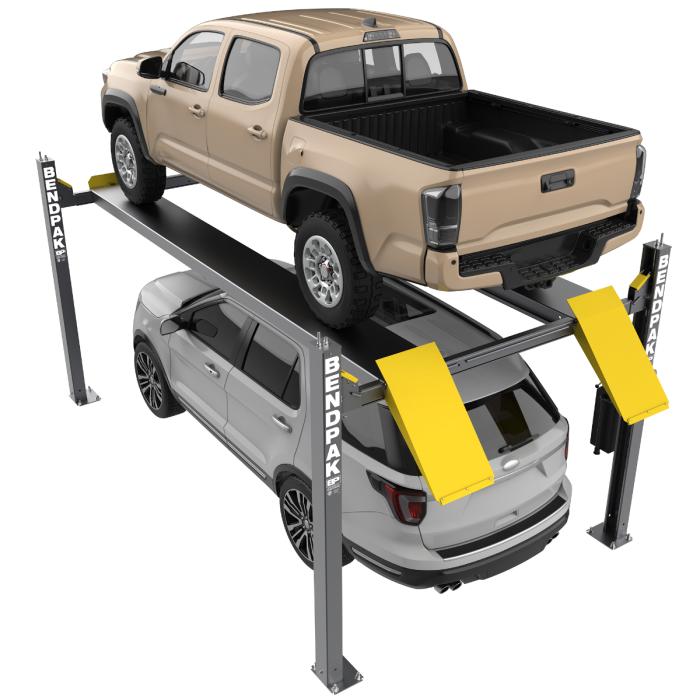

Built for garages with plenty of space, the BendPak HD-9EWT is perfect for high ceilings and high-rise vehicles. Unlike the narrower HD-9ST four-post lift, the HD-9EWT comfortably accommodates wide-body trucks and SUVs, avoiding concerns about mirror and door scratches. With a substantial 82” rise from the runways, it lifts heavy vehicles higher, providing plenty of room for taller techs to work beneath. Plus, it offers ample space for high-clearance trucks and SUVs, ensuring compatibility with taller vehicles.
Dual-hub cable sheaves are more expensive to manufacture, but they prevent axles, sheaves, and cables from burning out prematurely. The HD-9EWT’s multi-level locking positions ensure that technicians can lock the lift at varied heights, eliminating the need to crouch or reach uncomfortably while performing maintenance. The electric-hydraulic power system allows you to stop, start, and reverse your four-post lift on a dime, with controls within easy reach.

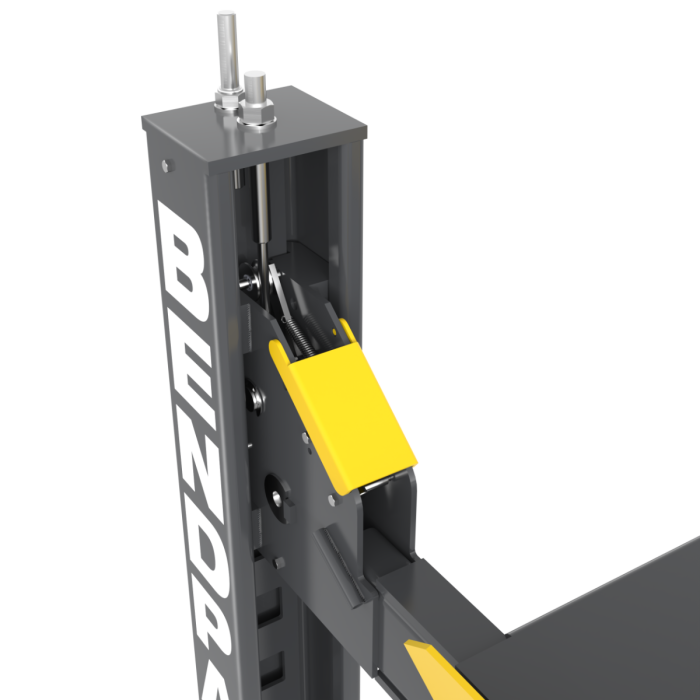

Each four-post lift comes with four lifting cables made from superior-grade stainless steel, rated to handle 14,400 lbs. each. These cables are hidden within the post columns for safety and a streamlined look. The integrated design routes all lifting cables, airlines, safety latches, and sheaves internally, adding to the lift’s sleek appearance.
Safety is a top priority with each and every BendPak lift. Four locks engage simultaneously as the lift is raised, and a backup locking system catches cable slack in the unlikely event of cable failure. Longer approach ramps and low runways make lifting sports cars and other low-standing vehicles easier than ever.
The HD-9EWT is a solid choice for both DIY enthusiasts as well as professional shop owners. The added ceiling clearance is particularly valued in shops, providing ample space for lower-ceiling vehicles. For anyone looking to solve their vehicle storage problems while maximizing their space, the HD-9EWT is the perfect solution.
Specifications HD-9EWT
- 9,000-lb. maximum lifting capacity
- Freestanding design
- High-rise
- Better suited for wide cars and off-road vehicles
- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Multi-position safety locks in each column
- Adjustable safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location

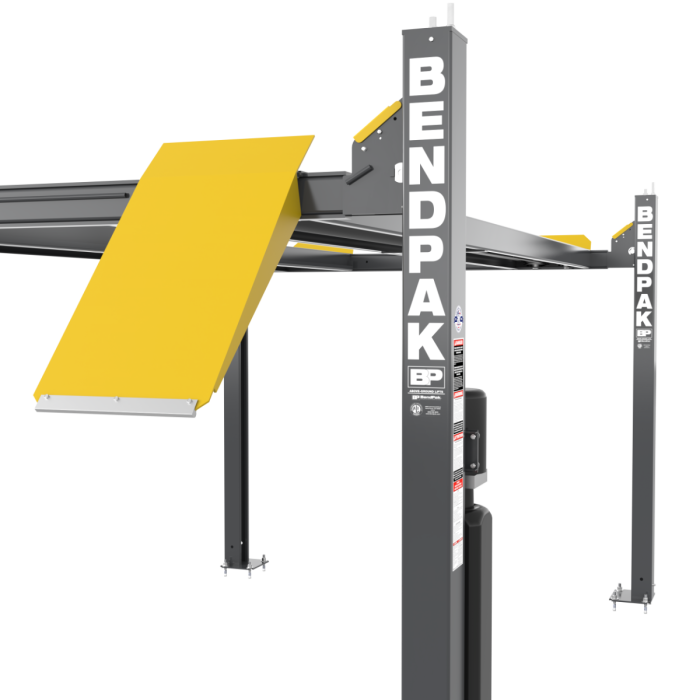

- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
Lifting Capacity
9,000 lbs. / 4,082 kg
Max Capacity at Front Axle
4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle
4,500 lbs. / 2,041 kg

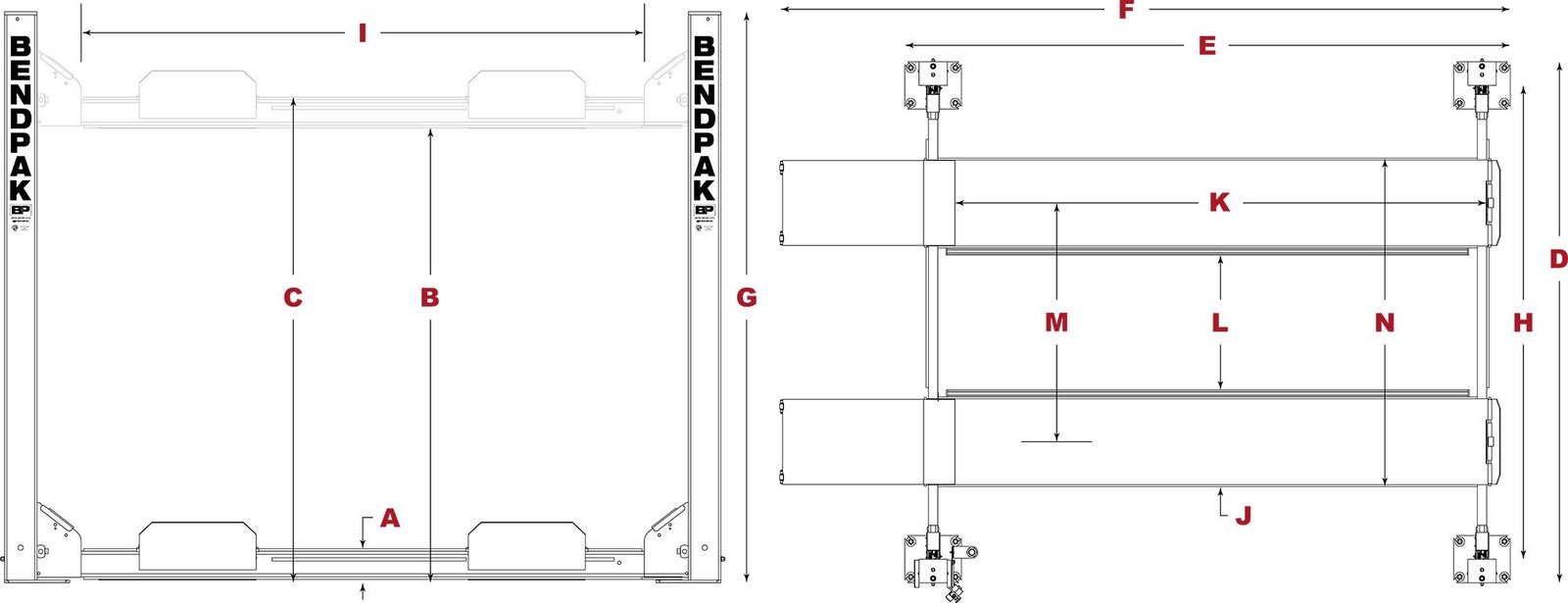

A. Min. Runway Height
4.75 in. / 121 mm
B. Maximum Rise
82.165 in. / 2,087 mm
C. Maximum Lifting Height
87 in. / 2,208 mm
D. Overall Width ± .125 in. / 3 mm
117 in. / 2,970 mm
E. Outside Length
198 in. / 5,028 mm
F. Overall Length
224.50 in. / 5,703 mm
G. Height of Post
100 in. / 2,537 mm
H. Distance Between Posts
107 in. / 2,716mm
I. Drive-thru Clearance
93.25 in. / 2,371 mm
J. Runway Width
19 in. / 482 mm
K. Runway Length
182.25 in. / 4,629 mm
L. Width Between Runways
35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
M. Runway Centerline
57.75 in. – 64.00 in. / 1,468 – 1,626 mm
N. Outside Edge of Runways
76.75 in.- 83 in. / 1,950 – 2,108 mm
Max. Load Operating Pressure
135 in. / 3,429 mm
Min. Wheelbase @ Rated Capacity
115 in. / 2,921 mm
Min. Wheelbase @ 75 Capacity
95 in. / 2,413 mm
Min. Wheelbase @ 25 Capacity
80 in. / 2,032 mm
Locking Positions
17 spaced every 4 in. / 102 mm
Motor
220 VAC, 60 Hz, 1 Ph
Brand
BendPak
