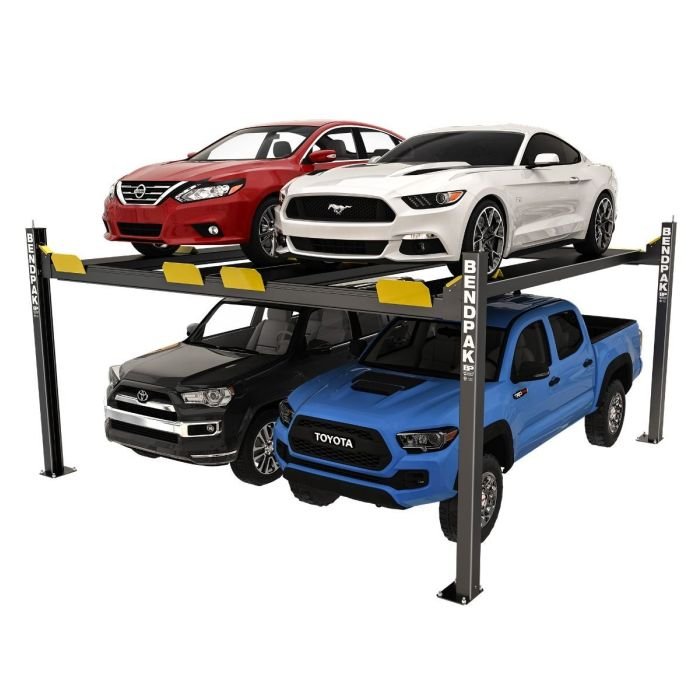

BendPak HD-9SWX 9,000-lb. Capacity / Four-Post Lift / Dual Platform / Super Wide / Extended-Length
Original price was: $12,595.00.$5,037.99Current price is: $5,037.99.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
24
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
The Ultimate Extended-Length, High-Rise, Double-Wide Car Lift

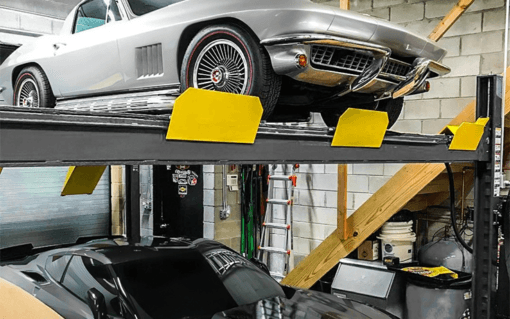

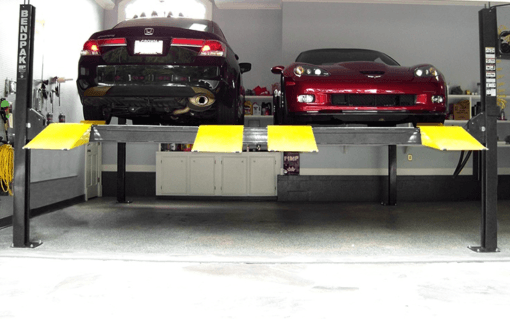

If you’re looking for a little more lifting height, extended-length runways and a lot less column interference, then our HD-9SWX four-post lift is the answer. This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles.
The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 14,000-lb. capacity HDS-14 series to the 40,000-lb. capacity HDS-40.
Features & Specs
- 9,000-lb. maximum lifting capacity
- Freestanding design
- Perfect for parking, storage and service

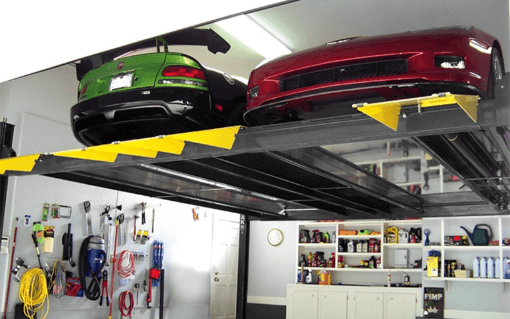

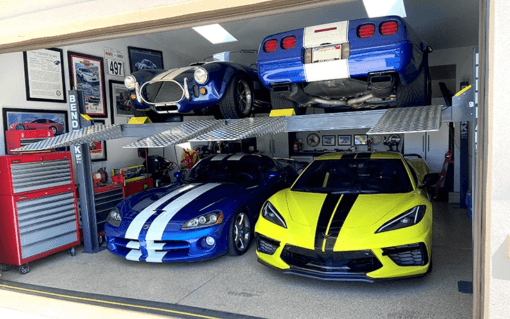

- Double-wide configuration for quad-vehicle storage
- Four runways
- Super-tall rise
- Extra-long ramp
- Runways accommodate wide or narrow vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers

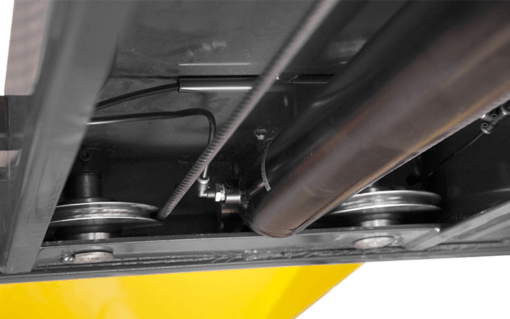

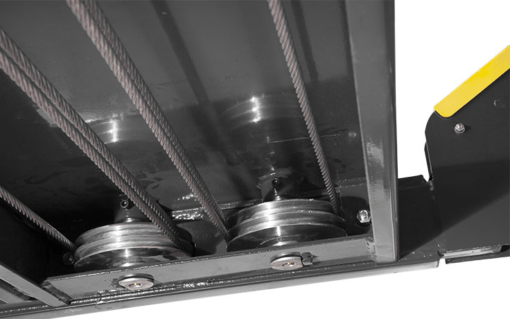

- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8″ aircraft cable
- Rugged 1.25″ roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release

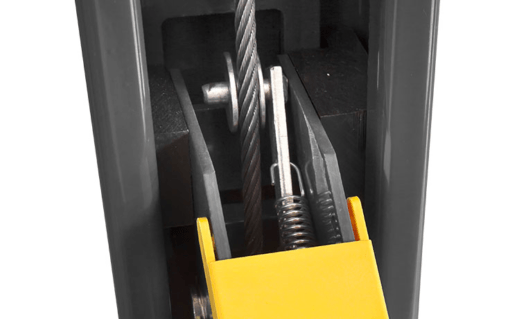

- Independent backup slack-cable safety latches
- Inside runways adjust for different tread widths
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Optional drive-thru ramps available
- Optional drip trays available

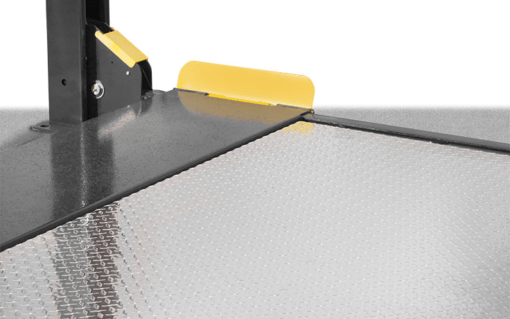

- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available
Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A – Min. Runway Height:
7″ (178 mm)
B – Max. Rise:
82″ (2,083 mm)
C – Max. Lifting Height:
89″ (2,261 mm)
Time to Full Rise:
65 seconds
Outside Dimensions
D – Overall Width:
202″ (5,131 mm)
E – Outside Length:
198″ (5,029 mm)
F – Overall Length:
224″ (5,690 mm)
G – Height of Columns:
102″ (2,591 mm)
Inside Dimensions
H – Width Between Columns:
192″ (4,877 mm)
I – Drive-Thru Clearance:
178″ (4,521 mm)
Runways
J – Runway Width:
19″ (483 mm)
K – Length of Runways:
188″ (4,775 mm)
L – Width Between Runways:
37″ (940 mm) or 42″ (1,067 mm)
M – Runway Centerline:
56″ (1,422 mm) or 61″ (1,549 mm)
N – Outside Edge of Runways:
75″ (1,905 mm) or 80″ (2,032 mm)
Minimum Wheelbase
Rated Capacity:
135″ (3,429 mm)
75% Capacity:
115″ (2,921 mm)
50% Capacity:
95″ (2,413 mm)
25% Capacity:
80″ (2,032 mm)
Locking
Locking Positions:
16
Lock Spacing:
Every 4″ (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
2,966-lbs. (1345.4 kg)
Dimensions:
214” x 22” x 51” (5,435 mm x 558 mm x 1,282 mm)
Brand
BendPak
