BendPak PL-6000DC 6,000 Lb. Capacity / Two-Post Parking Lift / Shared Columns / SPECIAL ORDER
Original price was: $9,995.00.$3,997.99Current price is: $3,997.99.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
16
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
6,000 Lb. Capacity / Two-Post Parking Lift / Shared Columns / SPECIAL ORDER

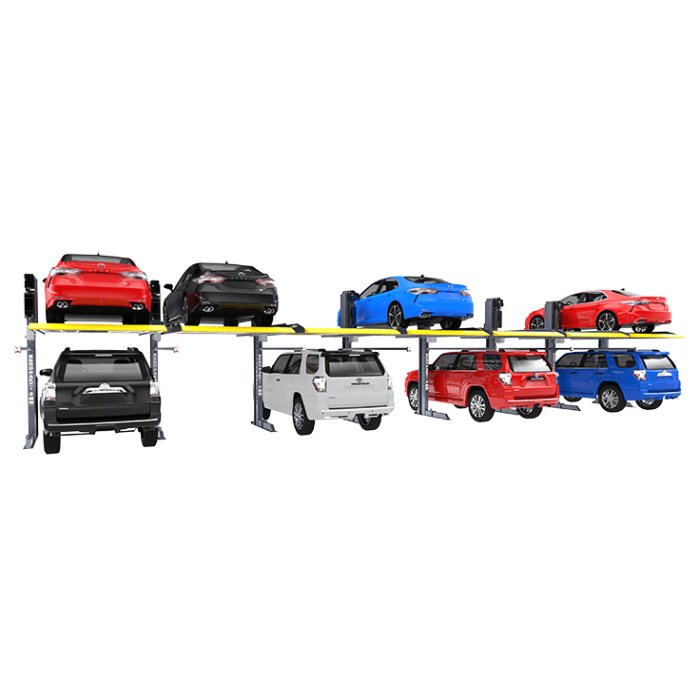

The PL-6000DC is a two-post parking lift with car storage capacity of up to 6,000-pounds. This parking lift is designed to be ganged together with shared columns allowing you to fit more units into a smaller space. Can be installed in either indoor or outdoor locations.
The PL-6000DC dual-column parking lift is designed to accommodate a wide array of vehicles including SUVs, sedans, and sports cars. It offers the perfect combination for both long-term and short-term parking. Typically long-term parking is the upper level and short-term parking below. The PL-6000DC was specifically designed to accommodate the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators. The PL-6000DC can be installed inside a typical 8-foot parking space and accommodate most cars and light trucks. They operate in both indoor and outdoor locations.
Advantages
Low Operating Cost
Platform driven by gravity when lowered. No electric motor consumption is required.
Fast and Easy Installation
Installation is fast and easy. A detailed installation manual is provided with floorplan and foundation drawings. Online videos are available to help customers through the installation process.
Ganged/Shared Columns
The posts can be shared which allows multiple installations in minimum space and reduces cost.
Professional Packing & Delivery
Professional packaging and our experienced logistic team ensures customers will get the product damage free. Compact package size means simple unloading and handling.
Dependable Hydraulic Operation
The PL-6000DC features a single direct-drive hydraulic cylinder eliminating the need for screw mechanisms and offers better reliability, smoother operation, and lower maintenance costs.
Automatic Safety Device
Powerful load-holding devices automatically engage and lock the lift structure as the parking lift raises, preventing sudden free fall in the unlikely event of a suspension component failure. Typically, after the lift is raised to the required working height, operators are instructed to lower the lift until it is resting safely on the locks to minimize wear on suspension components.
SpecificationsPL-6000DC
- Ganged column design allows multiple installations in minimum space
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth quiet hydraulic operation
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans and cars.
- Single direct-drive hydraulic cylinder
- Automatic safety lock combined with anti-fall device hold platform securely
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Features a rugged and reliable Manual Safety Lock Release
- Hydraulic overloading protection
- Mechanical safety locks are spaced every 4 inches
- 24VAC Operator controls
- Automatic locking system during power outage
- Emergency stop button
- Upper limit switch
- Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting
- Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass
Overall Height
131” (3,327.4mm)
Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj.
Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj.
Overall Length
163.5” (4,152.5 mm)
Overall Width
100.25” (2,547 mm)
Lifting Height
82.5” (2,100 mm)
Usable Platform Width
82.5” (2,100 mm)
Platform Length
157” (3,990 mm)
Electrical Required
110 or 220 VAC 50/60 Hz.
Single or Three Phase (specify when ordering)
Single or Three Phase (specify when ordering)
Control Power
24 VAC
Lock Release
Manual Release
Power Pack
2.2kw hydraulic power pump
Lifting / Lowering Time
50 / 45 sec.
Brand
BendPak
