BendPak PL-6000DCX 6,000-lb. lbs Capacity Dual-Column Parking Lift
Original price was: $10,895.00.$4,357.99Current price is: $4,357.99.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
44
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

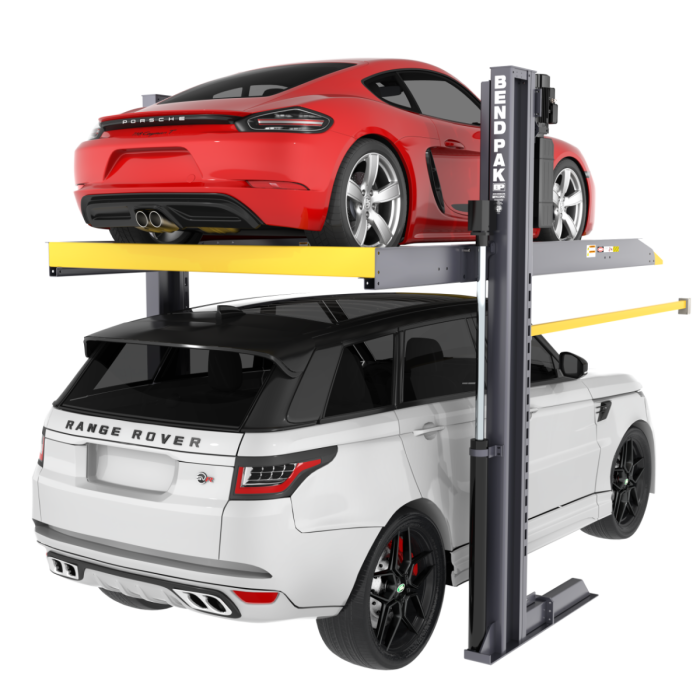

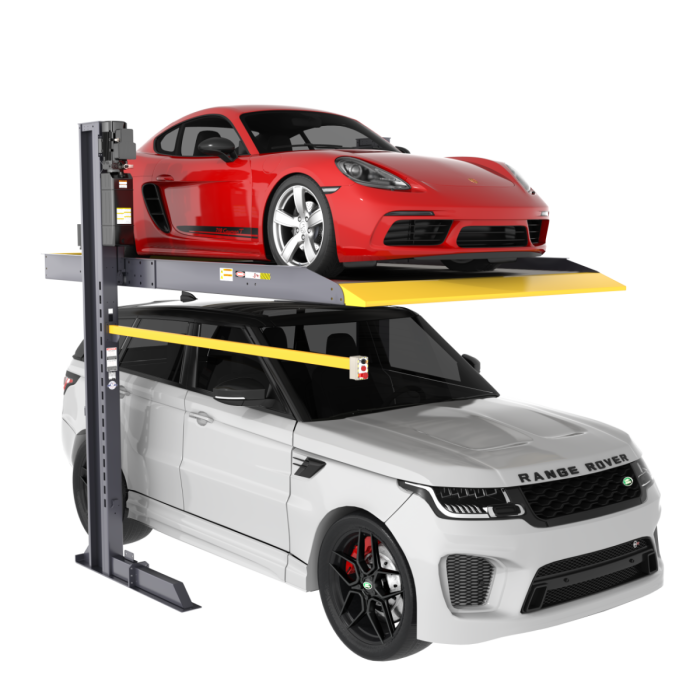

The BendPak PL-6000DCX dual-column parking lift has been engineered to handle everything from SUVs and sedans to sports cars. Perfect for both long-term parking on the upper level and short-term parking below, it’s an ideal solution for real estate developers, architects, engineers, automotive dealers, and commercial parking operators. Designed to fit in a standard 8-foot parking space, it accommodates most cars and light trucks, and works seamlessly in both indoor and outdoor locations.
Reduced Operating Costs
The PL-6000DCX operates efficiently with gravity-driven lowering, eliminating the need for electric motor consumption and significantly reducing operating costs.
Fast and Easy Installation
With a straightforward installation process, the PL-6000DCX comes with a detailed manual, complete with floorplan and foundation drawings.
Ganged/Shared Columns
Maximize your space and minimize your costs with shared columns. This innovative design allows for multiple installations in a confined area, making the most of your available space and budget.
Professional Packing & Delivery
BendPak’s expert packaging and logistics team ensures that your PL-6000DCX arrives in perfect condition. The compact package size simplifies unloading and handling, giving you peace of mind from the moment it leaves our facilities.
Dependable Hydraulic Operation
Featuring a single direct-drive hydraulic cylinder, the PL-6000DCX eliminates the need for complex screw mechanisms. This design provides enhanced reliability, smoother operation, and lower maintenance costs, keeping your lift in great condition long after purchase.
Automatic Safety Device
Powerful load-holding devices automatically engage and lock the lift structure as it raises, preventing sudden free fall in the rare event of a suspension component failure. Once raised to the desired height, the lift can be lowered onto the locks to minimize wear on suspension components, ensuring longevity and safety.
Specifications PL-6000DCX
- Ganged column design allows multiple installations in a minimum space.
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design
- Overhead power unit provides smooth quiet hydraulic operation.
- Designed for installation on concrete surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights.
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans, and cars.
- Single dual telescoping direct-drive cylinder
- Manual safety lock holds platforms securely in place
- Maintenance free composite carriage bearings

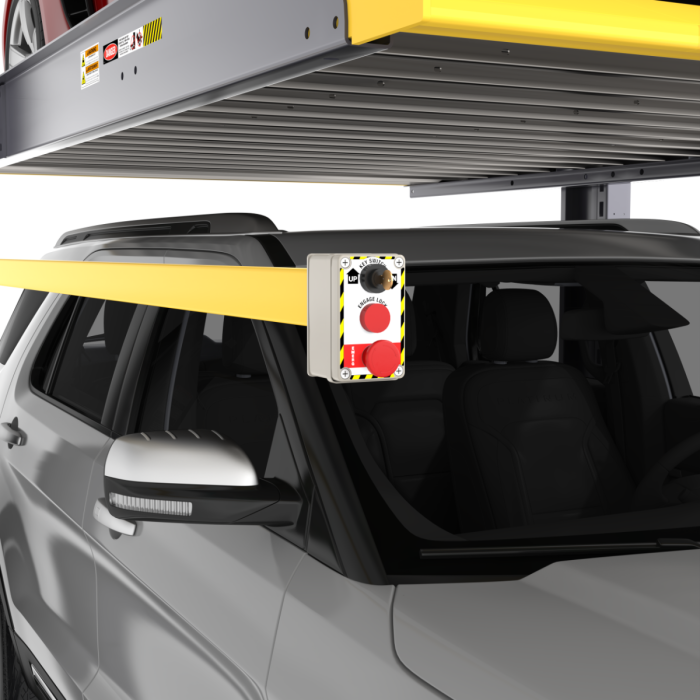

- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Manual safety lock release
- Hydraulic overloading protection
Lifting Capacity per Platform
6,000 lbs. (2,700 kg)
A) Total Width, Outside Edge to Outside Edge
112 in. (2,847 mm)
B) Lift Platform Length
157 in. (3,990 mm)
C) Post Height, *See Note 1
131 in. (3,320 mm)
D) Post, Center to Center Width
105.5 in. (2,682 mm)
E) Post Support Length
60.25 in. (1,532 mm)
F) Lifting Height
82.5 in. (2,100 mm)
G) Control Column Height
71 in. (1,805 mm)
H) Lift Platform (Usable Width)
94.5 in. (2,400 mm)
I) Side Clearance Min.
2 in. (50.75 mm)
J) Platform to Support
36.25 in. (918.25 mm)
K) Length Overall
163.5 in. (4,152.5 mm
Lifting Time
<50 Seconds
Motor
208-240V, 50/60HZ, 1-Ph., 4 HP, 22 Amps
Operating Temperature and Humidity
+41° to +104°F / +5° to +40°C 50% RH
Brand
BendPak
