BendPak SP-7XEF 7,000 Lb. Capacity / Scissors / Frame Engaging / Flush Mount

About this item :

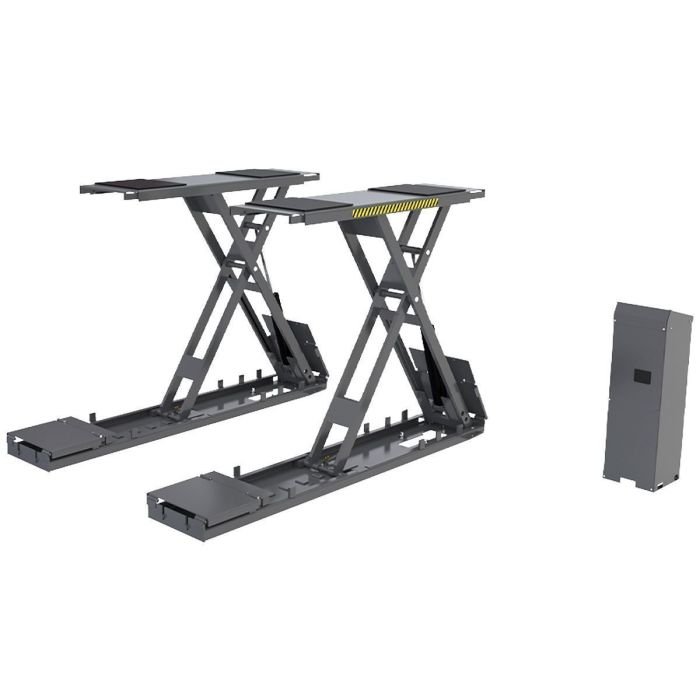

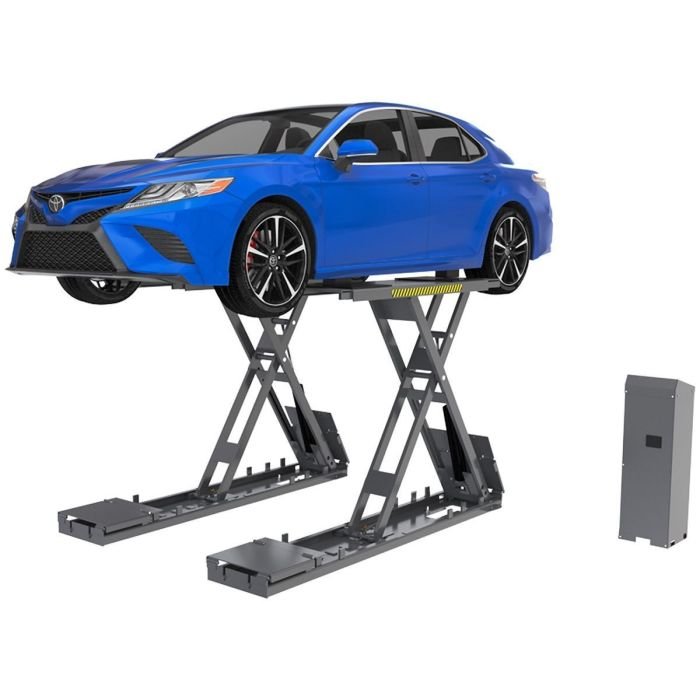

The Full-Rise, Flush-Mount Scissor Lift

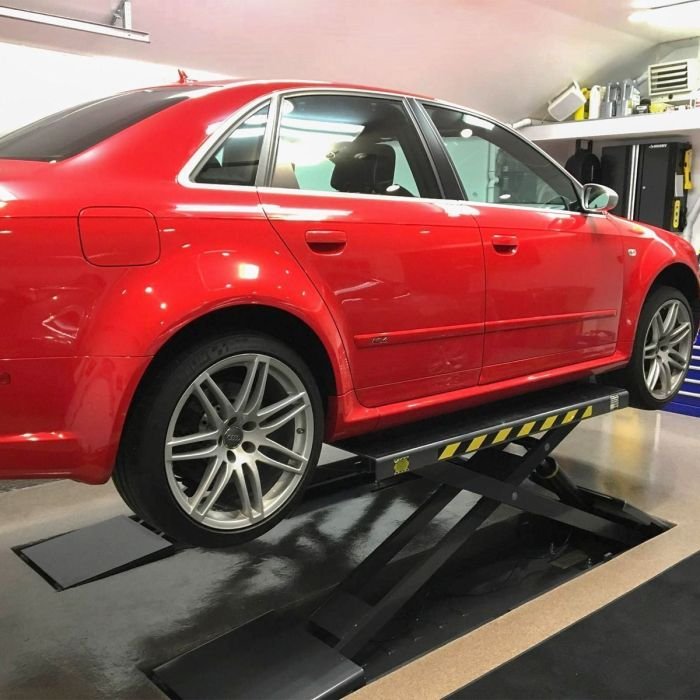

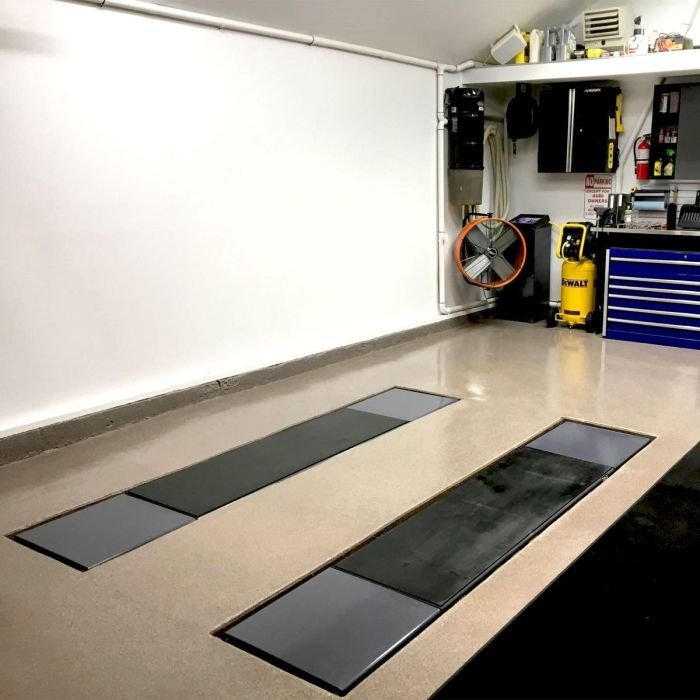

The SP-7XEF is the flush-mount version of our full-rise scissor lift. If your garage has a recessed area of concrete designed to hold flush-mount lifts, you’ll be pleased by how “invisible” this lift is in your garage. When it’s collapsed, you’re free to drive over it and work around it without tripping on wires or cables. We’re proud that the collapsed SP-7XEF is extremely low-profile, but if you want to take low to virtually zero, the flush-mount version of this model is the perfect car lift solution for your garage.

Open-center design

With 68″ inches of lifting height and an open center, many mechanics have comfortable standing room to perform oil changes, transmission drops and an infinite number of other undercarriage services.

No cross member

The SP-7XEF is installed and mounted flush into your flooring without a cross member. This makes for a true open-center design that provides access to all critical undercarriage areas without requiring operators to stoop or crawl across the floor. Plus, there’s less drilling into concrete, because space will only need to be made for the scissor structures—no longer for a cross member. Reinforced steel at the base and along the top of the runways help provide a stable lift that completely eliminates the need for that cross member or additional structural support.

Large base frame

The heavy-duty boxed-steel formed base frame increases stability and reduces stress on the overall structure. The elongated base provides a solid foundation for a smoother, perfectly level rise.

Electric / hydraulic power system

An electric hydraulic power system is kept in a rugged console box off to the side of the lift, safe from the lifting/lowering of the frames in and out of your flooring. The controls are easy to reach and allow you to keep an eye on your surroundings while lifting and lowering heavy vehicles.

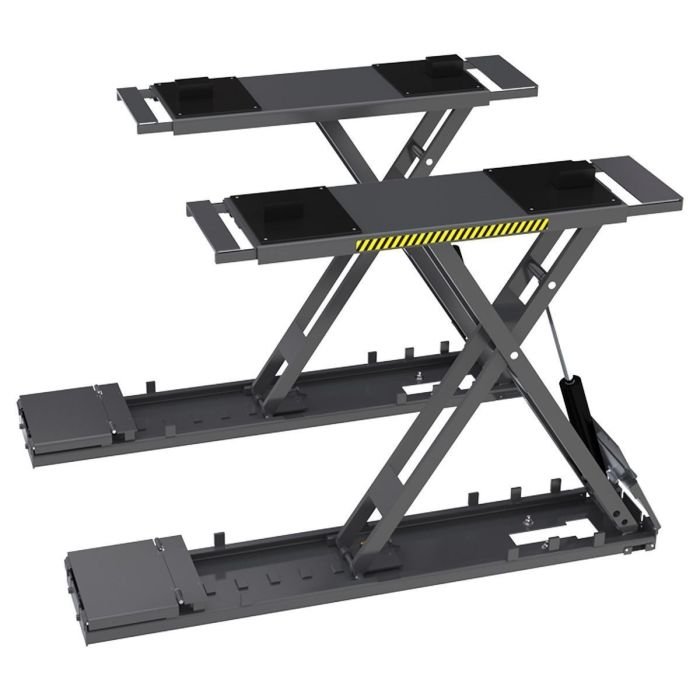

Dual master hydraulic cylinder

In order to push the frames out from a flush-mount position quickly and powerfully, the SP-7XLF is fitted with two hydraulic cylinders with flow restrictors to ensure an even lift. The controlled flow is sophisticated enough to prevent the risk of tipping, even if one cylinder loses pressure (due to an unlikely rupture or pinch, for instance). No emergency will result in the up-ending of your vehicle—the car lift would simply descend to the ground evenly on both frames.

Pneumatic safety locks

A single convenient operator stand allows you to release the pneumatic safety locks from a safe distance without ever worrying about manually lifting release arms or latches. The locks disengage when the lift lowers and automatically, and multiple locking positions provide operators with more service options. The locks engage or disengage at each position seamlessly with the movement of the scissor lift frames.

Hardened pivot pins with Zerk fittings

Zerk grease fittings are self-lubricating and long-lasting, ensuring a smooth rise and descent of the lift platforms at all times.

Durable, cushioned rubber contact blocks

Hard rubber blocks set right atop the rubber padding on the lift platforms, safely and securely engaging vehicle pinch rails and OEM frame lift points.

Detailed installation and maintenance instructions

An easy-to-read owner’s manual offers complete installation instructions and maintenance tips, as well as safety/caution decals that come standard with every lift purchase.
