Bendpak XPR-10AXLS 10,000-lb. Capacity / 2-Post Lift / Asymmetric Clearfloor / Extra Tall
Original price was: $5,620.00.$2,248.00Current price is: $2,248.00.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
25
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

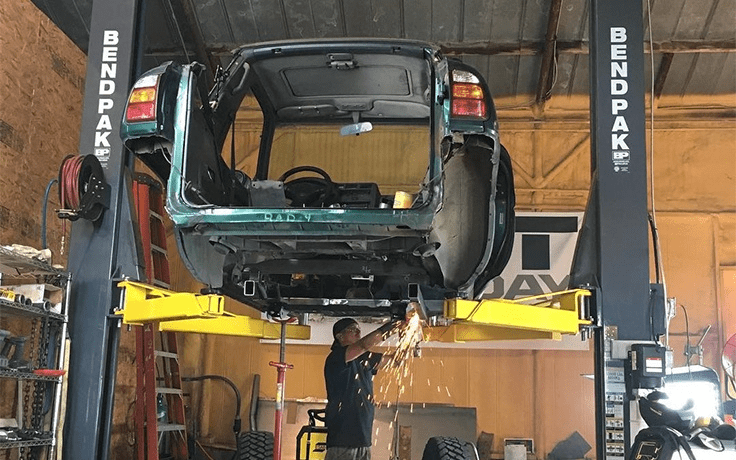

The XPR-10AXLS is a 10,000-lb. capacity two-post lift designed with an asymmetric clearfloor design that provides additional space for easy access to the underside of the vehicle. It has an extra tall design that accommodates a wide range of vehicles, including trucks and SUVs. The lift is designed with a direct-drive system that provides smooth, precise operation, making it ideal for busy automotive repair shops, dealerships, and garages. The lift features triple-telescoping arms that provide versatile and precise adjustments, ensuring a secure and stable lift for vehicles of all sizes and shapes.
Features & Specs
- Lift arms shown with optional foot guards
- 10,000‐lb. lifting capacity
- Expandable top beam accommodates wide or narrow configuration

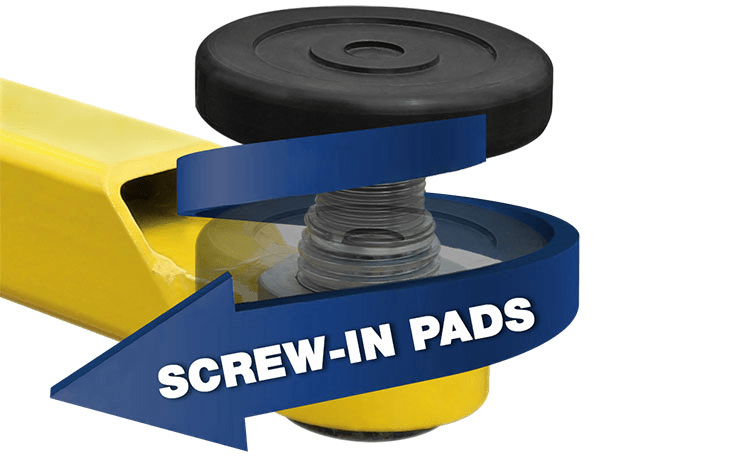

- Double‐telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single‐piece columns
- Dual hydraulic direct‐drive cylinders
- Automatic arm restraints
- Lowered arm tube supports
- Maintenance-free UHMW load bearings
- Oversized 59″ tall carriage for superior strength and durability
- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self‐lubricating dura‐glide UHMW polyethylene bearing system
- Single‐point safety release
- Safety locks in each column spaced every 3″
- Automatic overhead shutoff
- Plated arm restraints and arm pins for rust prevention
- Heavy‐duty 1/2″ aircraft‐quality equalizer cables

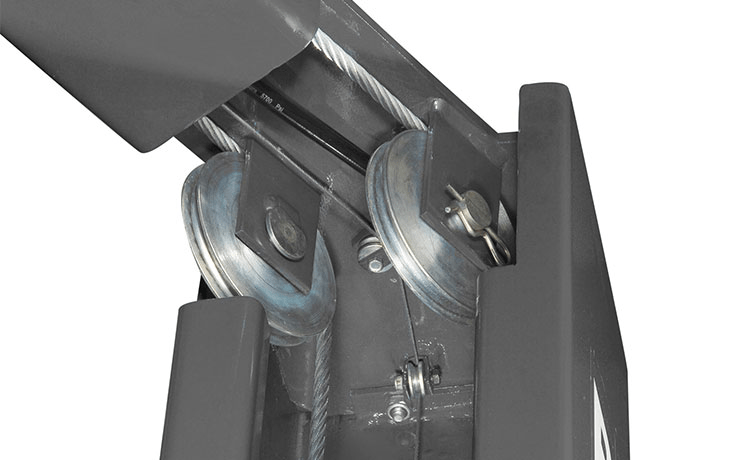

- Oversized cable sheave diameter reduces cable fatigue
- 4‐piece 63 mm stackable adapter set comes standard
- ALI Certified
Capacity
Lifting Capacity*
10 000 lbs. (4 536 kg)
*Max Capacity / Front Axle
5 000 lbs. (2 268 kg)
*Max Capacity / Rear Axle
5 000 lbs. (2 268 kg)
Rise
A – Rise:
75″ (1 905 mm)
B – Rise + Pad Only:
79,75″ (2 026 mm)
C – Rise + Pad + 63 mm Adapter:
82,75″ (2 102 mm)
D – Min. Height + Pad:
4,75″ (121 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
E – Height Overall:
157″ (3 988 mm)
F – Width Overall:
137″ (3 480 mm) or 145″ (3 683 mm)
G – Outside Columns:
133,25″ (3 385 mm) or 141,25″ (3 588 mm)
Inside Dimensions
H – Inside Columns:
106,25″ (2 699 mm) or 114,25″ (2 902 mm)
I – Drive-Thru Clearance:
93,75″ (2 381 mm) or 101,75″ (2 584 mm)
J – Floor To Overhead Switch:
147″ (3 734 mm)
Arms & Pads
K – Front Arm Reach: (MIN)
23,5″ (597 mm)
K – Front Arm Reach: (MAX)
43,75″ (1 111 mm)
L – Rear Arm Reach: (MIN)
40,25″ (1 022 mm)
L – Rear Arm Reach: (MAX)
58″ (1 473 mm)
Screw Pad Adjustment:
2″ (51 mm)
Max Load Per Arm
2 500 lbs. (1 134 kg)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
1,814-lbs. (822.8 kg)
Dimensions:
164” x 24” x 29” (4165 mm x 609 mm x 737 mm)
Brand
BendPak
