Dannmar D2-10C 10,000 lbs. Capacity Symmetric Two Post Car Lift
Original price was: $4,299.00.$1,719.00Current price is: $1,719.00.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
33
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

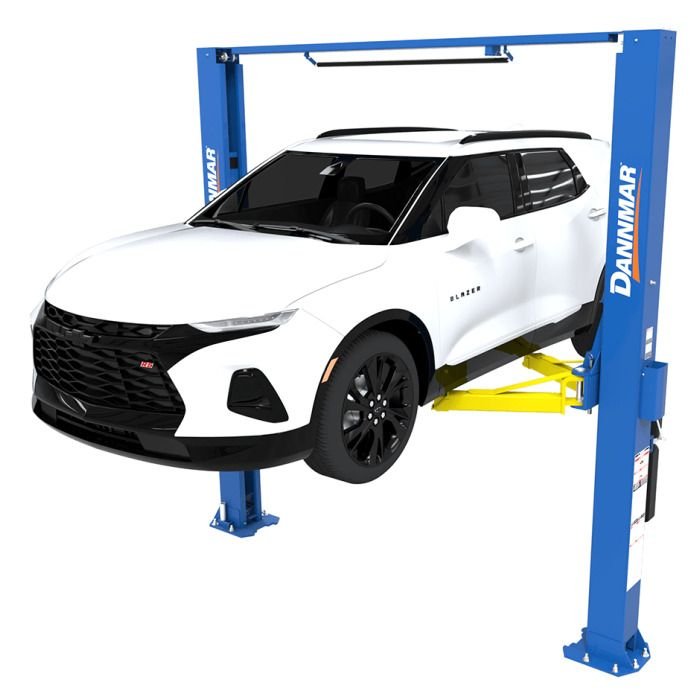

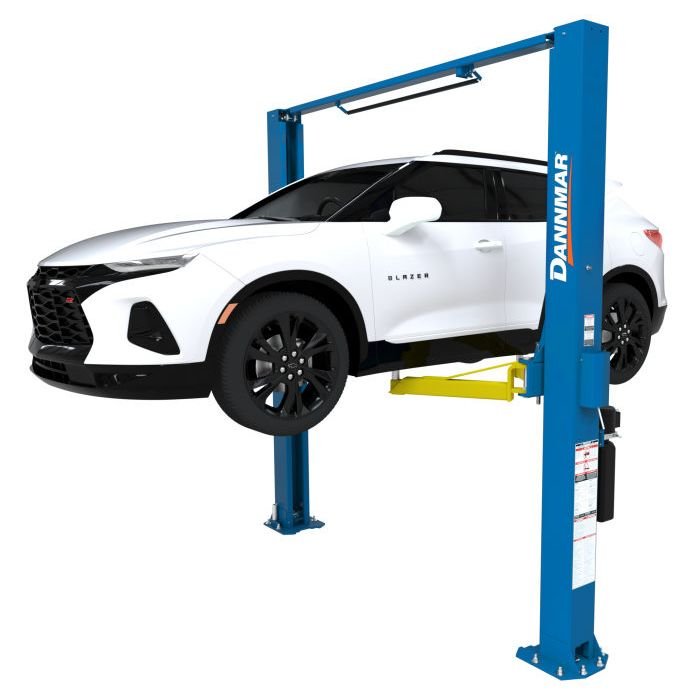

Dannmar D2-10C Symmetric Two Post Lift
10,000 lbs. Capacity Symmetric Clearfloor Two Post Lift
The Dannmar D2-10C two-post lift is a great choice in direct-drive lifting technology. Dannmar’s high-quality car lift utilizes the best components with the proven design to offer you a 10,000 lb. capacity lift. Color: BLUE. The D2-10C is ALI and ETL Certified.
Rugged Durability, High Performance,
Extreme Versatility, Demanding Applications
Dannmar’s D2-10C symmetric two-post lift uses an adjustable top beam for wide or narrow installation setups. This feature allows choosing the best setting for your shop’s floor space. The design requires very little maintenance.
The D2-10C two-post lift features low-pressure HVLP direct-drive cylinders, so there is no need for lifting chains or screw mechanisms. The dual HVLP low-pressure cylinders minimize leakage and provide better reliability, smoother operation and fewer maintenance costs. High volume and low pressure equates to less workload placed on the entire hydraulic system. Direct-Drive technology uses fewer moving parts than a chain-over roller cylinder design. Pressurized hydraulic fluid flows from the power unit to the hollow cylinder rods, entering the cylinder body and filling its internal cavity. The pressure of the hydraulic fluid extends the piston rod downward, raising the cylinder body and lift carriages.
Features and Specs
Features

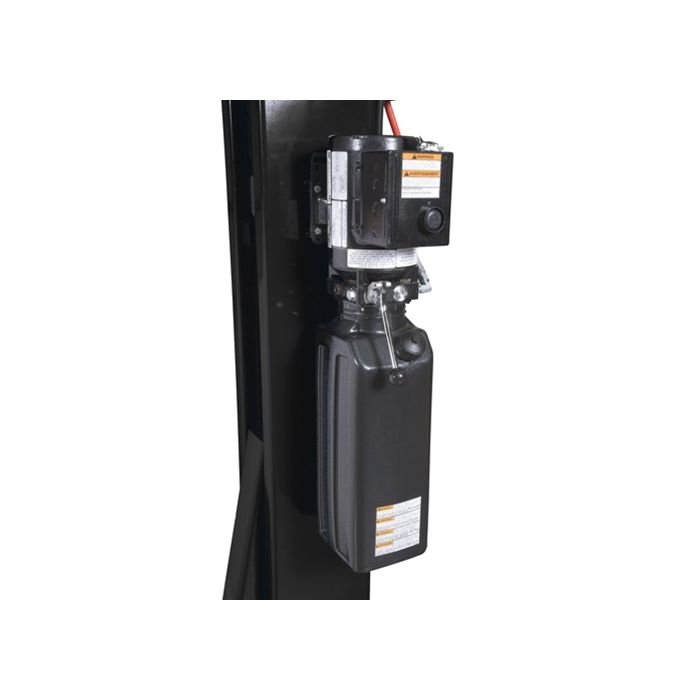

- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints

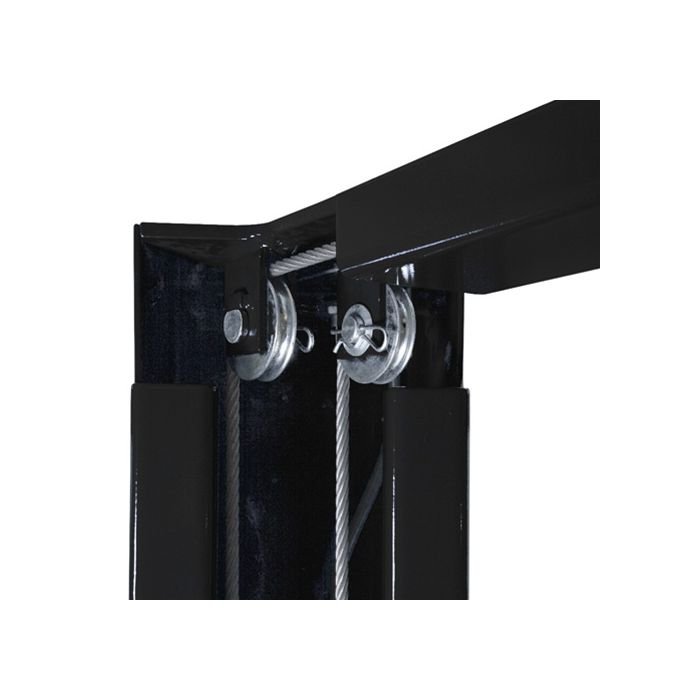

- Heavy-duty 1/2″ aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Padded overhead safety shutoff bar
- Telescoping arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53″ tall carriage for superior strength
- Versatile drop-in contact pads with stackable adapter pins
- ETL Approved
Specifications
- Style: Symmetric
- SKU: 5175313
- Lifting Capacity: 10,000 lbs. (4,536 kg)
- A – Lowered Height + Pad: 5″ (127 mm)
- B – Max. Lift Height (Top Lock): 78.5″ (1,994 mm)
- C – Max. Rise: 69″ (1,753 mm)
- D – Height Overall: 145″ (3,683 mm)
- E – Width Overall: 145.25″ (3,690 mm)
- F – Width Outside Columns: 137.25″ (3,486 mm)
- G – Width Inside Columns: 118.25″ (3,004 mm)
- H – Drive-Thru Clearance: 106″ (2,692 mm)
- I – Floor to Top Switch: 141″ (3,581 mm)
- J – Arm Reach: 32.25″ (819 mm) – 52.5” (1,334 mm)
- Max. Load per Arm: 2,500 lbs. (1,134 kg)
- Time to Full Rise: 45 seconds
- Noise: 45 dB
- Motor: 220 VAC / 60 Hz / 1 Ph
* Special voltages available upon request.
* Please note that these specifications are subject to change without notice. It is best to confirm these specifications with a sales representative at the time of purchase.
