⚙️ TRUSTED BY DRIVERS

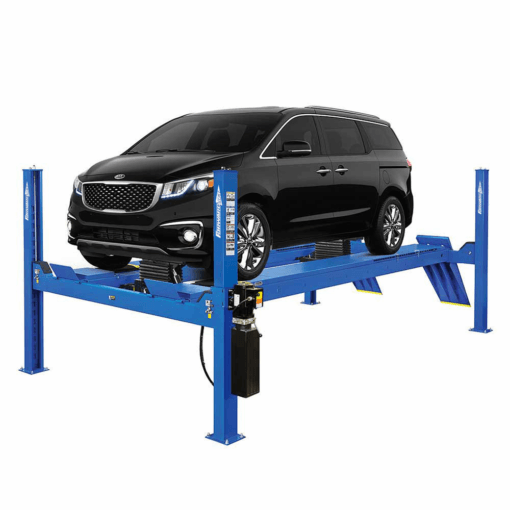

Forward lift CRA14-EL 14,000 lb. ali certified alignment four-post lift – 215” max wheelbase
Original price was: $28,999.00.$12,699.70Current price is: $12,699.70.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
25
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
CRA14-EL Alignment Four-Post Lift Features:
The foundation of a CRA14 14,000 lbs. capacity Forward four-post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area; tucked out of the way for a clean finish however easily accessible for inspection when needed. Forward Lift offers a durable powder coated hammer tone paint finish on its lifts. Our four-post lifts have a multi-position lock component which allows any four-post lift to be level at any lock position. Self chocking approach ramps and wheel chocks come standard with the CRA14.
Additional Features:
- Heavy duty hydraulic cylinder
- Internal airline standard
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
- Rear wheel slip plates standard
Alignment-ready lift includes:
Two 7,000 lbs. rolling jacks, two carbon steel front turning radius,
internal airlines, rear wheel slip plates, FLR (filter, lubricator, regulator)
Specifications
| SPECIFICATIONS | CRA14N202Y |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Max. Wheelbase | 215″ (5460mm) |
| Max. Two Wheel Alignment | 199-1/4″ (5060mm) |
| Max. Four Wheel Alignment | 172 1/4″” (4375mm) |
| Min. Four Wheel Alignment | 88″ (2235mm) |
| Rise | 80-3/4″(2000mm) |
| Length Overall | 283″ (7188mm) |
| Width Overall | 10′ 11-3/4″ (3346mm) |
| Inside Columns | 116-1/4″ (2953mm) |
| Between Front and Rear Columns | 228-1/4″ (4959mm) |
| Height of Columns | 7′ 6-1/2″ (2281mm) |
| Width of Runways | 20″ (508mm) |
| Height of Runways | 9″ (228mm) |
| Width Between Runways | 43″ (1092mm) or 46″(1168mm) |
| Time of Full Rise | 72 seconds |
| Voltage Single Phase* | 208v-230v |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 28′ (4572 x 8534mm) |
Brand
Forward Lift
