DP10A Two-Post Lift Features:

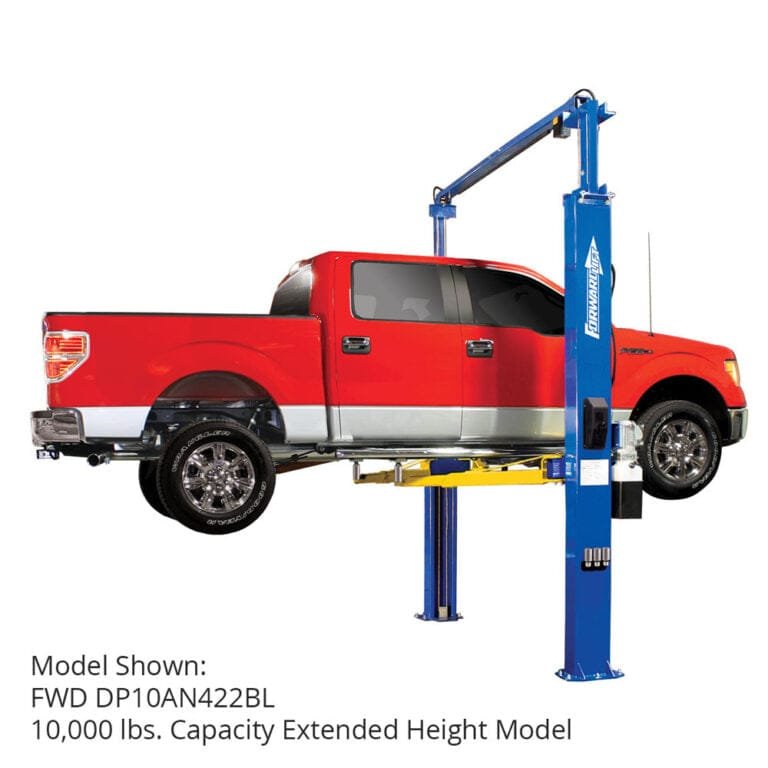

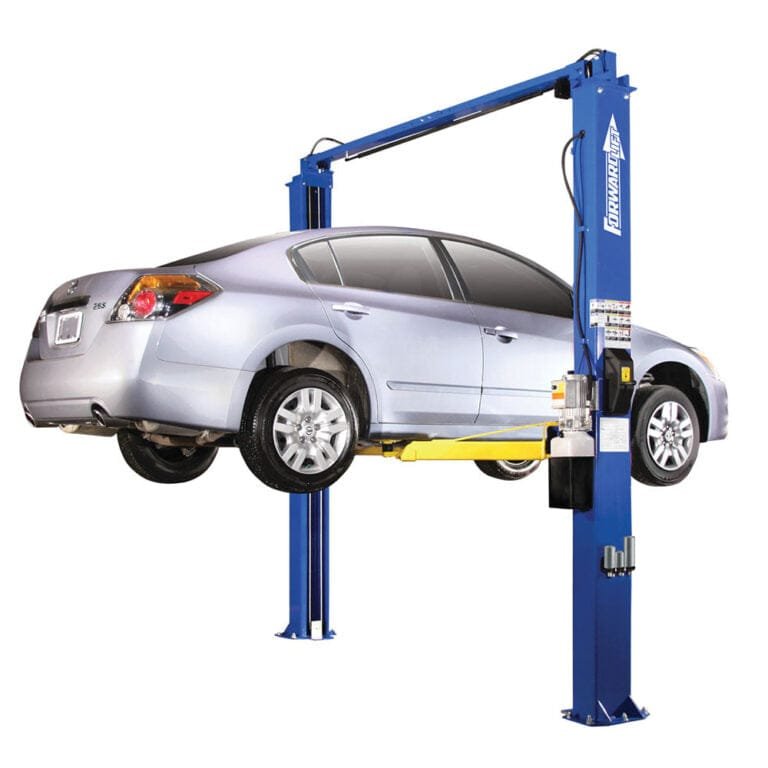

Incorporating a low-profile design, the DP10A 10,000 lbs. capacity two-post lift features low-profile/oversized pads with multiple extensions to raise most vehicles on the road today. Includes four (each) adapter extensions: 3.5″ and 5″. Integrating Spot-Rite™ 3-Stage Front Arm design, the DP10A features offset arms to accommodate vehicles both symmetrically and asymmetrically. This feature allows the technician to position the vehicle doors in front of or behind the column to prevent door damage.
Additional Features:
- Direct-Pull Lifting – high efficiency, low maintenance technology
- Closed loop hydraulic system – preventing hydraulic contamination
- Powder coat, oven baked finish – more durable than conventional coatings
- Third party tested by ETL and certifed by ALI
- Padded shut-off bar
- Spring operated arm restraints, disengage at floor level
- Low profile arms
- Includes adjustable frame contact adapters.
- Single point release lock in each column, resets on upstroke
- Optional high rise and extended height available
- Door Bumpers standard
- Requires 12ft. ceiling
Specifications
| Specifications | DP10AN400BL | DP10AN400BL + T100295 (Extended Height Kit) |
| Capacity | 10,000 lbs. (4535kg) | 10,000 lbs. (4535kg) |
| Max. Rise w/5″ extension | 76-1/4″ (1937mm) | 76-1/4″ (1937mm) |
| Overall Height | 143″ (3632mm) | 166-3/8″ (4226mm) |
| Overall Width | 131″ or optional 137″ (3327mm / 4380mm) | 131″ or optional 137″ (3327mm / 4380mm) |
| Drive Through Clearance | 99″ or optional 105″ (2515mm / 2667mm) | 99″ or optional 105″ (2515mm / 2667mm) |
| Overhead Switch Height | 137-5/8″ (3496mm) | 160-3/4″ (4083mm) |
| Front Reach | 23″- 44-1/2″ (584mm – 1130mm) | 23″- 44-1/2″ (584mm – 1130mm) |
| Rear Reach | 36″- 58″ (914mm – 1473mm) | 36″- 58″ (914mm – 1473mm) |
| Min/Max Adapter Height | 3-3/4″ (95mm) no adapter extension 8-3/4″ (222mm) w/5″ adapter extension |
3-3/4″ (95mm) no adapter extension 8-3/4″ (222mm) w/5″ adapter extension |
| Width Inside Column | 109″ or optional 115″ (2769mm / 2921mm) | 109″ or optional 115″ (2769mm / 2921mm) |
| Voltage | 208/230, 15 amps; 208/230, 16 amps | 208/230, 15 amps; 208/230, 16 amps |
| Motor | 1ph/2HP/60Hz | 1ph/2HP/60Hz |
| Ceiling Height Required | 144″ (3658mm) | 167″ (4242mm) |
| Lifts are available in blue and red.
Specifications subject to change without notice or liability. |
||
