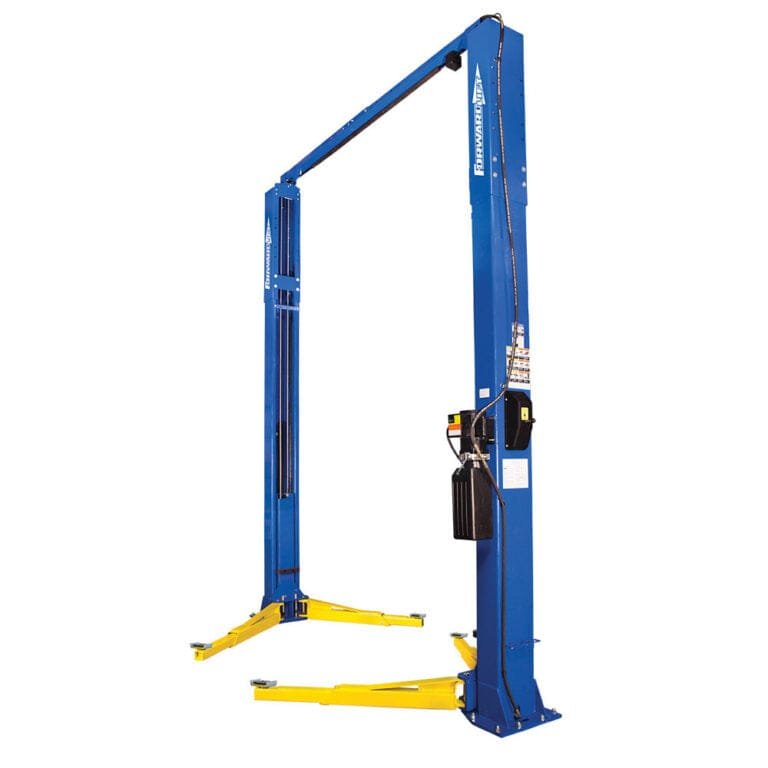

Forward Lift F12 12,000lb Two-Post Lift
Original price was: $10,999.00.$3,299.70Current price is: $3,299.70.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
41
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
F12 Two-Post Lift Features:
Forward’s F12 two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks, and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward’s spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.
Additional Features:
- Hydraulic cylinders in each column
- Full Stroke
- Cylinder rod concealed inside carriage
- 72-1/2″ Rise | 77-1/2″ Rise (With 5″ adapter extensions)
- 2 Stage Arm Design
- Overhead cable equalization
- Single Point lock release
- Large rubber-padded swivel adapter with extra height extensions (3.5″ and 5″) are standard
- Spring operated arm restraints, disengage at floor level
- 2-stage front and rear arms
- Durable powder coat finish
Specifications
| Specifications | F12 |
| Capacity | 12,000 lbs. (5443kg) |
| Maximum Rise | 77-1/2″ (1968mm) With 5″ adapter extension |
| Adjustable Overall Height Options |
166″ (4216mm) Standard Height (F12N300) 178″ (4521mm) Extended Max. Height (F12N301) 154″ (3912mm) (F12N302) 143″ (3632mm) (F12N303) |
| Overall Width | 140″ or optional 146″ (3556 / 3708mm) |
| Drive Through Clearance | 102-3/4″ or optional 108-3/4″ (2609 / 2762mm) |
| Overhead Switch Height Options |
160-1/8″ (4067mm) Standard 172-1/8″ (4524mm) Extended 148-1/8″ (3762mm) 137-1/8″ (3483mm) |
| Front Arm Reach (Min./Max.) | 35″/ 54″ (889 / 1372mm) |
| Rear Arm Reach (Min./Max.) | 35″/ 54″ (889 / 1372mm) |
| Min./Max. Adapter Height |
4-3/4″ (120) w/ no adapter extension 9-3/4″ (248mm) w/ 5″ adapter extension |
| Width Inside Column | 120-7/8″ (3070mm) Adjustable 114-7/8″ (2918) Standard |
| Voltage/Amps | 208/230, 12 amps; 208/230, 16 amps |
| Motor/Phase** | 1ph*/2HP/50Hz; 1ph*/2HP/60Hz |
| Ceiling Height Required | 168″ (4267mm) |
| Specifications subject to change without notice or liability. *Optional 3-phase available at additional cost |
|
