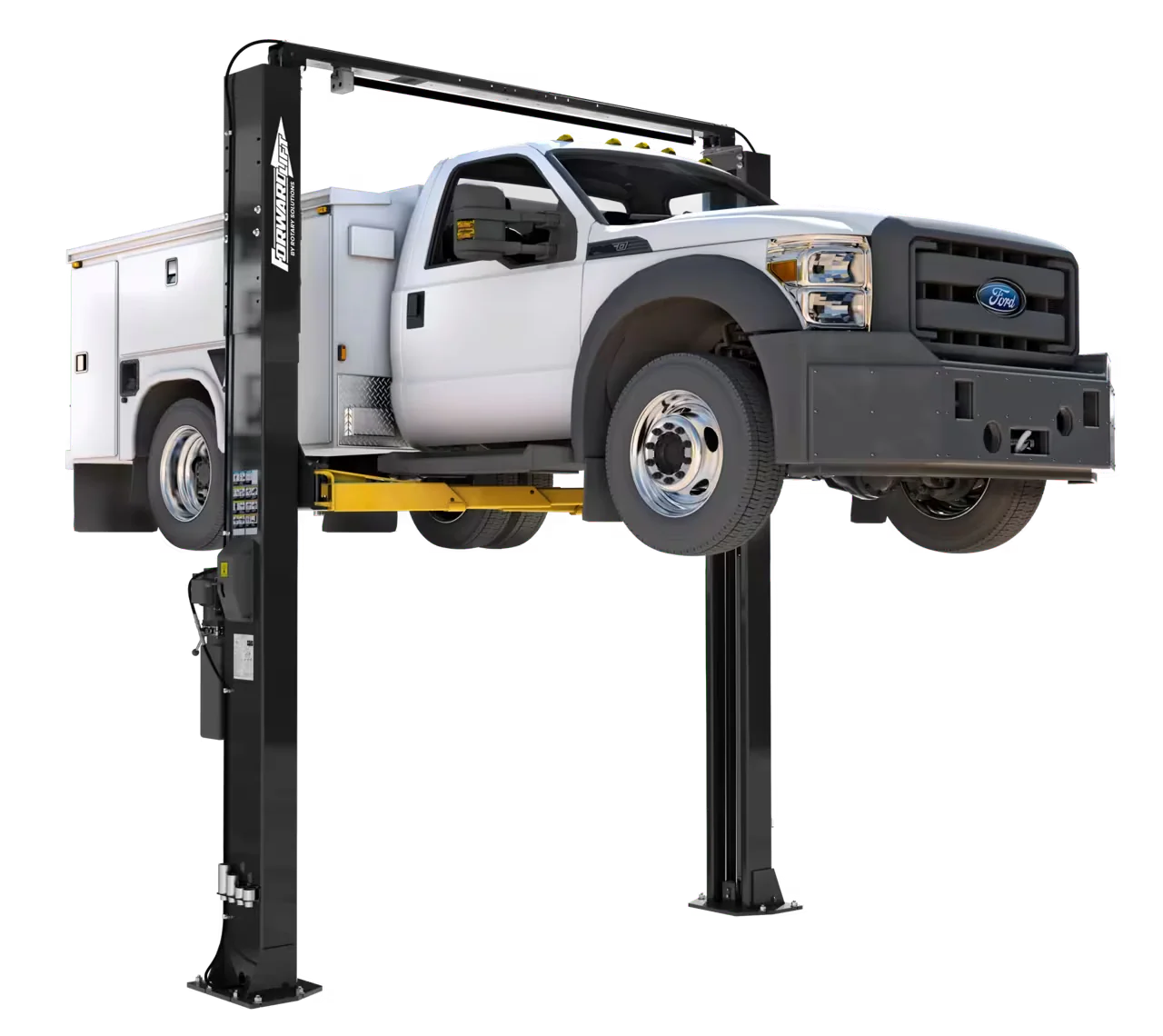

FORWARD I12PRO – 12k lb Two-Post Lift
Forward’s 12,000-pound capacity I12PRO two-post lift is gold-certified and perfect for raising most passenger cars, trucks, and vans. It has two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize downtime. The durable, powder coat finish provides exceptional protection from the wear a shop will see over the years.
FEATURES
- Overhead cable equalization
- Single Point lock release
- Includes adapter storage bracket
- Front & Back Three-Stage Arms
- ALI Gold Certified
- Four Height Configurations w/ adjustable width options
- Two Heavy-Duty Push Hydrailic Cylinders
- Spring Operated Arm Restraints
- Durable Powder Coat Paint Finish
- Large Low-Profile Padded Drop-In Adapters
- Four Each Adapter Extensions (1.75″, 3.5″ & 5″)
- RED, BLUE, or BLACK
SPECIFICATIONS
|
Capacity |
12,000 lbs. |
|---|---|
|
Maximum Rise |
77-1/2″ With 5″ adapter extension |
|
Adjustable Overall Height Options |
|
|
Overall Width |
11’ 8″ or optional 12’ 2″ |
|
Drive Through Clearance |
102-3/4″ or optional 108-3/4″ |
|
Overhead Switch Height Options |
|
|
Front Arm Reach (Min./Max.) |
27-5/8″ min / 59″ max (700mm / 1500mm) |
|
Rear Arm Reach (Min./Max.) |
27-5/8″ min / 59″ max (700mm / 1500mm) |
|
Min./Max. Adapter Height |
4-3/4″ w/ no adapter extension / 9-3/4″ w/ 5″ adapter extension |
|
Width Inside Columns |
114 7/8” Standard or 120 7/8″ Optional |
|
Voltage/Amps |
208-230v, 17 amps |
|
Motor/Phase** |
2HP / 1 PH |
|
Ceiling Height Required |
168″ (4267mm) |
