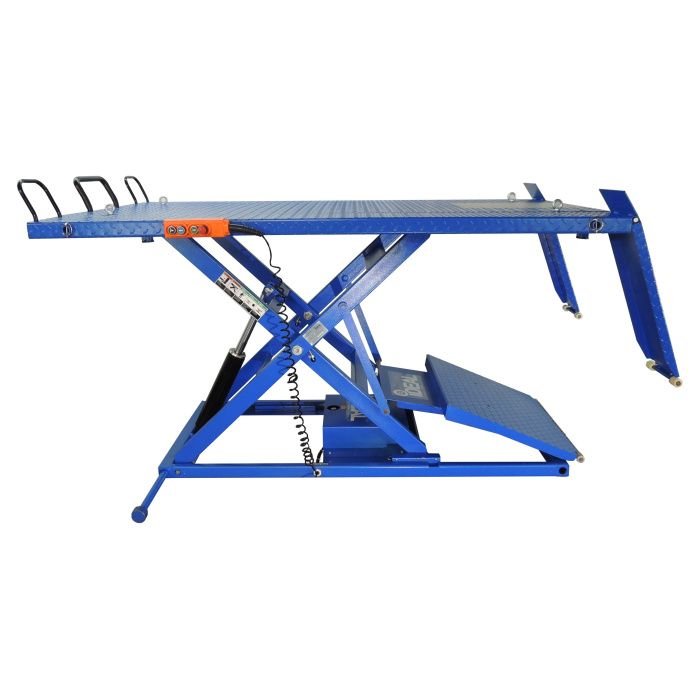

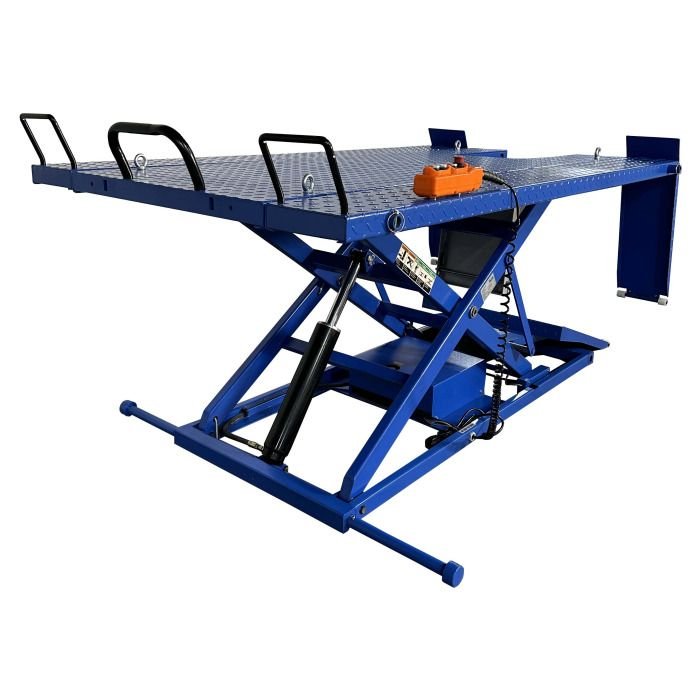

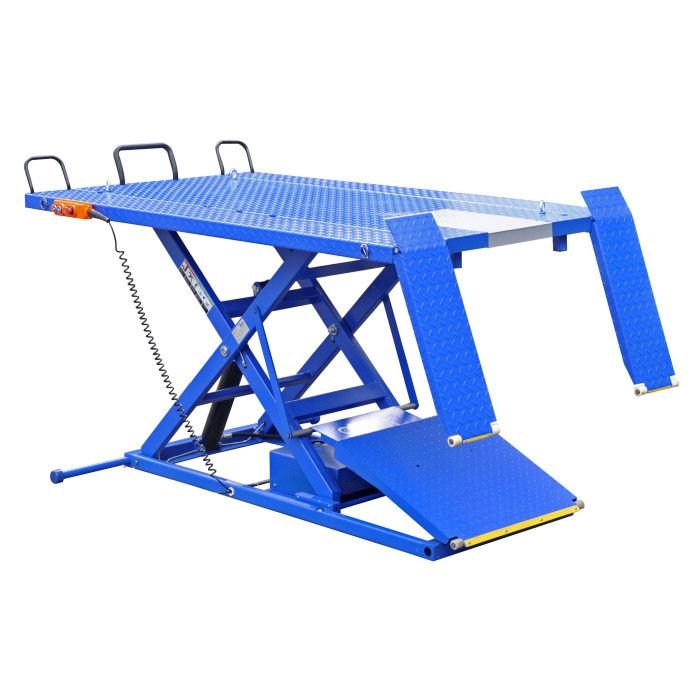

iDEAL A-2200IEH-XR Pro Series Power Sport ATV Lift
2,200 lbs. Capacity with Retractable Ramp All Terrain Vehicle Lift

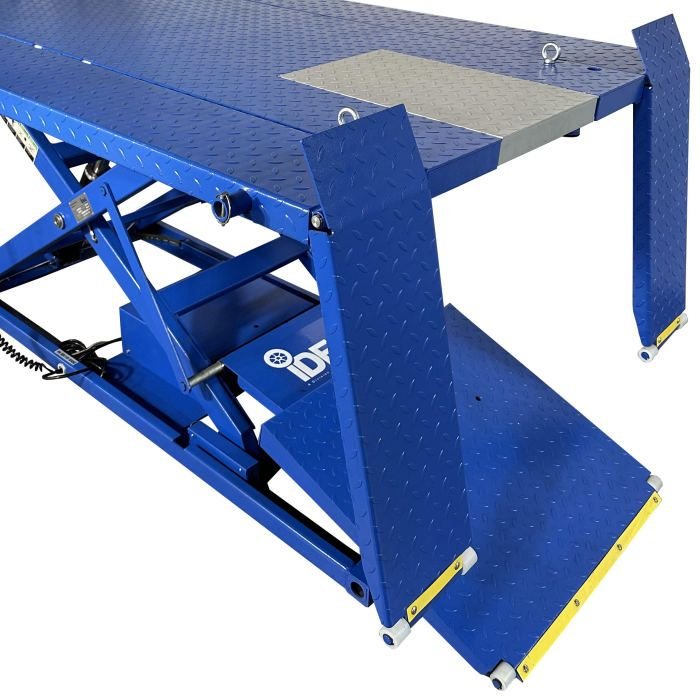

The iDEAL A-2200IEH-XR Pro Series Power Sport ATV Lift is up to the challenge of lifting all ATVs on the market today. The ramp retracts as the lift is raised so there’s no need to remove it! In addition to the new and innovative retractable ramp system the A-2200IEH-XR has pivot approach ramps that fold out of the way as the lift raises and become wheels stops. Keeping the technician in mind these features limit injury, save time and space which makes your shop area more productive. The single point hand held magnetic pendant fully controls the lift: lifting, lowering into locks, and lowering without the use of hands or feet to disengage manual safety latches. The A-2200IEH-XR is available in blue or black.
Industry leading platform size and weight capacity with smooth and quiet hydraulic operation. Great for ATVs, golf carts and go karts!
The iDEAL A-2200IEH-XR is a 2,200 lbs. lifting capacity ATV / Motorcycle Lift Table capable of lifting the heaviest ATV’s on the market today. The integrated 110V electric hydraulic power unit is operated using a hand held pendant that also disengages your safety locks for safe and easy operation. The 50″ wide table, including the easily removed ATV side extensions, allows you to lift the widest ATVs for service. The ability to raise the lift to 47″ allows even the tallest technician to work comfortably. Wheel Chock and Vise Sold Separately.
With all these great features the A-2200IEH-XR is the complete package for a premium, high quality all terrain vehicle lift at a great value!
Features and Specs

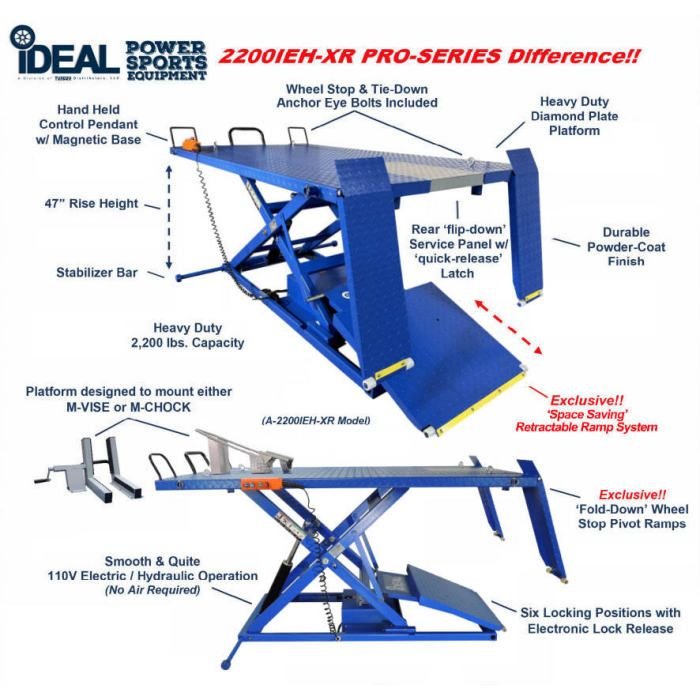

Features

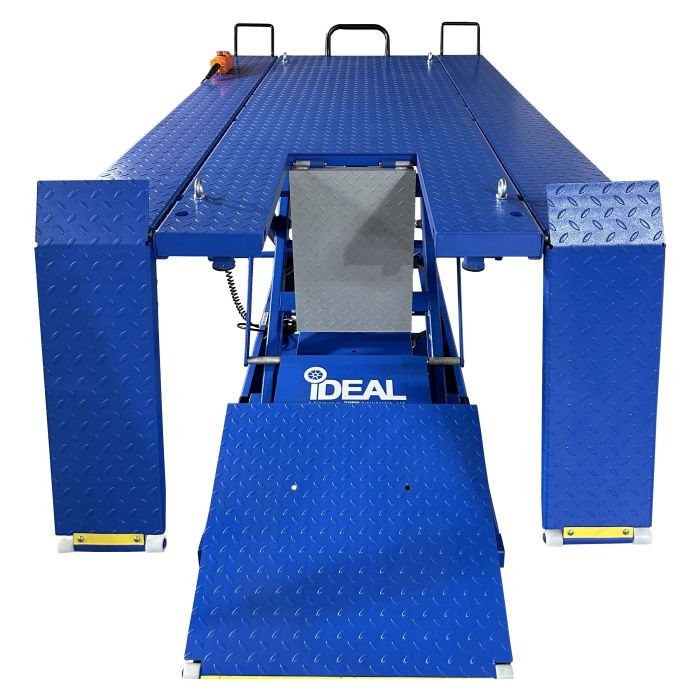

- New! Retractable Ramp System
- New! Pivot Approach Ramps
- 2,200 lbs. Capacity
- 47″ Rise Height
- 110V Integrated Electric / Hydraulic Power Unit

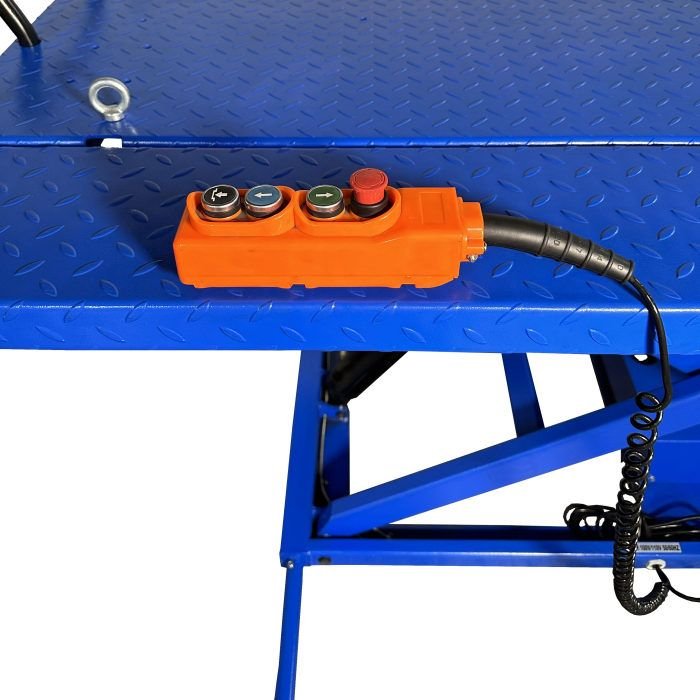

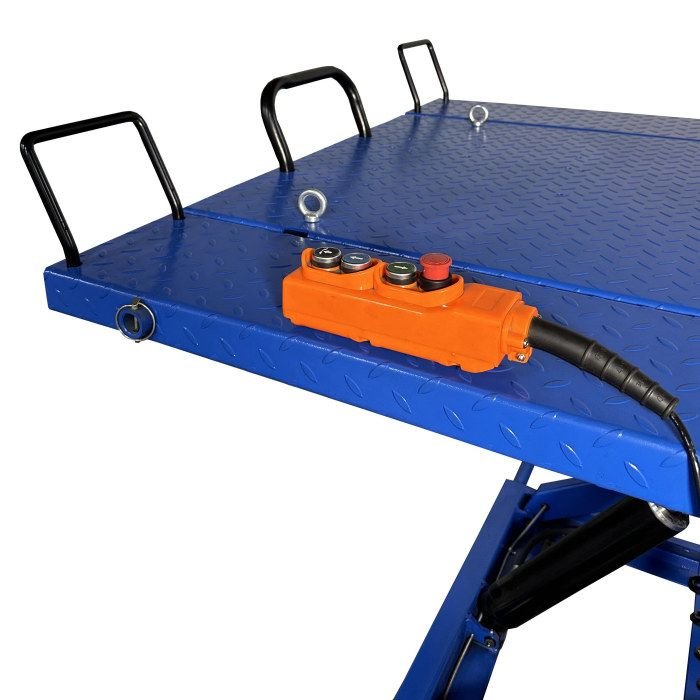

- Hand Held Control Pendant for Operation and Lock Release
- Magnetic Lock Release
- (6) Locking Height Positions
- Extended 27-1/2″ Long Full Width Approach Ramp
- 50″ x 88.6″ Platform
- Rear Drop Down Service Panel

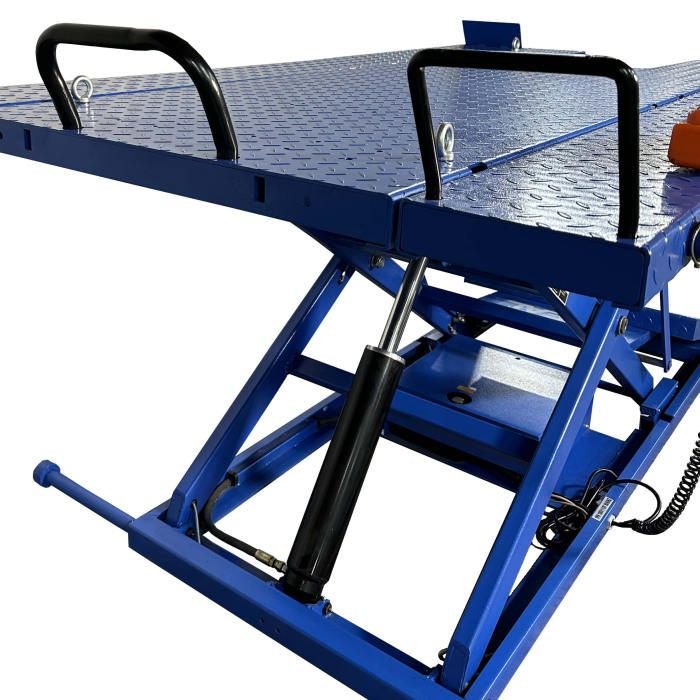

- Stabilizer Bar
- Wheel Stops

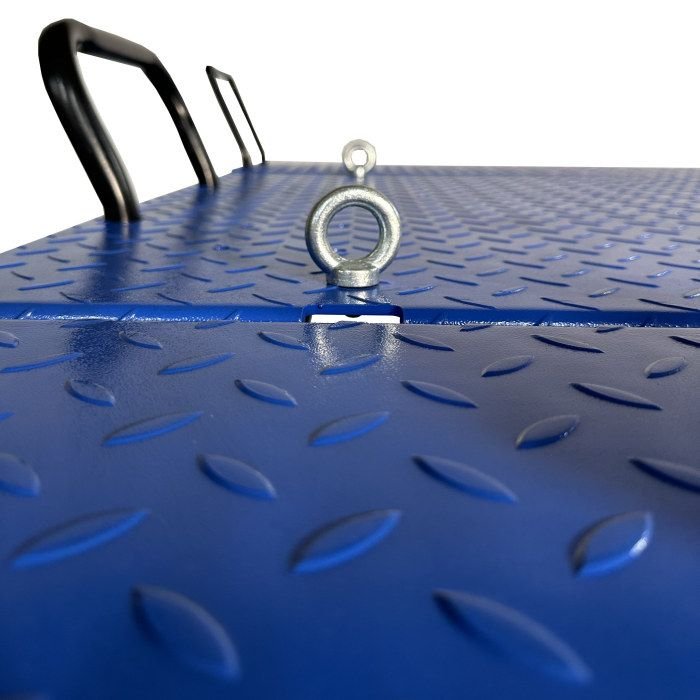

- Tie-Down Anchor Eye Bolts
- High Quality Construction with Durable Powder Coat Finish
- Heavy-Duty Diamond Plate Platform and Extensions
- Smooth and Quiet 110V Electric / Hydraulic Operation – No Compressor Required
Optional Accessories
- Motorcycle Vise
- Motorcycle Jack
- Self Locking Cycle Wheel Chock
- Front Extension Panel
- Dolly and Wheel Kit

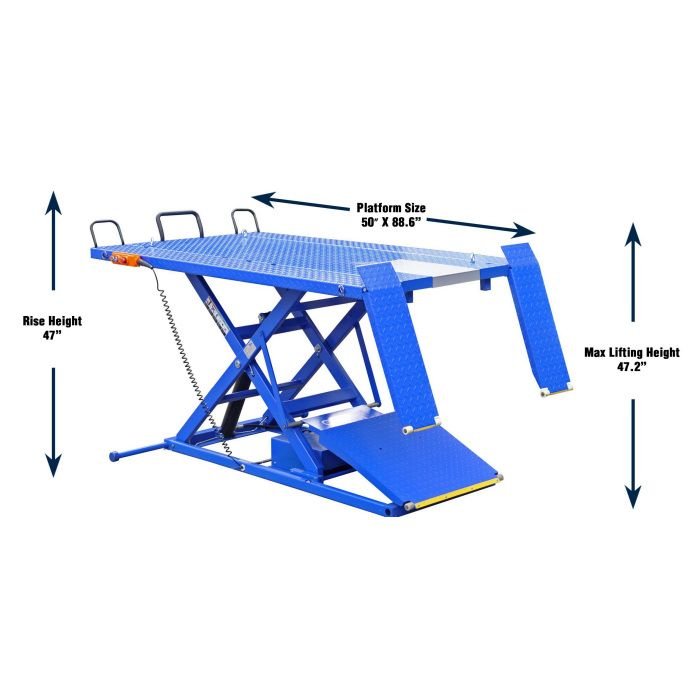

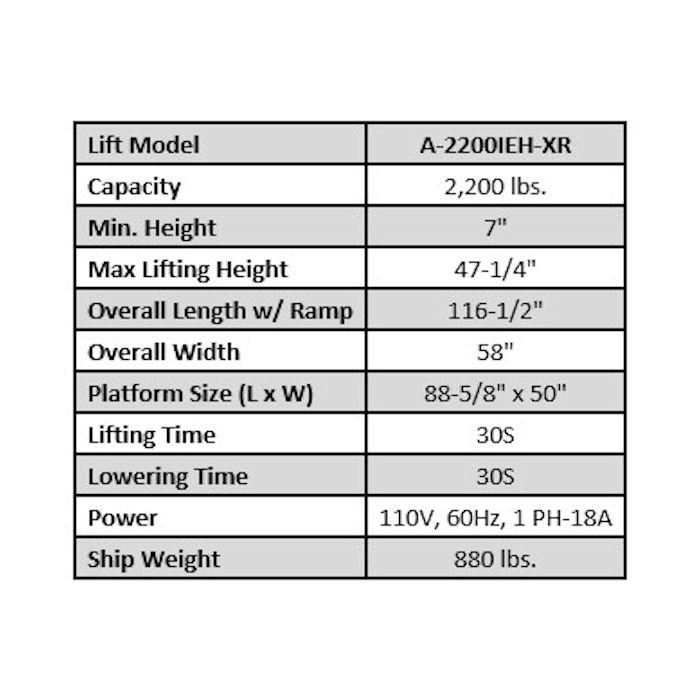

Specifications
- Capacity: 2,200 lbs. (1,000 kg)
- Max Lifting Height: 47.2″ (1200mm)
- Min. Height: 7″ (180mm)
- Locking Heights: 25.5″ 30.5″ 35″ 39″ 43.5″ 47″
- Overall Width: 58.5″ (1486mm)
- Overall Length: 116.5″ (2959mm) – Fully Lowered
- Platform Length: 88.6″ (2250mm)
- Platform Width: 50″ (1270mm)
- Power Supply: 110V 60Hz 1Ph 18A
- Lifting Time: 30s
- Lowering Time: 30s
- Gross Weight: 980 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
