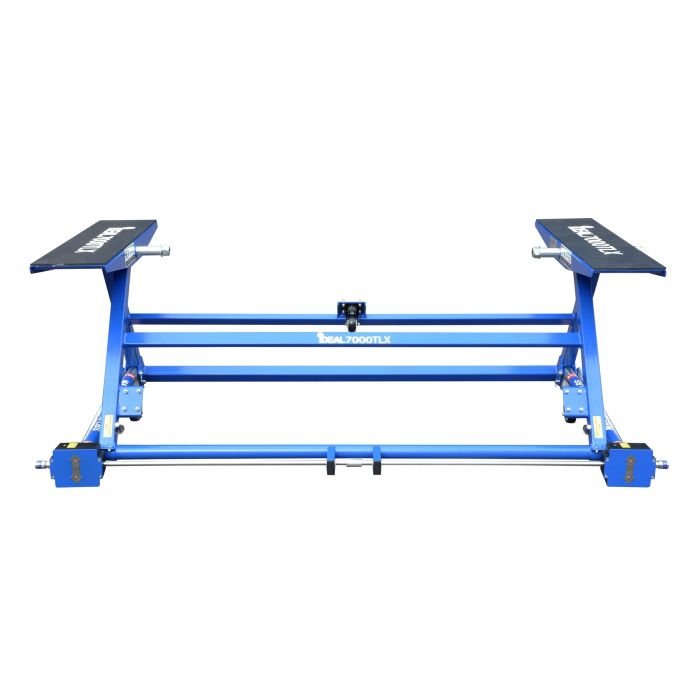

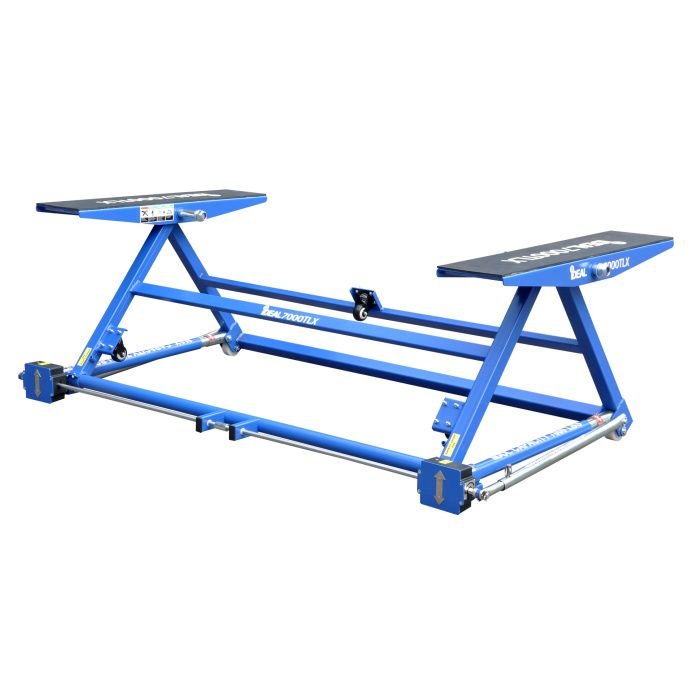

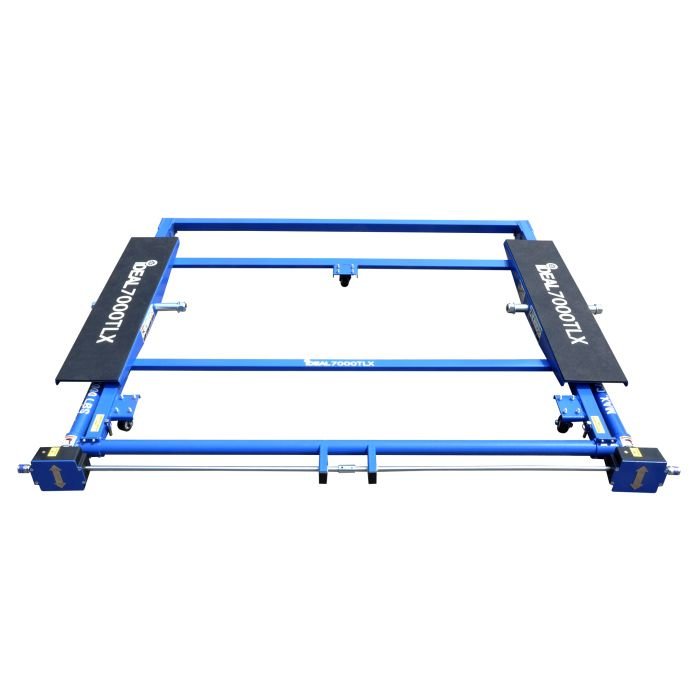

iDEAL TLX-7000 Automotive Tilt Lift 7,000 lbs. Capacity
Low-Rise, Lightweight, Portable, and Storable

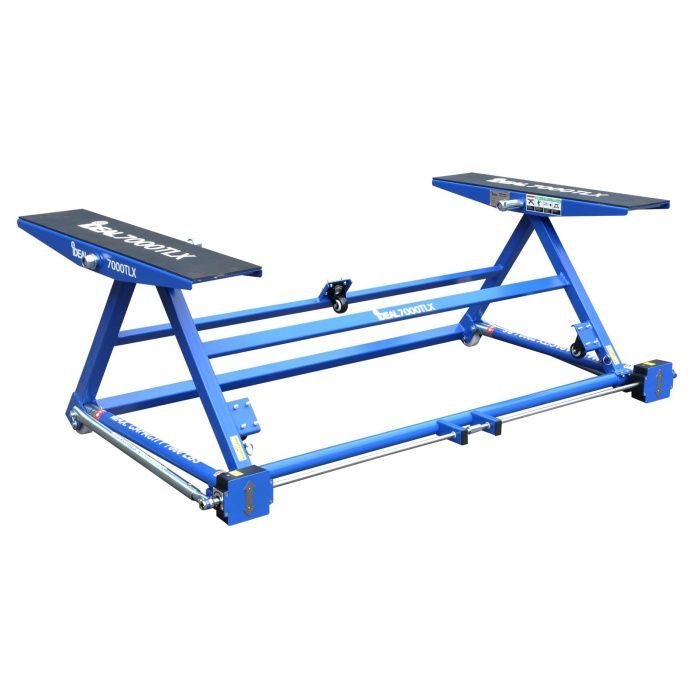

The iDEAL TLX-7000 is one of the most economical, unique, versatile & convenient vehicle lifting solutions in the market today. The iDEAL TLX-7000 is a low-profile, lightweight, portable 7,000 lb. capacity low-rise scissor frame contact tilt lift designed for unibody type passenger & small sport utility vehicles.
Equipped with twin dual-action precision gear drive mechanisms, the lifting operation is simply powered by the torque supplied from an electric handheld drill. Additionally, the ‘exclusive’ dual independent safety lock bars also allow for full operation from either side of the lift.

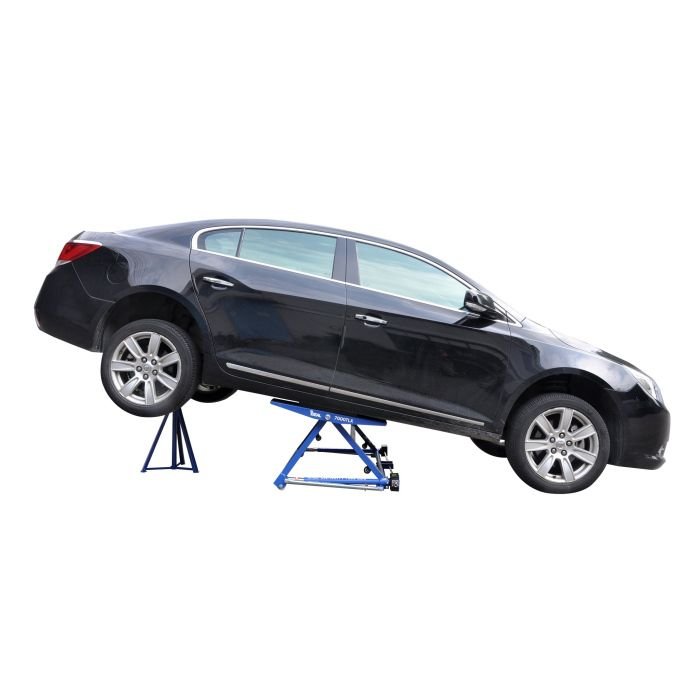

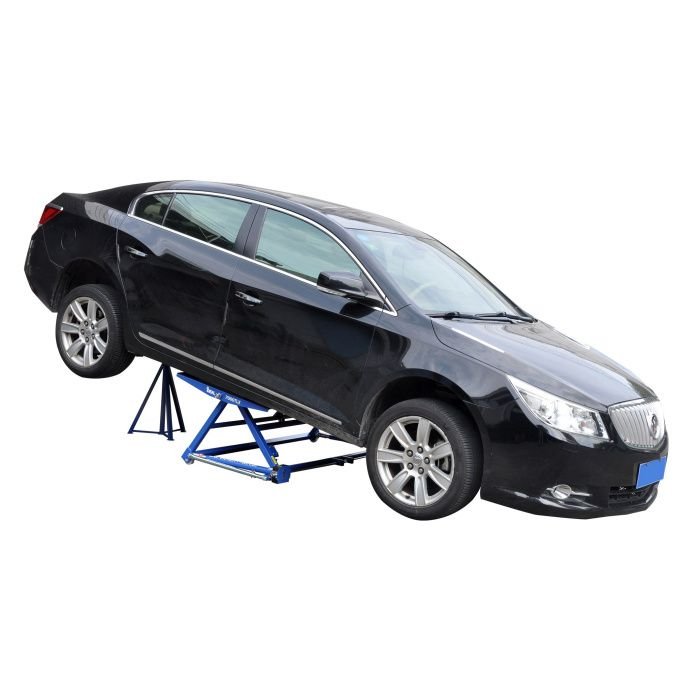

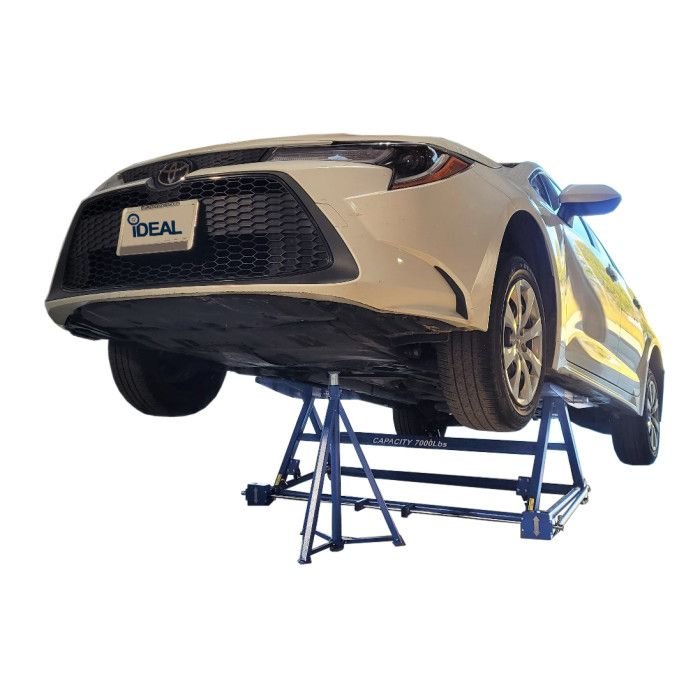

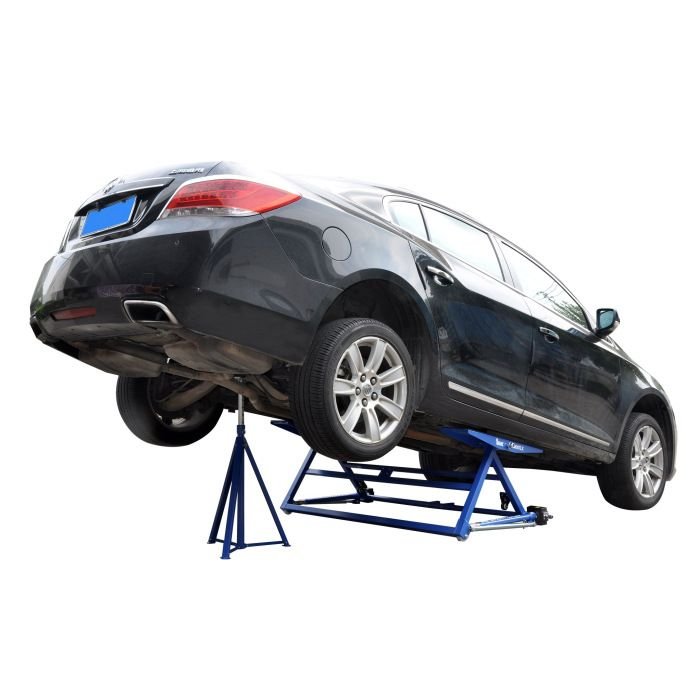

The unique vehicle ‘lift & tilt’ operation provides greater overall accessibility to vehicle, while also being able to quickly & conveniently be stored out of the way. Designed for multi-use applications, the iDEAL TLX-7000 can be widely used in residential garages, auto service shops, autobody repair centers, car dealers or for detailing.
Features and Specs

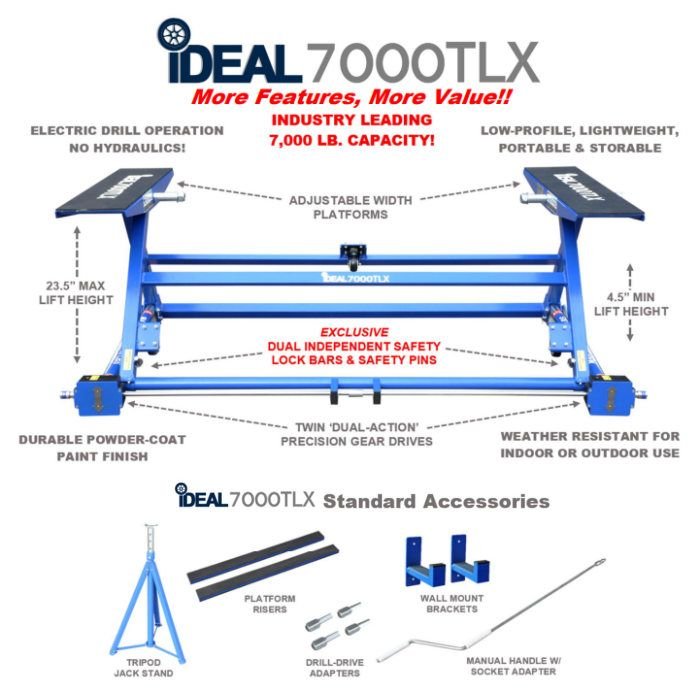

Features
- Industry Leading 7,000 lbs. Capacity
- Handheld Electric Drill Operation, No Hydraulics
- Low-Profile, Lightweight, Portable, and Storable

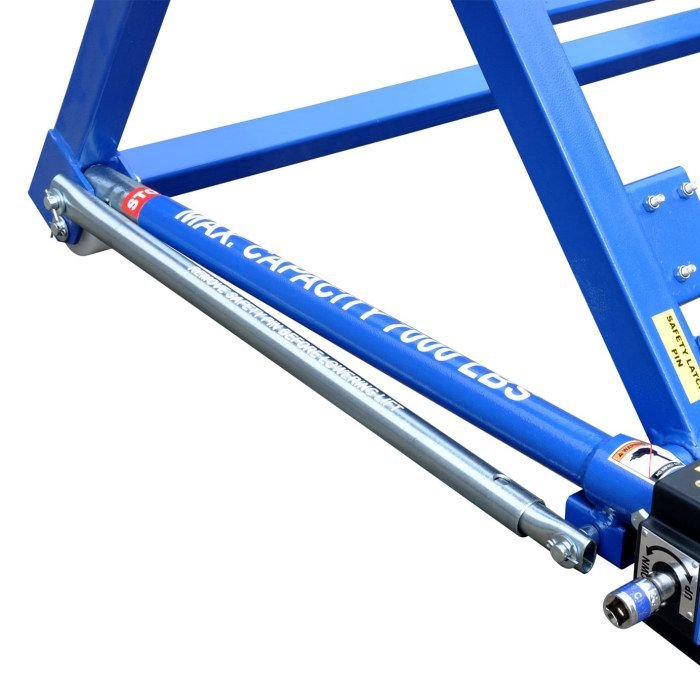

- Exclusive Dual Independent Safety Lock Bars and Pins Allow For Full Operation From Either Side of Lift

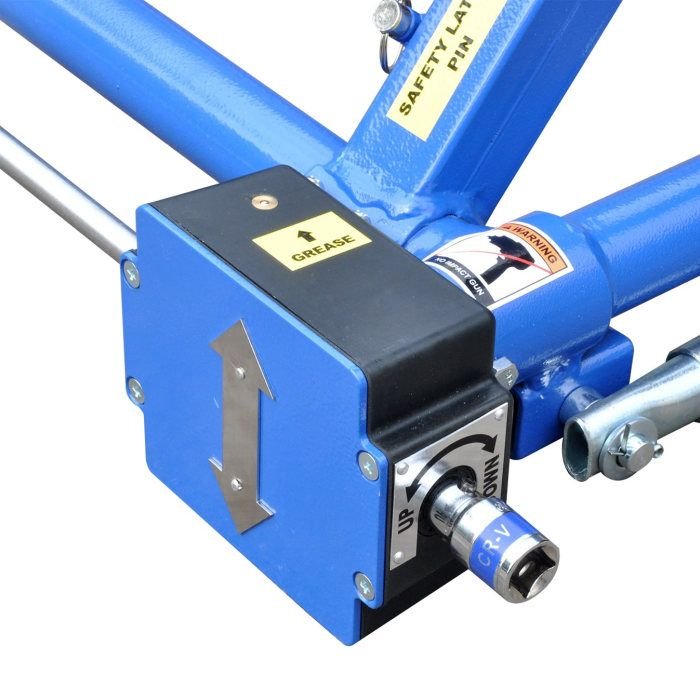

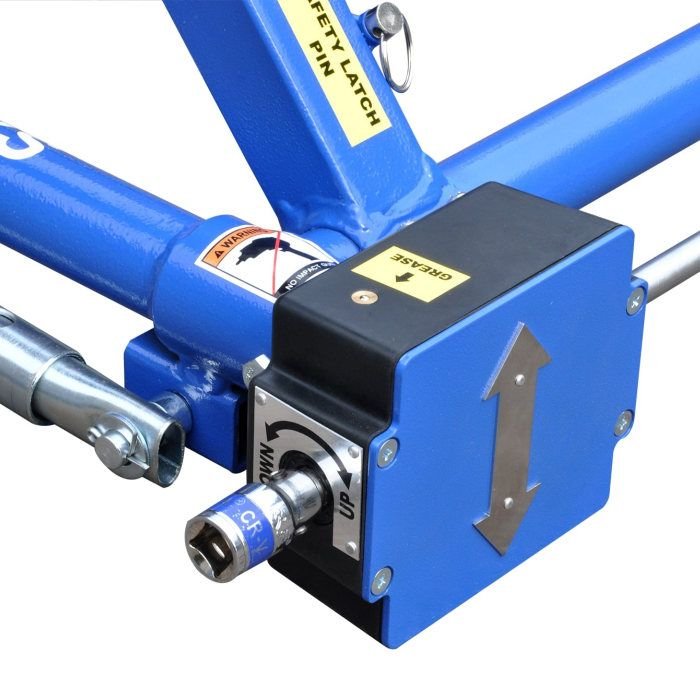

- Twin ‘Dual-Action’ Precision Gear Drives
- Adjustable Width Platforms
- Easy To Use and Maintain
- Durable Powder-Coat Paint Finish
- Weather Resistant for Indoor or Outdoor User
- Power Drill NOT Included
Benefits
- Frees Up Valuable Space In Your Garage, Shop, or Work Area
- Adds Inspection and Service Capabilities for Repair Shops
- Allows for Comfortable Work Height and Undercarriage Access
- Safely Lifts and Tilts Unibody Vehicles with 48″ to 61″ frame Rail Widths
Uses
- Inspections and Oil Changes
- Brake and Wheel Service Jobs
- Exhaust and Transmission Service
- Paint Spray Booths
- Autobody Repairs
- Auto Detailing and Wrapping
- Showcase Chassis at Trade Shows
- Unique Car Dealer Vehicle Display

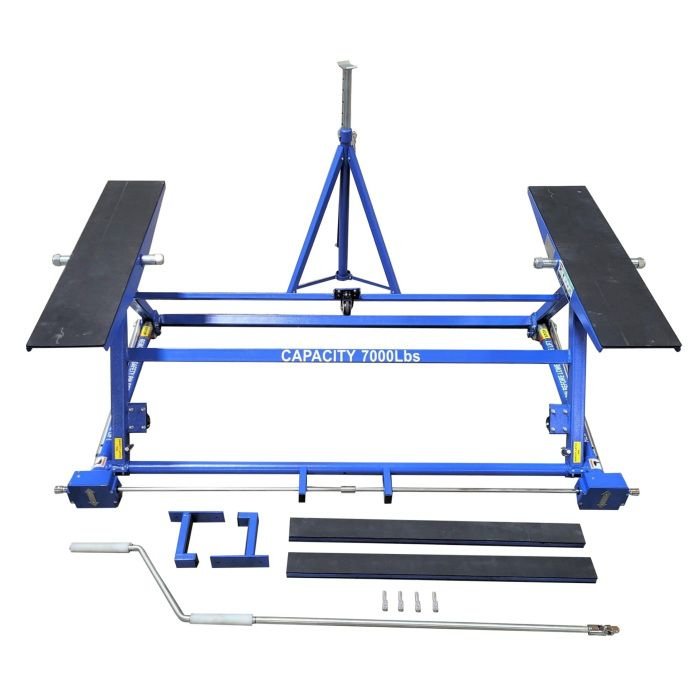

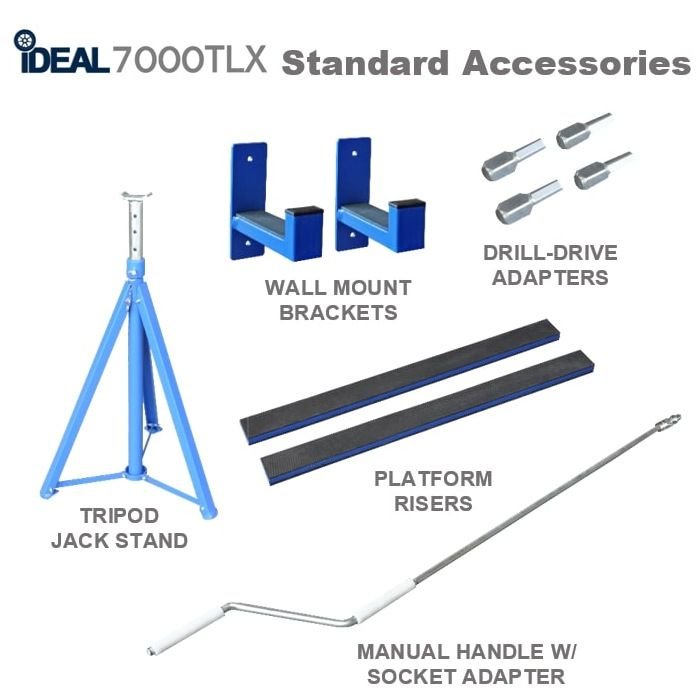

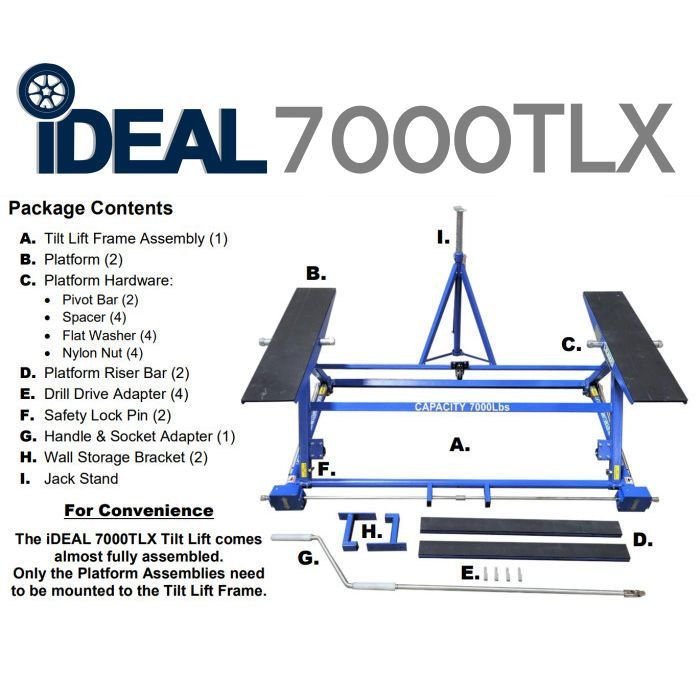

Standard Accessories Included

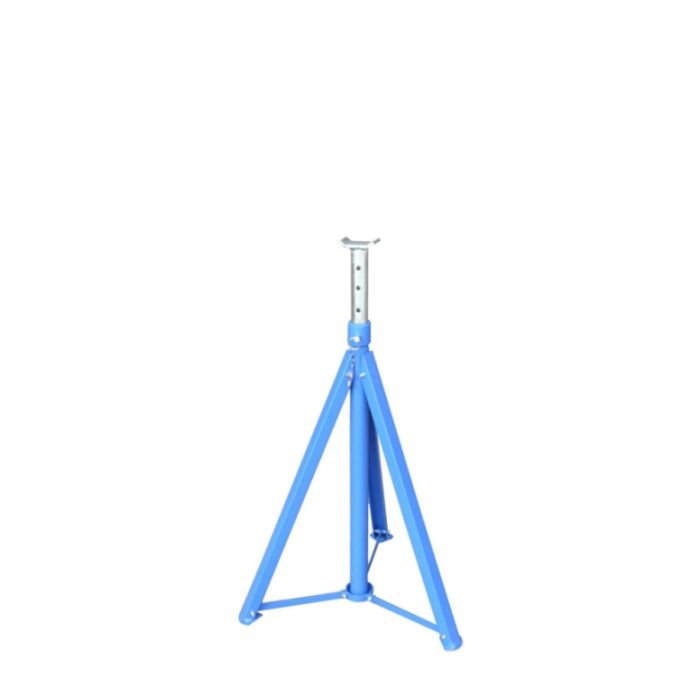

- (1) Jack Stand

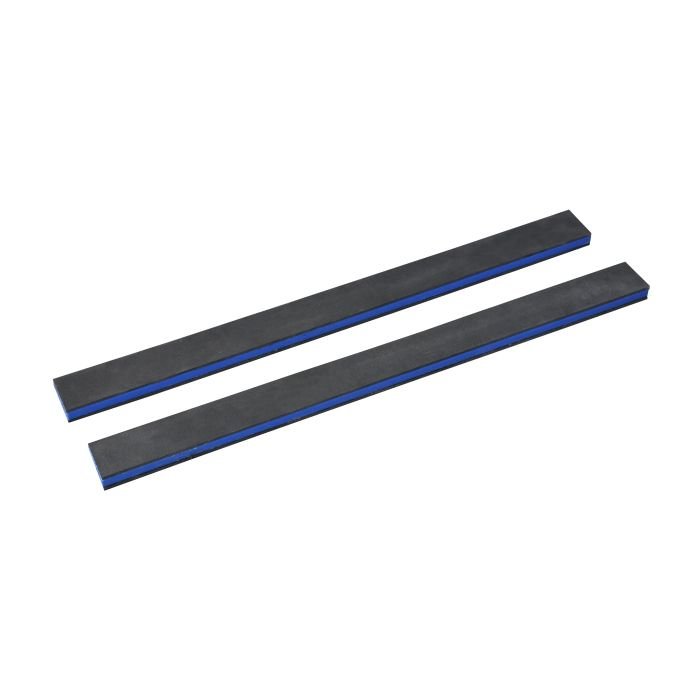

- (2) Platform Risers

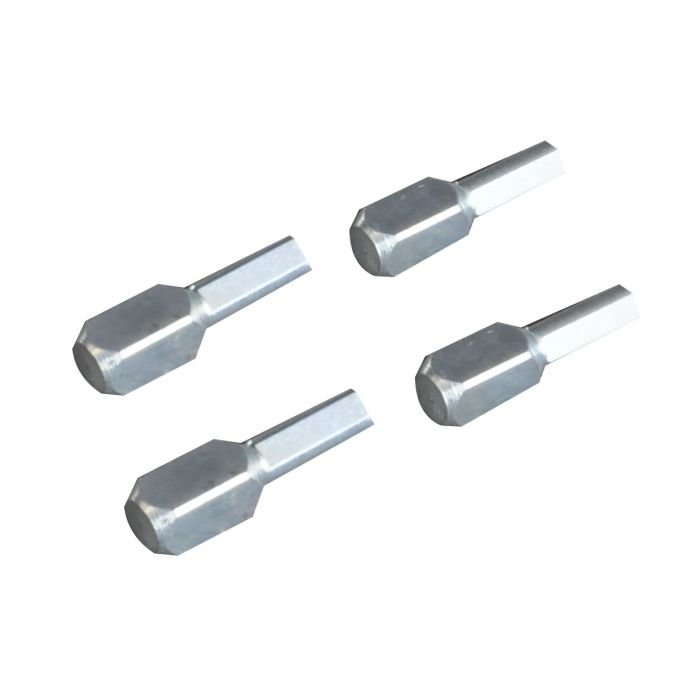

- (4) Drill-Drive Adapters

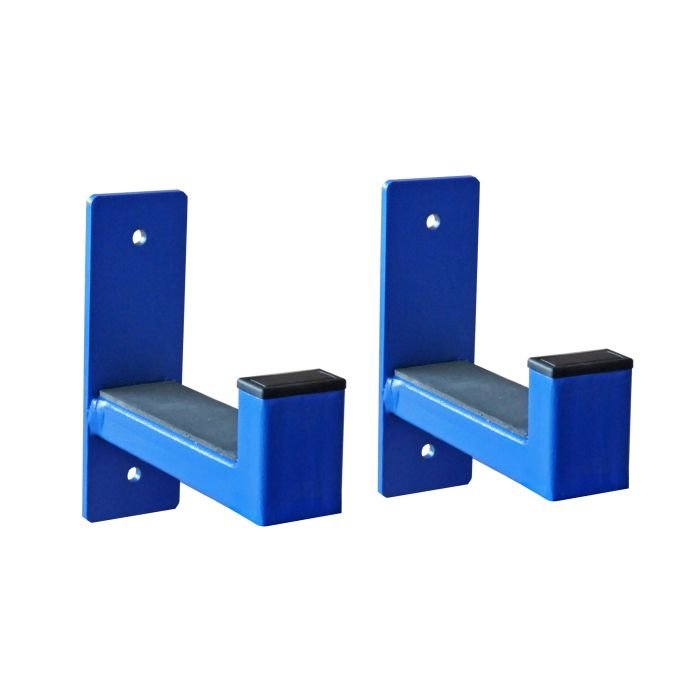

- (2) Wall Mount Brackets

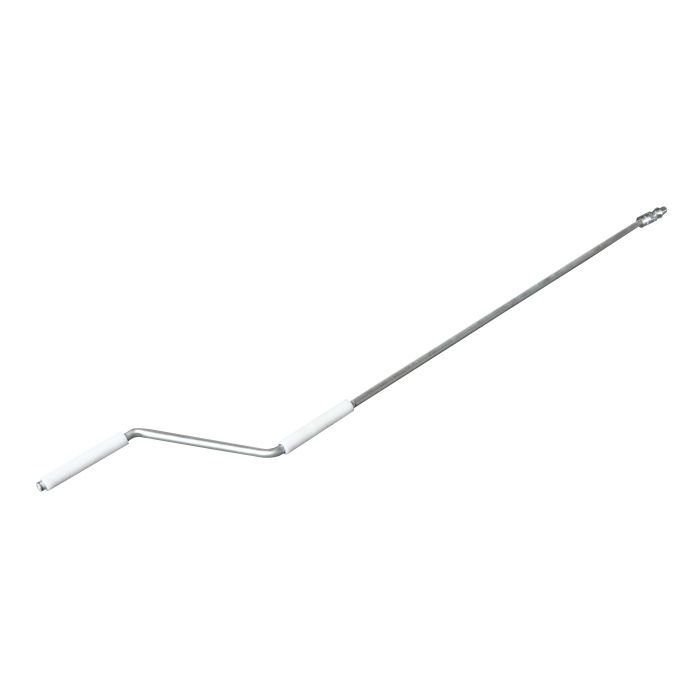

- (1) Manual Handle with Socket Adapter
Optional Accessories
- Floor Rail Kit – Required for insufficient floor surfaces, such as uneven or rough floors. Reduces lift’s wheel travel marks for polished or epoxied type floors

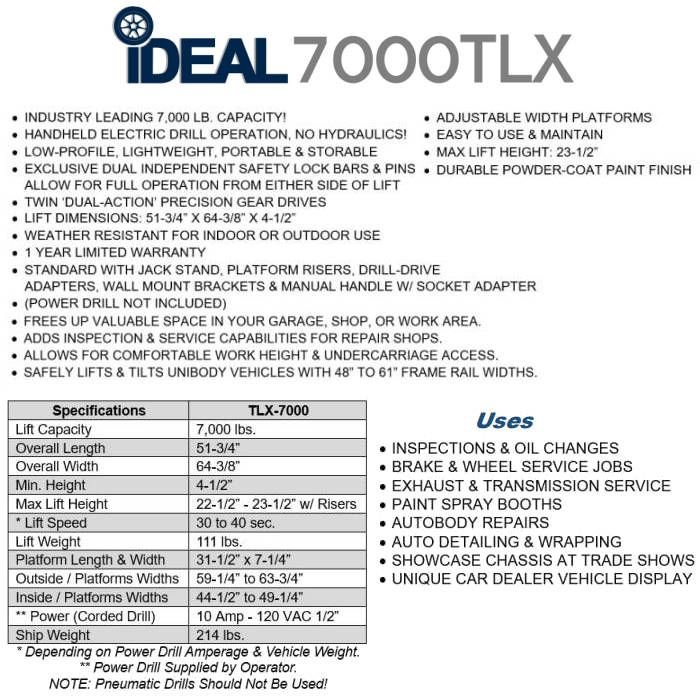

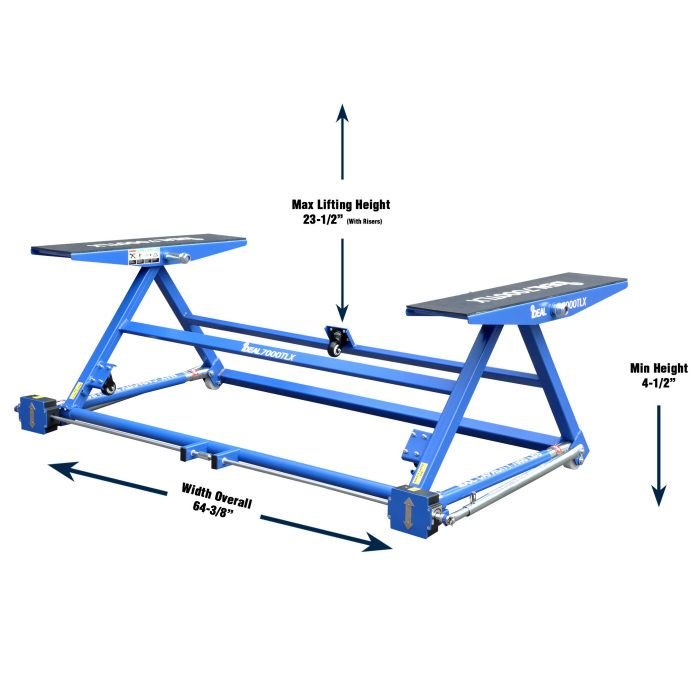

Specifications
- Lift Capacity: 7,000 lbs.
- Overall Length: 51-3/4″
- Overall Width: 64-3/8″
- Min. Height: 4-1/2″
- Max Lift Height: 22-1/2″
- Max Lift Height with Risers: 23-1/2″
- Lift Speed: 30-40 Seconds
- Lift Weight: 111 lbs.
- Platform Length & Width: 31-1/2″ x 7-1/2″
- Outside / Platform Widths: 59-1/4″ to 63-3/4″
- Inside / Platform Widths: 44-1/2″ to 49-1/4″
- Power (Corded Drill): 10 Amp – 120 VAC 1/2″
- Shipping Weight: 214 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
