iDEAL TP10KAC-DX 10,000 lbs. Capacity Bi-Symmetric Two Post Auto Lift
Original price was: $5,539.00.$2,215.60Current price is: $2,215.60.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
21
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
iDEAL TP10KAC-DX Bi-Symmetric Two Post Auto Lift Lift
10,000 lb. Lifting Capacity ALI/ETL Certified with Direct Drive Cylinders
Made in USA MET UL/CSA Certified DURO Power Unit

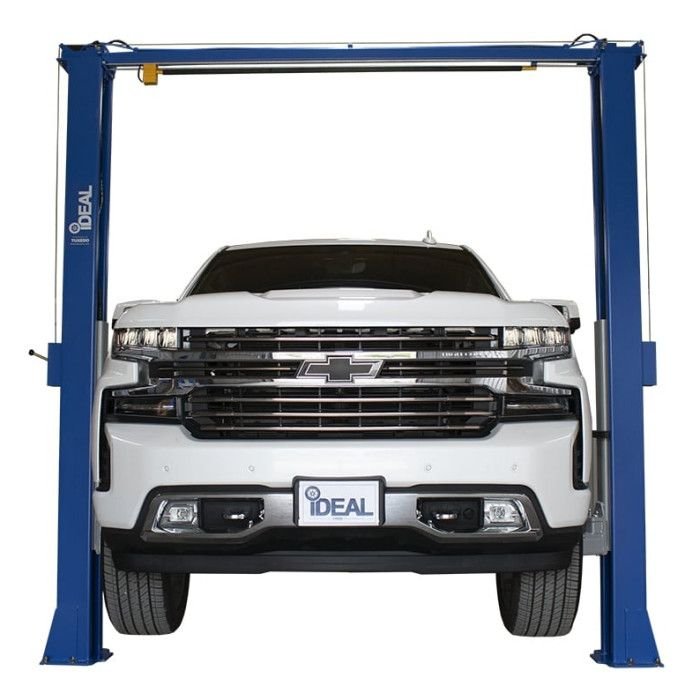

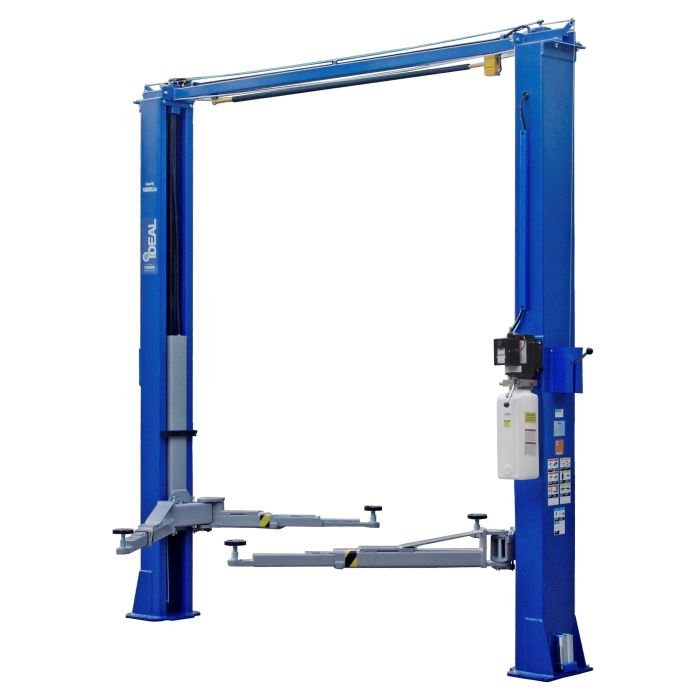

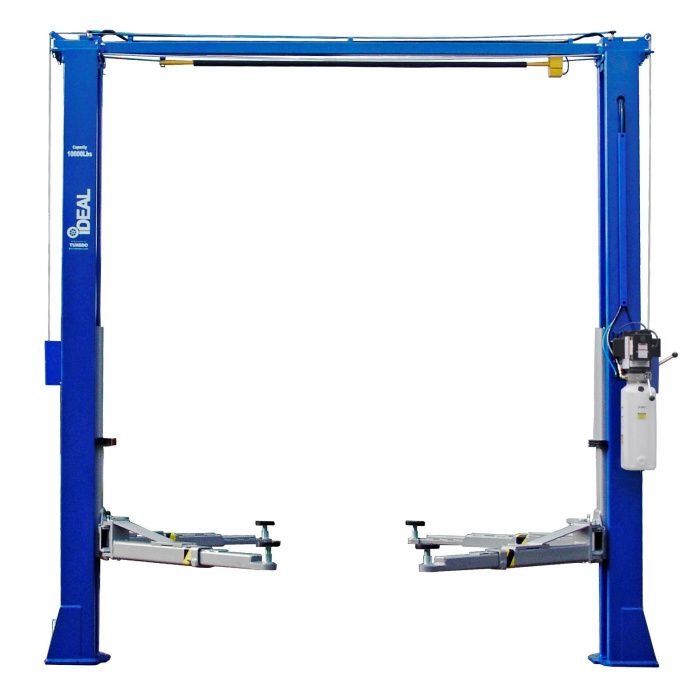

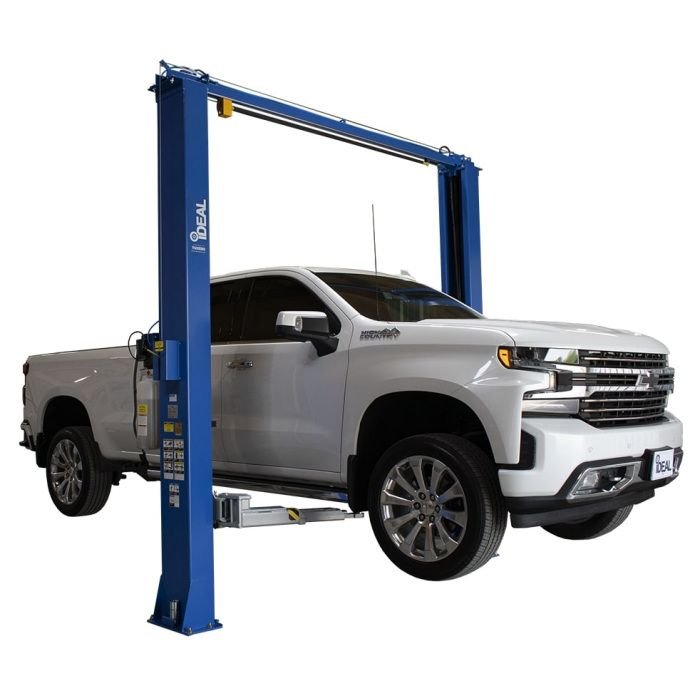

The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified Light Duty Two Post Lift is a premium Bi-Symmetric design clear floor vehicle lift with the latest design features including, 3 Stage front arms with full 180° rotation for symmetric and asymmetric lifting, low profile 4″ adjustable swivel pads and single point cable lock release. The rigid one piece column combined with direct ‘pull’ cylinders make it the perfect service lift for passenger cars, SUVs & most light duty trucks. The automatic arm restraints, hose and door guards complete the package for a premium, high quality lift, all at a great value!
The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified two post lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4″ make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with a single point lock release and clean design make this lift one of our most popular models.

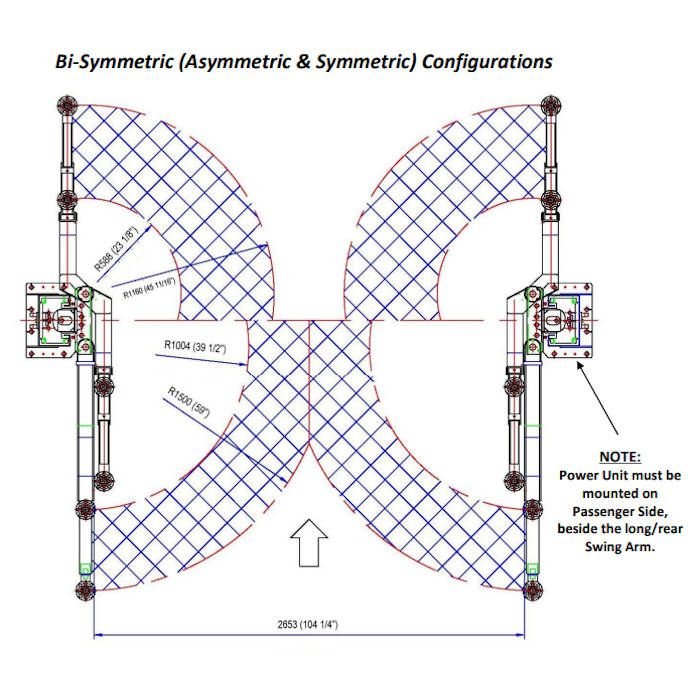

The Bi-Symmetric Design allows for positioning of the vehicle with doors opening in front of the posts or behind the posts to eliminate door damage and provide technicians with access to the vehicle.
This model is a tough deal to beat. It provides all the features of the premium brands but at a much more affordable price. This clear floor, asymmetric lift can also switch to symmetric lifting if necessary. It also offers adjustable screw pads with stackable truck adapters, triple telescoping arms in the front, single point safety release, padded overhead shut-off bar and rubber door guards. Plus, it’s ALI and ETL Certified.
We told you it’s tough to beat!
Features and Specs

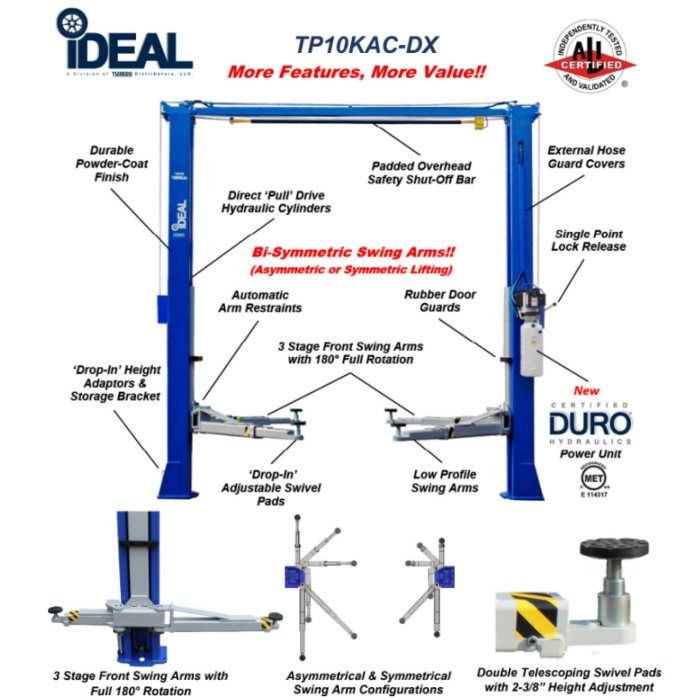

Features

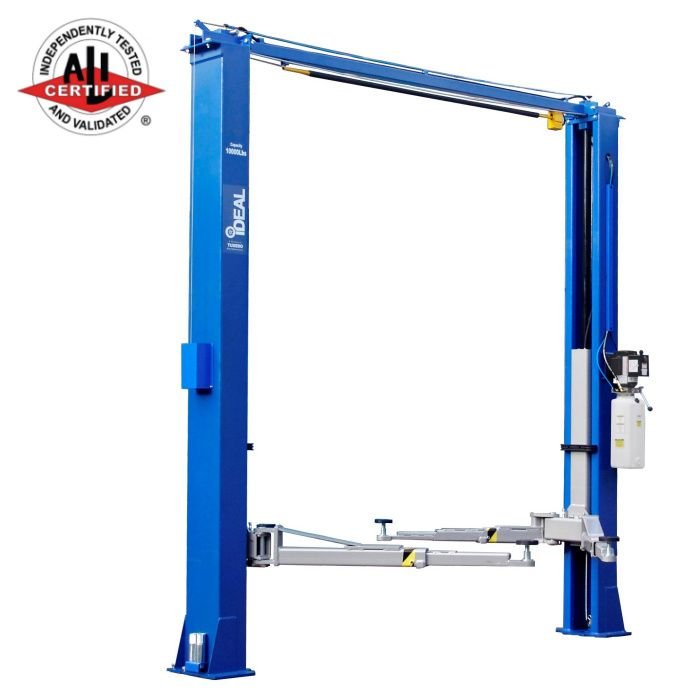

- ALI / ETL Certified
- 10,000 lbs. Lifting Capacity

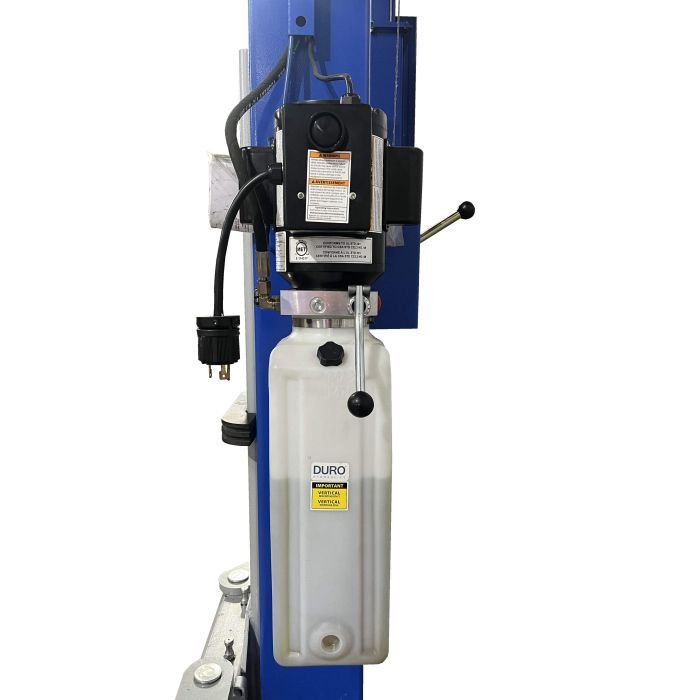

- New MET UL/CSA Certified DURO Power Unit

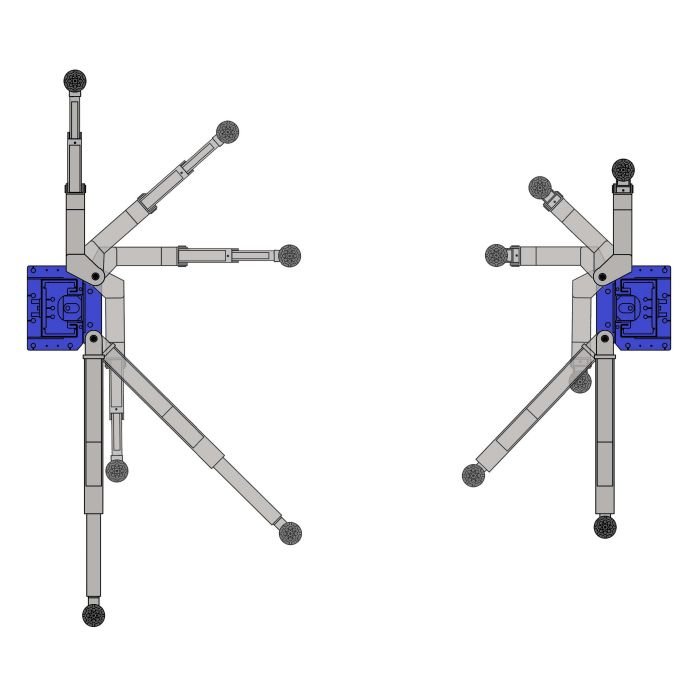

- Bi-Symmetric Lift Arms
- Low Profile Swing Arm Design

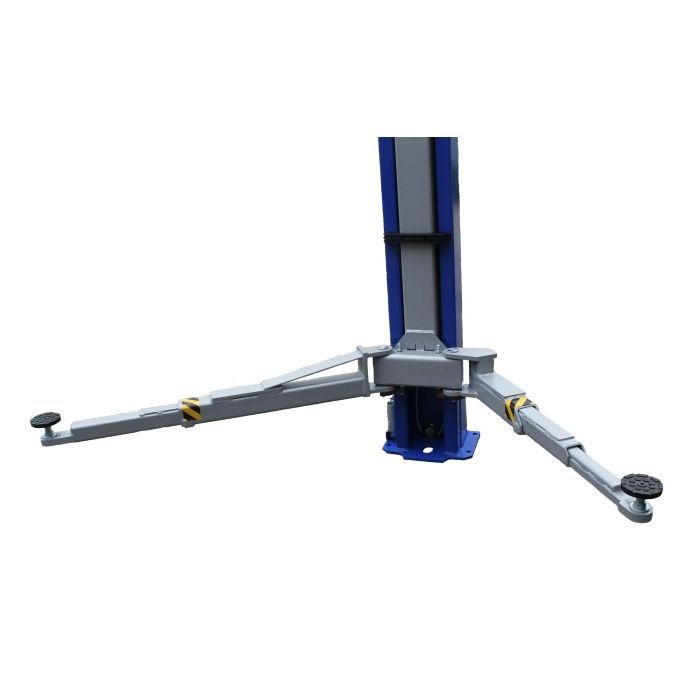

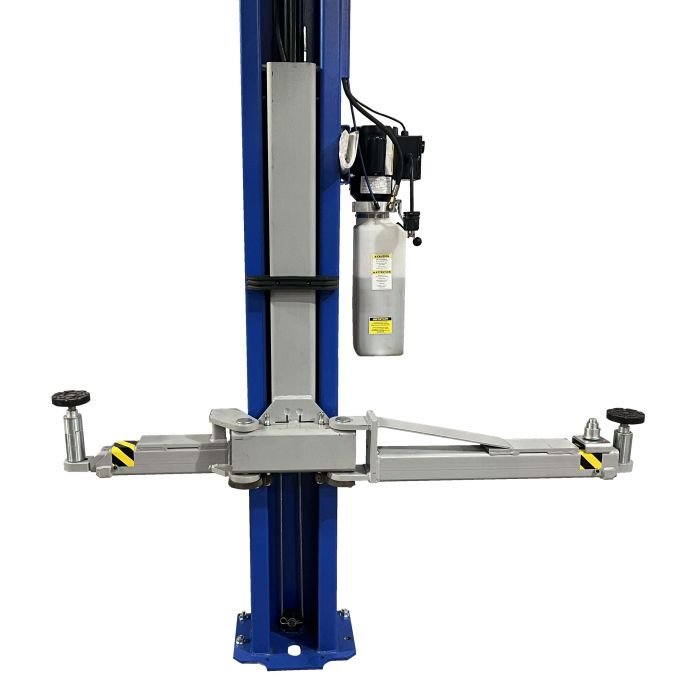

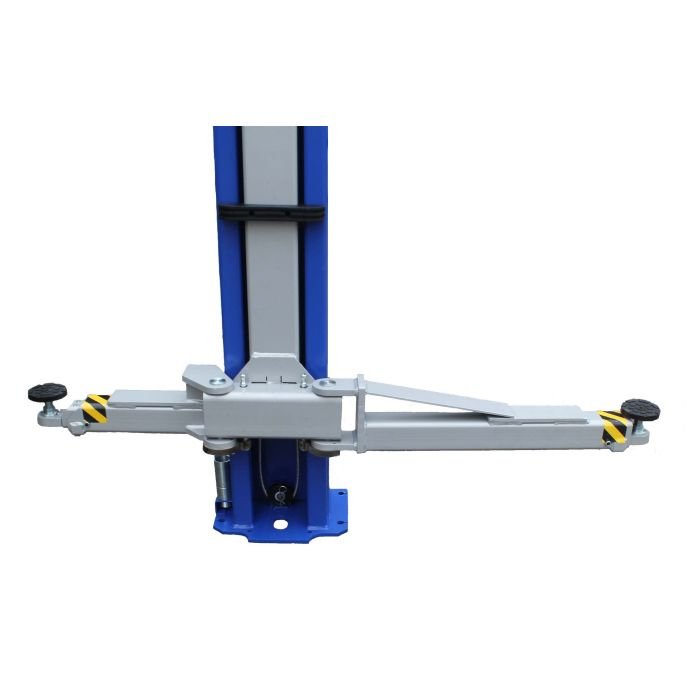

- 3 Stage Front Arms

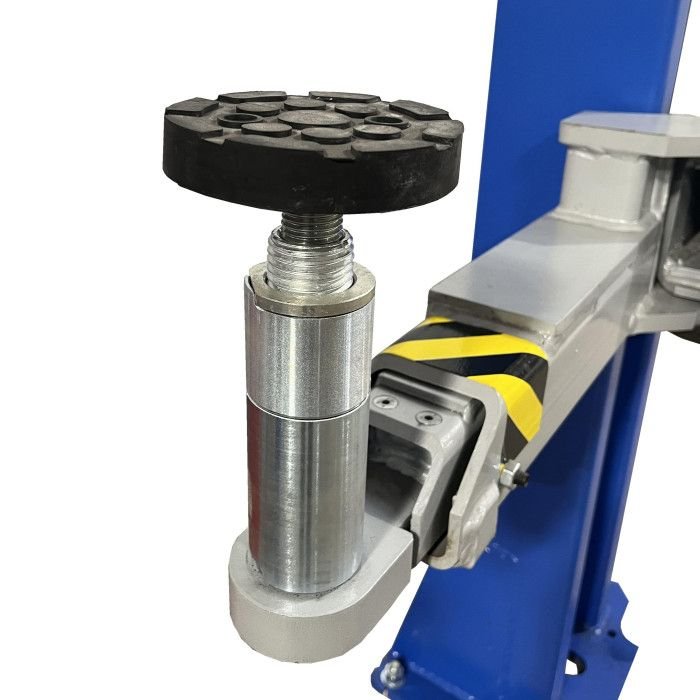

- Adjustable Height Swivel Pads
- 2″ and 4″ Stackable Height Adapters
- Single Point Lock Release

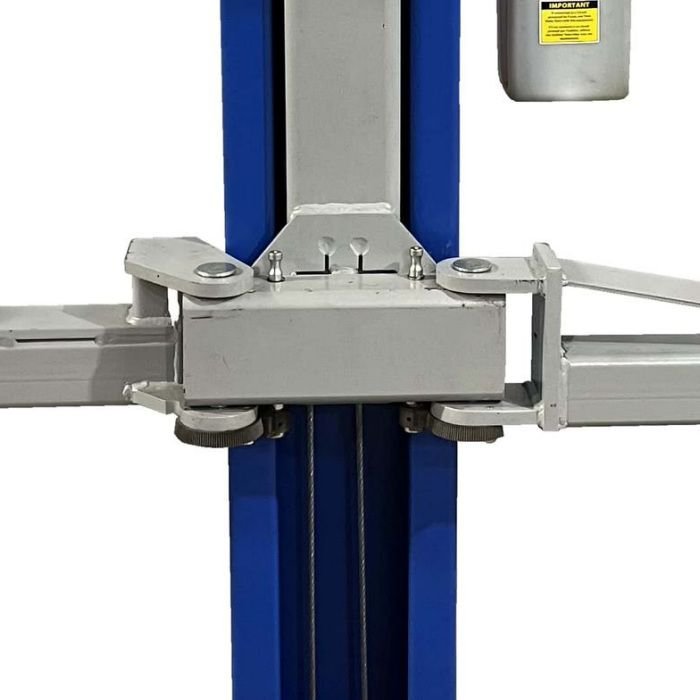

- Automatic Arm Restraints

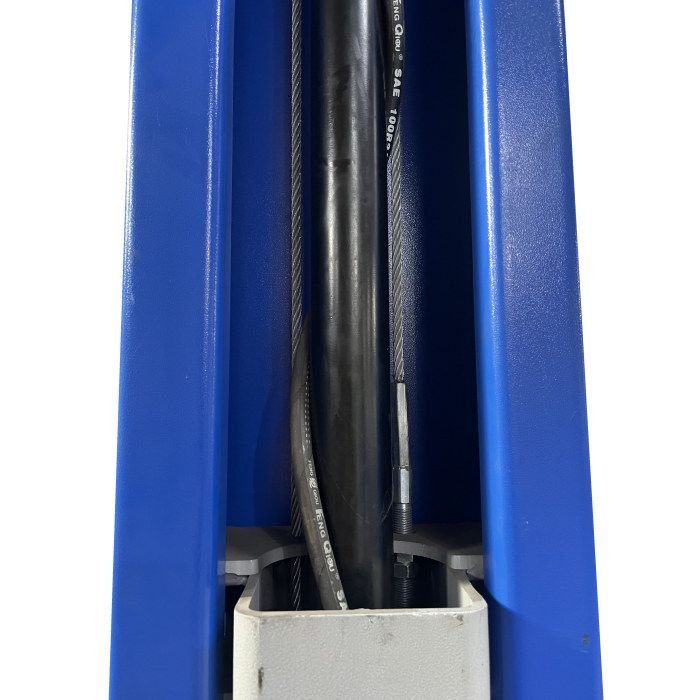

- Direct ‘Pull’ Hydraulic Drive Cylinders

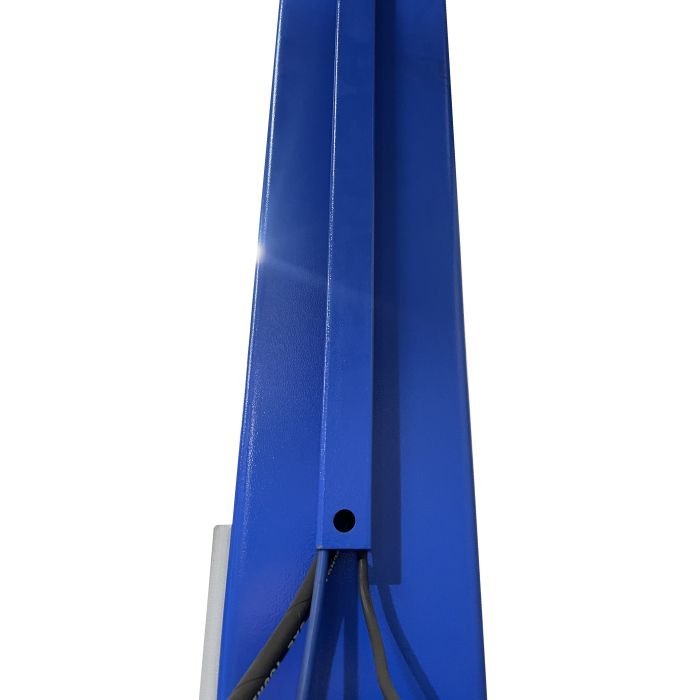

- External Hose Guards

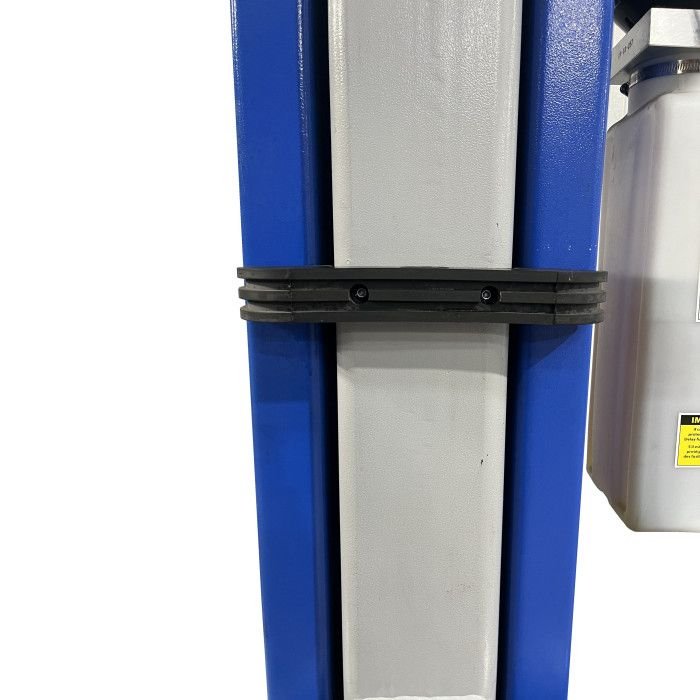

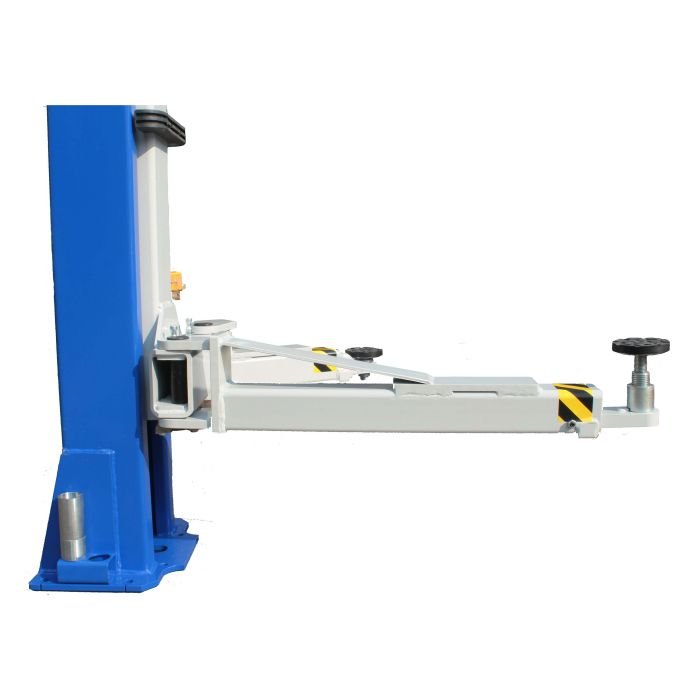

- Rubber Door Guards
- Durable Powder Coat Finish

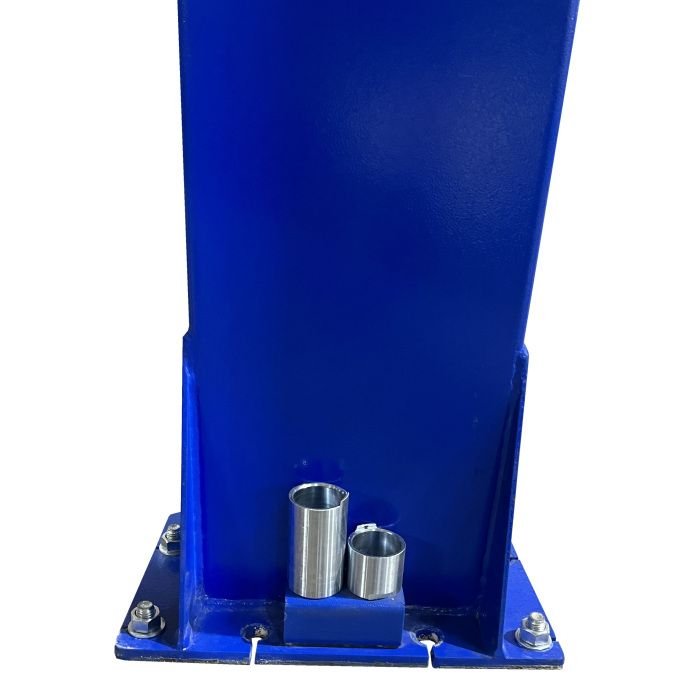

- Rigid Single Piece Column

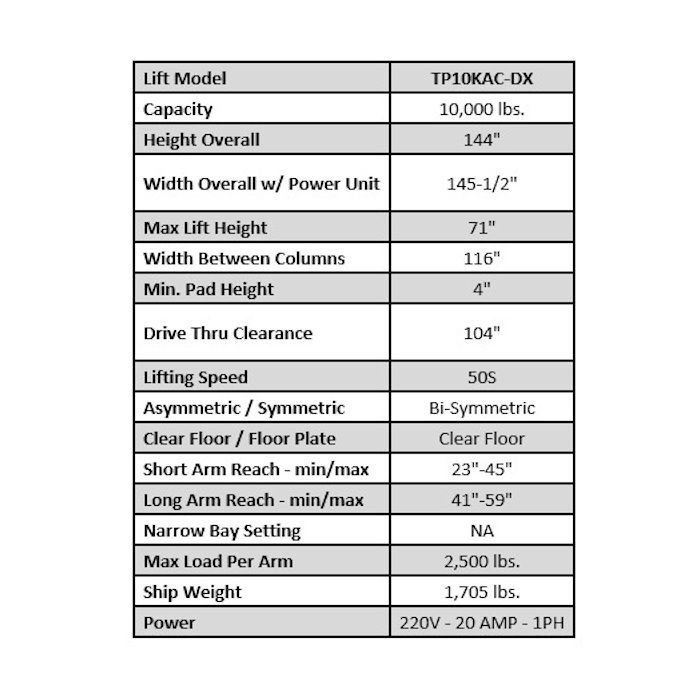

Specifications
- Lifting Capacity: 10,000 lbs.

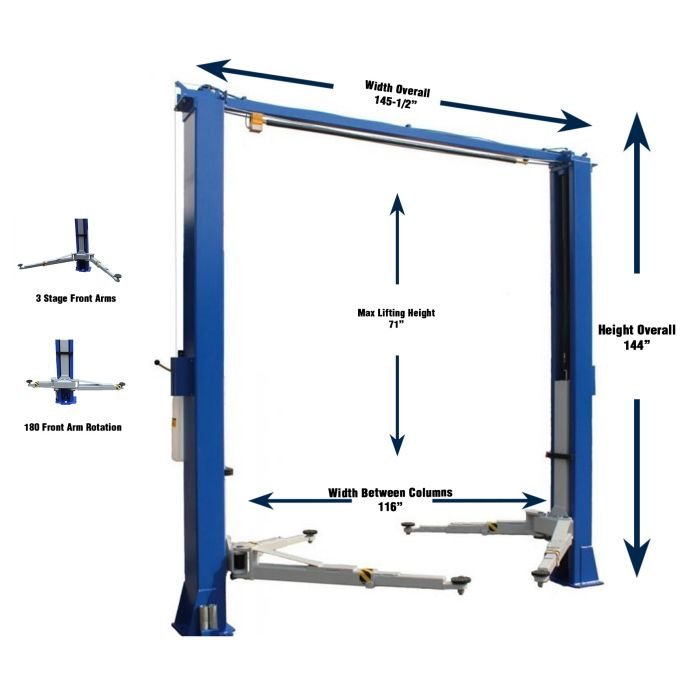

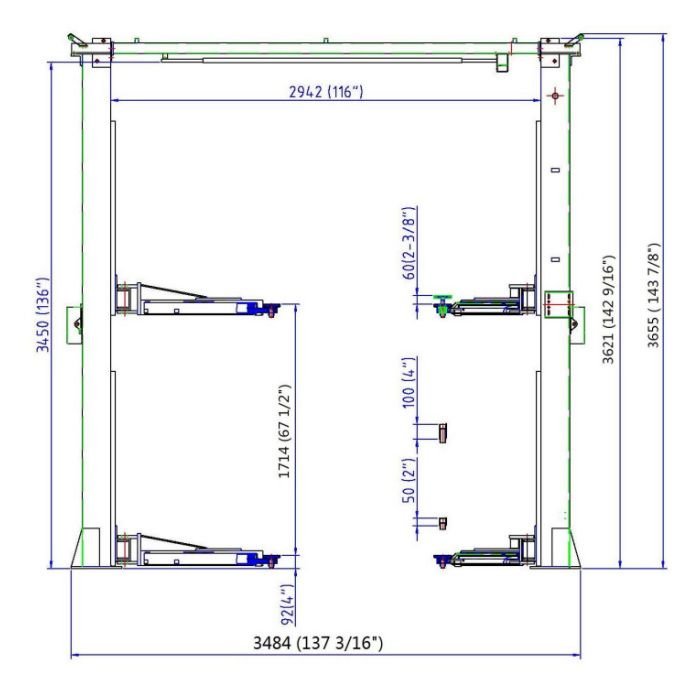

- Height Overall: 144″
- Width Overall with Power Unit: 145-1/2″
- Max Lift Height: 71″
- Width Between Columns: 116″
- Min Pad Height: 4″
- Drive Thru Clearance: 104″
- Lifting Speed: 50S
- Asymmetric / Symmetric: Bi-Symmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach Min Max: 23″ – 45″
- Long Arm Reach Min Max: 41″ – 59″
- Narrow Bay Setting: N/A
- Max Load Per Arm: 2.500 lbs.
- Ceiling Height Required: 145″
- Power: 220V 20Amp 1Ph
- Minimum Concrete: 4.25″ / 3000 PSI
- Shipping Weight: 2,500 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
