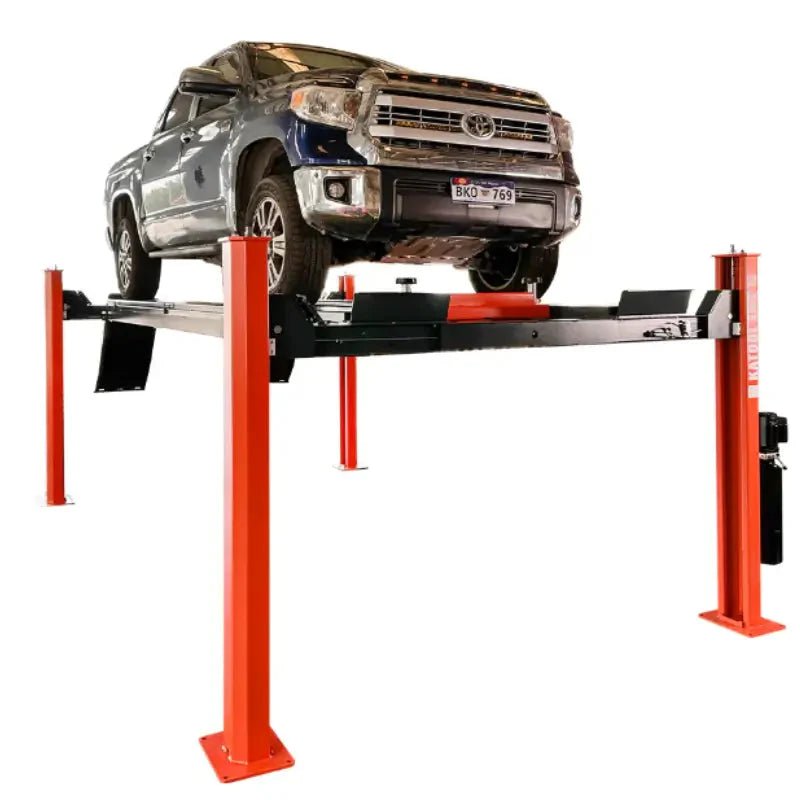

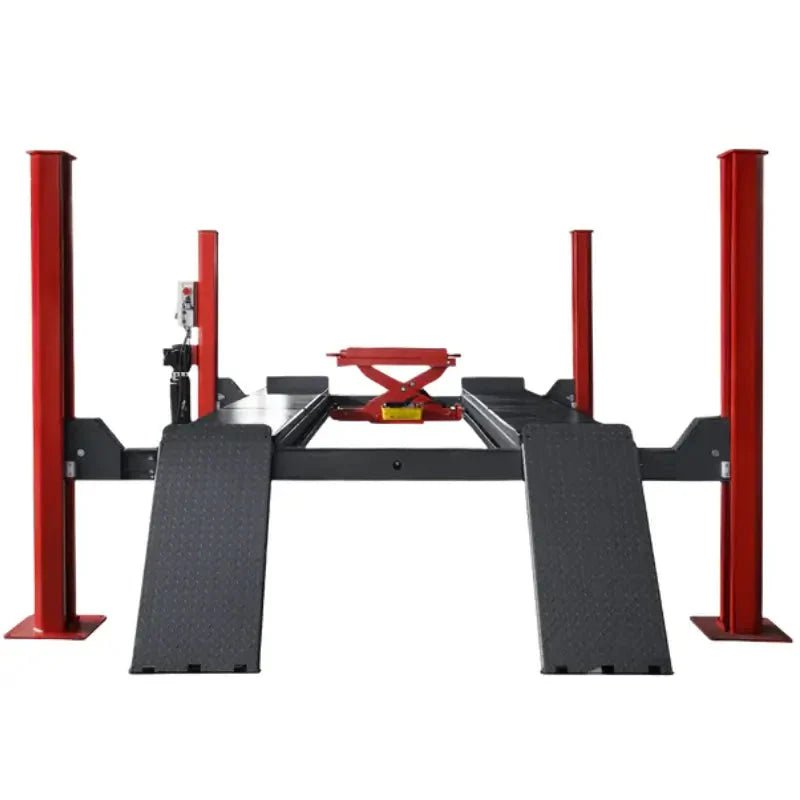

Katool KT-4H150, 4 Post Alignment Lift 15,000 lb – Rolling Jack Included

KT-4H150, 4 Post Parking Lift by Katool

Juggling jacks and stands for complex car projects is inefficient and potentially unsafe. The Katool KT-4H150 Parking Lift is here to revolutionize your car care routine. With a staggering 15,000-lb lifting capacity and CE-certified design, the KT-4H150 tackles even the toughest jobs with ease. Safety is prioritized with multiple locking points, a single-point safety release, and a non-slip platform which is good for conducting repairs on rainy days.

Convenience is built-in with a reversible motor column, and an included Rolling Jack. This all-in-one solution streamlines your workflow and maximizes your productivity. Stop struggling with makeshift solutions. Invest in the KT-4H150 today and experience the difference! Enjoy a complete car care solution with unmatched safety, strength, and convenience.

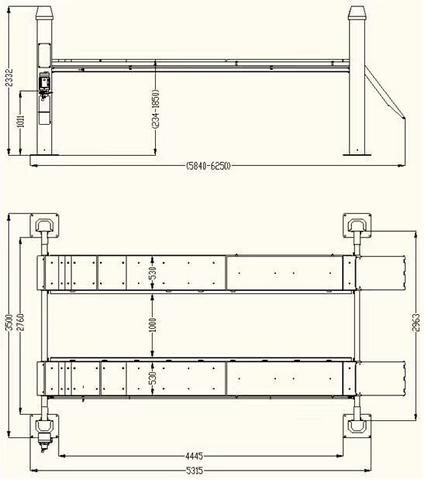

Katool 15,000lb Lift Specifications:

• Lifting Capacity: 15,000 lbs

• Maximum Lifting Height: 75″

• Height of Posts: 86″

• Drive-Thru Clearance: 99.5″

• Overall Width: 136″

• Overall Length (with ramps): 245″

• Overall Length (without ramps): 208″

• Width Inside Columns: 118″

• Width Between Runways: 43″

• Minimum Runway Height: 9″

• Pad Size: 14.56″ x 17.12″

• Lock Positions: Every 4.7″ (12 total)

• Power: 220V / 60Hz / Single Phase

• Oil Type: AW-46 or AW-32 (cold climates)

Pallet Dimensions

• Lift: 4,057 lbs — 200″ x 27″ x 33″

• Pump: 441 lbs — 40″ x 24″ x 15″

• Ramps (2): 66 lbs — 47″ x 20″ x 12″

• Rolling Jack: 330 lbs — 46″ x 25″ x 13″

4H150 Special Features:

• CE Approved and Certified

• 115% dynamic loading capacity standard

• 150% static loading capacity tested

• Rolling jack included (pneumatic-over-hydraulic, external air source required)

• Single-point manual safety lock release

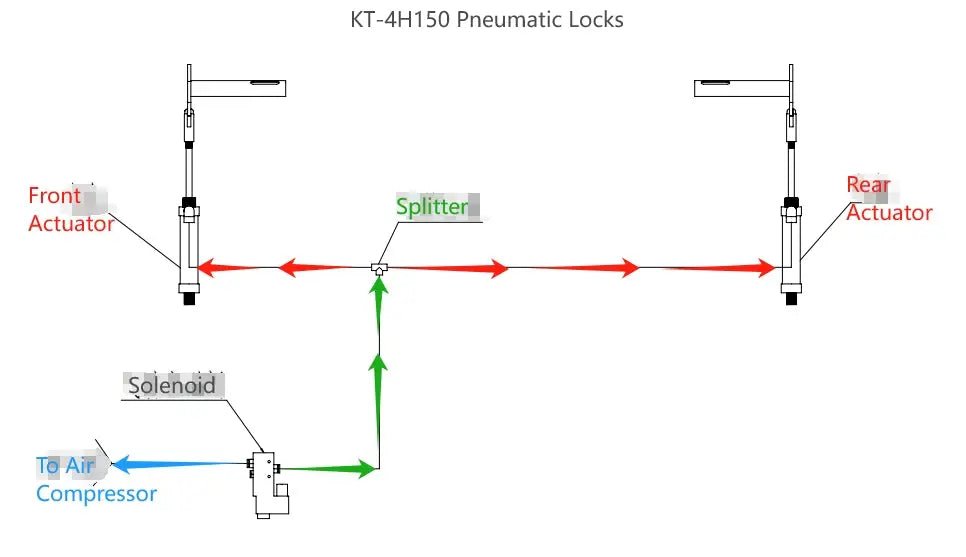

• Redundant primary and secondary safety lock systems

• Flexible power-side column placement (front, rear, left, or right)

• Non-skid diamond plate runways

• Heavy-duty 7/16″ cables and steel pulleys

• Permanent installation design (no caster kit support)

• Updated orange and gray finish

• Optional turntables available (sold separately)

Warranty

• One-year (12 months) warranty on all parts against manufacturing defects

• Additional three-year (36 months) warranty on structural components

Katool KT-4H150 Manual:

  Katool 4H150 Installation and Operations Manual
