Katool KT-T800 Tire Changer + KT-B750 Wheel Balancer Combo

KT-T800 Tire Changer & KT-B750 Wheel Balancer Combo, Complete Shop Solution for Fast, Accurate Tire Service

Take your tire service to the next level with the Katool KT-T800 Tire Changer and KT-B750 Wheel Balancer Combo?ÿa powerful pairing designed to streamline your workflow, reduce downtime, and deliver professional results with ease. Whether you’re running a full-scale repair shop or upgrading your home garage, this combo provides the efficiency and precision you need to tackle a wide range of tire sizes and balancing tasks.

The KT-T800 Tire Changer is engineered for speed and versatility, accommodating tires up to 41″ in diameter and 15″ wide. With a robust 2.0HP motor and adjustable clamp range (12ƒ??24″), it handles everything from compact cars to light trucks. Built for both durability and ease of use, its stable frame and intuitive design minimize effort while maximizing outputƒ??perfect for busy service bays or mobile mechanics.

Pair it with the KT-B750 Wheel Balancer, and you’re ready to ensure every tire leaves your shop road-ready. Capable of balancing wheels up to 30″ with ?ñ1g accuracy in just 7 seconds, it features a moisture-proof control board, quenched shaft, and a variety of balancing modes. Whether you’re using ounces or grams, inches or millimeters, the KT-B750 delivers precision and reliability every time. This combo is your all-in-one solution for fast, accurate, and professional tire service.

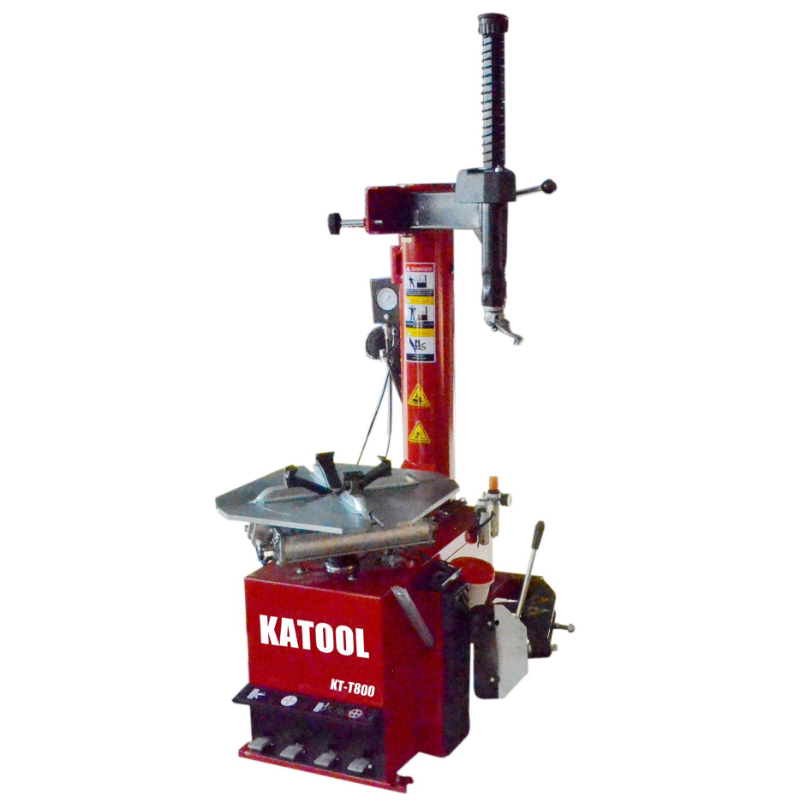

Tire Changer T800 Specifications:

• Max Wheel Diameter: 41″
• Max Wheel Width: 15″
• Outside Clamp: 12″-20″
• Inside Clamp: 14″-24″
• Power Supply: 110V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed: 6.8r
• Air Pressure: 0.8-1.0Mpa
• Net weight: 186KG/410lbs

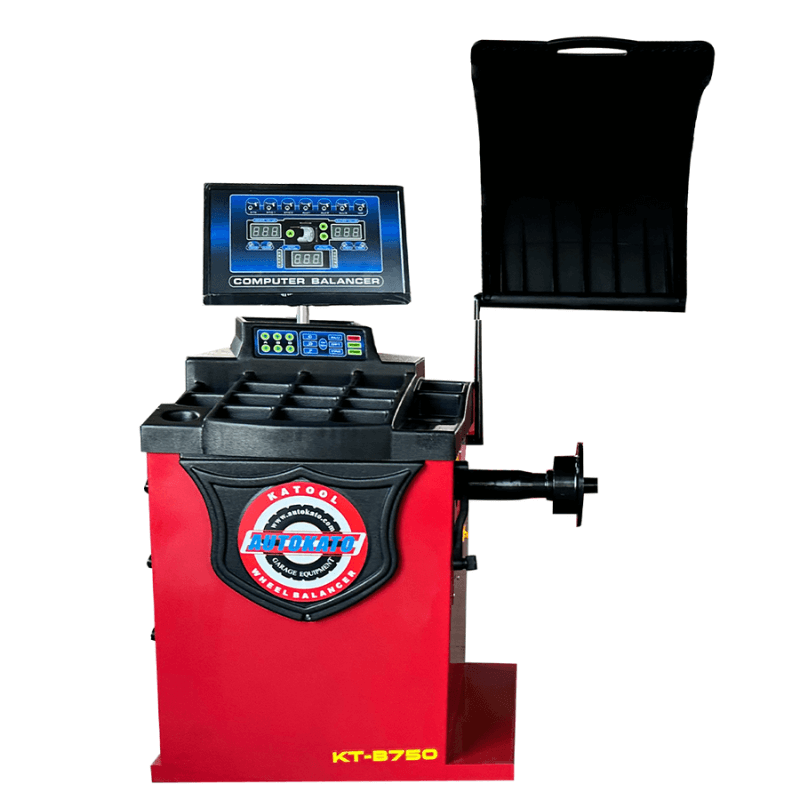

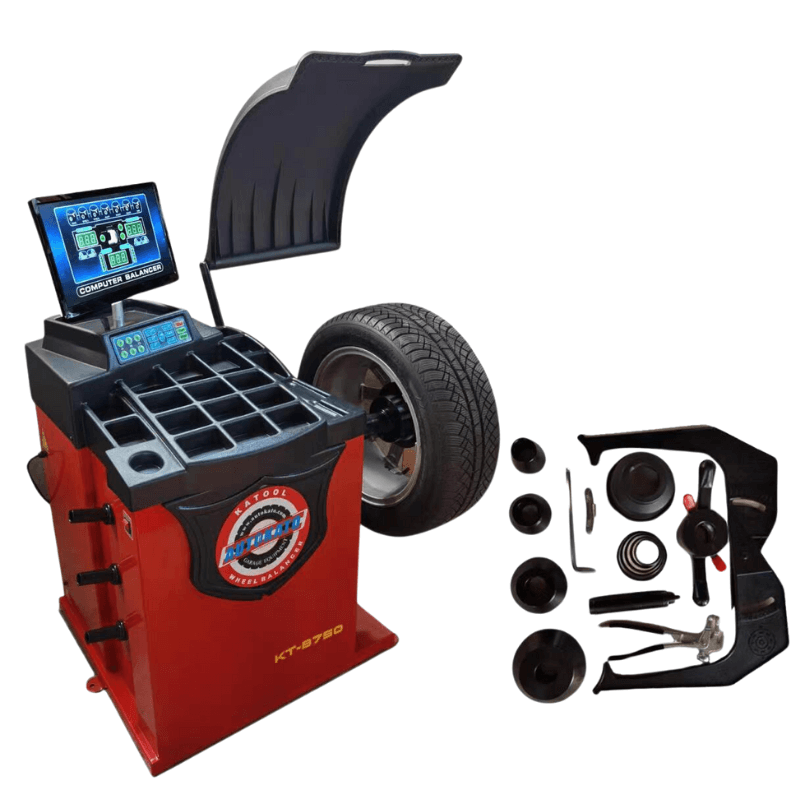

Wheel Balancer KT-B750 Specifications:

• Rim Diameter:<30"
• Wheel Width:15″
• Wheel Diameter: <34.6"
• Balancing Speed:180rpm
• Power Supply:120V 1PH
• Motor Power:0.25KW
• Rim Center Hole Dia.:<135mm
• Wheel Weight:<65KG
• Balancing Accuracy:?ñ1g
• Measuring Time:7S

KT-T800 from Katool Special Features:

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim.
• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim.
• Inflation gauge with pedal control.
• The high-quality spade cover effectively prevents the rim from being damaged.
• Pull type pedal control system, easy for tire changing and maintenance.
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life.
• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended.
• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency.
• Closed body for the protection of the parts inside.
• Katool Warranty:
  ?ÿ ?ÿ ?ÿ ?ÿ One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

KT-B750 From Katool Special Features:

• Automatic measurement ruler for auto input A and D values.
• The body use 3mm thickness steel, high strength, solid welding, few vibration.
• All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
• Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life.
• The 36mm shaft thread is by quenching treatment, high strength.
• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
• The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life.
• Various balance mode, according different rim for different balance mode, make the balance effect more precision.
• Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters, operation more easy.
• Unit selection(Ounce/Gram, MM/Inch).
• High quality integration power board, working stable and reliable.
• Composite slash guard included.
• Longer shaft for more width wheels
• Katool Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

Katool T800 Documentation:

  Katool T800 Tire Changer Product Manual

  Katool T800 Tire Changer Product Manual
