Katool KT-T810 Tire Changer With KT-B760 Wheel Balancer Combo

 T810 Tire Changer and B760 Wheel Balancer Combo by Katool

Tired of juggling separate tire changing and balancing processes? Introducing the Katool KT-T810 Tire Changer & KT-B760 Wheel Balancer Combo – your one-stop shop for seamless and efficient tire maintenance. This dynamic duo tackles a wide range of vehicles with massive 41″ diameter tire capacity on the changer and ±1g precision balancing on the balancer – all powered by a robust 2.0HP motor. Boost productivity and efficiency while ensuring optimal tire performance for your customers.

Imagine a workflow that gets tires on and off in minutes, then perfectly balanced in just 7 seconds! The KT-T810 Tire Changer, with its impressive capacity and powerful motor, makes quick work of tire changes. The KT-B760 Wheel Balancer complements it perfectly, delivering superior accuracy and speedy measuring times. Together, they offer unmatched efficiency, accuracy, and convenience. Upgrade your workshop today! The Katool KT-T810 & KT-B760 Combo is the powerhouse solution you need to impress your customers with faster service and exceptional results. Invest in a complete tire service solution with this game-changing combo!

Tire Changer T810 Specifications:

• Max Wheel Diameter : 41″/1040mm
• Max Wheel Width : 15″/380mm
• Outside Clamp: 12″-22″
• Inside Clamp : 14″-24″
• Power Supply: 120V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed : 6.8r/min
• Air Pressure : 0.8-1.0Mpa(116-145psi)
• Net weight : 186KG

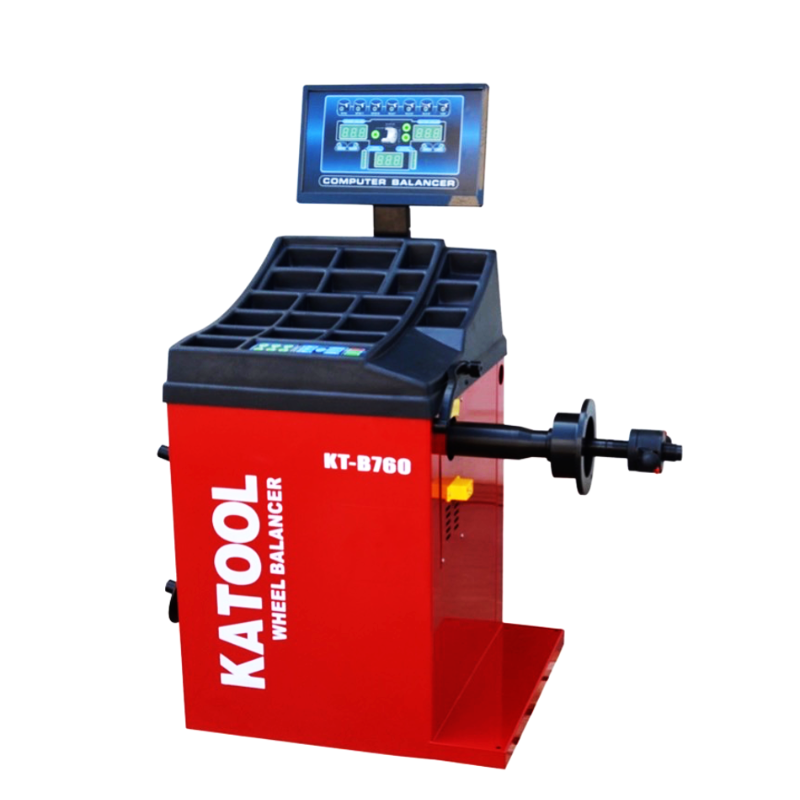

Wheel Balancer B760 Specifications:

• Rim Diameter: <30"
• Wheel Width: 3″-12″
• Wheel Diameter: <880mm/34.64"
• Balancing Speed: 180rpm
• Power Supply: 110V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Dia.: <135mm/5.31"
• Wheel Weight: 143lbs
• Balancing Accuracy: ±1g
• Measuring Time: 7S

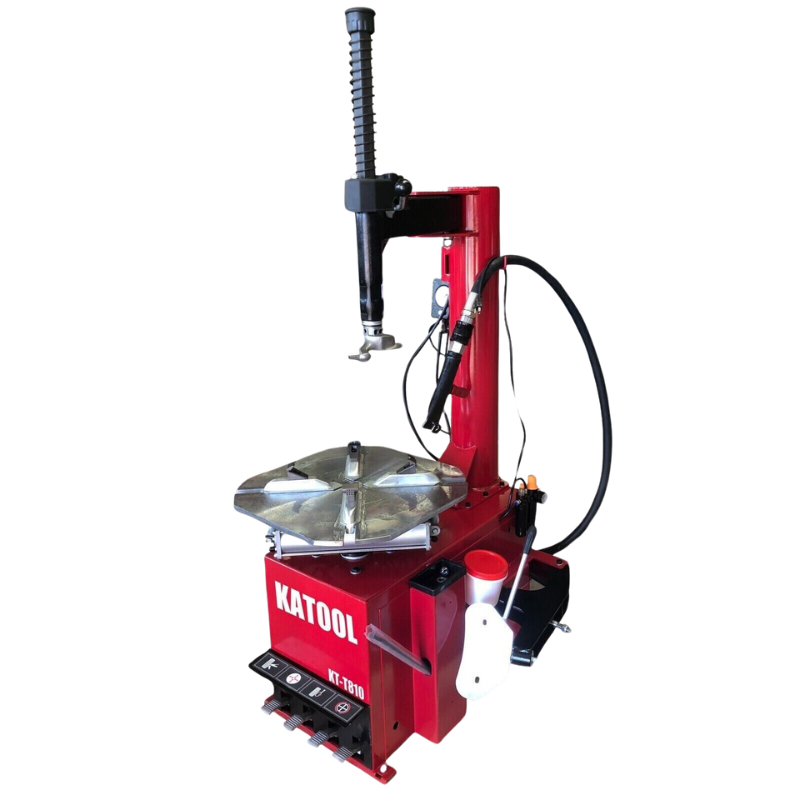

KT-T810 from Katool Special Features:

• Alloy steel jaw with interface carburization treatment (0.8-1.1mm deepness)
• Stainless steel mounting head with solution treatment and interface polishing

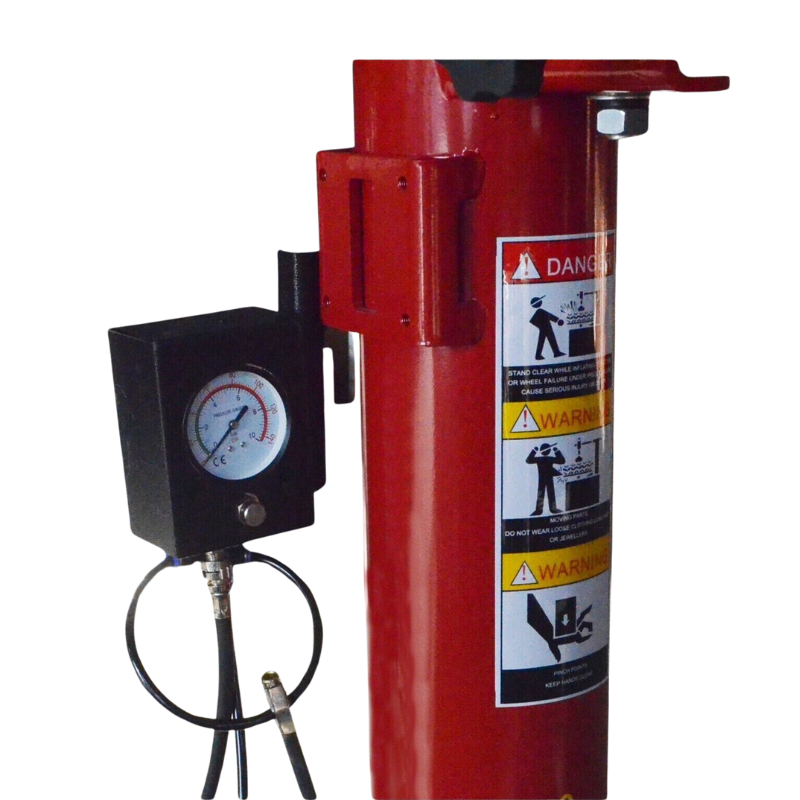

• Inflation gauge with pedal control
• High-quality spade cover
• Pull-type pedal control system
• Top-level motor with pure copper winding
• Bead blast seater head with post tank
• High-quality filter for pneumatic system
• 120V/1ph/2.0HP motor for North America region
• Closed body design

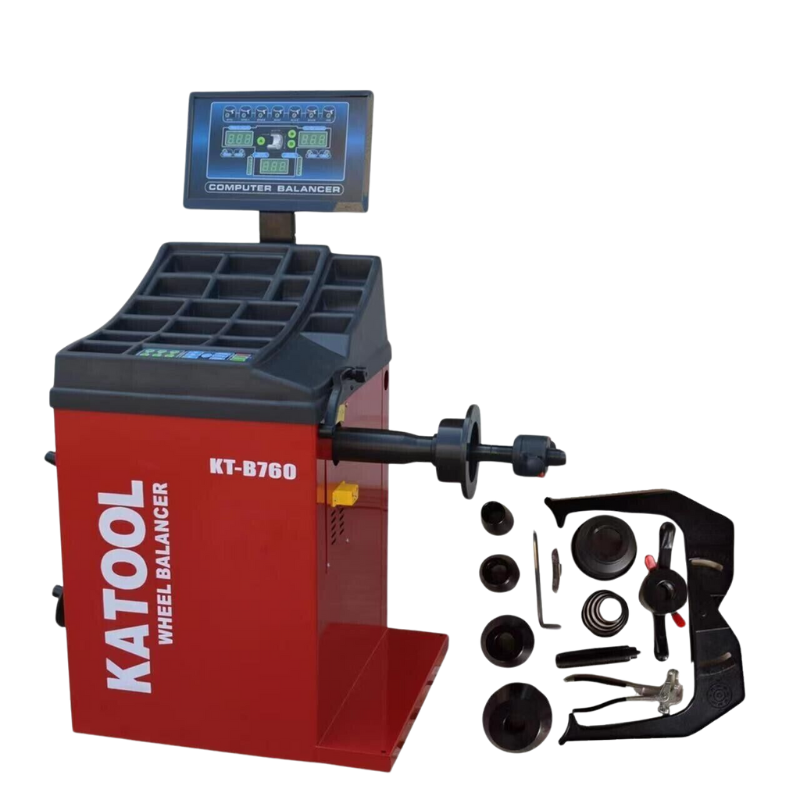

KT-B760 from Katool Special Features:

• Body constructed from 3mm-thick high-strength steel for durability and stability.
• All-in-one pressure sensor support design with 8mm thick bottom and side boards for stable, precise sensor operation.
• Top-level motor with pure copper winding for more power, faster heat dissipation, lower defect rate, and longer lifespan.
• 36mm shaft thread made by quenching treatment offers high strength.
• Moisture-proof, dust-proof, and antistatic computer board ensures durability and reliability.
• Various balance modes for different rim types provide precision balancing for diverse applications.
• Built-in fault diagnosis and self-calibration program with double side calibration for user-friendly operation.
• Unit selection (Ounce/Gram, MM/Inch) for flexibility in measurement units.
• High-quality integration power board ensures stable and reliable operation.
• Optional wheel guard available for additional safety during operation.
• Longer shaft compatible with wider wheels offers versatility for handling various wheel sizes.
• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

Katool B760 Documentation

  Katool KT-T810 Instruction & Operations Manual

   Katool B760 Wheel Balancer Product Manual
