Katool KT-T850 Tire Changer + KT-B700 Wheel Balancer Combo

T850 Tire Changer and B700 Wheel Balancer by Katool

Is your current tire service a clunky, time-consuming mess? Separate machines, imprecise balancing – it’s enough to make any mechanic groan. Say goodbye to switching between machines and hello to imbalanced tires causing vibrations and uneven wear. Not exactly a recipe for happy customers, right?

The Katool KT-T850 & KT-B700 Combo is your knight in shining armor. The KT-T850 Tire Changer tackles tire sizes up to 15 inches wide with its expansive clamping system, while the KT-B700 Balancer boasts ±1g precision and a rapid 7-second measuring time. This powerhouse duo eliminates the need for separate machines, streamlining your workflow and ensuring perfectly balanced tires every time. Built with muscle and brains, the Katool Combo is ideal for busy workshops seeking to maximize efficiency, customer satisfaction, and maybe even a little bragging room cred. Don’t settle for slow and imprecise – upgrade to Katool and watch your business thrive!

Tire Changer T850 and Wheel Balancer B700 Specifications:

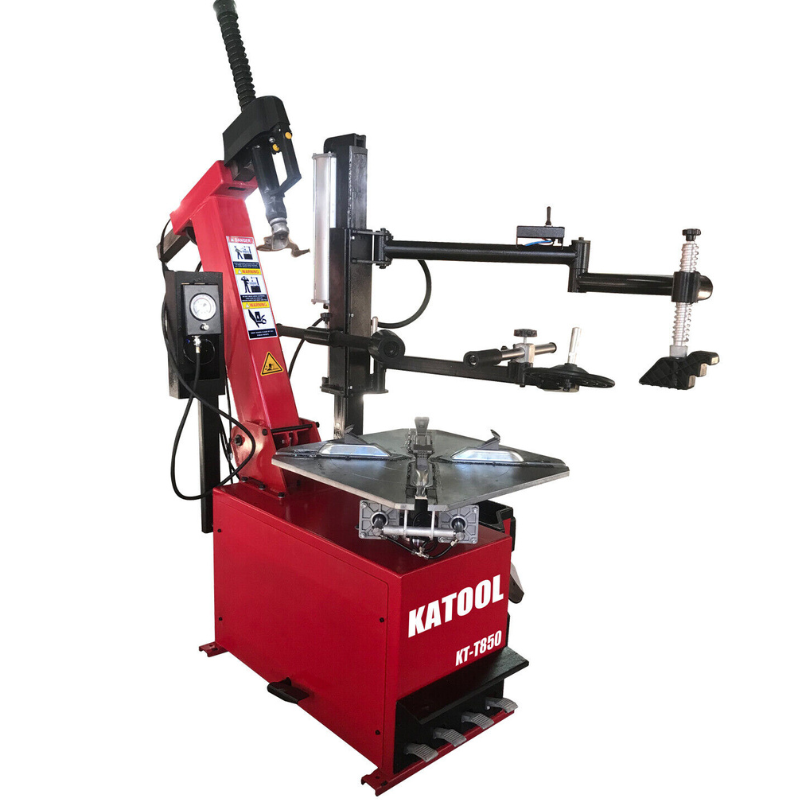

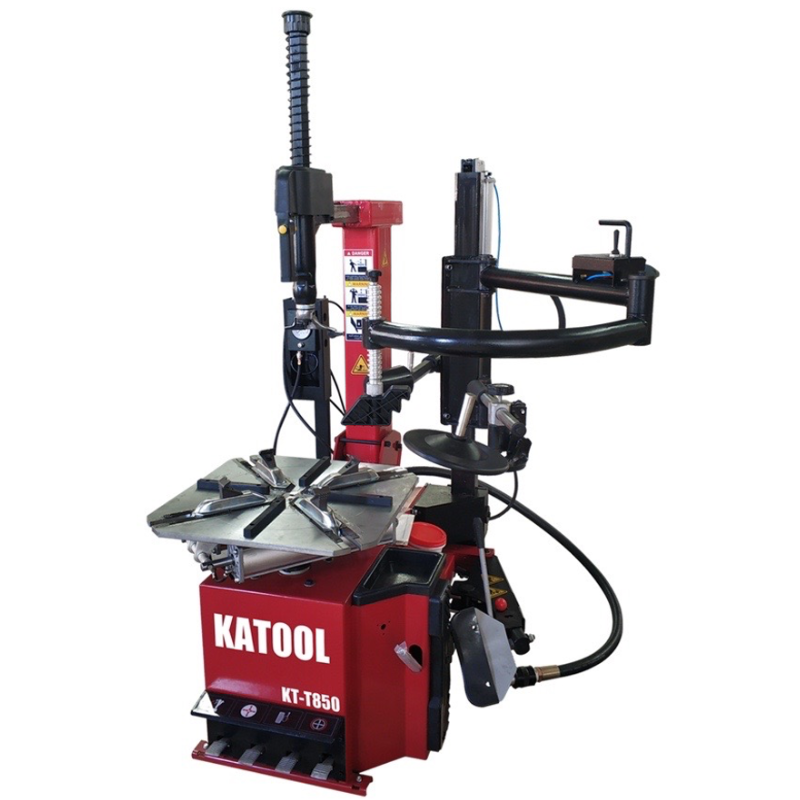

Tire Changer T850 Specifications:

• Max Wheel Diameter: 47″
• Max Wheel Width: 15″
• Outside Clamp: 14″-26″
• Inside Clamp: 16″-28″
• Power Supply: 110V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed: 6.8r/min
• Air Pressure: 0.8-1.0Mpa(116-145psi)
• Net weight: 340KG / 750lbs

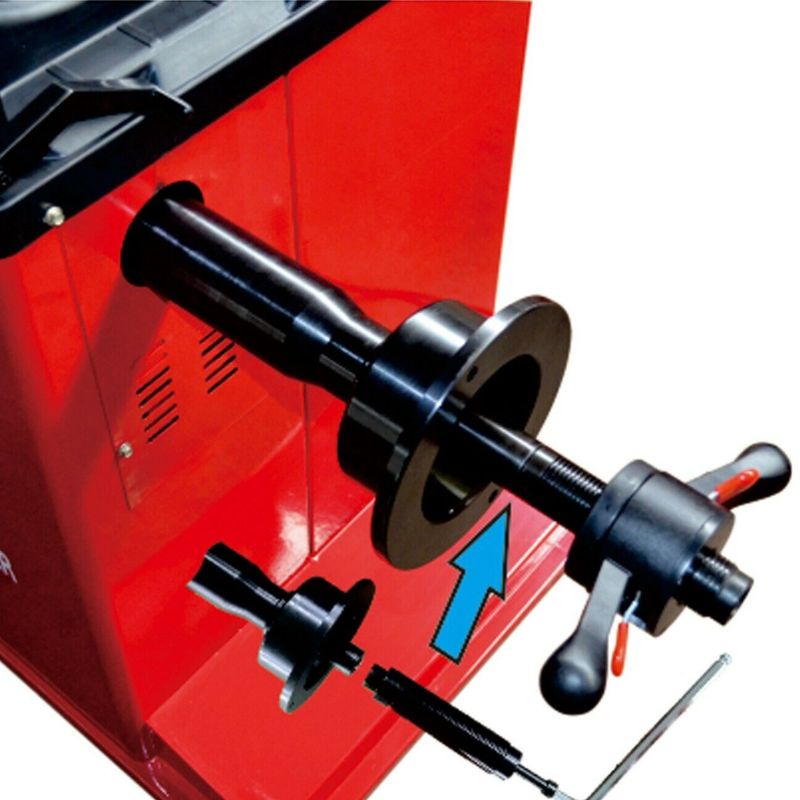

Wheel Balancer B700 Specifications:

• Wheel Width: 3″-12″
• Wheel Diameter: 34.64″
• Balancing Speed: 180rpm
• Power Supply: 120V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Dia.: <135mm/5.31"
• Balancing Accuracy: ±1g
• Measuring Time: 7S
• Wheel Weight: 143lbs

KT-T850 and KT-B700 from Katool Special Features:

KT-T850 from Katool Special Features:

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
• The high-quality spade cover effectively prevents the rim from being damaged
• Pull type pedal control system, easy for tire changing and maintenance
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
• Equipped with assist arms
• Bead blast seater
• 200mm aluminum bead breaker cylinder

KT-B700 from Katool Special Features:

• The body uses 3mm-thick steel with high strength, solid welding and low vibration
• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
• The 36mm shaft thread is made by quenching treatment to offer high strength
• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
• Various balance mode for different types of rims to provide more precision
• Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
• Unit selection (Ounce/Gram, MM/Inch)
• High quality integration power board, working stable and reliable.
• Optional wheel guard
• Longer shaft also compatible with wider wheels
• Katool Warranty:
  One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

KT-T850 + KT-B700 Manual

  Katool KT-T850 Instruction Manual

  Katool KT-B700 Wheel Balancer Operations Manual
