Katool KT-T900 Tire Changer and KT-B760 Wheel Balancer Combo

KT-T900 Tire Changer & KT-B760 Wheel Balancer Combo

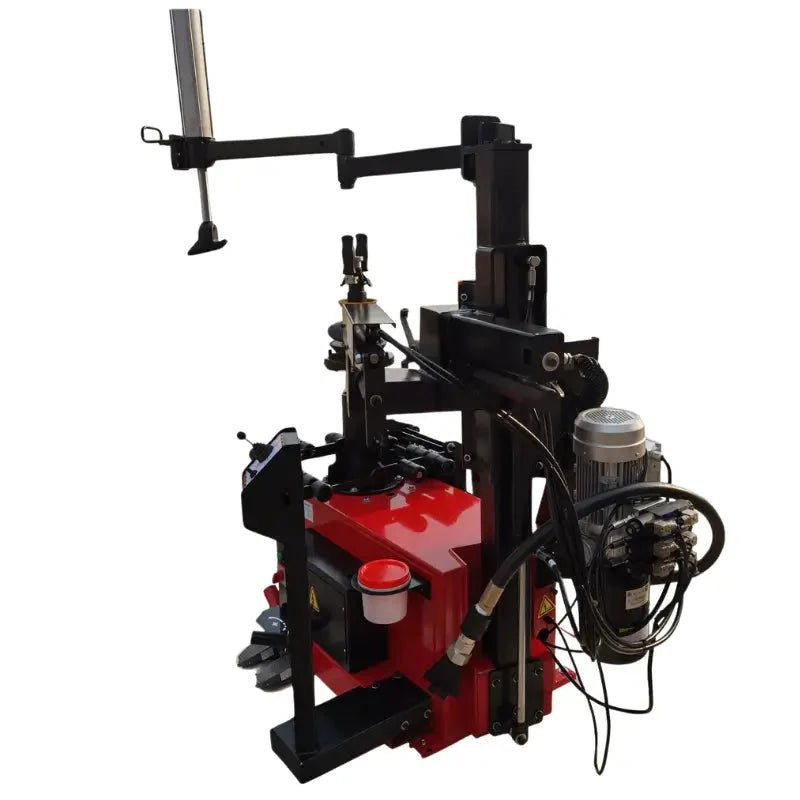

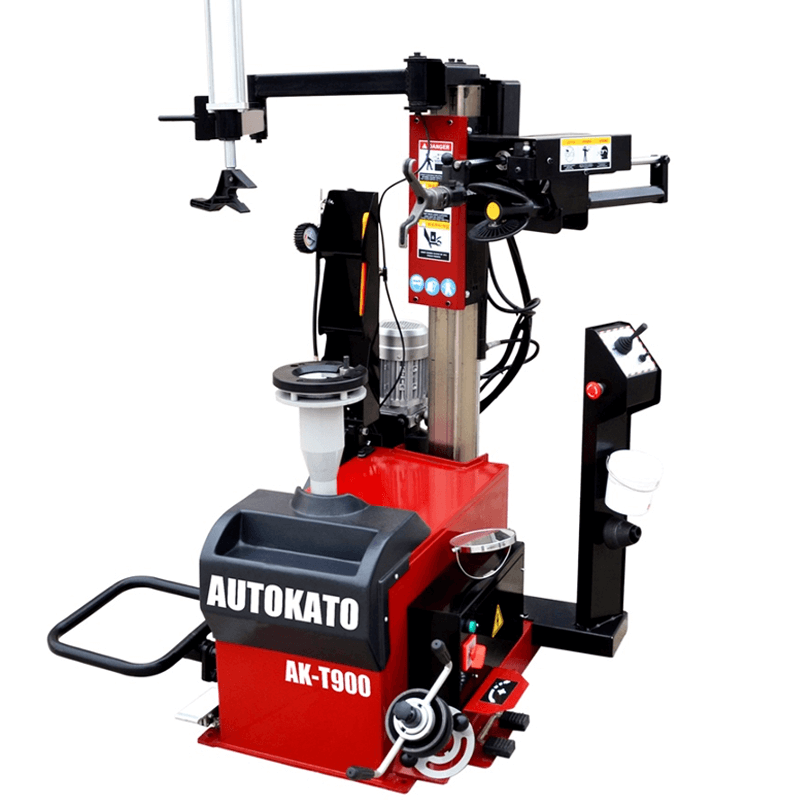

Bring speed, strength, and precision to your tire service setup with the Katool KT-T900 Tire Changer and KT-B760 Wheel Balancer Combo. The KT-T900 is a powerhouse, capable of handling wheels up to 47″ in diameter and 16″ wide. With its 2HP motor, 1.5HP hydraulic system, and lever-less mounting head, it makes changing even low-profile or run-flat tires efficient and safe. The built-in top assist arm and wheel lift enhance productivity while protecting valuable rims from damage.

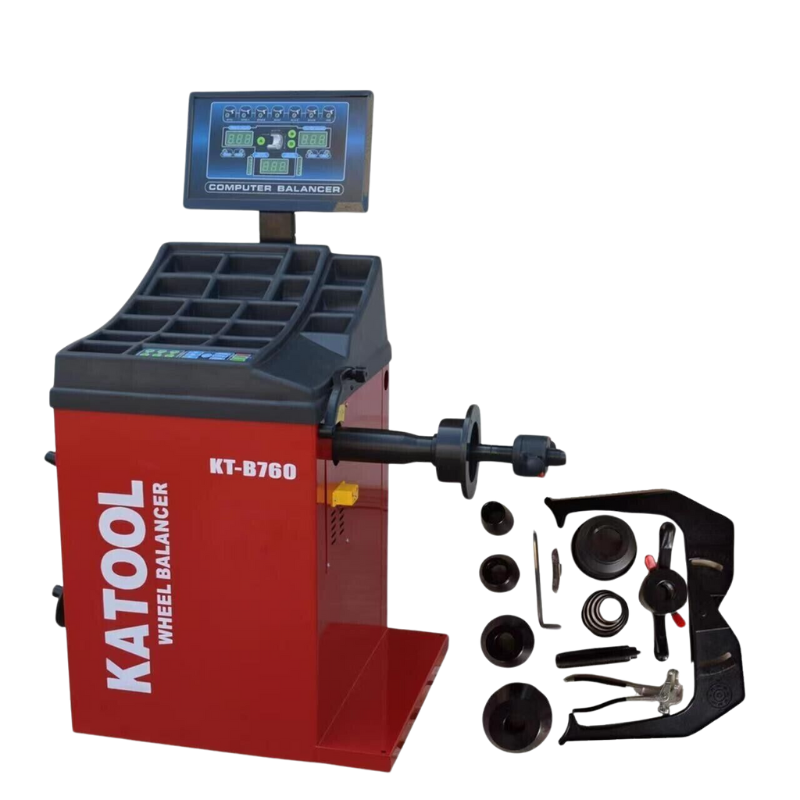

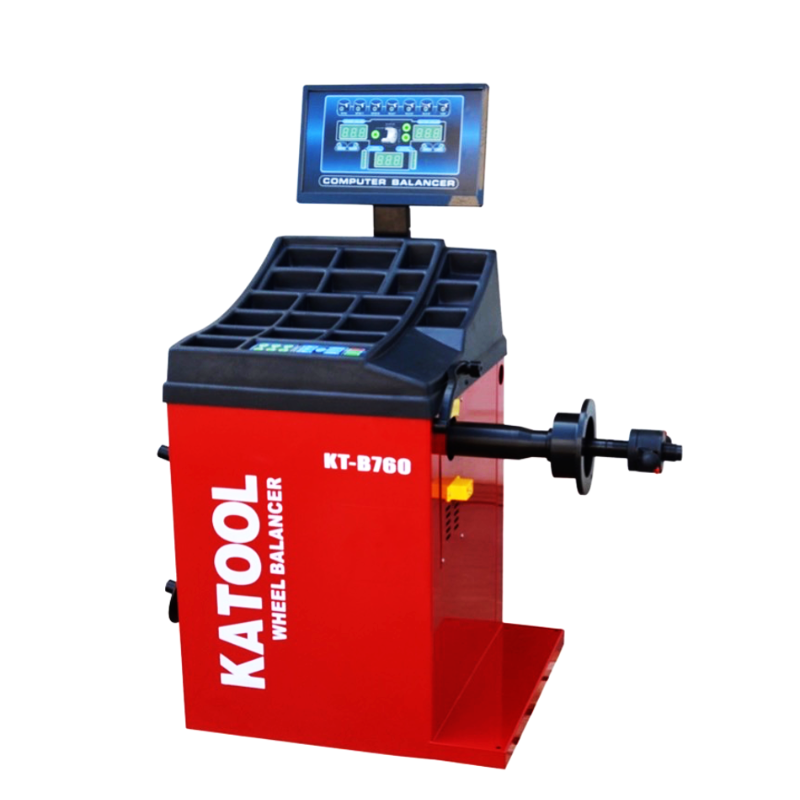

The KT-B760 Wheel Balancer complements the tire changer with accurate, vibration-free results in just 7 seconds. With a ?ñ1g balancing accuracy, automatic measurement ruler, and a robust 3mm-thick steel body, itƒ??s designed to meet the demands of modern tire shops and aftermarket wheel installations. The advanced computer board ensures reliability, while features like unit selection and built-in fault diagnostics simplify operation for any user.

Tire Changer T900 Specification:

• Max wheel diameter: 47″ / 1200 mm
• Max wheel width:16″ / 406 mm
• Wheel clamp:12″-30″
• Power supply:110V / 1PH / 60HZ
• Gear Box Motor power:1.5KW / 2HP
• Hydraulic power:1.1KW / 1.5HP
• Rotation speed:6.8r/min
• Air Pressure:0.8-1.0Mpa(116-145psi)
• Net weight:188KG / 414lbs

Wheel Balancer KT-B760 Specification

• Rim Diameter: <30"
• Wheel Width: 3″-12″
• Wheel Diameter: <880mm/34.64"
• Balancing Speed: 180rpm
• Power Supply: 110V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Dia.: <135mm/5.31"
• Wheel Weight: 143lbs
• Balancing Accuracy: ±1g
• Measuring Time: 7S

KT-T900 from Katool Special Features:

• All hydraulic power systems for working on all types of car wheels

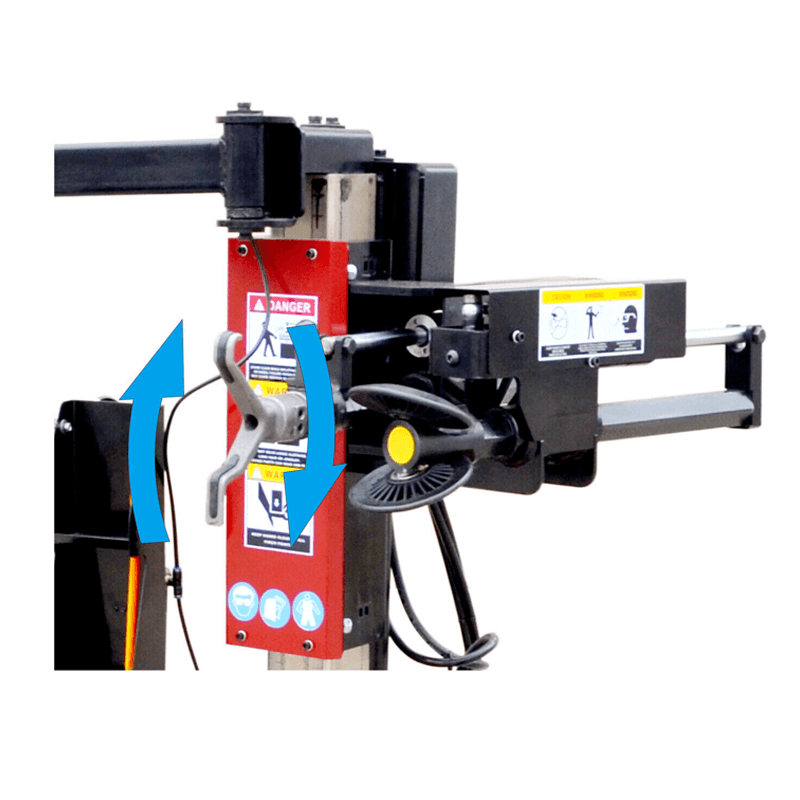

• The built-in top assist arm allows you to change even difficult run-flat and low-profile tires
• Lever-less design. Stainless steel mounting head and included plastic cover for protecting the rim
• Wheel lift assistant device
• High-quality motor with pure copper winding to ensure low defect rate and longer life
• Top-level motor and pure copper winding provide more power faster heat dissipation, lower defect rate, and longer service life.
• High-quality filter
• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

KT-B760 From Katool Special Features

• Automatic measurement ruler for auto input A and D values
• The body uses 3mm-thick steel with high strength, solid welding and low vibration
• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
• The 36mm shaft thread is made by quenching treatment to offer high strength
• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
• Various balance mode for different types of rims to provide more precision
• Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
• Unit selection (Ounce/Gram, MM/Inch)
• High quality integration power board, working stable and reliable
• Optional wheel guard
• Longer shaft, also compatible with wider wheels
• Katool Warranty:
  One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

Katool KT-T900 & KT-B760 Manual

  Katool KT-T900 Installation and Operations Manual

  Katool KT-B760 Wheel Balancer Product Manual
