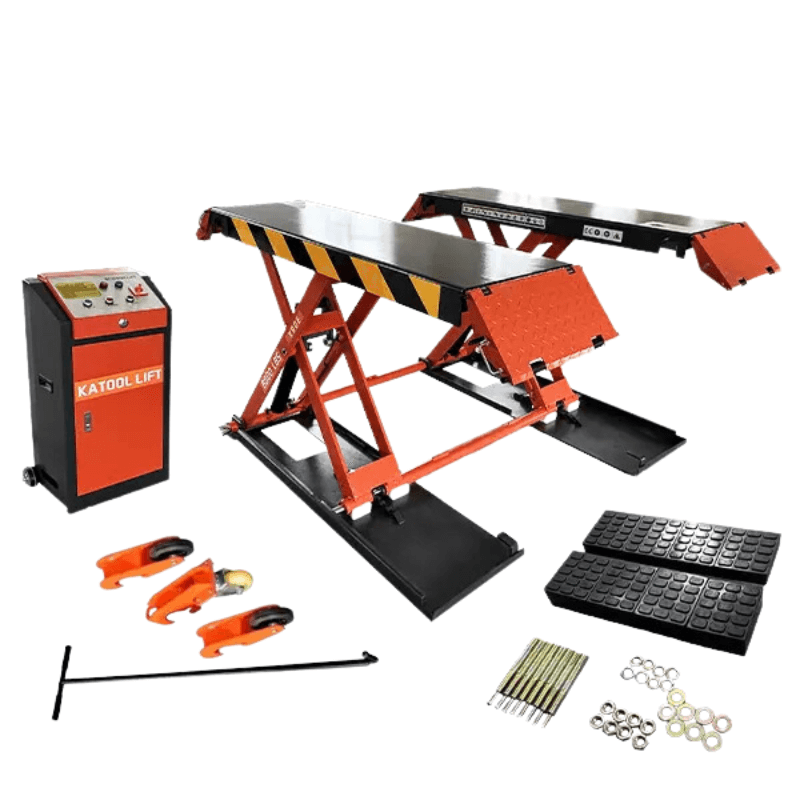

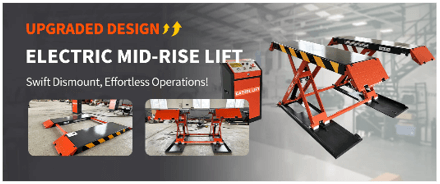

Katool KT-X90E 8,000 lb Mid Rise Scissor Lift – Electric Lock

KT-X90E Scissor Lift by Katool

Your current scissor lift lacks the power, safety features, and versatility you need to handle demanding jobs efficiently. And you know it! Limited lifting capacity, safety concerns, and compatibility issues with various power supplies can slow your shop down and create unnecessary obstacles in your workflow. You don’t want that.

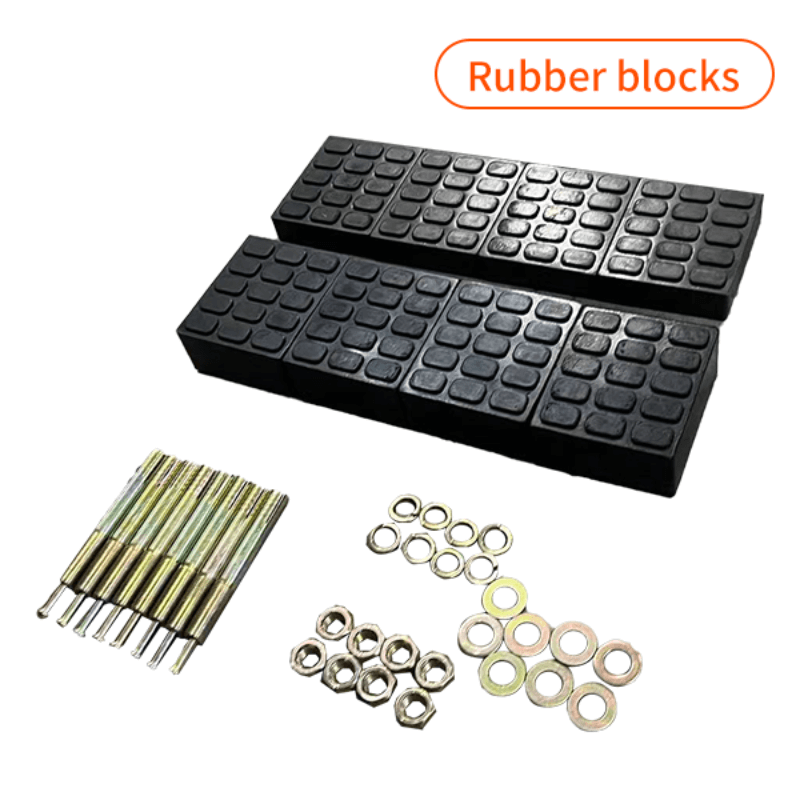

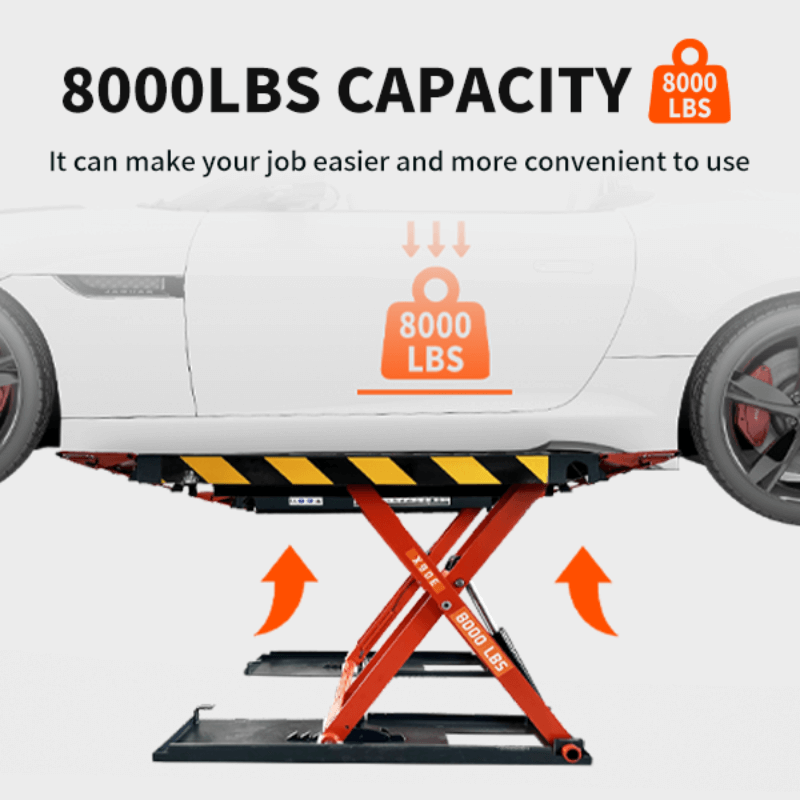

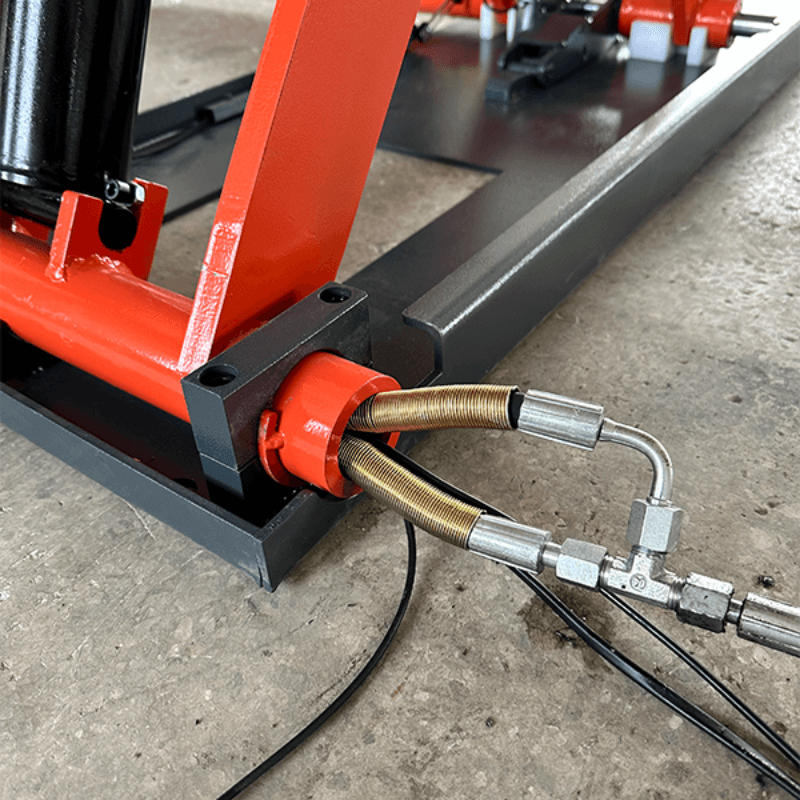

The Katool KT-X90E Lift eliminates these frustrations. Bragging an impressive 8,000-lb lifting capacity, this lift tackles even heavy-duty vehicles with ease with a max lift height of 47 inches. A focus on secure operation through features like a height limit switch and composite rubber lifting blocks. Versatility is built-in with a choice of 110v or 220v power options and a self-lubricating system for maintenance-free operation. The drive-up ramps accommodate a wider range of vehicles, and the top-level hydraulic system with an aluminum motor ensures reliable performance, even during prolonged use. Effortlessly handle all your lifting needs with the Katool KT-X90E!

Scissor Lift KT-X90E Specifications:

• Maximum Lifting Capacity: 8,000 lbs

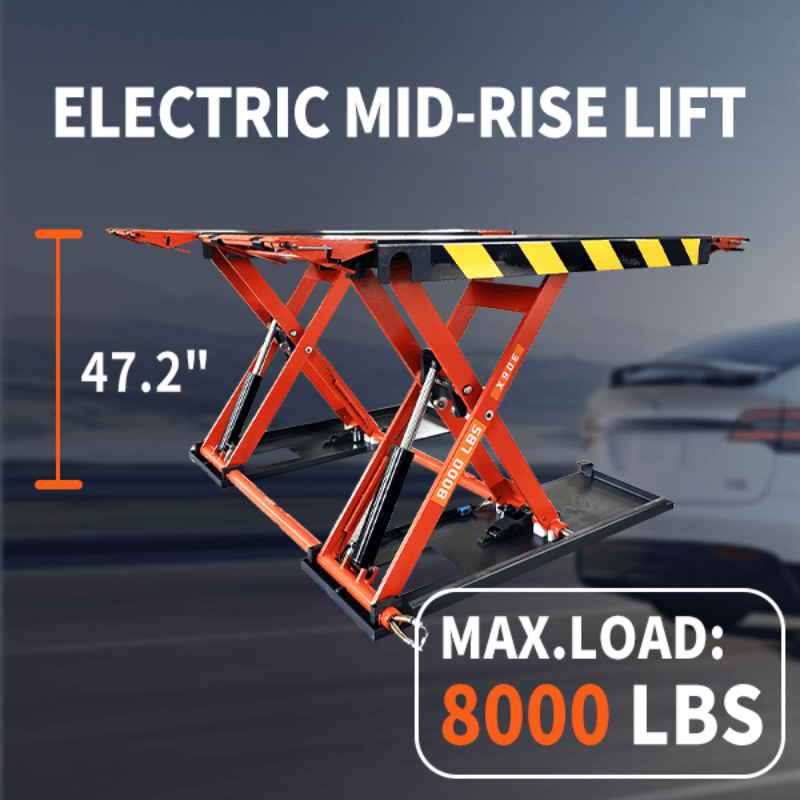

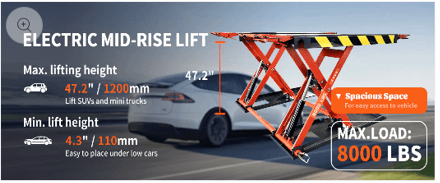

• Maximum Lifting Height: 47″

• Minimum Lifting Height: 4.3″

• Lifting Time: 30 seconds

• Platform Length: 81.5″

• Platform Width: 20.1″

• Width Between Platforms: 32.2″

• Overall Length: 73″

• Pin Distance Adjustment: 48″ – 59″

• Adapter Height: 6.2″ – 8″

• Rated Oil Pressure: 20 MPa

• Power: 110V (30A) or 220V / 60Hz, Single Phase

• Lock Positions: 5

• Hydraulic Oil Type: AW-46 or AW-32 (cold climates)

• Shipping Pallet 1: 78″ x 67″ x 9″ — 1,179 lbs

• Shipping Pallet 2: 37″ x 16″ x 16″ — 110 lbs
