Rotary R1070 Pro CCD Wheel Alignment System
Original price was: $15,642.00.$6,256.90Current price is: $6,256.90.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
32
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
About this item :

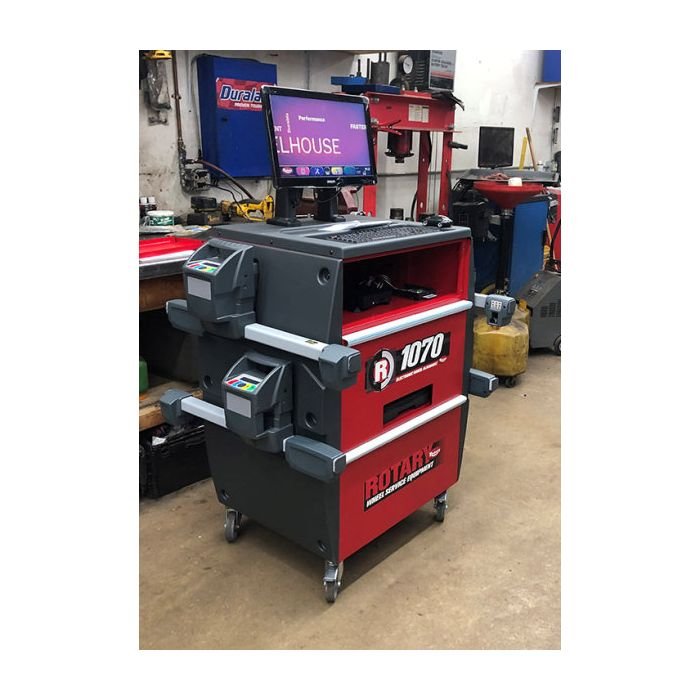

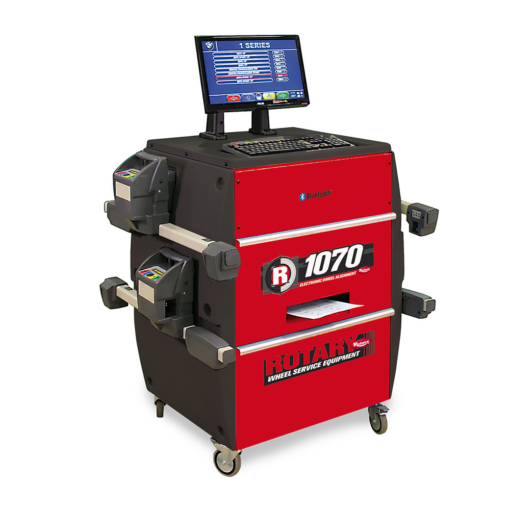

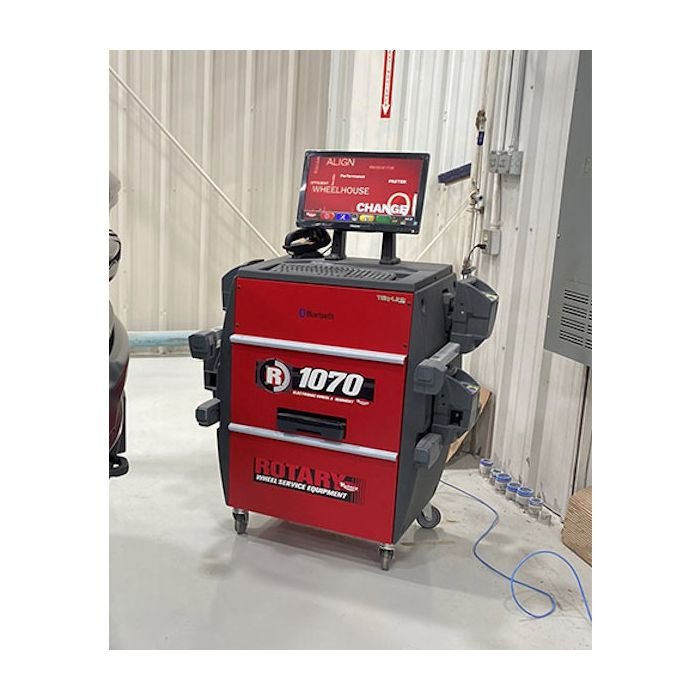

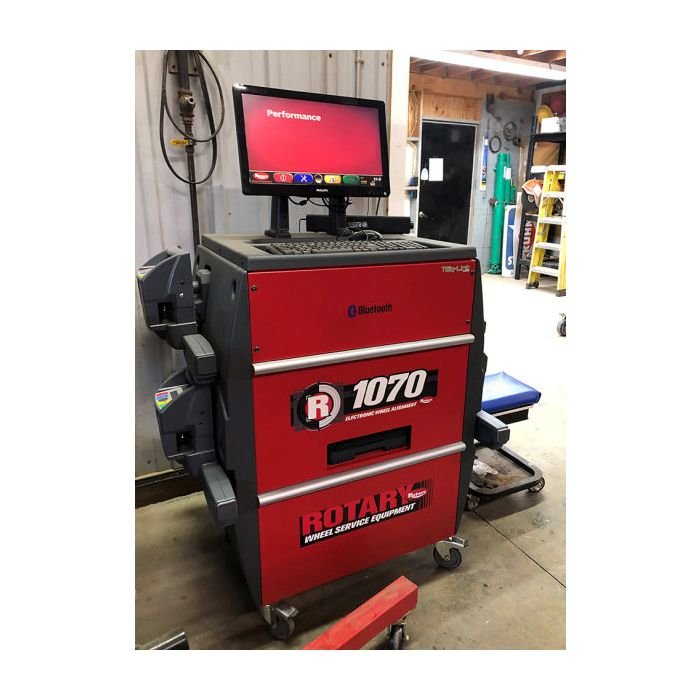

The R1070 wireless aligners is the total package when it comes to 3D wheel alignment. Simply access programs by selecting 5 command keys that guide the alignment tech through the step by step measuring process. It’s equipped with a powerful PC, an A4 printer and a robust mobile cabinet for attaching and charging the wheel clamps.

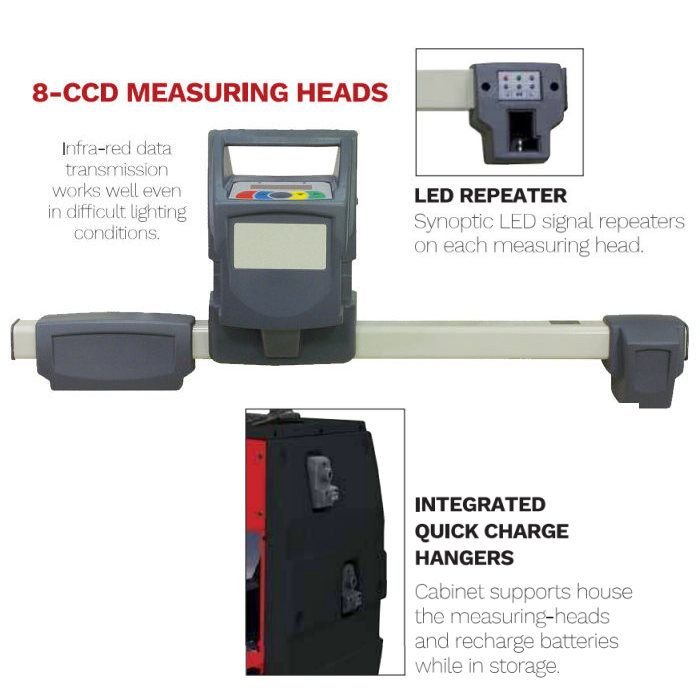

This 8-CCD sensor wheel alignment system uses infrared transmission among measuring heads and Bluetooth® communication between the front head and the control unit. Quickly enter vehicle information by model or VIN number and begin the process via a 3D animated workflow
- Bluetooth Transmission
- Quick Charge Supports
- 8-CCD Sensors
- Wheeled Control Unit
- Safe Print Documentation
- 3D Graphic Animation Interface
Features

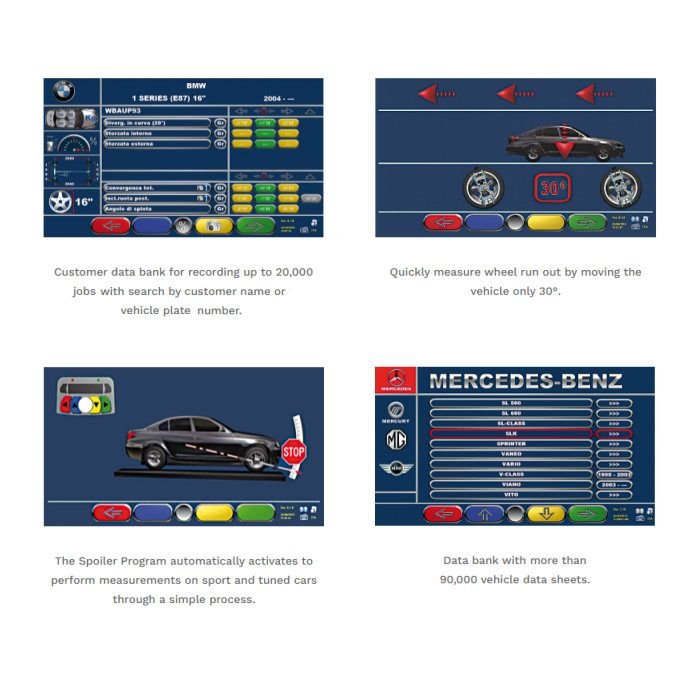

Customer data bank for recording up to 20,000 jobs
with search by customer name or vehicle plate number.
Quickly measure wheel run out by moving the vehicle only 30°.
The Spoiler Program automatically activates to perform measurements on sport and tuned cars through a simple process.
Data bank with more than
90,000 vehicle data sheets.
User’s instructions by animated graphics.

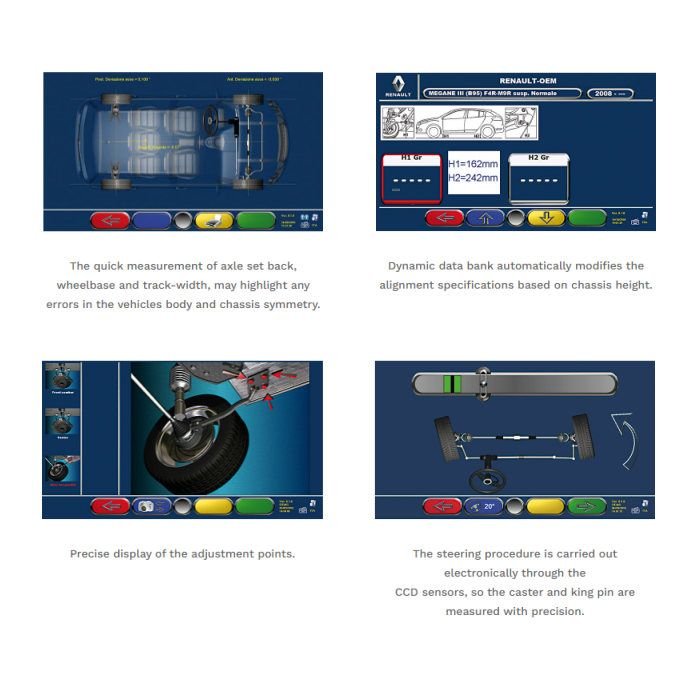

The quick measurement of axle set back, wheelbase and track-width, may highlight any errors in the vehicles body and chassis symmetry.
Dynamic data bank automatically modifies the alignment specifications based on chassis height.
Precise display of the adjustment points.
The steering procedure is carried out electronically through the
CCD sensors, so the caster and king pin are measured with precision.
Specifications
|

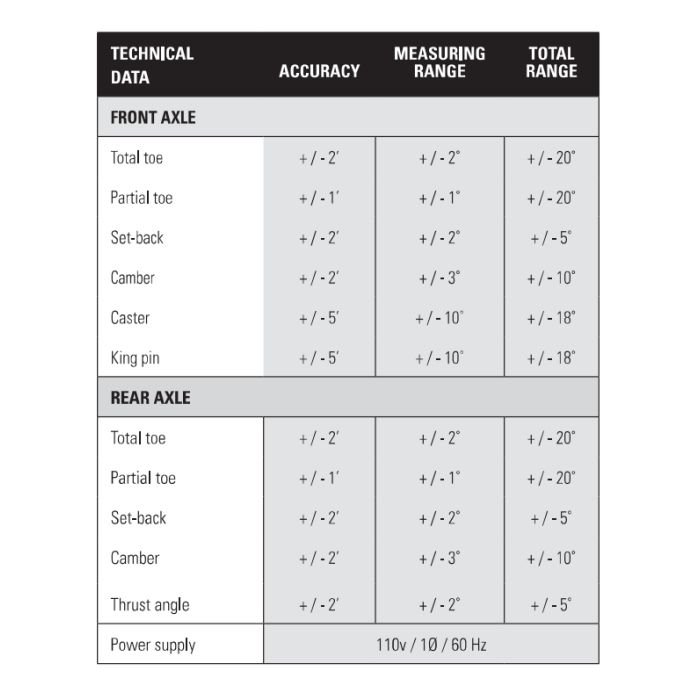

R1070 Alignment System Technical Data |
Accuracy |
Measuring Range |
Total Measuring Range |
|
Front axle |
|||
|
Total toe |
+ / – 2’ |
+ / – 2˚ |
+ / – 20˚ |
|
Partial toe |
+ / – 1’ |
+ / – 1˚ |
+ / – 20˚ |
|
Set-back |
+ / – 2’ |
+ / – 2˚ |
+ / – 5˚ |
|
Camber |
+ / – 2’ |
+ / – 3˚ |
+ / – 10˚ |
|
Caster |
+ / – 5’ |
+ / – 10˚ |
+ / – 18˚ |
|
King-pin |
+ / – 5’ |
+ / – 10˚ |
+ / – 18˚ |
|
Rear axle |
|||
|
Total toe |
+ / – 2’ |
+ / – 2˚ |
+ / – 20˚ |
|
Partial toe |
+ / – 1’ |
+ / – 1˚ |
+ / – 20˚ |
|
Set-back |
+ / – 2’ |
+ / – 2˚ |
+ / – 5˚ |
|
Camber |
+ / – 2’ |
+ / – 3˚ |
+ / – 10˚ |
|
Thrust angle |
+ / – 2’ |
+ / – 2˚ |
+ / – 5˚ |
|
Power supply |
110v / 1Ø / 60 Hz |
Brand
Rotary
