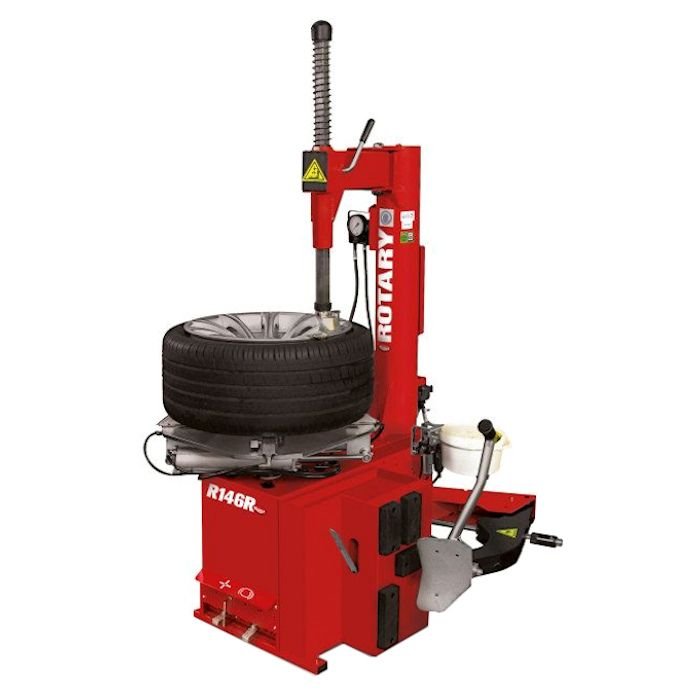

Rotary R146R Swingarm Tire Changer
High Performance with Extra Height Speedchanger
Rotary’s hand-controlled R146R Swingarm Tire Changer features a new arm design that provides for high performance, high volume, and extra height. It also features a removable pedal unit for easy servicing, extra wide tool shaft that allows operation on tires up to 15″ wide, and a column encapsulated air tank freeing up space behind the machine.
R146R Series Swingarm Models
- R146R Base Model with Electric Motor
- R146RP Base Model with Electric Motor and Helper Arm
- R146RPS Base Model with Electric Motor, Helper Arm, and Super Accessories Package

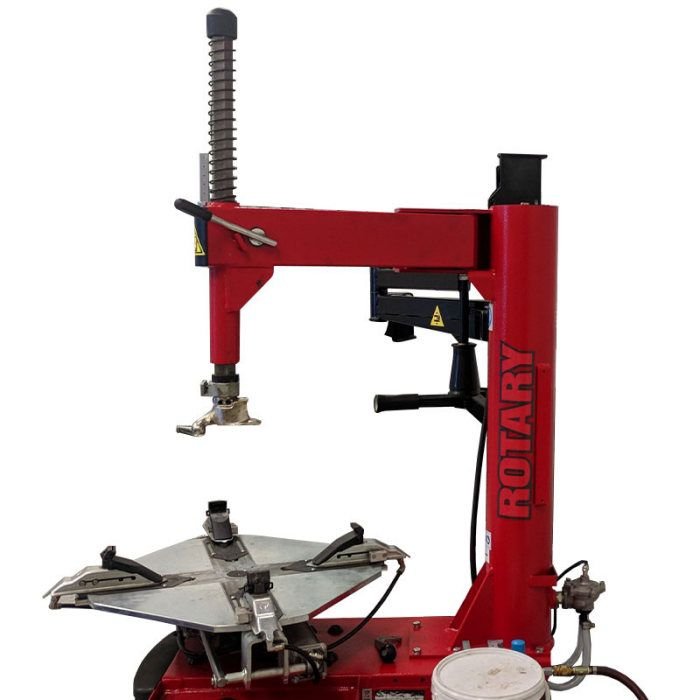

EXTRA LARGE FRAME
Extra large vertical post and tool shaft allows for a maximum tire diameter of 46″.

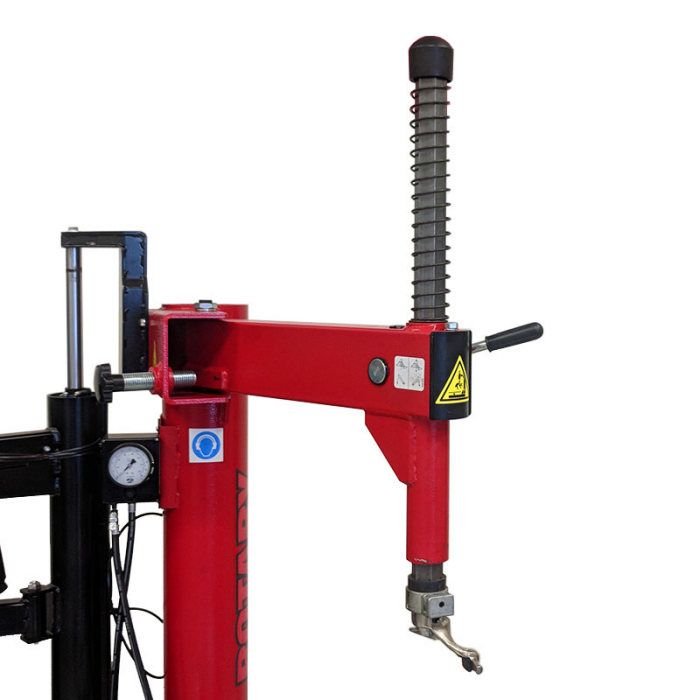

NEW ARM DESIGN
New arm design for high performance, high volume, and extra height.

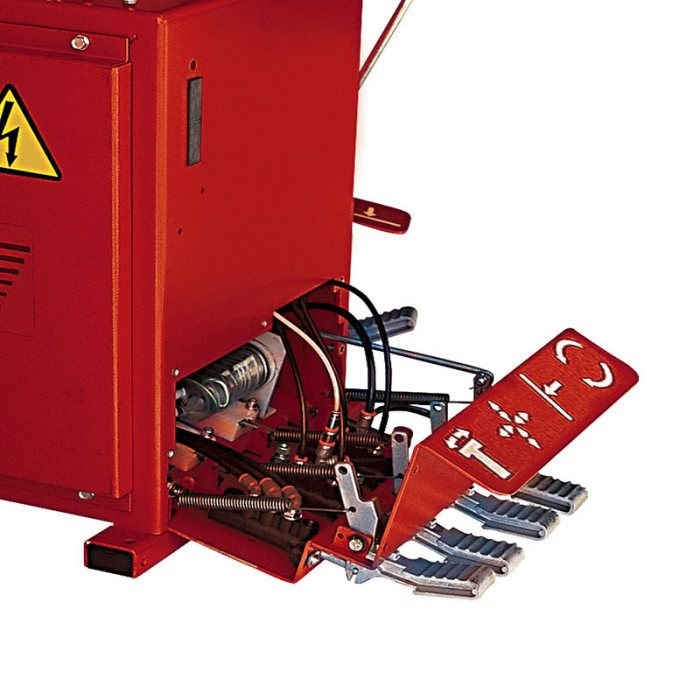

REMOVABLE PEDAL UNIT
Removable pedal unit for easy maintenance.

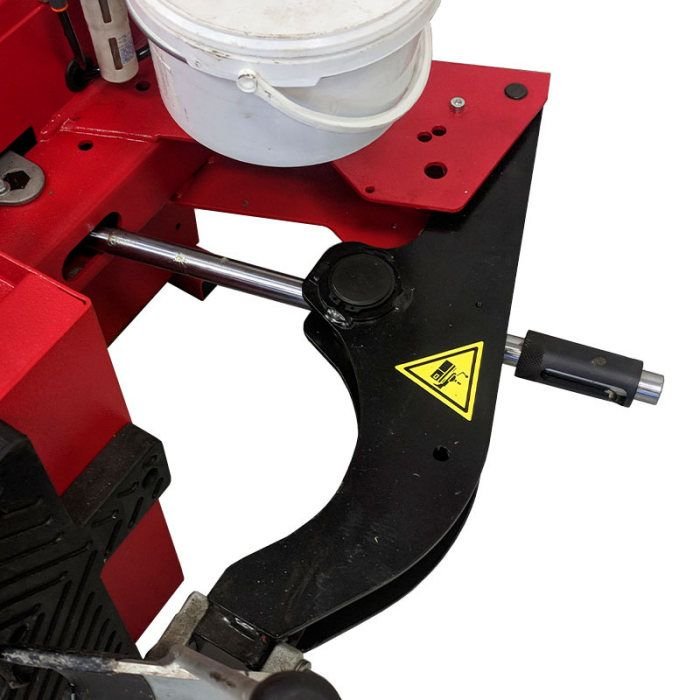

EXTRA WIDE TOOL SHAFT
Extra wide tool shaft allows operation on tires up to a 15″ maximum tire width.

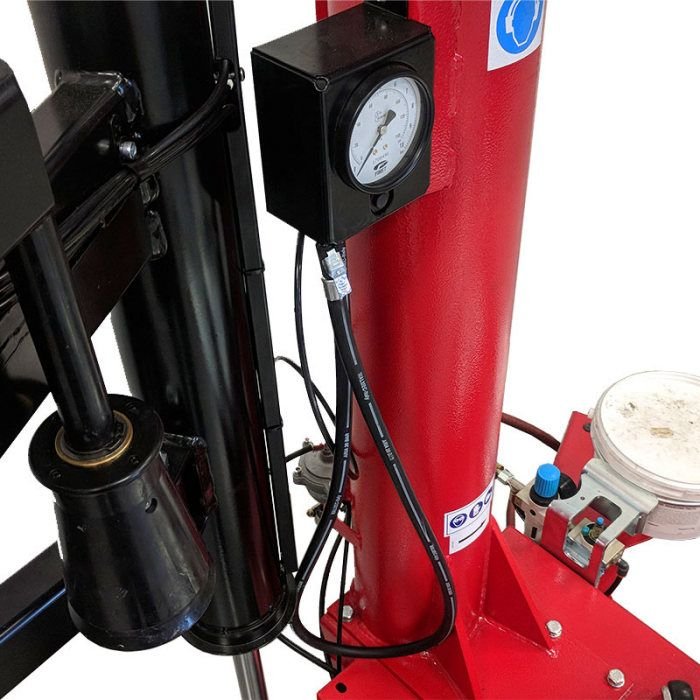

AIR TANK LOCATED IN COLUMN
Air tank is encapsulated inside the tire changer column, freeing up space behind the machine.
Features and Specs
Features
- Hand-Controlled Double-Acting Bead Breaker
- 2 Position Centering Lock 10″ – 26″ Range
- Extra Large 46″ Frame
- Bead Pushing Roller
- 110v Drive Motor Supplies Needed Torque
- Air Tank Located in Column
- Gear Box is Supported by Steel Plates to Avoid Flex
- Removable Pedal Assembly for Easy Maintenance
- Tire Paste Lubricant and Brush
R146R Standard Equipment
- Plastic Tool Head with Support
- Tool Protection Kit for Metal Mount / Demount Head (2 x kit)
- Clamp Protectors 23″ – 26″ (4 pcs)
- Bead Breaker Protection (6 pcs)
- Tire Paste Lubricant and Brush
Specifications
- Outside Clamping Range: 10″-26″
- Inside Clamping Range: 12″-28.5″
- Maximum Wheel Diameter: 45″ (1143mm)
- Maximum Wheel Width: 15″ (380mm)
- Maximum Bead Breaker Opening: 15″ (380mm)
- Bead Breaker Cylinder Power at 145psi: 6,745 lbs.
- Maximum torque to chuck: 885 Ft/Lbs (1200 Nm)
- Recommended Air Supply: 115-145 PSI / 8-10 bar
- Power Supply: 110v / 1Ø / 60 Hz
- Machine Warranty: (3) Years Functional, (1) Year Labor
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship (“Warrantable Failure”). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
