Rotary R146RPS Super Swingarm Pro Max Tire Changer
Original price was: $9,819.00.$3,927.80Current price is: $3,927.80.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
26
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

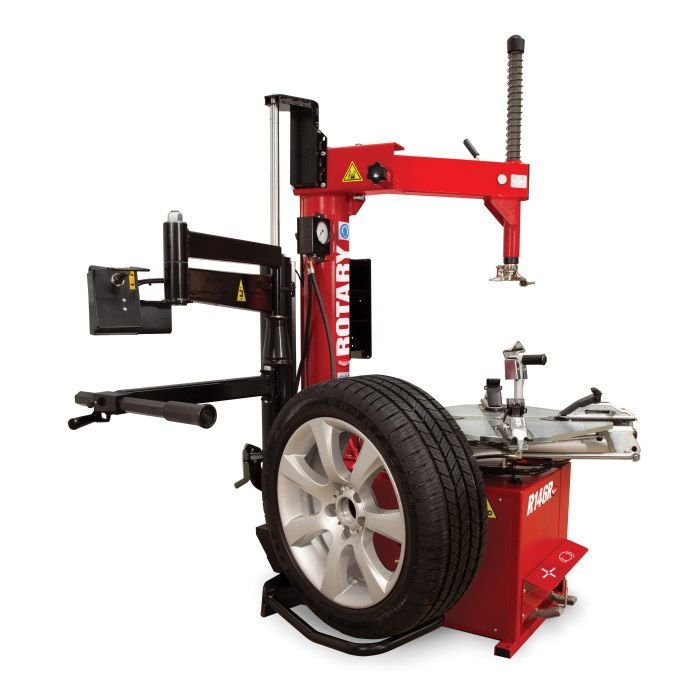

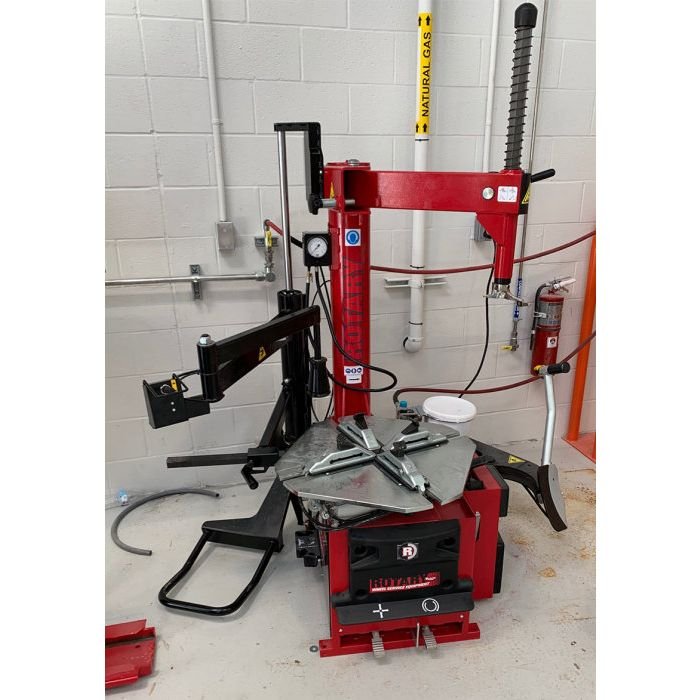

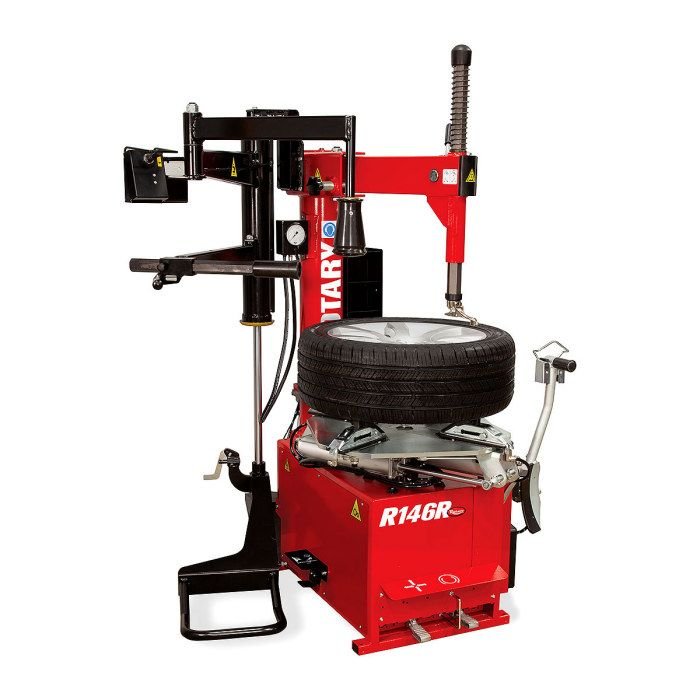

Rotary R146RPS Super Swingarm Pro Max Tire Changer
High Performance with Extra Height Speedchanger
Includes Helper Arm, Wheel Lift, and Super Accessory Package
Rotary’s hand-controlled R146RPS Super Swingarm Pro Max Tire Changer includes an air-driven PLUS91A Helper Arm. This bead top pressing and tire lifting device for large and special tires features a lower bead lifting roller and pneumatic top bead pressing tool. The extra height of the vertical post and tool shaft allows operation on tires up to a maximum of 15″ (380mm) tire width. The R146RPS model also includes an Integrated Wheel Lift and the SUPER Accessory Package.
Note: PLUS91A Helper Arm is not installed prior to delivery.
R146R Series Swingarm Models
- R146R Base Model with Electric Motor
- R146RP Base Model with Electric Motor and Helper Arm
- R146RPS Base Model with Electric Motor, Helper Arm, and Super Accessories Package

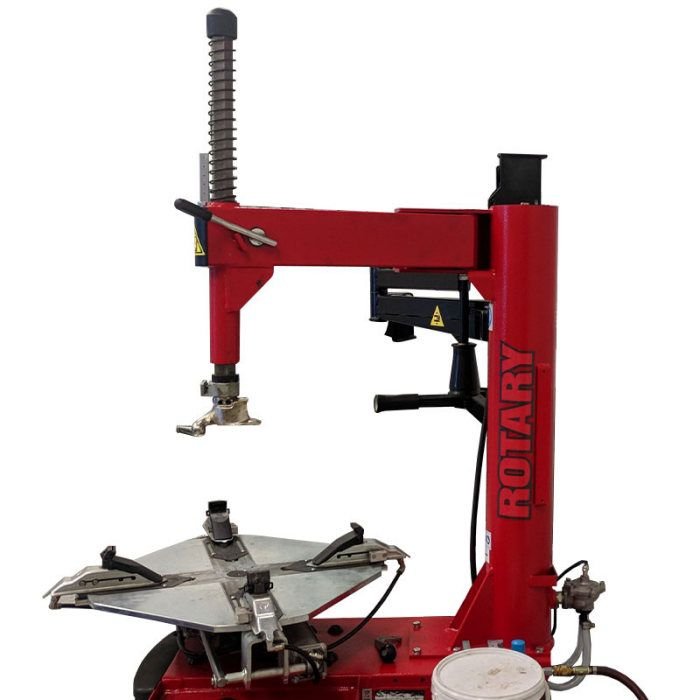

EXTRA LARGE FRAME
Extra large vertical post and tool shaft allows for a maximum tire diameter of 46″.

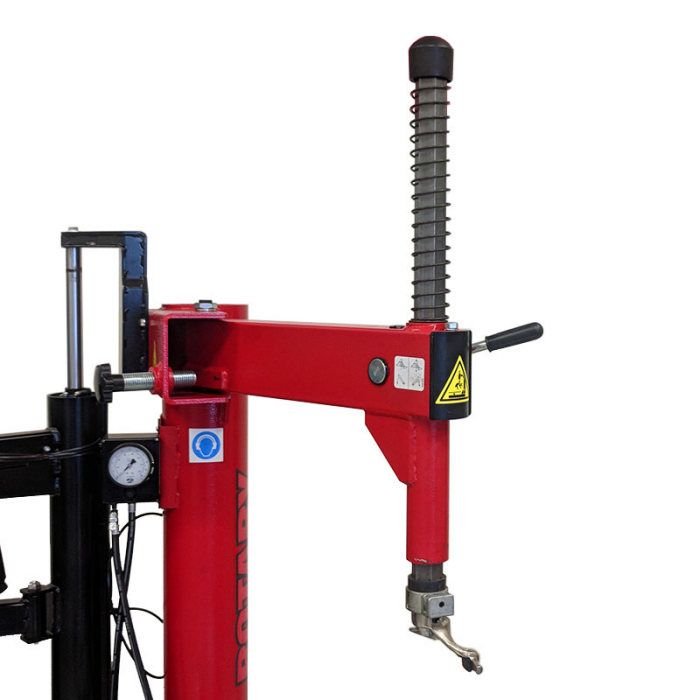

NEW ARM DESIGN
New arm design for high performance, high volume, and extra height.
PLUS91A HELPER ARM

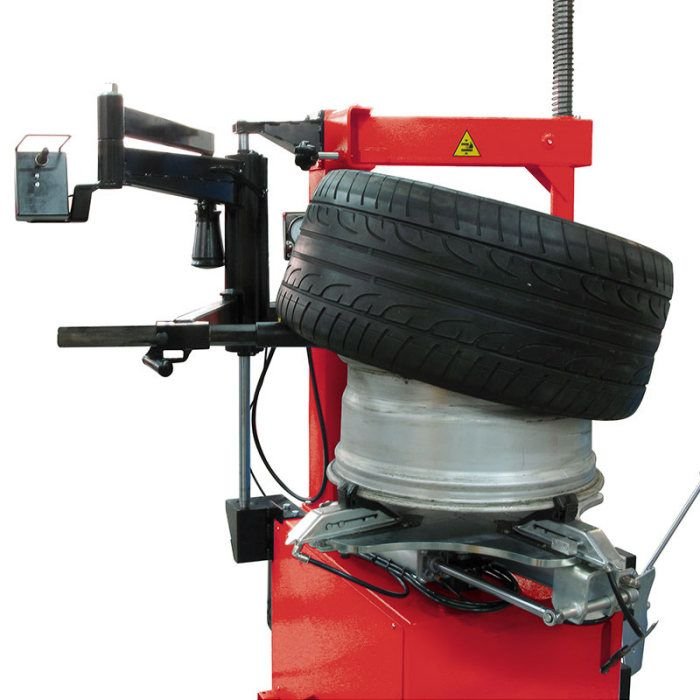

PLUS91SA Helper Arm assists in lower bead demounting, bead top pressing, and a tire lift for large and special tires.

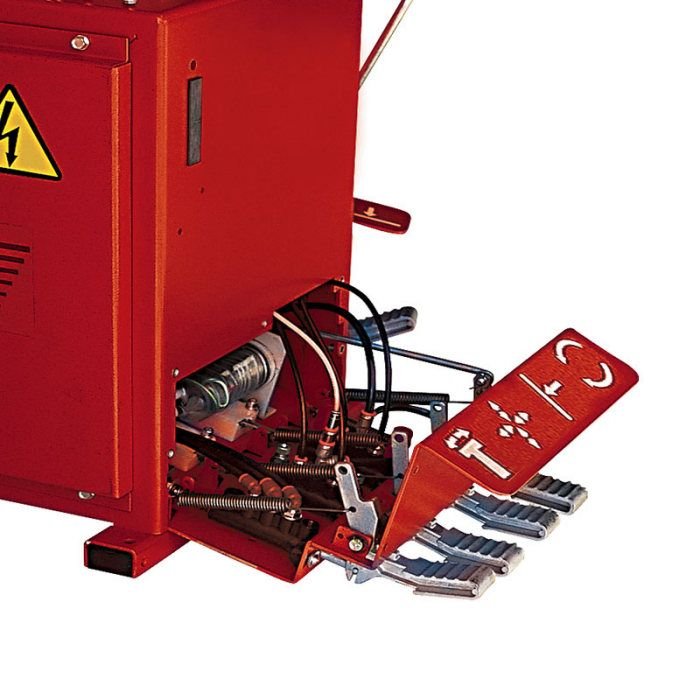

REMOVABLE PEDAL UNIT
Removable pedal unit for easy maintenance.

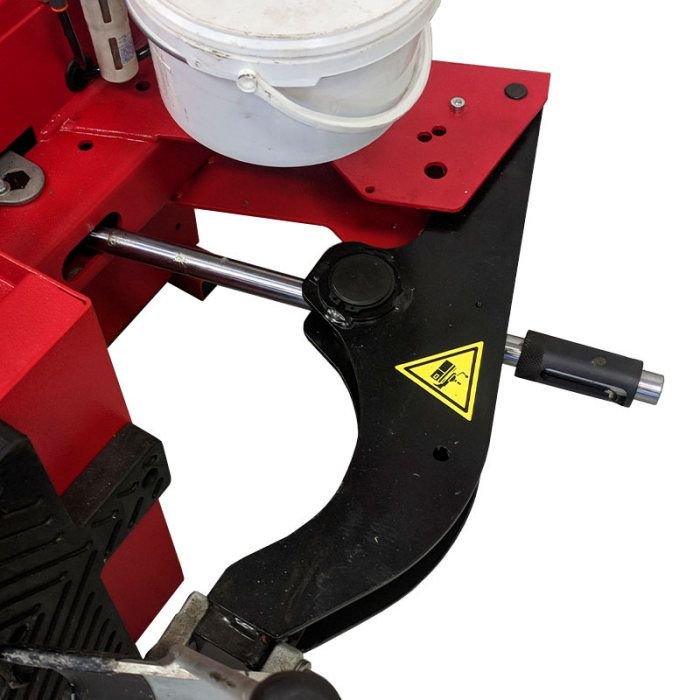

EXTRA WIDE TOOL SHAFT
Extra wide tool shaft allows operation on tires up to a 15″ maximum tire width.

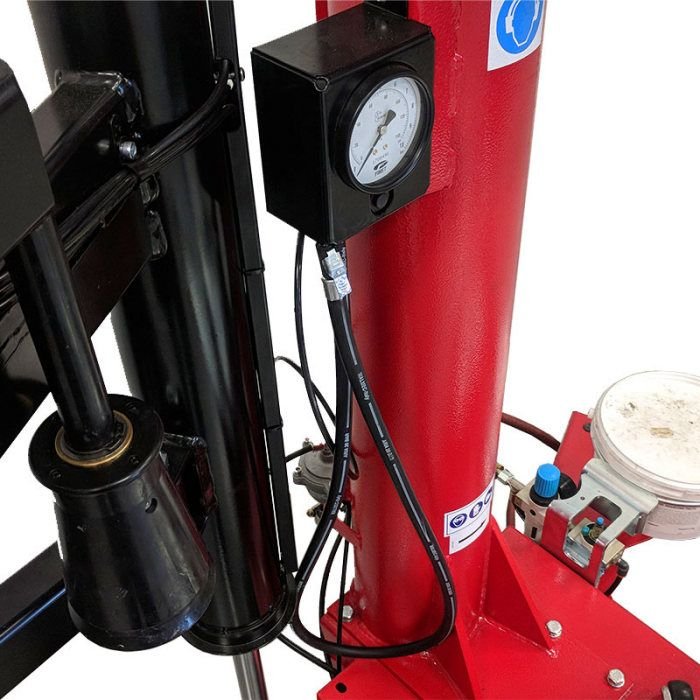

AIR TANK LOCATED IN COLUMN
Air tank is encapsulated inside the tire changer column, freeing up space behind the machine.
Features and Specs
Features
- Super Pro Max Model Added Features
- Integrated Wheel Lift Attachment
- PLUS91SA Helper Arm
- SUPER Accessories Package (see below)
- Hand-Controlled Double-Acting Bead Breaker
- 2 Position Centering Lock 10″ – 26″ Range
- Extra Large 46″ Frame
- Bead Pushing Roller
- 110v Drive Motor Supplies Needed Torque
- Air Tank Located in Column
- Gear Box is Supported by Steel Plates to Avoid Flex
- Removable Pedal Assembly for Easy Maintenance
- Tire Paste Lubricant and Brush
R146RPS Standard Equipment
- Integrated Wheel Lift Attachment
- PLUS91SA Helper Arm
- SUPER Accessories Package
- Bead Pushing Roller for Plastic Mount / Demount Head
- Bead Pushing Roller for Metal Mount / Demount Head
- Column Mounted Storage Tray
- Plastic Tool Head with Support
- Tool Protection Kit for Metal Mount / Demount Head (2 x kit)
- Clamp Protectors 23″ – 26″ (4 pcs)
- Bead Breaker Protection (6 pcs)
- Tire Paste Lubricant and Brush
Specifications
- Outside Clamping Range: 10″-26″
- Inside Clamping Range: 12″-28.5″
- Maximum Wheel Diameter: 45″ (1143mm)
- Maximum Wheel Width: 15″ (380mm)
- Maximum Bead Breaker Opening: 15″ (380mm)
- Bead Breaker Cylinder Power at 145psi: 6,745 lbs.
- Maximum torque to chuck: 885 Ft/Lbs (1200 Nm)
- Recommended Air Supply: 115-145 PSI / 8-10 bar
- Power Supply: 110v / 1Ø / 60 Hz
- Machine Warranty: (3) Years Functional, (1) Year Labor
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship (“Warrantable Failure”). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
