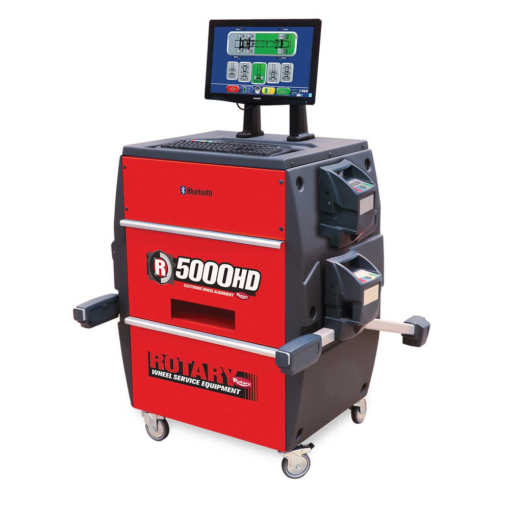

Rotary R5000HD Commercial Truck Alignment System
Original price was: $25,669.00.$10,267.80Current price is: $10,267.80.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
32
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.

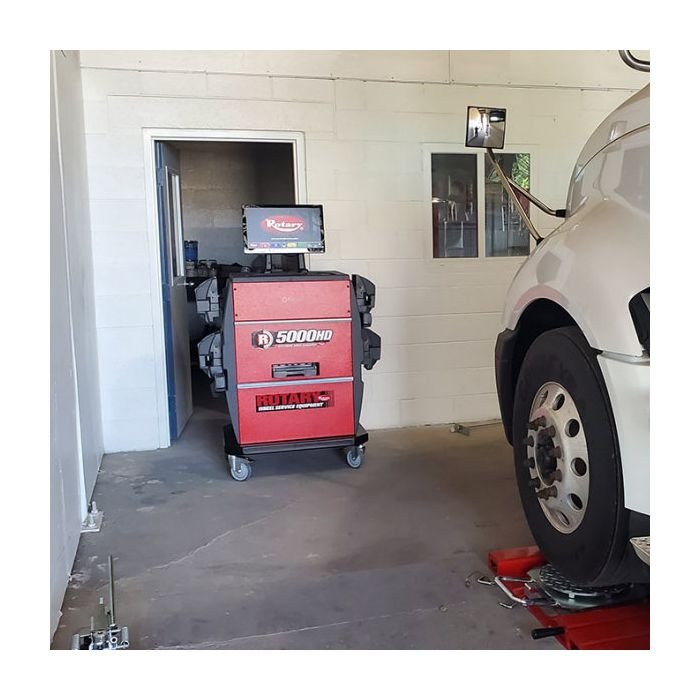

See significantly higher income production with much faster operating times without any loss of accuracy. Choose the R5000HD for your shop and add alignment to the offering of services you can provide today. Suited for larger commercial vehicles, the double inclometer allows caster adjustment without steering. No run out clamps enable the user to skip out of any compensation procedures.

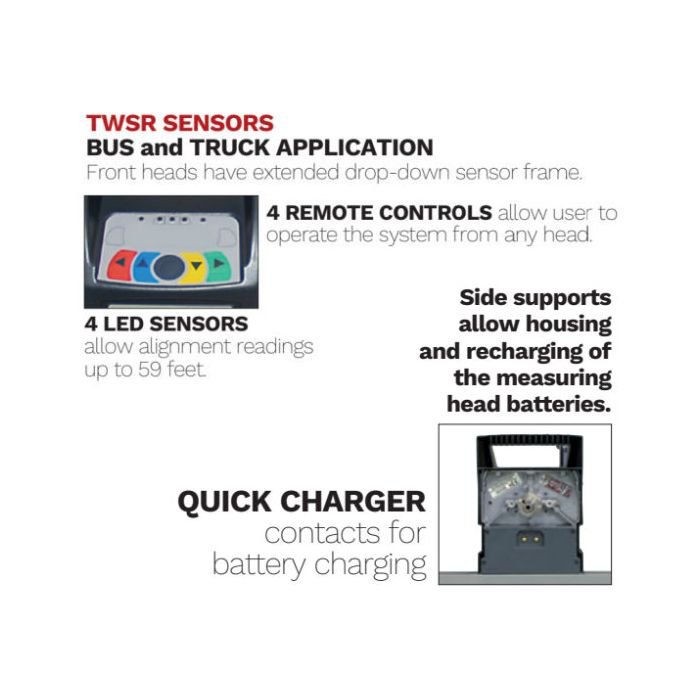

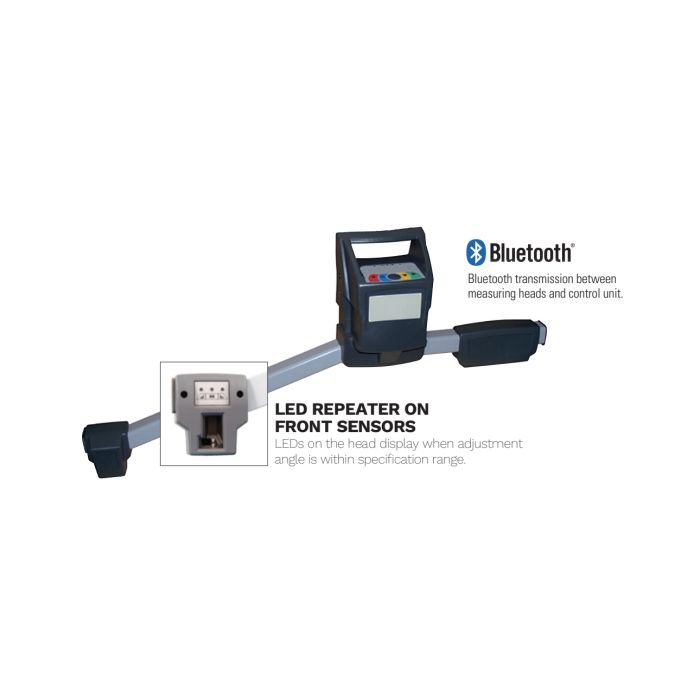

This 6-CCD sensor wheel alignment system features Infra-red transmission among measuring heads. Bluetooth transmission between front measuring heads and control unit. Special side supports allow housing and recharging the measuring head batteries. Portable aligner console can be conveniently positioned anywhere in available bay space.
- 6-CCD Sensor System

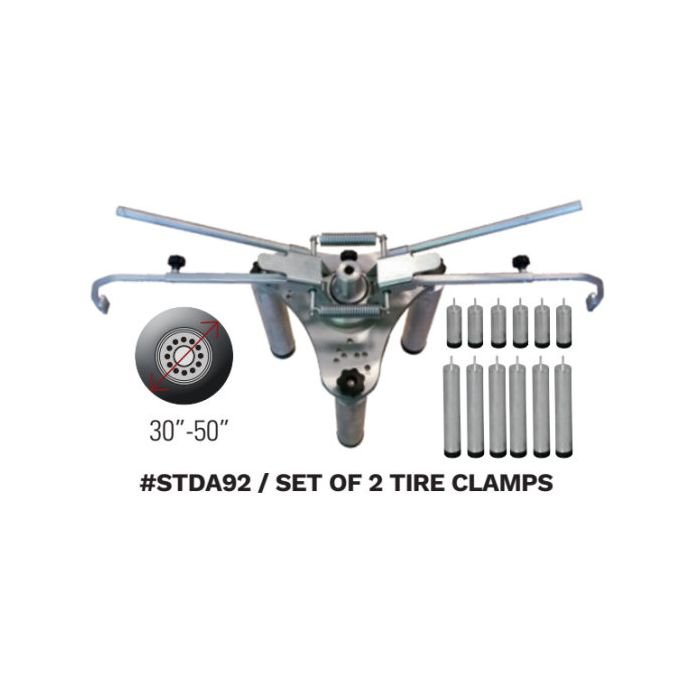

- Standard Fast Clamps
- Bluetooth Communication

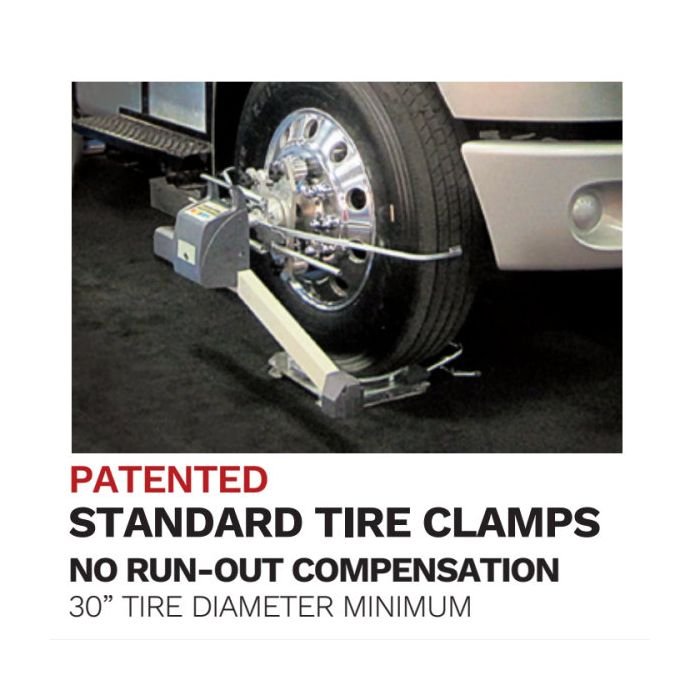

- No Run-out Compensation
- 19″ Color Monitor
- 4 LED Sensors

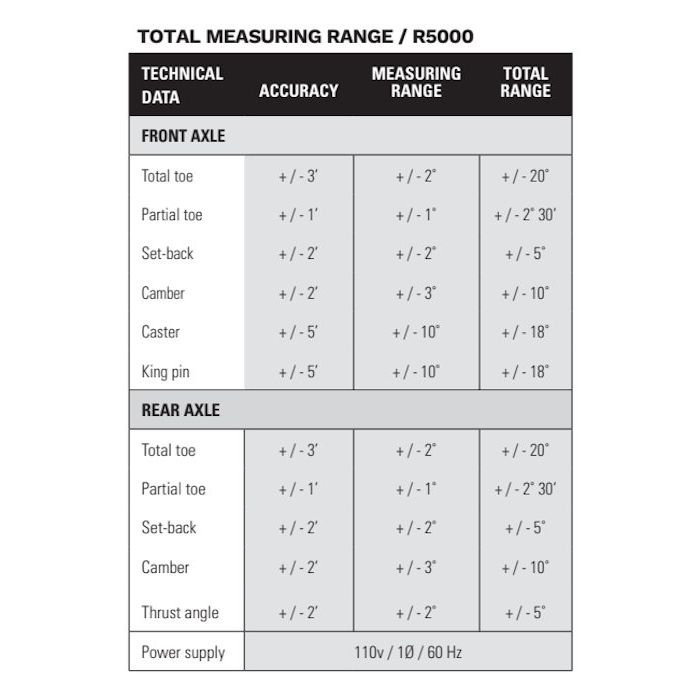

Specifications
| R5000 Alignment System Technical Data | Accuracy | Measuring Range | Total Measuring Range |
| Front axle | |||
| Total toe | +/- 2’ | +/- 2° | +/- 20° |
| Partial toe | +/- 1′ | +/- 1° | + / – 2˚ 30’ |
| Set-back | +/- 2’ | +/- 2° | +/- 5° |
| Camber | +/- 2’ | +/- 3° | +/- 10° |
| Caster | +/- 5′ | +/- 10° | +/- 18° |
| King-pin | +/- 5′ | +/- 10° | +/- 18° |
| Rear axle | |||
| Total toe | +/- 2′ | +/- 2° | + /- 5˚ |
| Partial toe | +/- 1′ | +/- 1° | + /- 2˚ 30’ |
| Set-back | +/- 2′ | +/- 2° | + /- 5˚ |
| Camber | +/- 2′ | +/- 3° | + /- 10˚ |
| Thrust angle | +/- 2′ | +/- 2° | +/- 5° |
| Power Supply | 110v / 1Ø / 60 Hz |
Brand
Rotary
