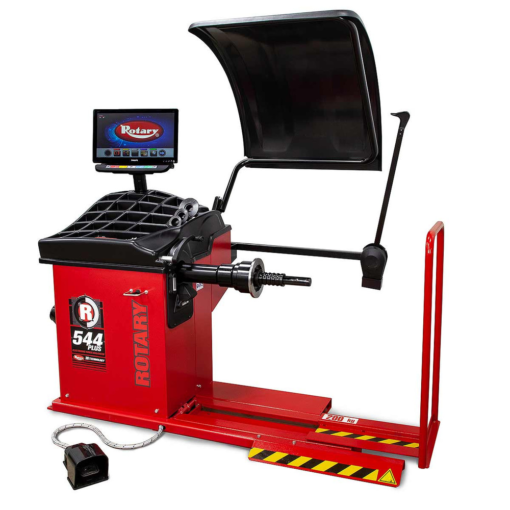

Name: Rotary R544Plus Pro Truck 3D Wheel Balancer
SKU: R544Plus
Availability: InStock

About this item

This versatile commercial truck balancer can handle all large jobs. Designed for fast accurate balancing of commercial, passenger vehicle and motorcycle wheels. It’s a big package that’ll handle everything that’ll roll into your shop.

Includes Passenger, Light Truck, and Heavy Duty adapters standard
Pneumatic wheel lift standard
Pneumatic locking (No Wingnut)
Pneumatic Positioning Lock
Color Monitor for easy operation
Glove-friendly keypad

Features

Automatic Lock Position

When the cover is lowered, the balancer will automatically begin to spin the shaft.

The balancer automatically stops in
the external unbalanced position.

The balancer automatically rotates
to the internal side.

Finally, it automatically stops in
the internal unbalanced position.

Linked directly to a standard monitor, the durable touch pad allows for a “gloved” input protecting the monitor from grease and grime.

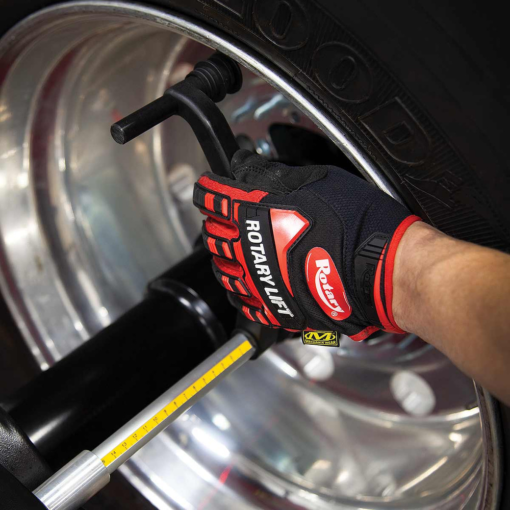

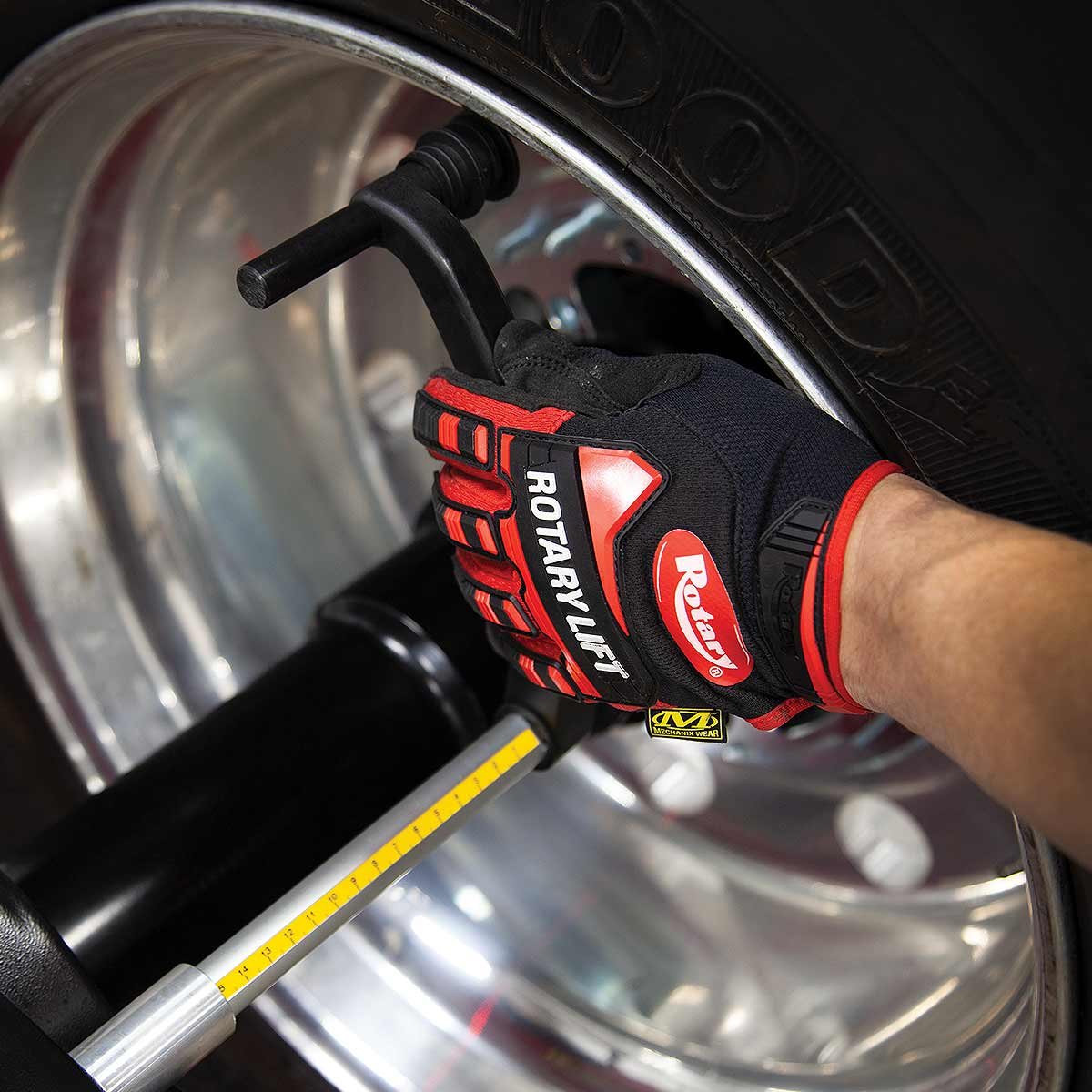

Digital calliper with optical sensor, with alloy shaft
reads distance and diameter up to 26″.

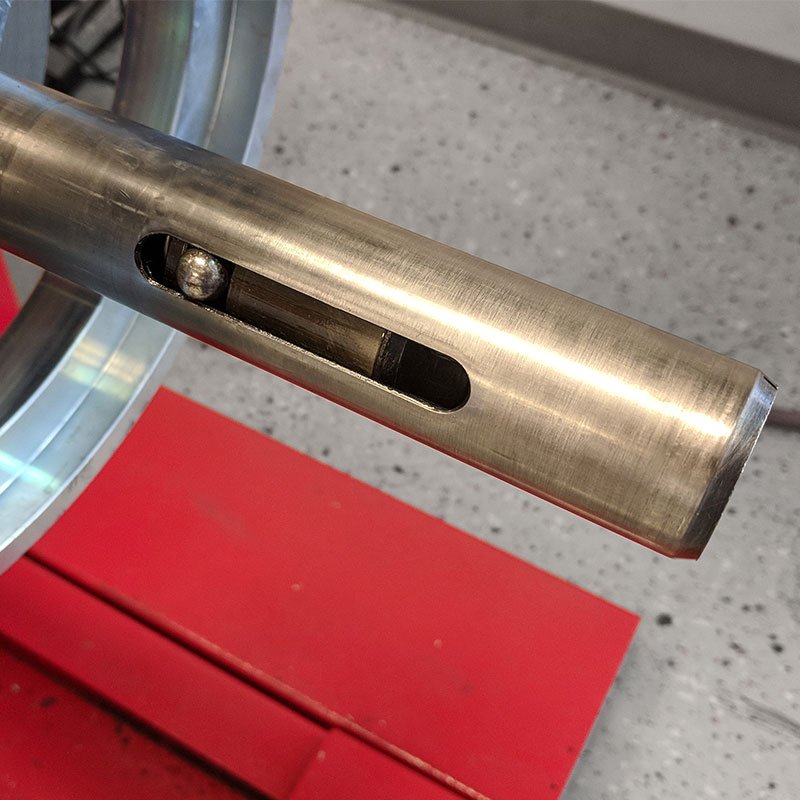

The Rotary R544Plus balancer comes with
a pneumatic lock on the wheel shaft.

Air lift allows quick and easy mounting of a wheel up to 441lbs. to the shaft.

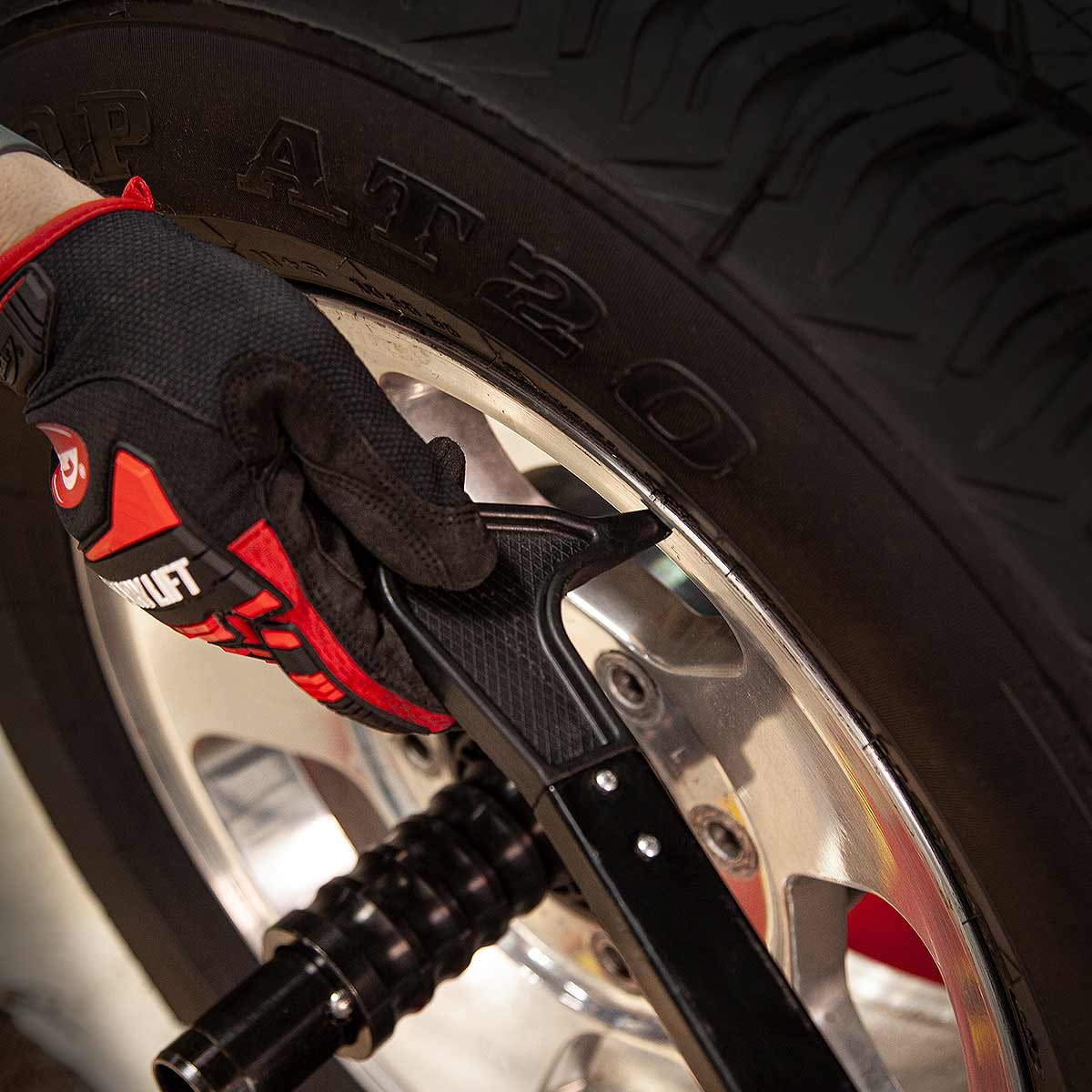

Width Arm Gauge comes with the R544Plus.
3D wheel-tire sensor caliper for an automatic measurement of the rim.

Includes a diameter gauge, weight hammer, 3.5oz test weight (100g), calibration bar and calibration weight.

Specifications

Technical Data	R544Plus
Rim Diameter	10″ – 30
Rim Width	1.5″ – 22″
Max Tire Diameter	51″
Maximum Wheel Weight	441 lbs. (200kg)
Read Out Accuracy	10g Commercial 1g Passenger Vehicle
Rotation Speed (rpm)	80 Commercial 100 Passenger Vehicle
Power Supply	110v / 60 Hz / 1Ø

Brand

Rotary
