About this item :
Ultimate Performance for Extreme Applications

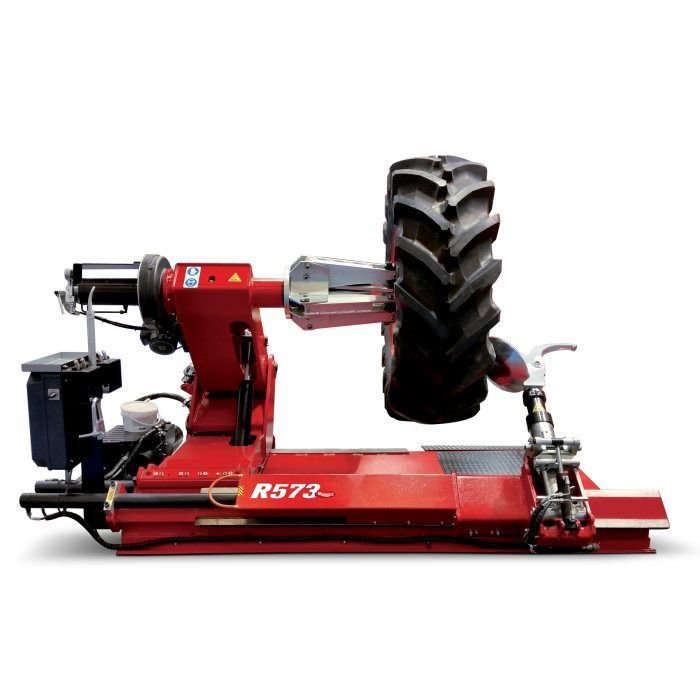

The Rotary R573 Extreme Heavy-Duty Tire Changer is designed to tackle the most demanding tire changing tasks with ease. Built for extreme heavy-duty use, this tire changer is perfect for large trucks, industrial vehicles, and heavy machinery. Its powerful motor and rugged construction ensure it can handle even the largest and toughest tires, making it an indispensable tool for any heavy-duty tire service operation.
Advanced Features for Superior Efficiency
Equipped with cutting-edge technology, the Rotary R573 offers advanced features that enhance efficiency and productivity. The integrated hydraulic system provides smooth and precise operation, allowing for quick and effortless tire changes. The intuitive control panel and ergonomic design make it easy for operators to use, reducing fatigue and increasing workflow efficiency. With its robust self-centering chuck and durable components, the R573 ensures a secure grip and stable performance every time.
Built to Last in the Harshest Conditions
Durability and reliability are at the core of the Rotary R573’s design. Constructed with high-quality materials and engineered to withstand the harshest conditions, this tire changer is built to last. Its heavy-duty components and robust build make it ideal for continuous use in demanding environments. Trust the R573 to deliver consistent, reliable performance, keeping your tire service operations running smoothly and efficiently.
UNIVERSAL TIRE CHANGER FOR EXTREME WHEEL DIMENSIONS
SPECIAL ORDER ELECTROHYDRAULIC CHANGER FOR TRUCKS, AGRICULTURAL AND EARTHMOVING VEHICLES. HIGH BEAD BREAKING FORCE The considerable bead breaking force makes mounting and demounting tires effortless. MULTIPLE ADJUSTABLE GUIDESThe electro-brake allows immediate stopping of the rotation to avoid any damage to tires.STAND-BY FUNCTIONAfter 5 sec. the machine has not been used, the motor will turn off.
- Console cable control unit with a metal sheath
- Double speed table rotation
- Quick locking manual rotation tool
- B530800 long bead lifting lever
- VSG108A25 / clamp for earthmoving wheels
- Tire paste lubricant and brush
- extreme heavy-duty tire changer
- commercial tire machine
- hydraulic tire changer
- self-centering chuck
- durable tire changer
R573BT NO CABLE TO CONTROL
Features

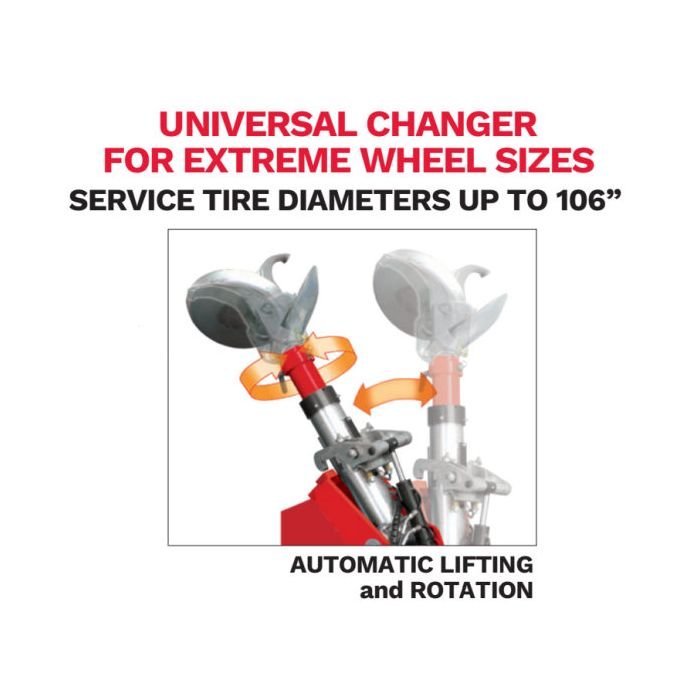

Service Tire Diameters up to 106″

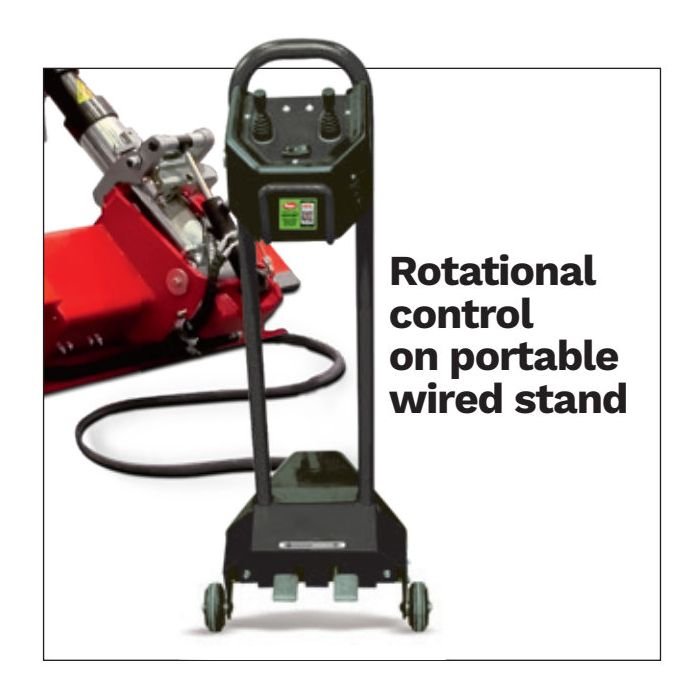

Rotational control on portable wired stand

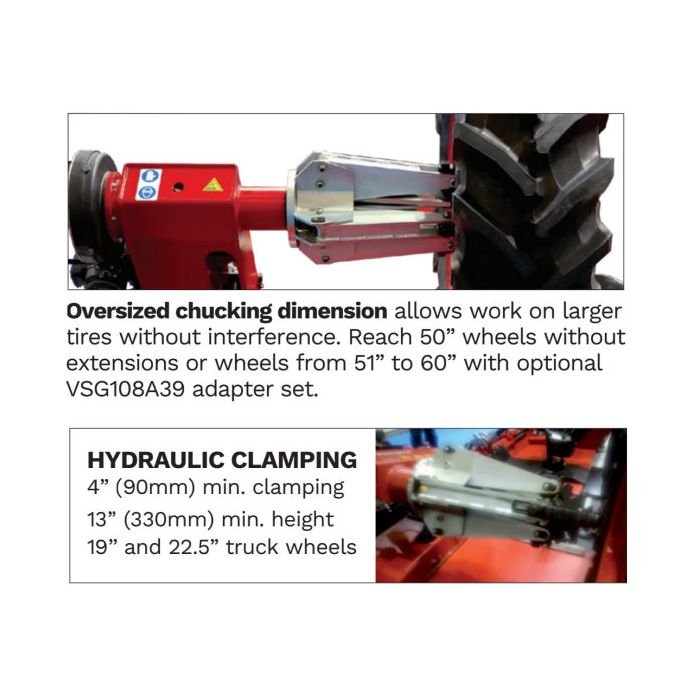

The oversized chucking dimension allows work on larger tires without interference. Reach 50” wheels without extensions or wheels from 51” to 60” with an optional VSG108A39 adapter set.
Specifications
|
TECHNICAL DATA |
R573 |
|
Chucking unit rotation motor |
3 Hp / 2.2 kW |
|
Hydraulic drive unit motor |
3.35 Hp / 2.5 kW |
|
Rim diameter |
11”- 50” |
|
Maximum tire diameter |
106” (2700mm) |
|
Maximum tire width |
69” (1750mm) |
|
Chuck rotation speed (rev/min) |
1 – 5 – 10 |
|
Power Supply |
220v / 3Ø / 60 Hz |
