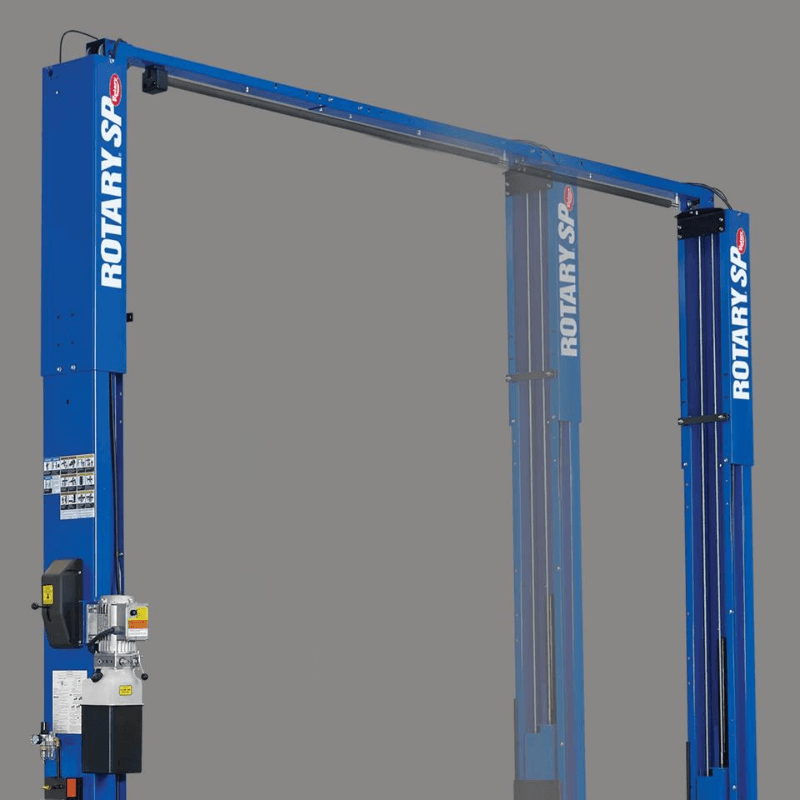

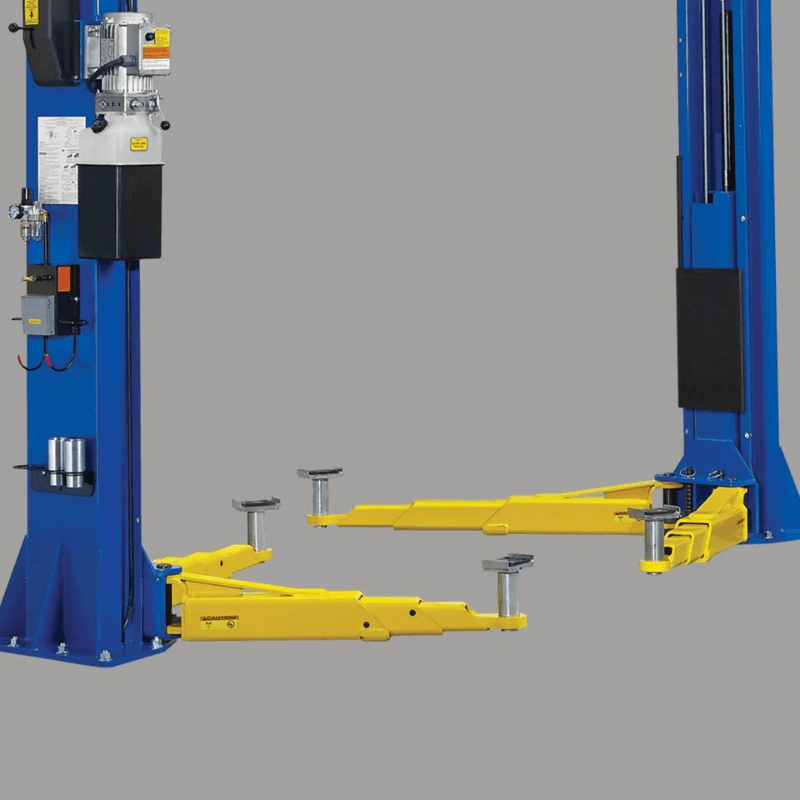

Rotary SPO12-WIDE 12,000lb 2 Post Lift – Extra Wide; ALI Certified

Rotary SPO12-WIDE 12,000 lb 2 Post Lift

The Rotary SPO12-WIDE two-post lift is a high-capacity, wide-symmetric lift engineered for shops that service taller and heavier vehicles. With 12,000 lbs lifting capacity and a broader footprint, it provides increased space between columns, allowing for smoother workflow and easier vehicle access. Its design accommodates larger bays, making it a reliable solution for both independent repair shops and dealerships.

Built for performance and durability, the SPO12-WIDE features adjustable TA truck adapters with multiple extension sets for framed vehicles. The heavy-duty hydraulic system ensures smooth and safe lifting, while the robust powder coat finish protects against wear and tear in busy shop environments. The lift completes a full rise in 60 seconds, combining efficiency with dependable operation.

Ideal for automotive service facilities handling trucks, vans, and SUVs, the SPO12-WIDE allows technicians to work efficiently without space constraints. Its wide design, adaptable arm reach, and compatibility with multiple vehicle types make it perfect for commercial shops aiming to increase throughput while maintaining safety and reliability.

2 Post  Lift SPO12-WIDE Specifications

• Lifting Capacity: 12,000 lbs

• Rise Height: 75 3/4” – 78 1/8”

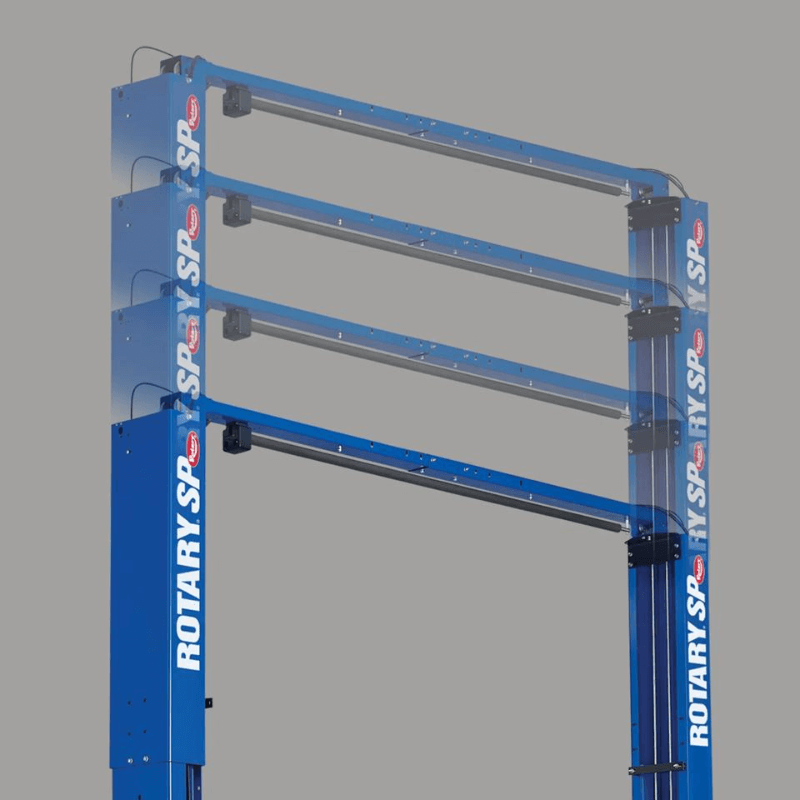

• Overall Height: Standard: 167 1/2” | Extended: 179 1/2”

• Overall Width: 154 5/8”

• Drive-Thru Width: 119 3/8”

• Front Arm Reach (Min/Max): 27 1/2” – 59”

• Rear Arm Reach (Min/Max): 27 1/2” – 59”

• Minimum Adapter Height: 4 3/4”

• Minimum Bay Size: 168” x 312” (14’ x 26’)

• Minimum Ceiling Height: Standard: 168 1/2” | Extended: 180 1/2”

• Motor / Voltage: 2 HP, 208–230V, Single Phase

• Time of Full Rise / Descent: 60 seconds

SPO12-WIDE 12,000 Lbs. Capacity Two-Post Lift Special Features

• Wide symmetric two-post lift for increased space between columns

• Adjustable TA truck adapters with 3 1/2” and 5 1/4” extension sets

• Certification: ALI Certified

• Heavy-duty hydraulic lifting system ensures smooth, reliable operation

• Durable powder coat finish for long-lasting commercial use

• Fast full rise and descent in 60 seconds for efficient workflow

• Accommodates taller and heavier vehicles with larger bay requirements

• Ideal for independent repair shops and dealerships needing maximum versatility

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
