Rotary SPO20 20,000lb 2 Post Lift – Adjustable Width/Height; ALI Certified

SPO20 Heavy Duty 2 Post Lift – Adjustable

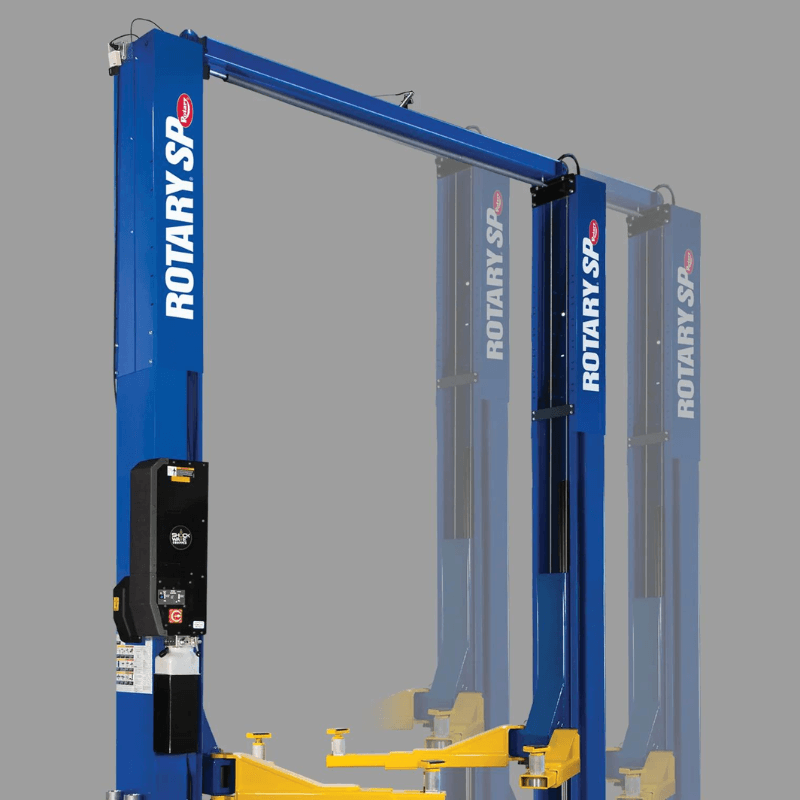

The Rotary SPO20 two-post lift is a heavy-duty, symmetric lifting solution engineered for shops that service larger, heavier vehicles with speed and precision. With a massive 20,000 lb lifting capacity, the SPO20 is built to handle trucks, vans, and commercial vehicles while maintaining a low-profile stance that supports safe and efficient vehicle spotting.

Designed for performance and durability, the SPO20 features Rotary’s legendary Double-S column design, delivering exceptional structural strength and smooth carriage travel. Multiple width, height, and low-ceiling configurations ensure the lift can be tailored to a wide range of shop layouts.

Ideal for high-volume commercial repair facilities, fleet service centers, dealerships, and heavy-duty workshops, the SPO20 maximizes productivity without compromising safety. Its extreme arm reach, wide drive-thru clearance, and true symmetric lifting design make it a future-ready investment for shops demanding power, flexibility, and uptime.

2 Post  Lift SPO20 Specifications

• Lifting Capacity: 20,000 lbs

• Maximum Load Per Arm: 5,000 lbs

• Rise Height: 80″

• 3 Width Settings:

  • Wide: 167″

  • Standard: 161″

  • Narrow: 155″

• 3 Drive-Thru Width Settings:

  • Wide: 117 11/32″

  • Standard: 111 11/32″

  • Narrow: 105 11/32″

• 3 Width Inside Columns Settings:

  • Wide: 132 15/32″

  • Standard: 126 15/32″

  • Narrow: 120 15/32″

• Front Arm Reach (Min/Max): 34 11/16″ – 64″

• Rear Arm Reach (Min/Max): 34 11/16″ – 64″

• Minimum Adapter Height: 5 31/32″

• Maximum Adapter Height: 8 1/32″

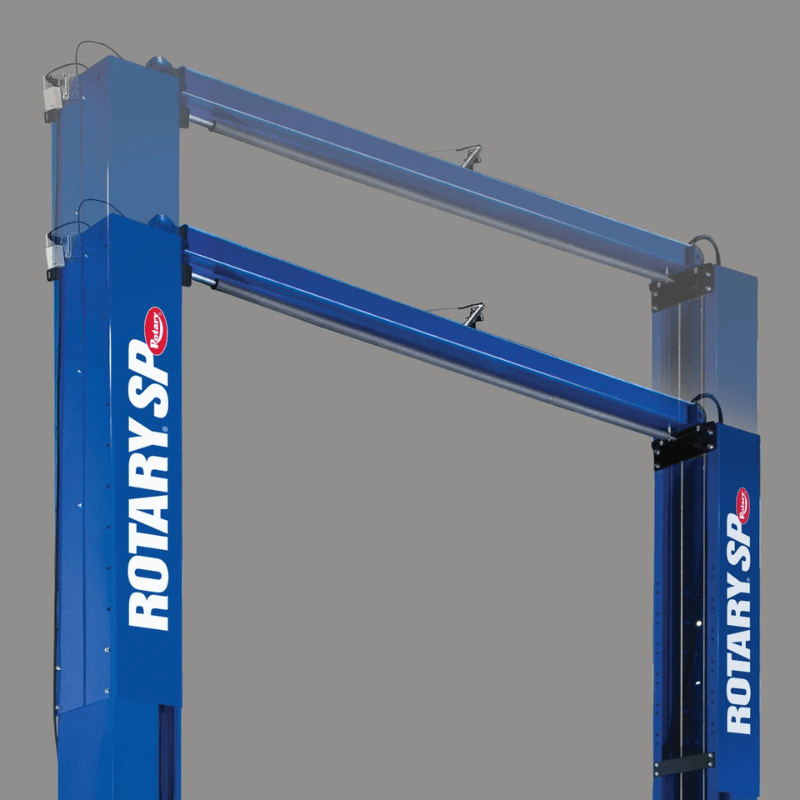

• 2 Height Configurations:

  • Standard Model (SPO20) – Adjustable Heights 180″, 186″, 192″, 198″

  • Low-Ceiling Model (SPO-LC) – Adjustable Heights 162″, 168″, 174″

• Required Ceiling Height:

  • Standard: 182″ – 200″

  • Low-Ceiling: 164″ – 176″

• Motor: 4 HP

• Voltage: 208–230V

• Time of Full Rise: 81 seconds

• Minimum Bay Size: 180″ x 360″

SPO20 20,000 Lbs. Two-Post Lift Special Features

• 20,000 lb capacity for heavy-duty trucks and commercial vehicles

• True symmetric lifting for balanced load distribution

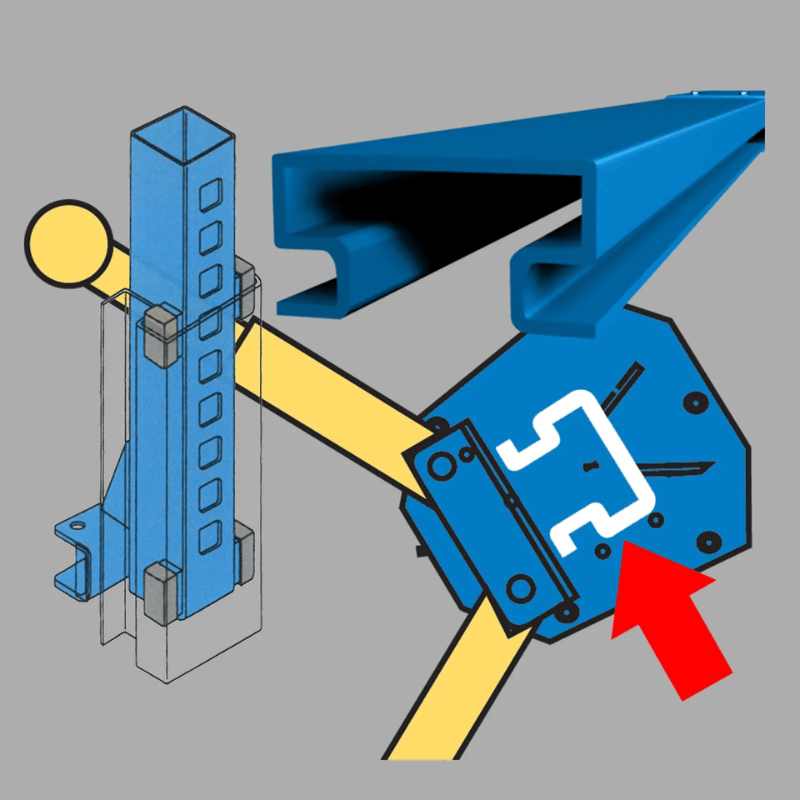

• Legendary Double-S column design for maximum strength and longevity

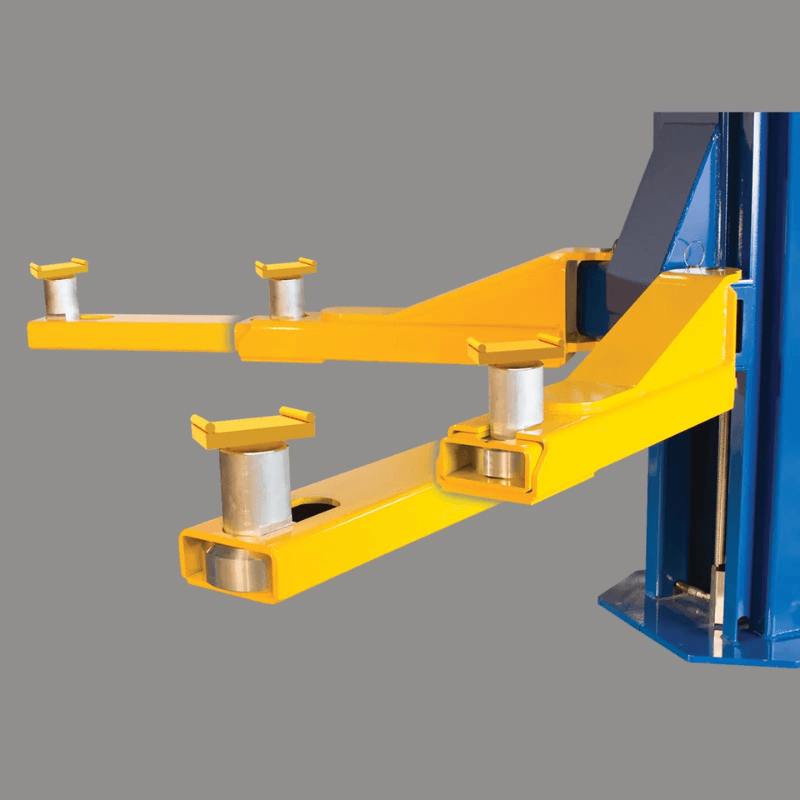

• Extreme arm reach for wide vehicle compatibility

• Multiple width, height, and low-ceiling configurations available

• Low-profile design for easier vehicle spotting and positioning

• Built for high-volume, professional shop environments

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary SPO20 Manual

  Rotary SPO20 Spec Sheet
