Triumph NSS-11 11,000lb 4 Post Lift

NSS11000 11,000lb 4 Post Lift by Triumph

Meet Triumph’s NSS11000, the heavyweight champion of automotive lifts. This 11,000 lb capacity titan stands ready to elevate your garage game to new heights – 86.5 inches to be exact. With a runway length that rivals a dragstrip at 196 inches, it’s ready to handle everything from compact sports cars to full-size pickup trucks.

This lift isn’t just strong; it’s smarter than a Tesla’s autopilot. Featuring 11 locking positions, a lightning-fast 40-second lift time, and a single-point lock release, it’s as user-friendly as a ’57 Chevy. The included caster kit lets you choreograph your garage space like a pit crew chief, while the jack tray and six drip trays keep your workspace cleaner than a Concours d’Elegance show car. Powered by a standard 110-volt supply, the NSS11000 is your ticket to automotive paradise.

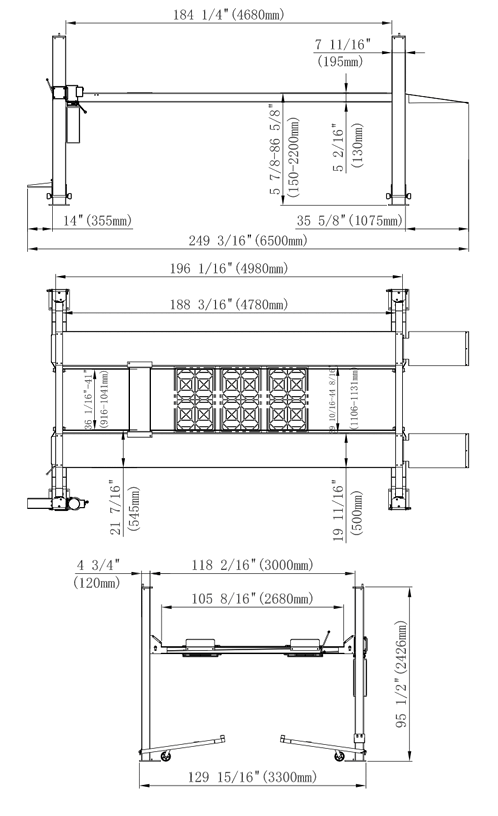

NSS-11 Specifications:

• Lifting Capacity: 11,000 lbs

• Overall Height: 95.5″

• Overall Length (Without Ramps): 216″

• Overall Width: 130″

• Maximum Lift Height: 86.5″

• Height Under Runway: 81″

• Runway Length: 196″

• Runway Width: 19.5″

• Drive-Thru Width: 118″

• Width Between Runways: 39″ or 44.5″

• Lowered Height: 5″

• Locking Positions: 11

• Base Plate Size: 11.5″ × 9.75″

• Lock Release: Single-point

• Lift Time: 40 seconds

• Power Requirement: 110V (30-amp breaker)

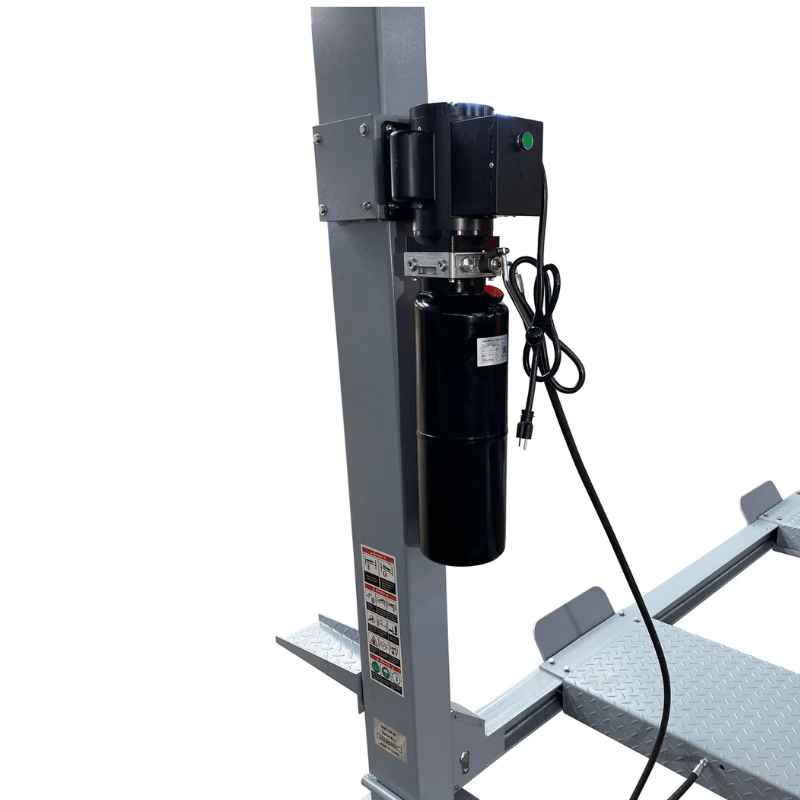

• Motor: 3 HP

• Shipping Weight: 2,400 lbs

• Pallet Dimensions: 196″ × 23″ × 31″

Triumph NSS-11 4 Post Lift Special Features:

• Formerly the NSS-10 / NSS10000, now upgraded to 11,000-lb capacity at the same price

• Ideal for vehicle storage and service applications

• Includes caster kit for portability

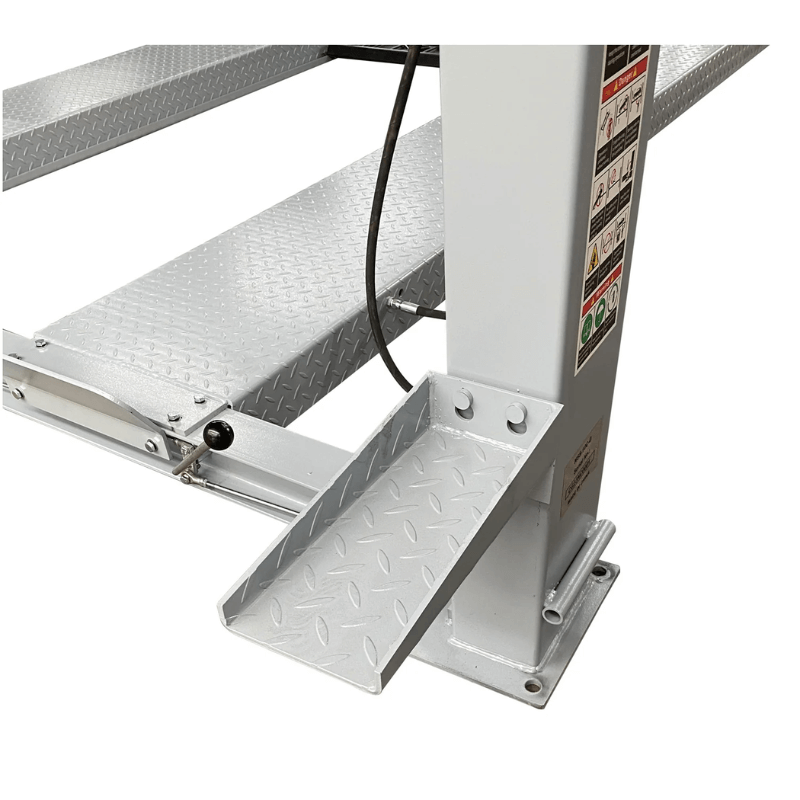

• Includes jack tray

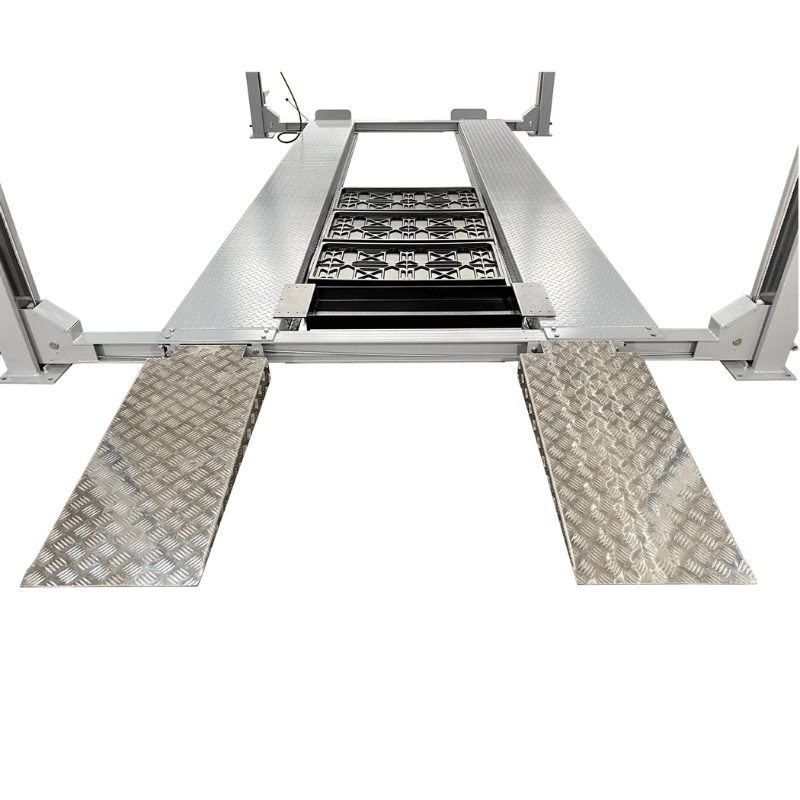

• Includes (3) drip trays to prevent fluid transfer between vehicles

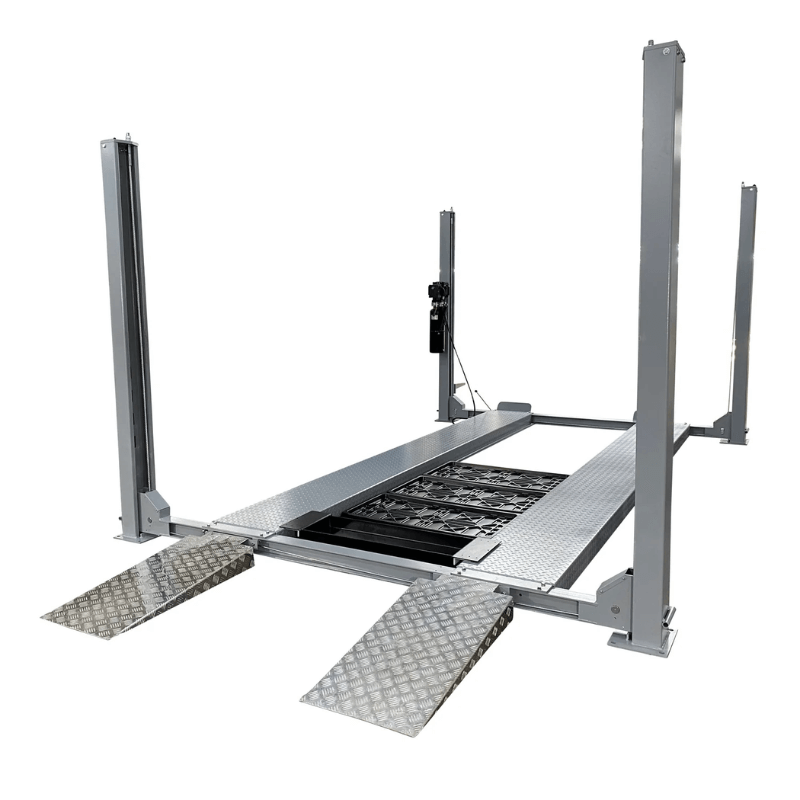

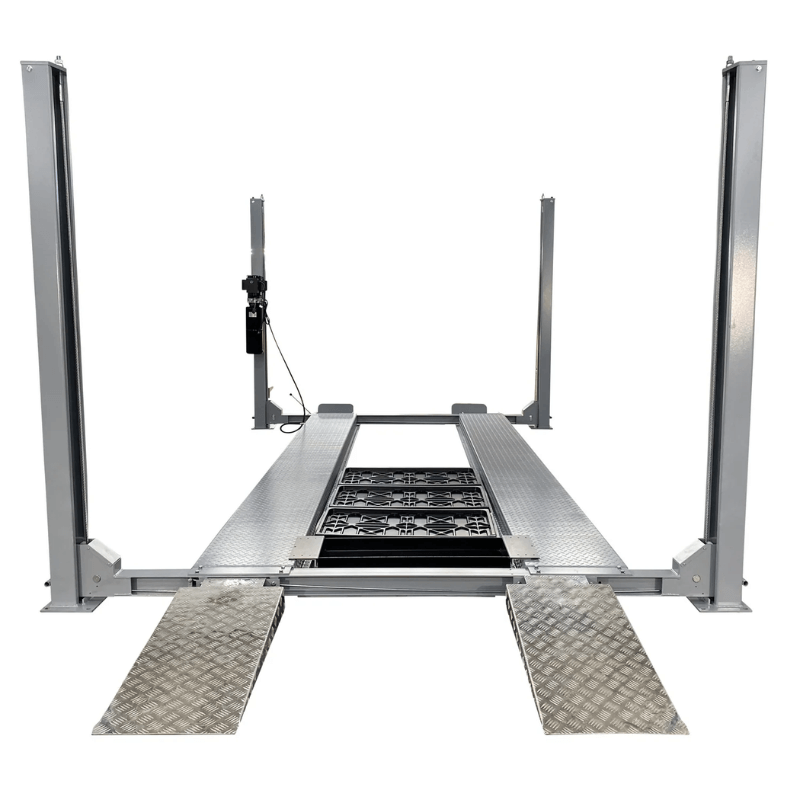

• Aluminum ramps—lighter and easier to handle than steel

• Portable, space-saving design

• Proven design with over 20 years of reliable use

• Automatic locking system with 11 positions for safety

• Default color: Grey

• Optional Item (Sold Separate)
  • RJ-5000 – 5,000lb Rolling Jack – Perfect match for your NSS11000, 11,000 lb 4 Post Lift

NSS11000 Manual

  Triumph NSS11000 Installation Instruction

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
