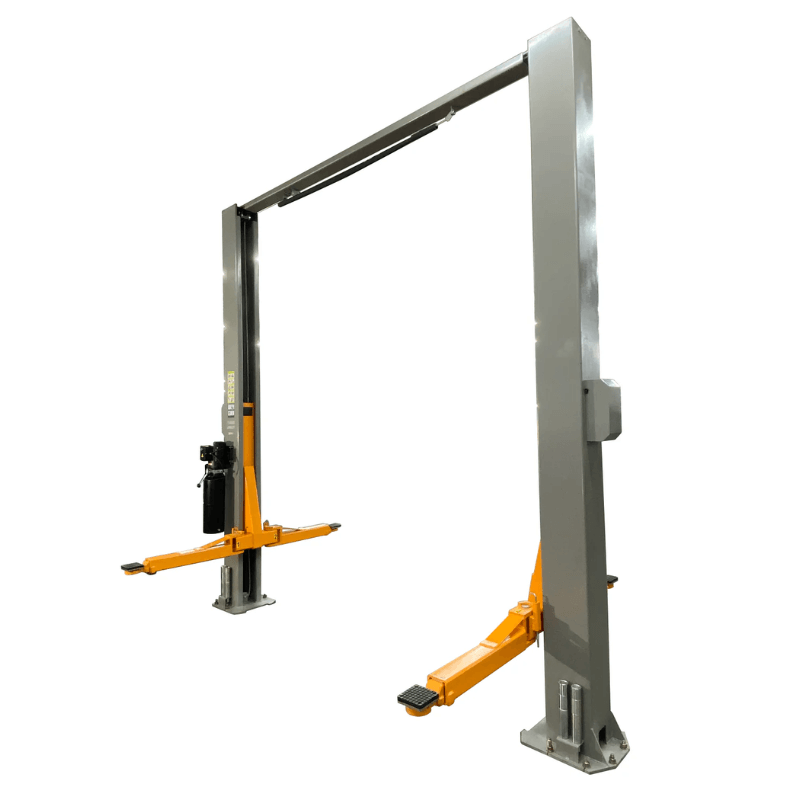

Triumph NTO-11A, 11,000 lb 2 Post Lift

NTO-11 11,000 lb 2 Post Lift Triumph

Oh, look at you, dealing with that outdated lift that struggles to handle anything more substantial than a toy car. Why not upgrade to the Triumph NTO-11A 11,000 lb Two Post Auto Lift and finally give your vehicles the lift they deserve? This beauty isn’t just for those dainty little sedans; it’s built to handle trucks and anything else you can throw at it with its impressive 11,000 lb capacity. The overhead design means you won’t be tripping over cables or bumping into hoses—because who needs obstacles in a busy workshop?

Equipped with a single-point safety release and direct drive cylinders, the NTO-11A ensures smooth, efficient operation while you enjoy a leisurely 40-second lift time. The heavy-duty truck adapters and 3/8″ aircraft-sized cables are there to make sure you never have to worry about balancing issues or unreliable performance again. And of course, it fits perfectly with your 4″ concrete slab—because, naturally, you’ve got that covered, right? Enjoy the luxury of a lift that actually works with you, not against you.

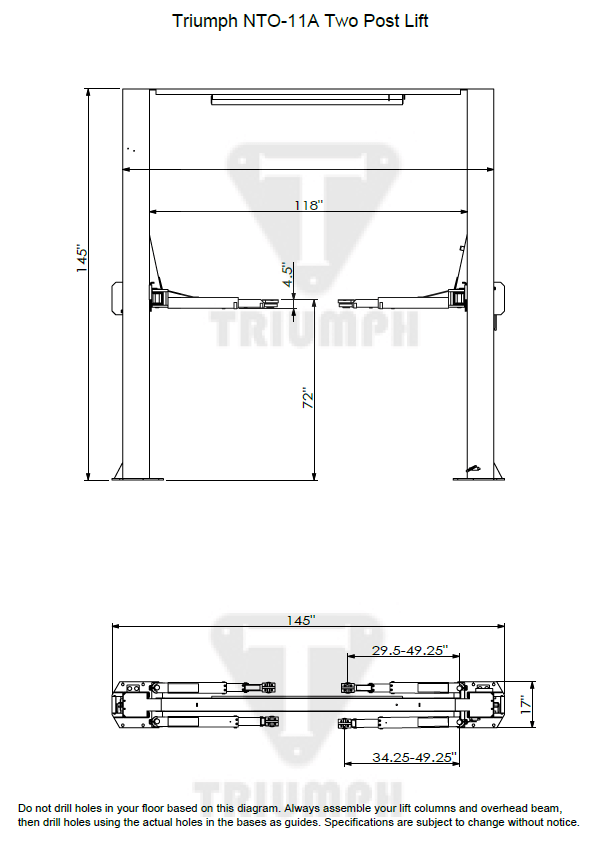

Triumph NTO11A Specifications:

• Lifting Capacity: 11,000 lbs

• Overall Height: 145″

• Overall Width: 145″

• Maximum Lifting Height: 72″

• Distance Between Posts: 118″

• Drive-Thru Width: 108″

• Lowered Height: 4.5″

• Base Plate Size: 18″ × 20″

• Arms: Asymmetric

• Truck Adapters: Yes

• Lock Release: Single-point

• Electric Safety Cutoff: Yes

• Lift Time: 40 seconds

• Power Requirement: 220V

• Motor: 3 HP

• Concrete Requirement: 4″ slab, 3,000 PSI

• Style: Overhead

• Unit Weight: 1,590 lbs

NTO11A 11,000lb 2 Post Auto Lift Features:

• Overhead design keeps the floor clear for easy access

• Single-point safety release for simplified operation

• Direct-drive cylinders for smooth, reliable lifting

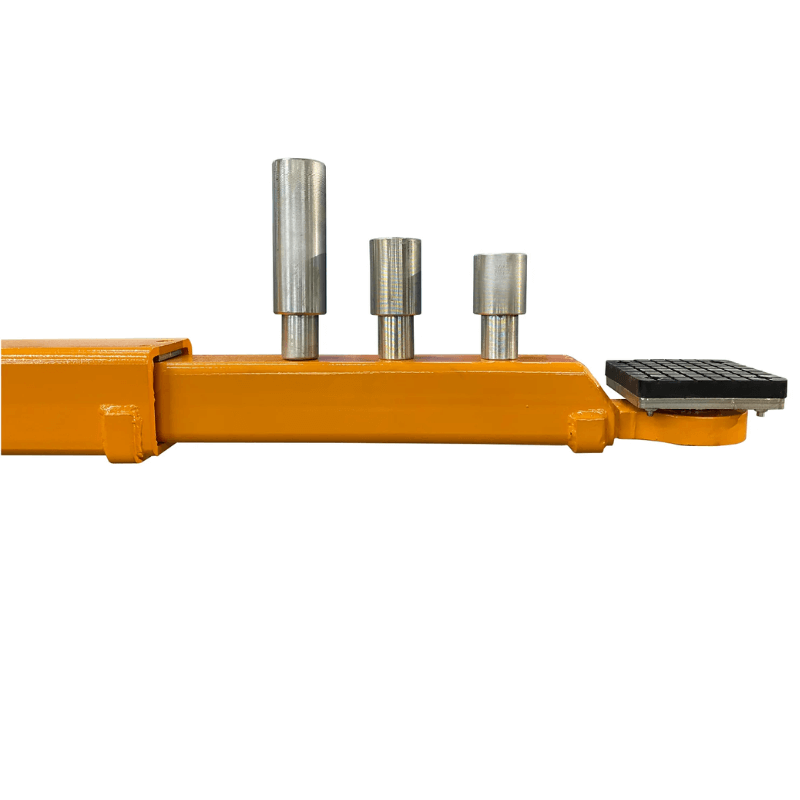

• Heavy-duty truck adapters for a wide range of vehicles

• 3/8″ aircraft-size synchronization cables for balanced lifting

• Warranty: 1-year parts only

NTO-11A Manual

   Triumph NTO-11A Installation Instruction

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
