Triumph NTO-9AE 9,000 lb 2 Post Lift

NTO-9AE 9,000 lb 2 Post Lift by Triumph

Stuck with a lift that’s slower than Monday morning traffic and makes every job feel like a workout? Sick of holding your breath every time you raise a vehicle, hoping today isn’t the day something goes wrong? Let’s be real: you deserve better than that rusty, outdated contraption that calls itself a lift. Every second wasted, every corner cut, is time you could spend on your next job or, better yet, finishing early for once.

Enter the Triumph NTO-9AE, the lift that puts your current setup to shame. With a 9,000 lb capacity, this beast is built to raise just about anything you roll in. It has dual-point safety releases, an electric safety cutoff, and a lift time so quickly you’ll wonder why you didn’t upgrade sooner. Plus, it’s all wrapped up in a space-saving overhead design that keeps your floor clear and your workflow smooth. The NTO-9AE isn’t just a lift—it’s a whole new level of garage greatness. Ready to level up?

Triumph NTO 9AE 2 Post Lift Specifications:

• Capacity: 9,000 lbs

• Overall Height: 145.5 inches

• Overall Width: 134.5 inches

• Lifting Height: 72 inches

• Distance Between Posts: 109 inches

• Drive-Through Width: 92 inches

• Lowered Height: 4.5 inches

• Base Plate Size: 18″ x 14″

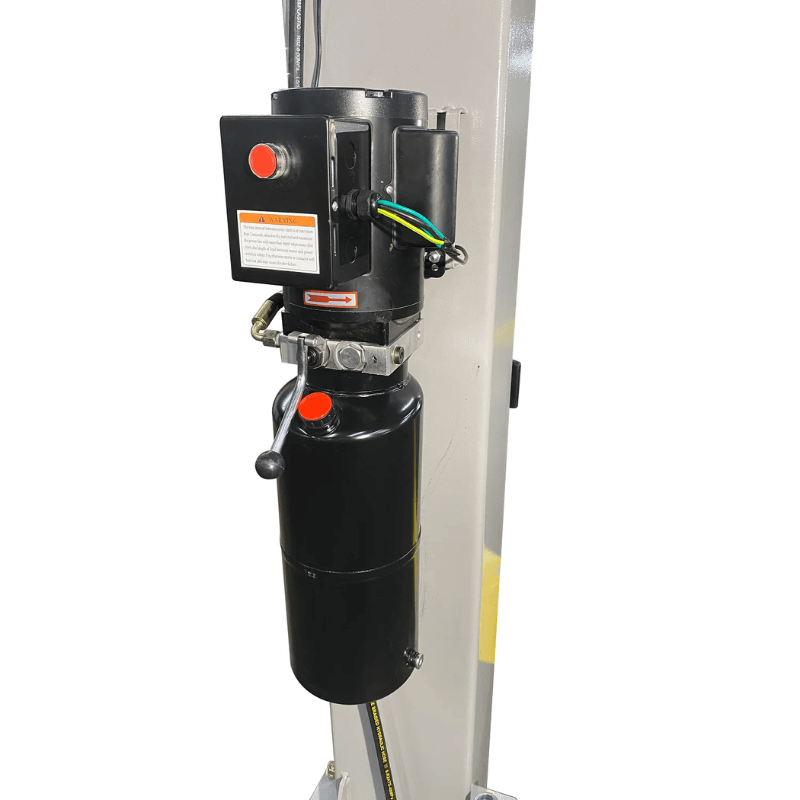

• Motor: 3 HP

• Voltage: 110V (30 amp breaker)

• Lifting Time: 50 seconds

• Concrete Requirement: 4″ slab, minimum 3,000 PSI

• Shipping Weight: 1,407 lbs

• Pallet Dimensions: 121″ x 20″ x 36″

Triumph 9AE 9,000lb 2 Post Auto Lift Special Features:

• Dual-point safety releases for secure operation

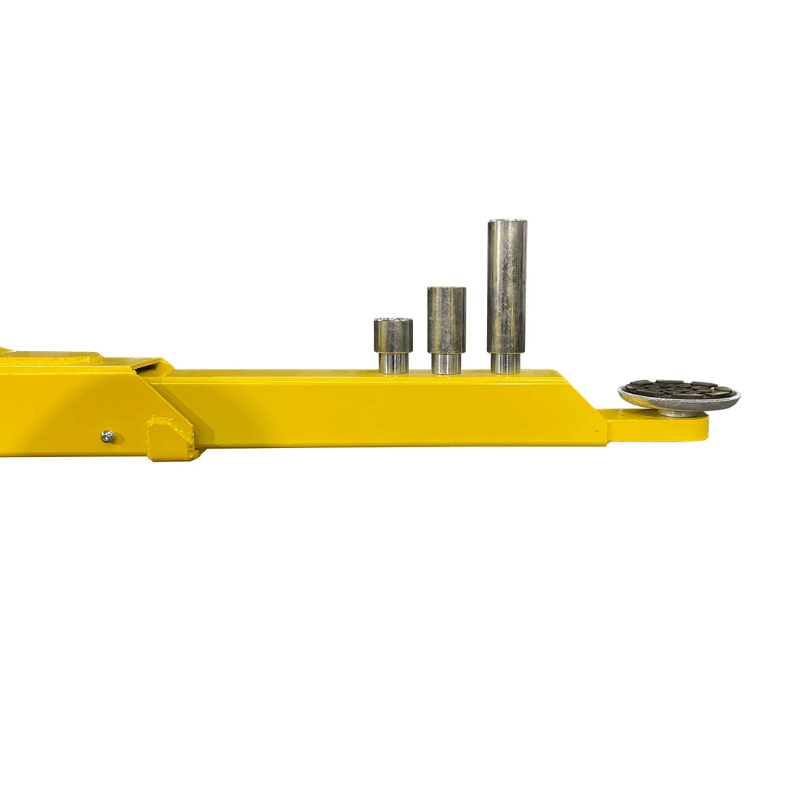

• Includes truck adapters and floor mounting anchor bolts

• Electric safety cutoff for added protection

• Overhead design for maximum vehicle clearance

• Suitable for cars, trucks, and SUVs

• Certification: CE Certified, manufactured in ISO9001-certified factories

• Warranty: 1-year parts-only

NTO-9AE Manual

   Triumph NTO-9AE Installation Instruction

  Triumph NTO-9AE Spec Sheet

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
