Triumph NTR-16 16,000 lb 4 Post Lift With (2) RJ-9000 Rolling Bridge Jack Combo

NTR-16 16,000 lb 4 Post Lift With (2) RJ-9000 Rolling Bridge Jack Combo by Triumph

The Triumph NTR-16 4-Post Car Lift and RJ-9000 Rolling Bridge Jack make the ultimate heavy-duty duo for any professional garage or serious enthusiast. With an impressive 16,000 lb lifting capacity, the NTR-16 effortlessly hoists everything from pickups to fully-loaded commercial vans, providing a rock-solid foundation for maintenance and repairs. Its 12 lock positions and adjustable runway spacing ensure secure lifting and compatibility with a variety of vehicles, while the 74.4-inch maximum height gives ample clearance for undercarriage work. Built for reliability, this lift features rugged construction and a 220V single-phase system for smooth operation. At the same time, the RJ-9000 Rolling Bridge Jack enhances your setup by delivering a 9,000 lb lifting capacity for precision axle work. Whether you’re tackling brake jobs, suspension repairs, or wheel servicing, this powerful jack lets you raise the front or rear axles with ease, offering adjustable lifting pads (40.1″ to 59.8″) and height adapters (1.5″ and 5″) for versatility across various vehicle types.

Together, the NTR-16 and RJ-9000 create a complete lifting solution that maximizes both strength and flexibility in the shop. The lift’s spacious 161-inch overall width and 224-inch runway length provide plenty of working room, while the RJ-9000’s compact, roll-in design makes positioning effortless. With a maximum lifting height of 32.4 inches and a lowered height of just 16.9 inches, the bridge jack adapts seamlessly to different vehicle profiles, making axle work safer and more efficient. Whether you’re a pro technician handling high-demand jobs or an auto enthusiast fine-tuning your latest project, this powerhouse combination ensures you have the stability, control, and precision needed to tackle any task with confidence.

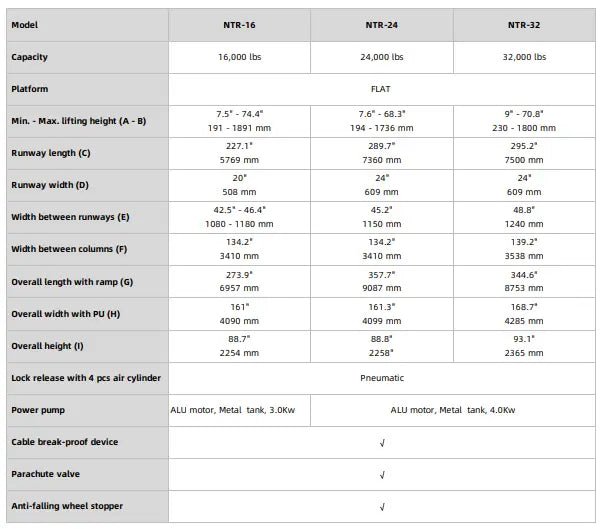

Combo NTR-16 + RJ-9000 Specification

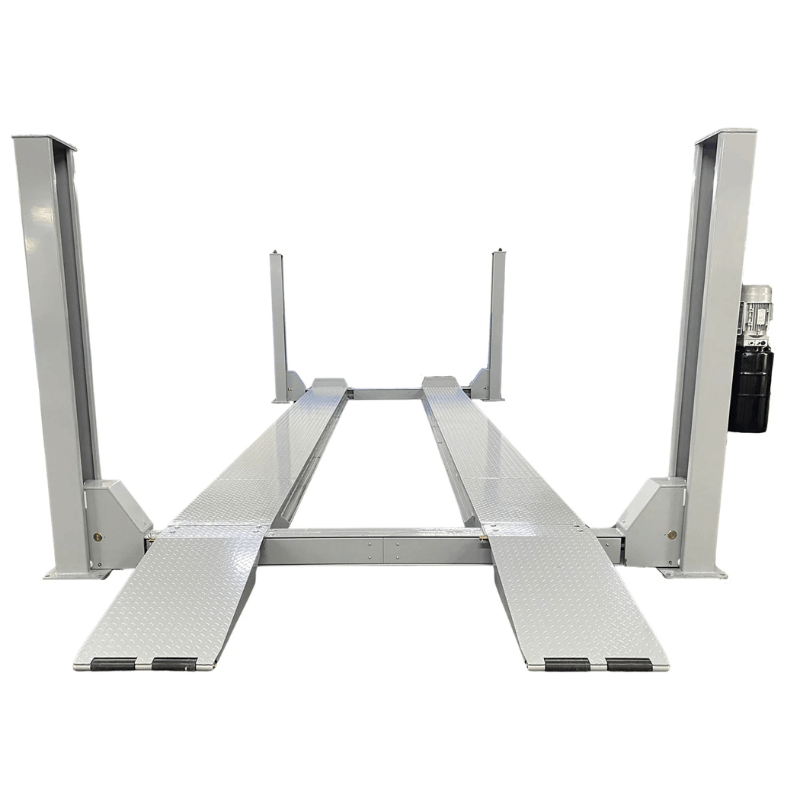

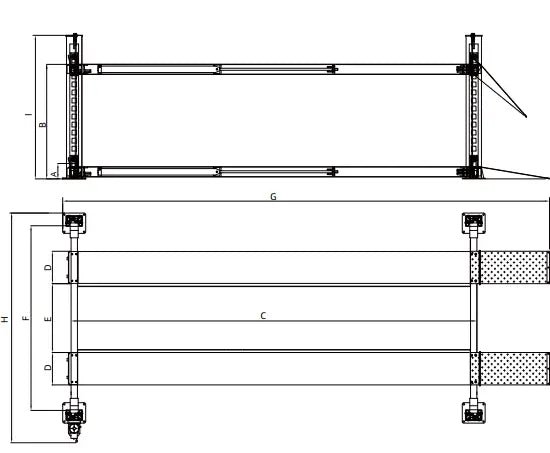

NTR-16

• Lifting Capacity: 16,000 lbs
• Overall Height: 88.7″
• Overall Length Without Ramps: 235″
• Overall Length With Ramps: 273.9″
• Overall Width: 161″ (base plate to base plate)
• Minimum Runway Height: 7.5″
• Maximum Lifting Height: 74.4″
• Runway Length: 224.5″
• Runway Width: 20″
• Width Between Runways: 42.5″ – 46.4″
• Width Between Columns: 134.2″
• Drive-Thru Clearance: 114″
• Number of Lock Positions: 12
• Electrical Requirement: 220V Single Phase
• Shipping Weight: 3,112 lbs
• Pallet Dimensions: 234x23x43 inches

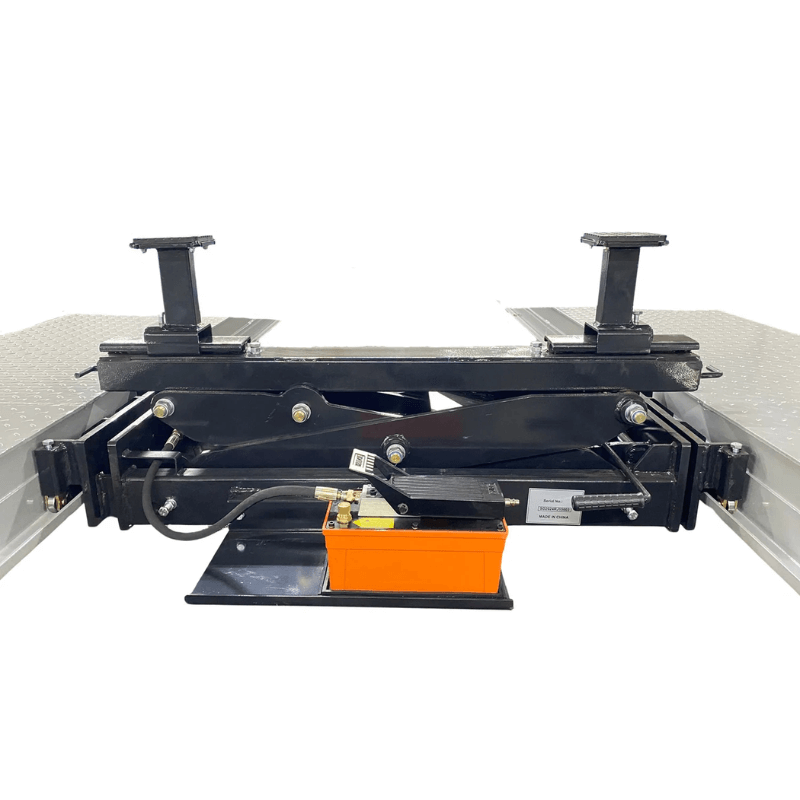

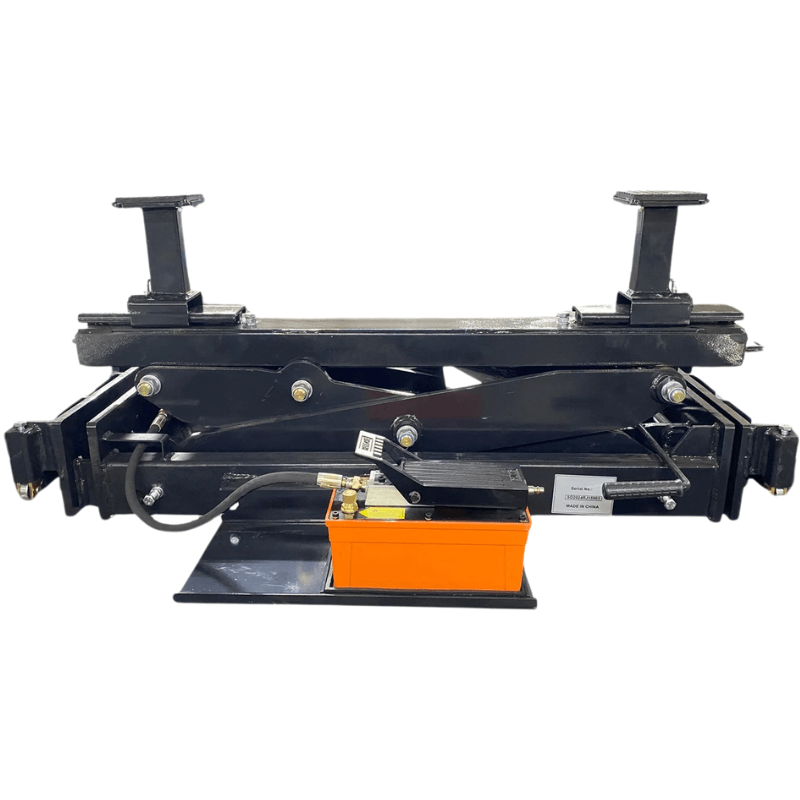

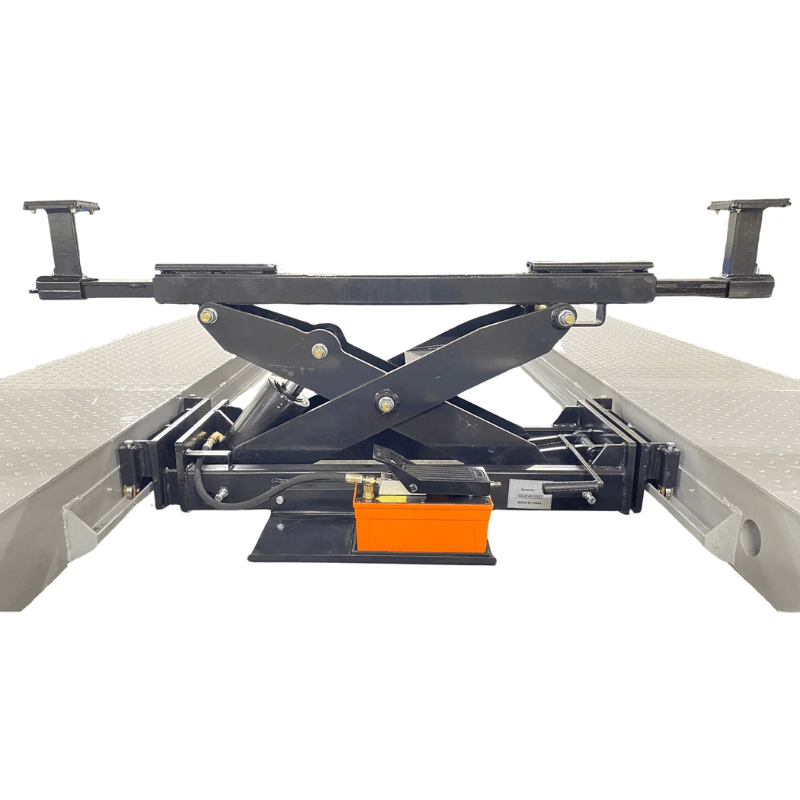

RJ-9000

• Lifting Capacity: 9,000 lbs
• Lowered Height: 16.9″
• Maximum Lifting Height: 32.4″
• Minimum Width Between Pads: 40.1″
• Maximum Width Between Pads: 59.8″
• Minimum Width Between Runways: 43.8″
• Maximum Width Between Runways: 52.3″
• Shipping Weight: 600 lbs
• Shipping Dimensions: 48x28x16 inches

NTR-16 + RJ-9000 Combo Special Features

NTR-16

• Heavy-duty steel construction for maximum durability
• 12 lock positions for secure and adjustable lifting heights
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Wide runways to accommodate various vehicle sizes
• Adjustable spacing between runways for flexibility
• 220V single-phase electrical system for efficient power usage
• Compact yet spacious design to fit large vehicles without sacrificing accessibility
• Precision-engineered for smooth operation and stability
• Easy-to-use controls for enhanced operator convenience
• Ideal for servicing commercial vehicles, light trucks, and more

 RJ-9000

• High 9,000 lb lifting capacity, ideal for axle lifting and suspension work
• Adjustable lifting pads to accommodate a wide range of vehicle sizes
• Two sets of height adapters (1.5″ and 5″) for precise lifting height adjustments
• Compact and portable design for easy positioning and operation
• Compatible with various four-post lift runway widths (43.8″ to 52.3″)
• Robust steel frame construction for durability and long-lasting performance
• Wide lifting range from 16.9″ to 32.4″ for versatile applications
• User-friendly operation ensures safe and efficient lifting
• Perfect for professional and home garage use, servicing cars, SUVs, and light trucks

NTR-16 Manual

No documents

Triumph NTR-16  With (2) RJ-9000 Optional Item Sold Separately

• NTR-16 16,000 lb 4 Post Lift
• RJ-9000 Rolling Bridge Jack

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
