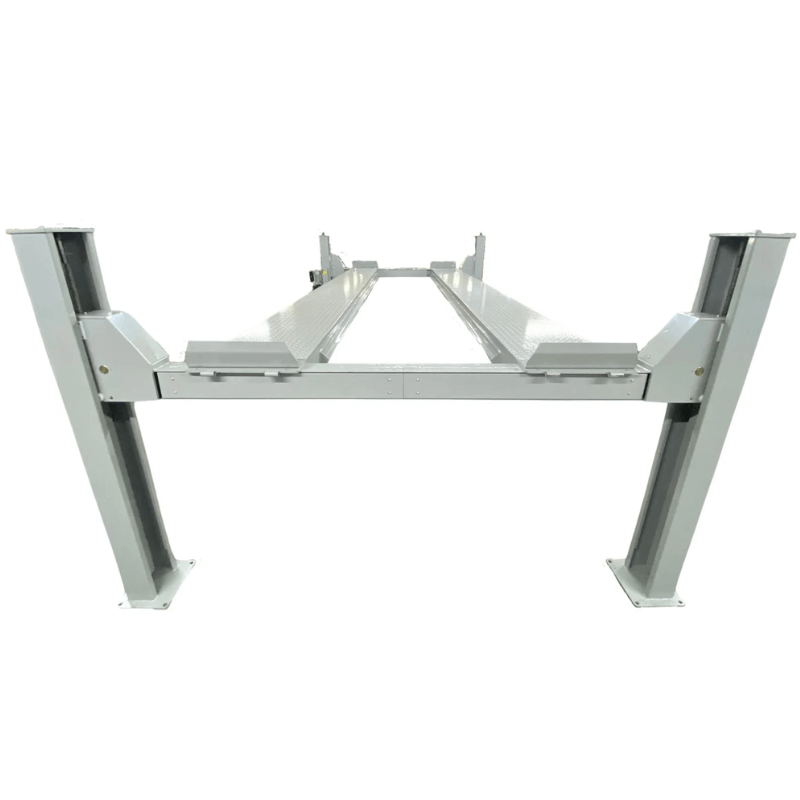

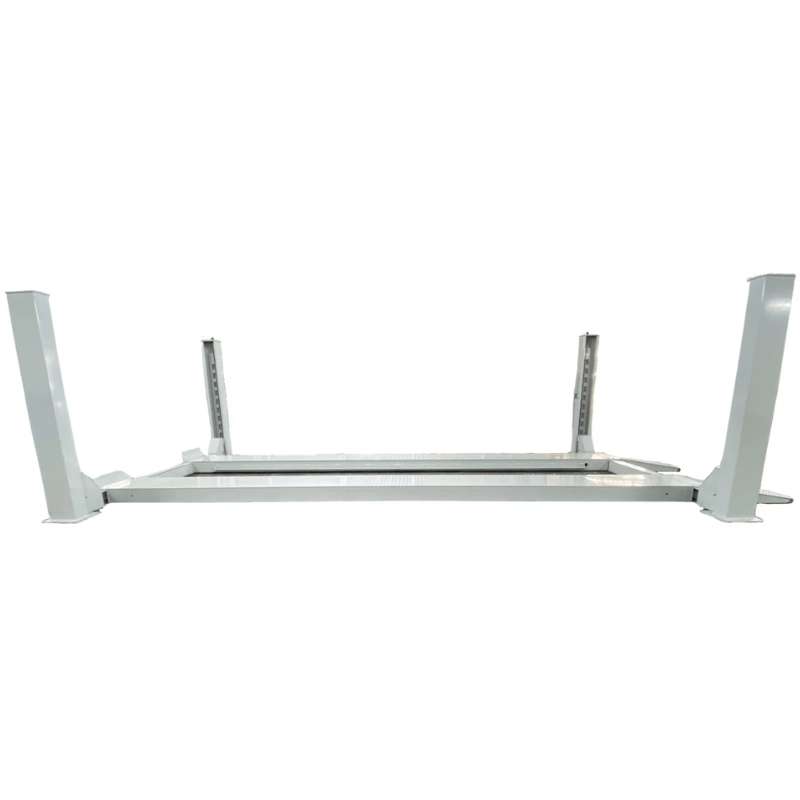

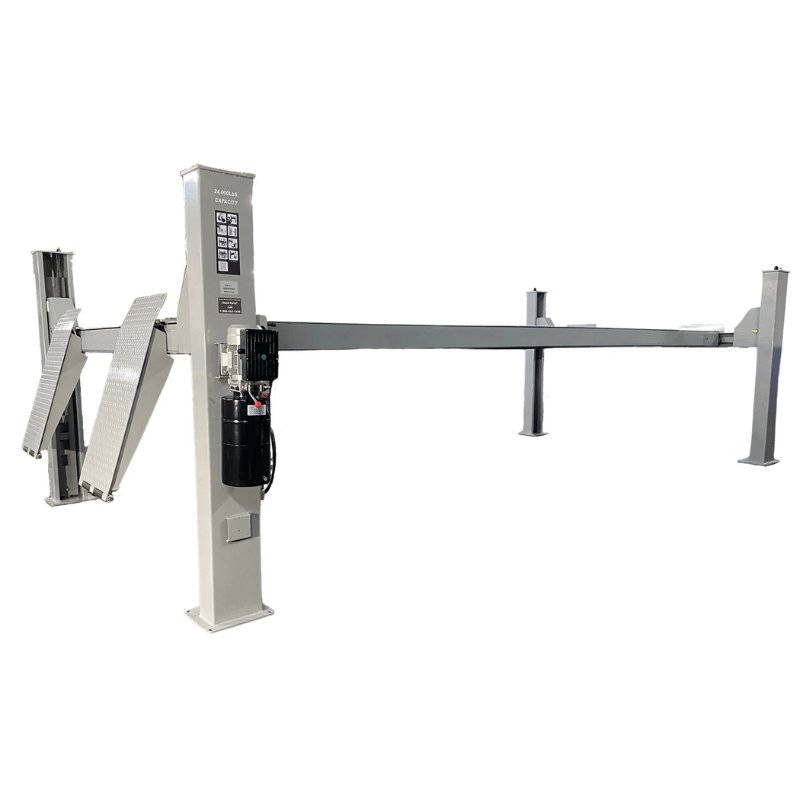

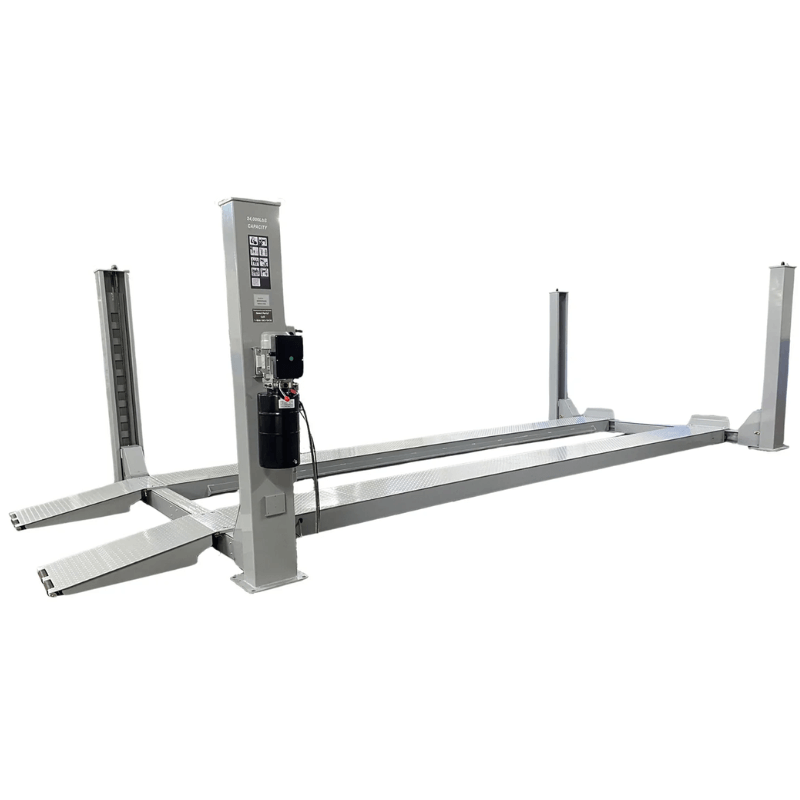

Triumph NTR-32 32,000lb 4 Post Car Lift

NTR-32 32,000 lb 4 Post Car Lift by Triumph

When you’re lifting giants, you need a true titan. Meet the NTR-32, Triumph’s ultimate heavy-duty four-post lift, designed to hoist an incredible 32,000 lbs. Whether it’s a bus, a commercial truck, or a colossal fleet vehicle, this lift is ready for the job. With a maximum lifting height of 70.8 inches and 9 lock positions, it offers flexibility and safety for handling vehicles of all shapes and sizes. The wide, adjustable runways (spanning 48.75 to 52.7 inches) ensure a secure grip on even the broadest of vehicles, giving technicians plenty of room to work with confidence.

Built like a fortress, the NTR-32 features a rugged steel frame and precision-engineered components, ensuring superior stability under heavy loads. The 220V single-phase power system delivers smooth, reliable performance, while the expansive 295.2-inch runway length accommodates oversized vehicles effortlessly. If you’re looking for a lift that laughs in the face of heavyweight challenges, the NTR-32 is your go-to solution for serious automotive shops and industrial operations.

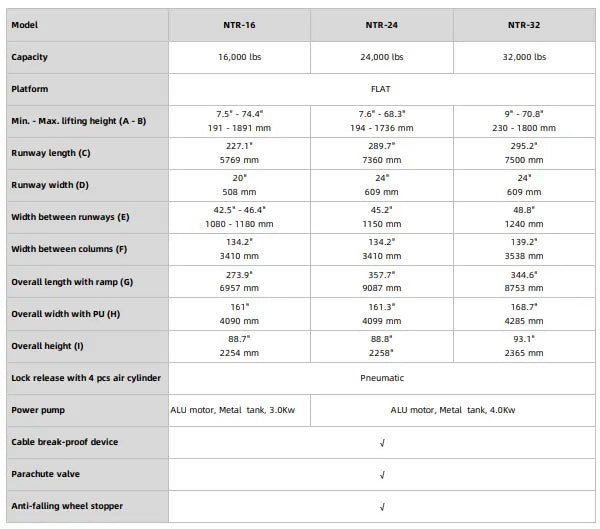

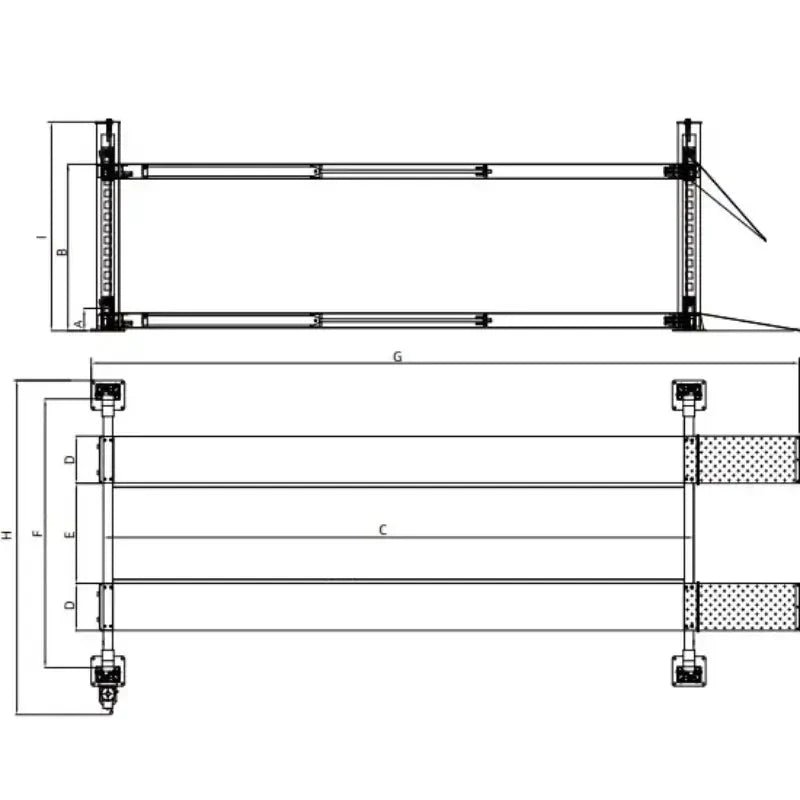

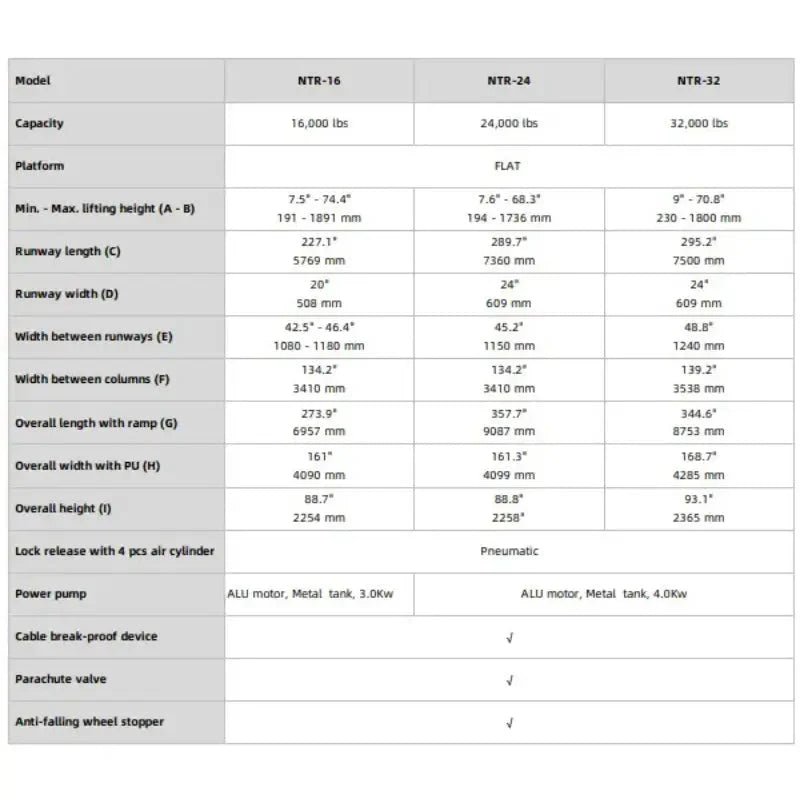

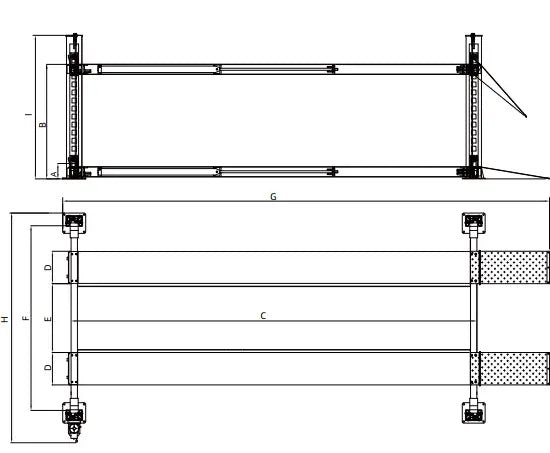

4 Post Lift NTR-32 Specifications

• Lifting Capacity: 32,000 lbs

• Overall Height: 93.1″

• Overall Length (Without Ramps): 305.5″

• Overall Length (With Ramps): 344.6″

• Overall Width: 168.7″ (base plate to base plate)

• Minimum Height: 9″

• Maximum Lifting Height: 70.8″

• Runway Length: 295.2″

• Runway Width: 24″

• Width Between Runways: 48.75″ – 52.7″

• Width Between Columns: 139.2″

• Lock Positions: 9

• Electrical Requirement: 220V, Single Phase

• Shipping Weight: 9,037 lbs

• Shipping Dimensions: 301″ × 30″ × 43″

NTR-32 32,000 lb 4 Post Car Lift Special Features:

• Industry-leading 32,000 lb lifting capacity for heavy-duty vehicles

• 9 locking positions for safe and adjustable lifting heights

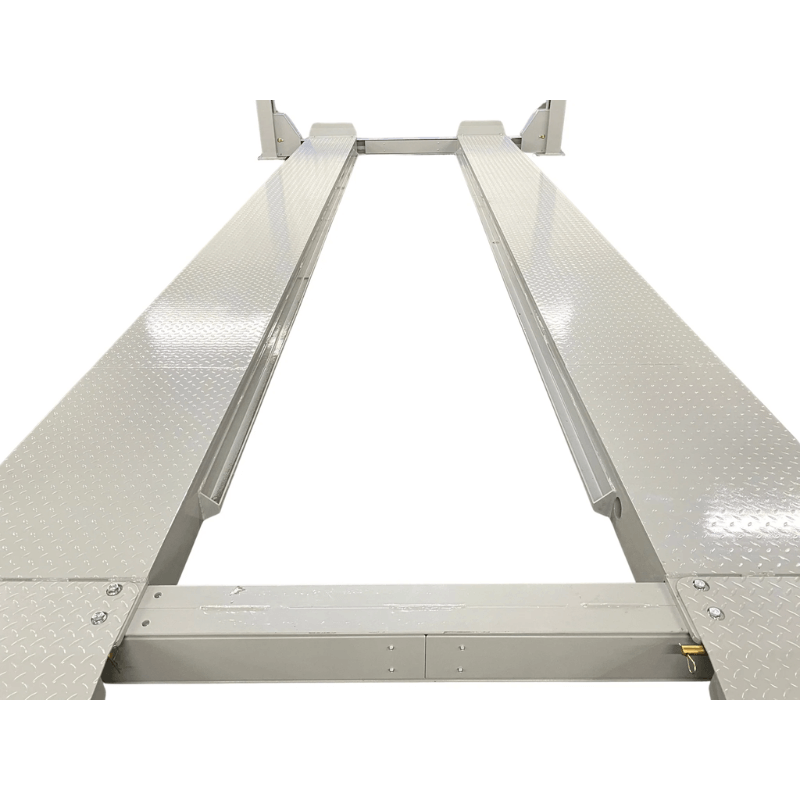

• Wide 24″ runways to accommodate large and oversized vehicles

• Adjustable runway spacing for flexible vehicle positioning

• High-strength steel construction for durability and long service life

• Ideal for buses, commercial trucks, and fleet vehicles

• Reliable 220V single-phase power for consistent performance

• Spacious, heavy-duty design for safe technician access

• Precision-engineered for smooth lifting, stability, and confidence

• Buy as a Combo Triumph NTR-32 + RJ-15000 Combo

NTR-32 Manual

No documents

Triumph NTR-32 Optional Item (Sold Separately)

• NTR-32 32,000 lb Four Post Auto Lift – combo with RJ’s

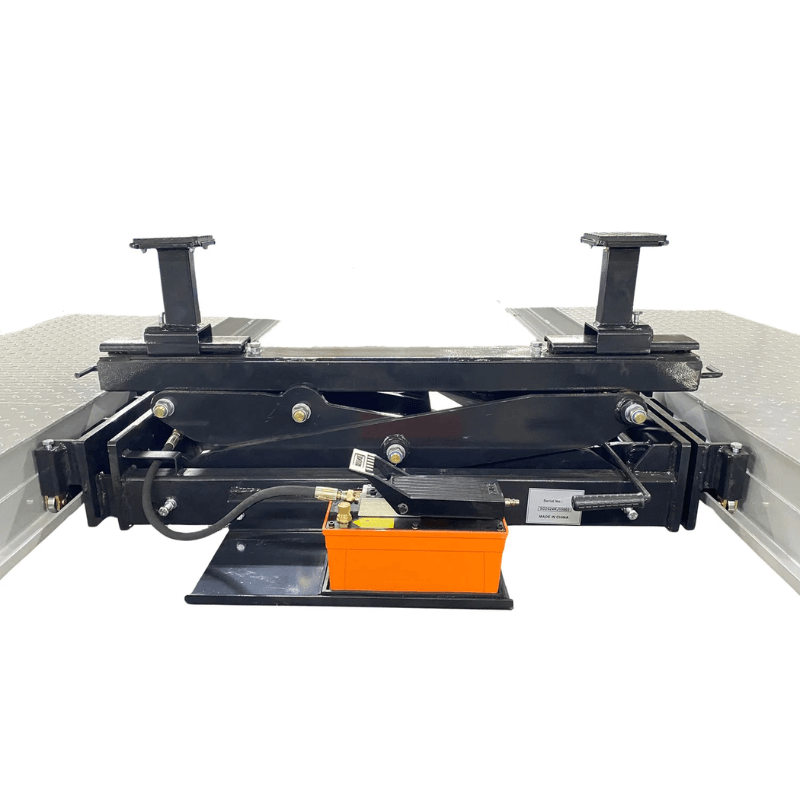

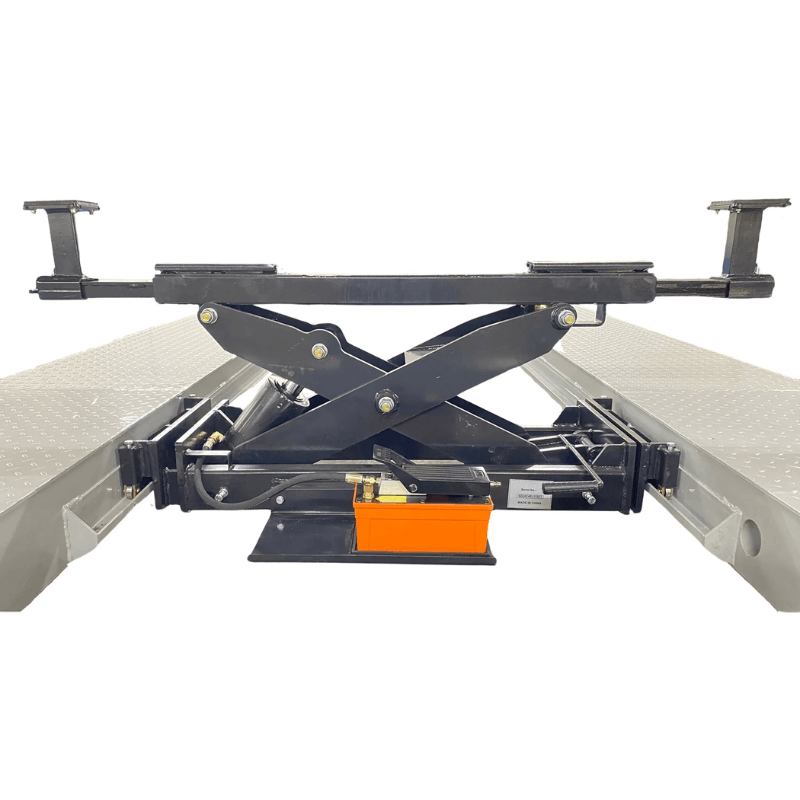

• RJ-15000 Rolling Bridge Jack

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
